msi MPG Series PC Case User Guide

Expansion Slots: 7 slots
Cooling Fan Support:
- Top: 3 x 120mm or 3 x 140mm
- Front: 3 x 120mm or 3 x 140mm or 2 x 160mm Pre-installed 2 x 160mm ARGB fans
- Rear: 1 x 120mm Pre-installed 1 x 120mm fan
- Side: 3 x 120mm
- Bottom: 2 x 120mm (on the PSU shroud), 1 x 120mm (on the bottom panel)
Drive Bays:
- 2.5 SSD: 5
- 3.5HDD: 2

I/O Ports and Buttons:
- USB Ports: 2 x USB 5Gbps Type-A, 1 x USB 20Gbps Type-C
- Audio Ports: 1 x Audio/Microphone combo jack (4-pole)
- Buttons: 1 x Power button, 1 x LED switch button

Chassis Clearances:
- - Maximum CPU Cooler Height: 165 mm
  - Maximum GPU Length: 400 mm (with factory-installed fans)
  - Top Radiator Support: 120 / 140 / 240 / 280 / 360 mm
Materials:
- - Metal Specification: SPCC 0.8 mm
  - Left Side Panel: 4mm tempered glass

Product Usage Instructions

Side Panel Removal

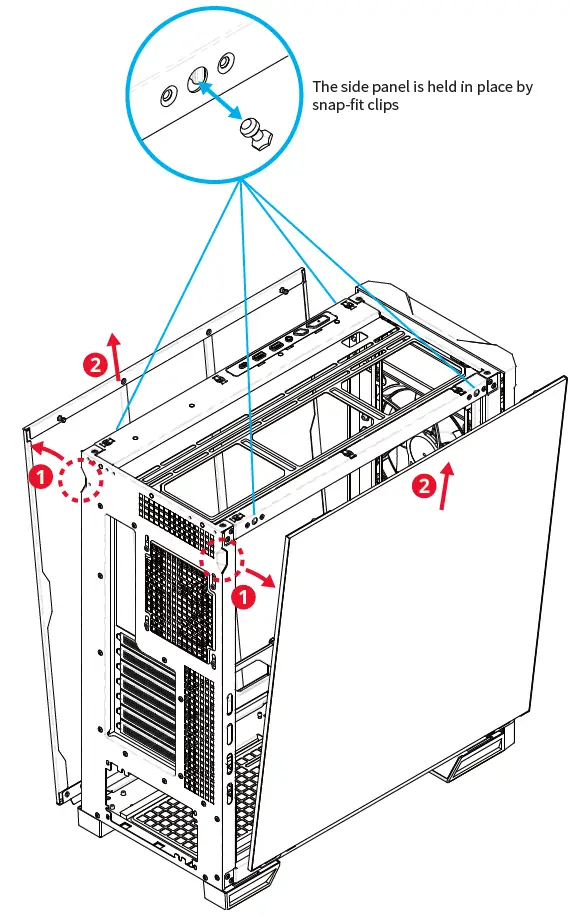

The side panel is held in place by snap-fit clips.

Top Panel Removal

Detailed instructions for top panel removal.

Motherboard Installation

Detailed steps for installing the motherboard correctly.

Graphics Card Installation

Guidelines for installing a graphics card in the case.

HDD & SSD Installation

Instructions for properly installing HDDs and SSDs in the case.

PSU Installation

Steps for correctly installing the power supply unit.

Panel I/O Connection

Detailed instructions on connecting the I/O panel to the motherboard.

Control Board Connection

Steps for connecting the control board components.

Important Notes

Fan speed detection is only available via the Fan1 header.
Always turn off the power supply and unplug the power cord before installing or removing the ARGB LED Strip.

Specifications

Basic Information

Cooling Fan Support

Drive Bays

I/O Ports and Buttons

Chassis Clearances

Materials

Accessories

Case Features

Side and Front View

I/O and Buttons

Side Panel Removal

Top Panel Removal

Front Bezel Removal

Motherboard Installation

Graphics Card Installation

GPU Holder Adjustment

HDD & SSD Installation (Right Side)

HDD & SSD Installation (Left Side)

PSU Installation

PSU Shroud Removal

Panel I/O Connection

Control Board Connection

IMPORTANT

Fan speed detection is only available via the Fan1 header.
Please always turn off the power supply and unplug the power cord from the power outlet before installing or removing the ARGB LED Strip.
Please ensure all cables are securely connected before powering on.

Each port can support a maximum of 64 ARGB LEDs, with a total of no more than 128 LEDS.
Exceeding these limits may cause ARGB LEDs to display abnormal colors, flicker, or be unable to change colors.

LED Switch Button Function

Single press: Toggle LED effects.

Long press (2s): Sync with the motherboard; press again (2s) to switch back to the controller.
Long press (6s): LEDs flash white three times, then turn off (remains off after reboot). Press again to restore the previous state.

LED Effect Sequence

After pressing the LED Switch button, the LED effect sequence is as follows:
