pengenalan
This manual provides detailed instructions for the safe and effective use of your Godox FT433C TTL Wireless Flash Trigger. Please read this manual thoroughly before use to ensure proper operation and to prevent damage to the product or injury to yourself or others. Keep this manual for future reference.
Apa yang ada dalam Kotak
Sahkan bahawa semua item terdapat dalam pakej anda:
- 1 x Wireless Flash Trigger (FT433C)
- 1 x Receiver (FR433)
- 1 x Manual Pengguna
- 1 x Sepasang Sarung Tangan
- 1 x Lens Brush
- 1 x Kain Pembersih
Image: The Godox FT433C Wireless Flash Trigger and its accompanying FR433 Receiver.
Persediaan
1. Pemasangan Bateri
The FT433C Wireless Flash Trigger requires two AA batteries (not included).
- Locate the battery compartment cover on the back of the trigger.
- Luncurkan penutup ke bawah untuk membuka.
- Masukkan dua bateri AA, pastikan kekutuban (+/-) betul.
- Tutup penutup petak bateri dengan selamat.

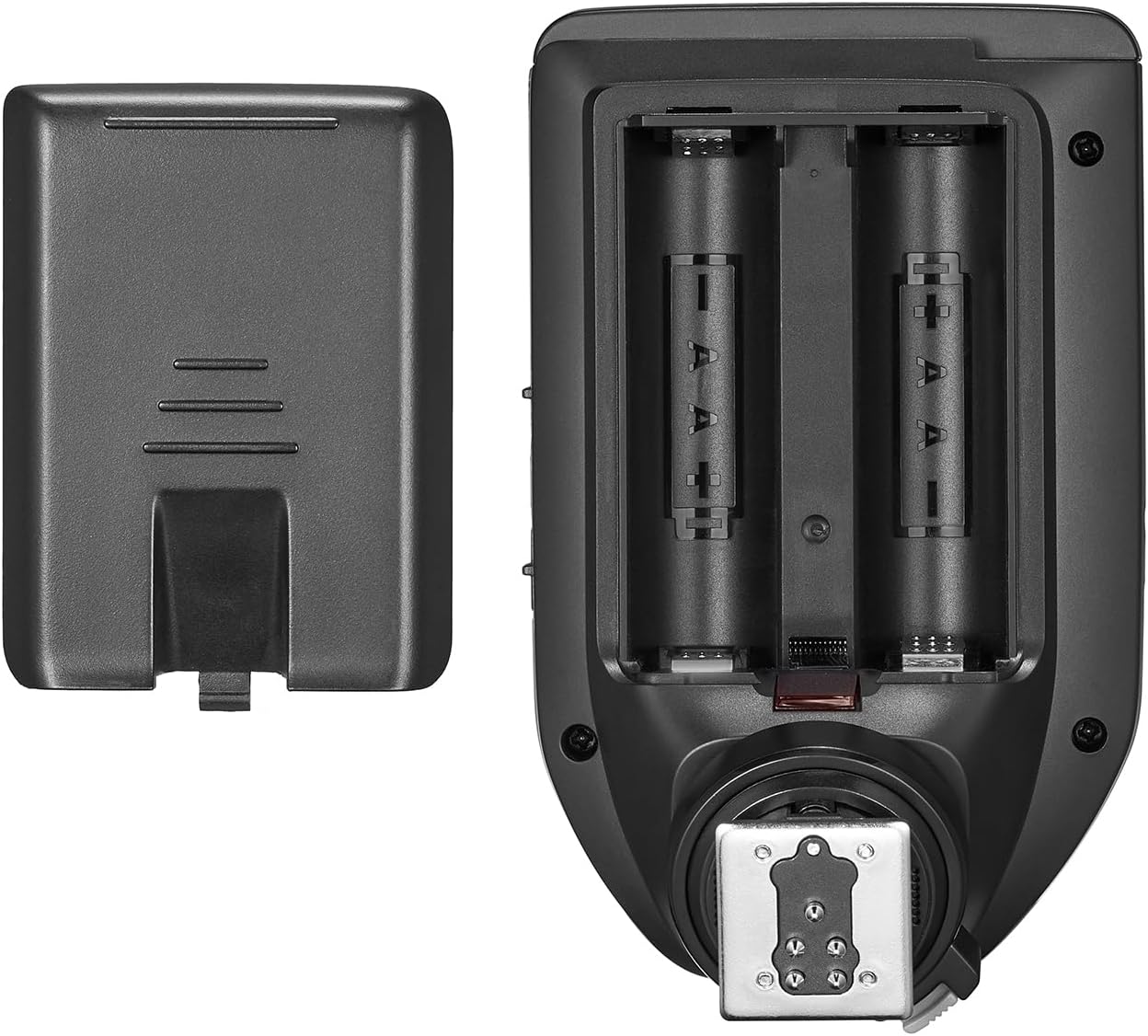

Imej: View of the open battery compartment on the Godox FT433C, showing slots for two AA batteries.
2. Attaching the Trigger to Your Camera
Slide the FT433C trigger onto your camera's hot shoe mount until it clicks into place. Secure it by tightening the locking mechanism if available.
3. Connecting the Receiver to a Flash Unit
The FR433 Receiver connects to compatible flash units. Insert the receiver into the flash unit's sync port or hot shoe, depending on the flash model.
Arahan Operasi
1. Hidupkan/Mati Kuasa
Press and hold the power button on the FT433C trigger to turn it on or off. The LCD screen will illuminate upon power-on.
2. Kawalan Asas dan Paparan
The FT433C features a large LCD panel for clear display of settings, along with various buttons for navigation and adjustment:
- Group Buttons (GR): Select flash groups (A, B, C, D, E).
- Butang Fungsi: Access specific settings displayed on the LCD.
- Dial/Set Button: Navigasi menu dan sahkan pilihan.
- Butang SYNC: Adjust sync modes.
- Butang ZOOM: Adjust flash zoom settings.
- Butang MOD: Switch between TTL, Manual, and Multi-flash modes.

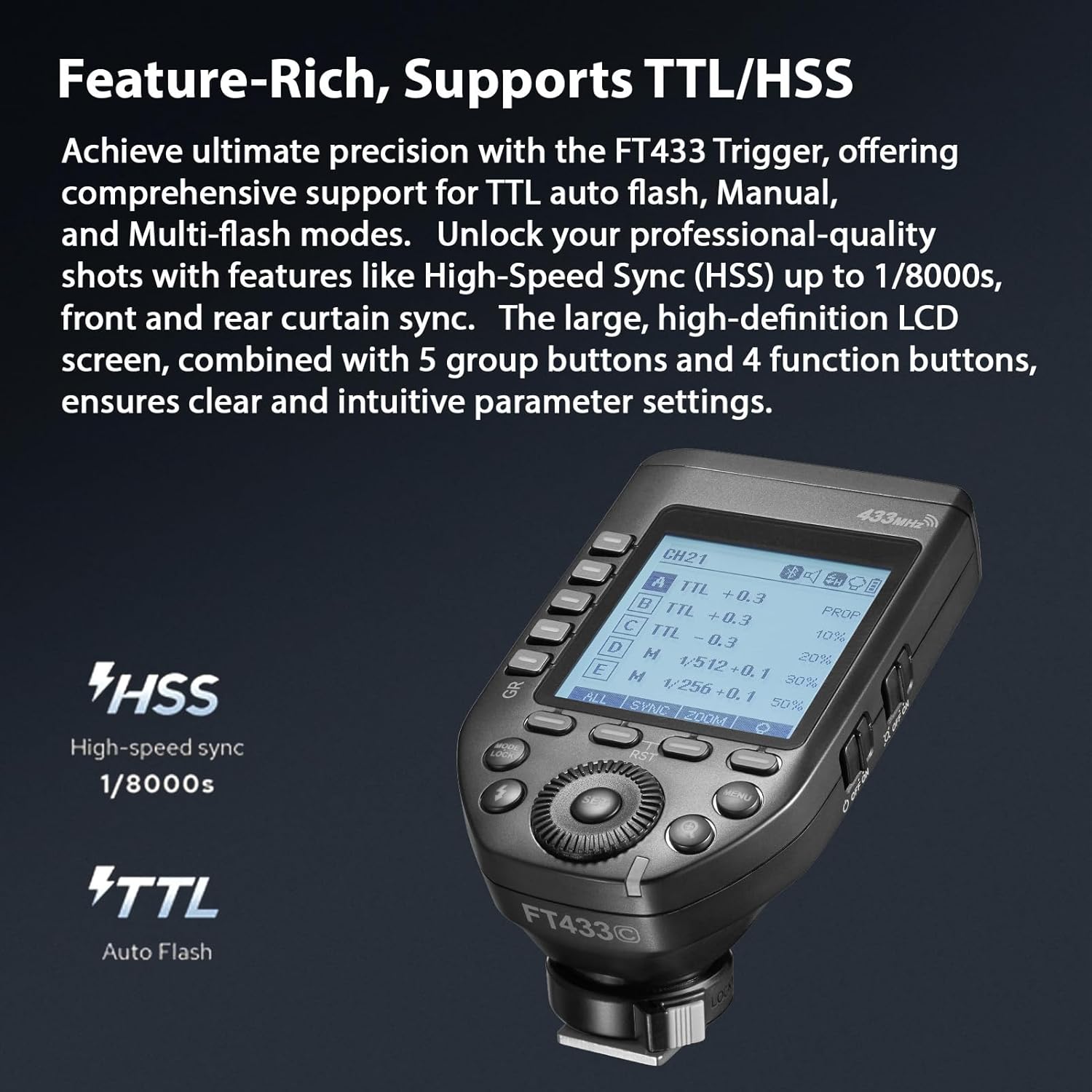

Image: The Godox FT433C's LCD screen displaying settings for High-Speed Sync (HSS) and TTL Auto Flash modes.
3. Flash Modes (TTL, Manual, Multi-flash)
Tekan ke MODE button to cycle through the available flash modes:
- TTL Auto Flash: Melaraskan output denyar secara automatik untuk pendedahan yang betul.
- Flash Manual: Membenarkan kawalan manual ke atas output kuasa denyar.
- Multi-flash: Menembakkan beberapa siri kilatan pantas untuk kesan stroboskopik.
4. Penyegerakan Berkelajuan Tinggi (HSS)
The FT433C supports High-Speed Sync up to 1/8000s, allowing you to use flash with fast shutter speeds. This feature is automatically enabled or can be selected via the SYNC button, depending on camera and flash compatibility.
5. Pampasan Pendedahan Denyar (FEC)
Adjust flash exposure compensation from ±3 EV in 1/3 EV increments to fine-tune flash brightness.
6. Zoom Setting
The trigger supports Auto/24-200mm zoom settings, which can be adjusted via the ZOOM button.
7. Wireless Control (433MHz, Groups, Channels, ID)
The FT433C operates on a 433MHz frequency for stable wireless communication. It supports 5 or 16 groups and 32 channels. Use the 1-99 wireless ID settings to prevent interference from other systems.
Image: The Godox FT433C trigger on a camera wirelessly communicating with an FR433 receiver attached to a Godox AD200Pro II flash unit.
8. APP Flexible Control
Control the FT433C trigger wirelessly using the Godox Flash app on your smartphone (iOS or Android). This allows remote adjustment of flash mode, power levels, modeling lamp, and beeper settings.

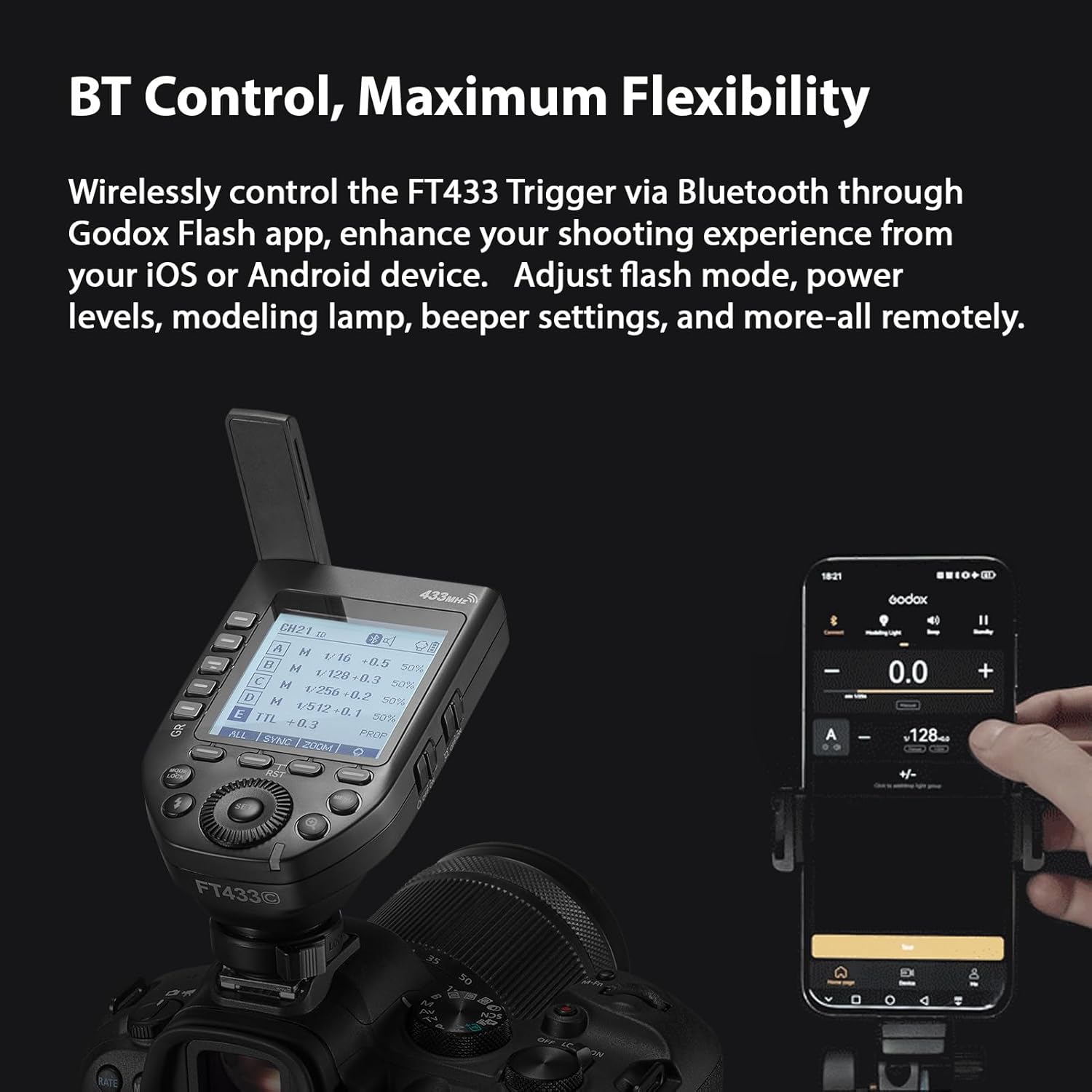

Image: A smartphone displaying the Godox Flash app interface, used to wirelessly control the FT433C trigger mounted on a camera.
9. TCM Switch (TTL to Manual Conversion)
The TCM function allows a one-click conversion from TTL mode parameters to Manual settings. This streamlines workflow by automatically transferring TTL output values to manual power levels, eliminating repetitive manual adjustments.
Image: The Godox FT433C's LCD screen showing the TCM (TTL to Manual) function in action, converting TTL settings to manual power levels.
10. Single-Contact, Rapid-Fire
The single-contact mode of the FT433C ensures faster continuous shooting by minimizing data exchange between the trigger and camera. This mode is ideal for rapid-fire photography scenarios.
Image: The Godox FT433C trigger mounted on a camera, illustrating its single-contact design for rapid-fire photography.
Penyelenggaraan
- Pastikan peranti kering. Jangan kendalikan dengan tangan basah atau rendam dalam air.
- Use a soft, dry cloth to clean the unit. Avoid harsh chemicals or abrasive cleaners.
- Tanggalkan bateri jika peranti tidak akan digunakan untuk tempoh yang lama.
- Simpan di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
- Peningkatan Firmware: The device supports firmware upgrades through its USB-C port. Visit the official Godox weblaman web untuk perisian tegar dan arahan terkini.
Menyelesaikan masalah
1. Signal Stability
The FT433C utilizes the 433MHz frequency band to ensure signal stability. If you experience signal issues, ensure:
- The trigger and receiver are within the effective transmission range (approx. 0-100M).
- There are no major obstructions between the trigger and receiver.
- Wireless ID settings are correctly configured to avoid interference.
Image: Two photographers using Godox flash triggers and lighting equipment in a studio, demonstrating the use of wireless flash control for stable signal transmission.
2. Flash Not Firing
- Check if the trigger and receiver are powered on and have sufficient battery.
- Ensure the trigger is securely mounted on the camera's hot shoe.
- Verify that the receiver is properly connected to the flash unit.
- Confirm that the channel and group settings on both the trigger and receiver match.
- Check camera compatibility. The FT433C is compatible with Canon R8, R6, R5, R3, R, M6, 850D, 800D/T7i, 760D/T6s, 750D/T6i, 650D, 600D, 7D Mark II, 7D, 6D Mark II, 6D, 5D Mark IV/III/II, 1D Mark III, 1DX, 550D, 500D, 450D, 90D, 80D, 70D, 60D, 50D, 1100D, 77D, SL3/250D, T7/1500D, 2000D, T100/3000D, 4000D. Note: Not compatible with Canon RP R50.
Spesifikasi
| Nama Item | Pencetus Denyar Tanpa Wayar |
| Model | Godox FT433C |
| Model Kamera yang Serasi | Canon R8, R6, R5, R3, R, M6, 850D, 800D/T7i, 760D/T6s, 750D/T6i, 650D, 600D, 7D Mark II, 7D, 6D Mark II, 6D, 5D Mark IV/III/II, 1D Mark III, 1DX, 550D, 500D, 450D, 90D, 80D, 70D, 60D, 50D, 1100D, 77D, SL3/250D, T7/1500D, 2000D, T100/3000D, 4000D (Not compatible with Canon RP R50) |
| Pencetus Segerak | Supports cameras with PC sync socket |
| Bekalan Kuasa | 2 x bateri AA (tidak termasuk) |
| Pampasan Pendedahan Denyar | ± 3EV, adjustable in 1/3 EV increment |
| Bantuan Fokus | Yes (if available on camera) |
| Tetapan Zum | Auto/ 24-200mm |
| Peningkatan Perisian Tegar | Via USB-C port |
| Fungsi Memori | Settings stored 2 seconds after last operation, recovered after restart |
| Paparan | Panel LCD besar, lampu latar HIDUP atau MATI |
| Julat Penghantaran | Approx. 0-100M |
| Wayarles Terbina dalam | 433MHz |
| Mod Modulasi | GFSK |
| Saluran | 32 |
| ID Tanpa Wayar | OFF/ 1-99 |
| Kumpulan | 5 groups or 16 groups |
| Berat Bersih | 97g |
| Dimensi Pakej | 5.51 x 4.72 x 2.36 inci |
| Berat Barang | 9.9 auns |
Waranti dan Sokongan
Untuk maklumat jaminan dan sokongan teknikal, sila rujuk kad jaminan yang disertakan dengan produk anda atau lawati laman web rasmi Godox. webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk tuntutan waranti.
