Zelotes Wireless Trackball Mouse User Manual

1. Pengenalan

Thank you for choosing the Zelotes Wireless Trackball Mouse. This ergonomic device is designed to provide comfort and efficiency for various computing tasks, reducing wrist and arm strain. It offers versatile connectivity options, including 2.4 GHz wireless and Bluetooth, allowing seamless switching between up to three devices. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure you get the most out of your new trackball mouse.

Image: The Zelotes F33 Wireless Trackball Mouse, showcasing its ergonomic design and trackball.

2. Ciri-ciri Produk

• Reka bentuk ergonomik: Utilizes a trackball for cursor movement, minimizing wrist and arm motion. Features an innovative adjustable angle (0° to 18°) with a removable aluminum alloy base for natural palm positioning and reduced fatigue during prolonged use.

Image: A hand resting comfortably on the trackball mouse, illustrating how it helps free the wrist and arm from strain.

Image: The trackball mouse demonstrating its adjustable angles (0° and 18°) for personalized comfort.
• Kesambungan Berbilang Mod: Supports both 2.4 GHz USB wireless and Bluetooth connections. Connects simultaneously to three devices (one via USB, two via Bluetooth) and allows seamless switching between them.

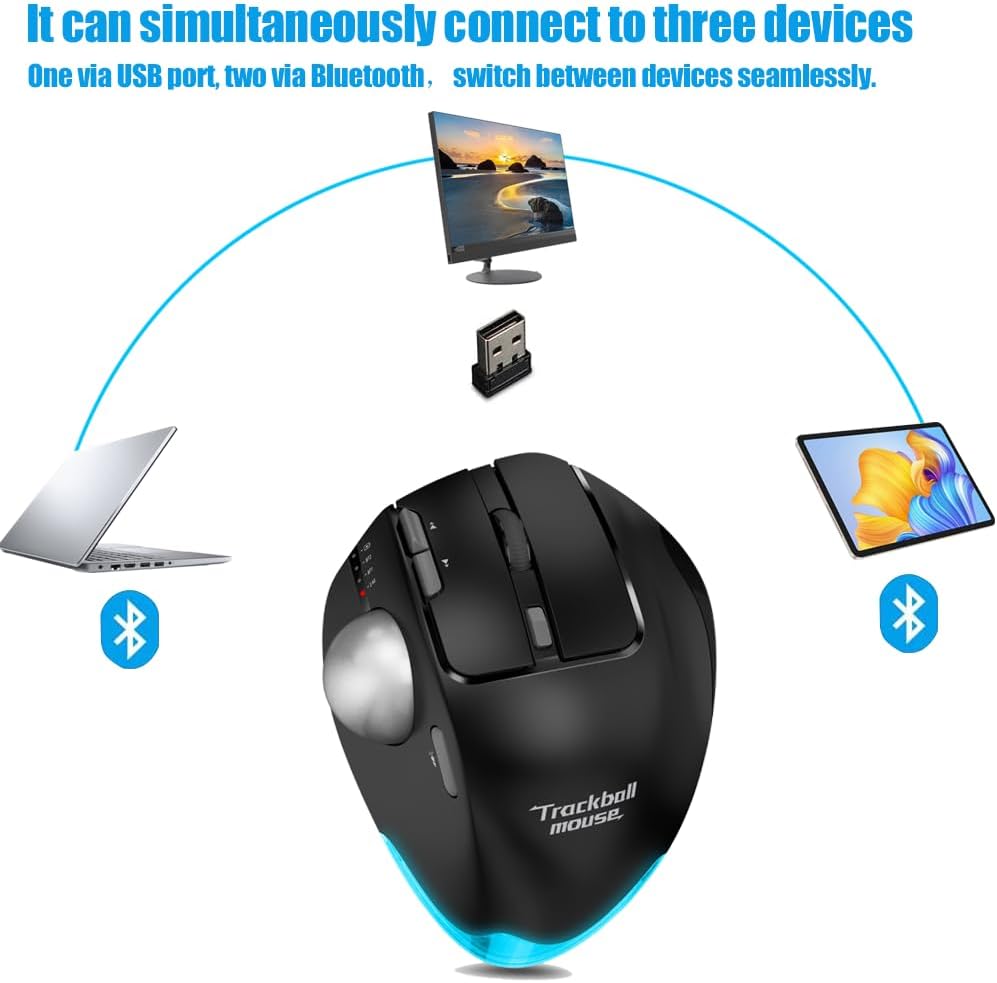

Image: Diagram showing the trackball mouse simultaneously connected to a laptop (Bluetooth), desktop (USB), and tablet (Bluetooth).

• Bateri Boleh Dicas Semula Terbina dalam: Equipped with a 730mAh rechargeable Lithium-ion battery and includes a USB charging cable. The mouse can be used while charging.

Image: The trackball mouse being charged via a USB cable, with an indicator showing its 730mAh battery capacity.
• DPI boleh laras: Offers 5 adjustable DPI settings: 800, 1200, 1600, 2400, and 4800 DPI, allowing you to customize cursor sensitivity to your preference.
• 8 Butang Boleh Aturcara: Includes standard left/right click, scroll wheel, and dedicated forward/back side buttons for enhanced navigation and file pengurusan.
• Pencahayaan LED: Features vibrant LED lighting with 16.8 million color options, which can be turned off if desired.


Image: The trackball mouse displaying its customizable LED lighting in various colors.

3. Kandungan Pakej

Sila semak pakej untuk item berikut:

• Zelotes Wireless Trackball Mouse (F33)
• USB Receiver (stored in the mouse's battery compartment)
• Kabel Pengecas USB
• Manual Pengguna (dokumen ini)

4. Persediaan

4.1 Pengecasan Awal

For optimal performance, fully charge the mouse before first use.

1. Connect the provided USB charging cable to the charging port on the front of the mouse.
2. Sambungkan hujung kabel USB yang satu lagi ke sumber kuasa USB (cth, port USB komputer, penyesuai dinding USB).
3. The charging indicator light will illuminate. Once fully charged, the light may change color or turn off (refer to mouse indicators for specific behavior).

4.2 Sambungan Tanpa Wayar 2.4 GHz

This mode uses the included USB receiver for a stable wireless connection.

1. Locate the USB receiver, usually stored in a slot on the bottom of the mouse.
2. Palamkan penerima USB ke dalam port USB yang tersedia pada komputer anda.
3. Hidupkan tetikus menggunakan suis kuasa di bahagian bawah.
4. Switch the mouse to 2.4G mode (indicated by a specific light or switch position, refer to mouse markings). The mouse should automatically connect to your computer.

4.3 Sambungan Bluetooth (BT1 / BT2)

The mouse supports two independent Bluetooth connections.

1. Hidupkan tetikus.
2. Switch the mouse to either BT1 or BT2 mode using the mode switch on the mouse. The corresponding indicator light will blink, indicating pairing mode.
3. On your device (PC, tablet, smartphone), go to Bluetooth settings and search for new devices.
4. Select "Zelotes F33" (or similar name) from the list of available devices to pair.
5. Once paired, the indicator light will become solid. Repeat for a second Bluetooth device using the other BT mode (BT2 if you used BT1 first).

4.4 Bertukar Antara Peranti

To switch between connected devices (2.4G, BT1, BT2), simply use the mode switch button on the mouse. The mouse will seamlessly transition control to the selected device.

5. Arahan Operasi

5.1 Pelarasan DPI

The mouse features a dedicated DPI button to cycle through sensitivity settings.

• Press the DPI button (usually located near the scroll wheel or trackball) to change the cursor speed.
• The available DPI settings are 800, 1200, 1600, 2400, and 4800.
• Observe the indicator lights or on-screen feedback (if supported by your OS) to confirm the current DPI setting.

5.2 Fungsi Butang

The Zelotes F33 mouse has 8 buttons with default functions:

• Klik Kiri: Standard selection.
• Klik kanan: Menu konteks.
• Roda Tatal: Vertical scrolling; press for middle click.
• Butang Ke Hadapan/Ke Belakang: Navigasi web halaman atau folder.
• Butang DPI: Adjust cursor sensitivity.
• Butang Suis Mod: Switch between 2.4G, BT1, and BT2 modes.
• Bola jejak: Move the cursor by rotating the trackball with your thumb.

Note: Some buttons may be programmable via software (not included) for custom functions depending on your operating system.

5.3 Ergonomic Angle Adjustment

The mouse comes with a removable aluminum alloy base that allows you to adjust its angle for improved comfort.

1. Gently detach the base from the bottom of the mouse.
2. Reattach the base in the desired orientation to achieve either a 0° (flat) or 18° (tilted) angle.
3. Ensure the base is securely attached before use.

6. Penyelenggaraan

6.1 Trackball Cleaning Guide

Regular cleaning of the trackball ensures smooth and precise cursor movement.

1. Langkah 1: The trackball can be pushed out from the trackball socket at the bottom of the mouse.
2. Langkah 2: Remove the trackball and gently clean the trackball socket with a cotton cloth.
3. Langkah 3: Place the trackball back into the mouse to complete the cleaning process.

Image: A visual guide demonstrating the three steps to disassemble and clean the trackball for smoother operation.

Image: The trackball separated from the mouse, showing the socket for cleaning.

* If the surface of the trackball needs cleaning, gently wipe it with water and allow it to air dry. Avoid using chemical agents.

6.2 Pembersihan Am

Wipe the exterior of the mouse with a soft, dry, or slightly damp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.

6.3 Penjagaan Bateri

To prolong battery life, avoid fully discharging the mouse frequently. Charge it when the low battery indicator appears.

7. Penyelesaian masalah

8. Spesifikasi

9. Waranti dan Sokongan

Zelotes products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Zelotes webtapak. Sila simpan bukti pembelian anda untuk tuntutan waranti.
