1. Pengenalan
This manual provides detailed instructions for the setup, operation, and maintenance of your NIIMBOT D11 Portable Bluetooth Thermal Label Printer. Please read this manual thoroughly before using the device to ensure proper function and longevity.
Image: The NIIMBOT D11 Label Maker, a compact and portable thermal printer.
2. Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej:
- 1 × NIIMBOT D11 Label Maker
- 1 × Kabel USB
- 1 × Roll of 0.6×1.6 inch (160 pcs) label tape (pre-installed inside the machine)
- 1 × Manual Pengguna

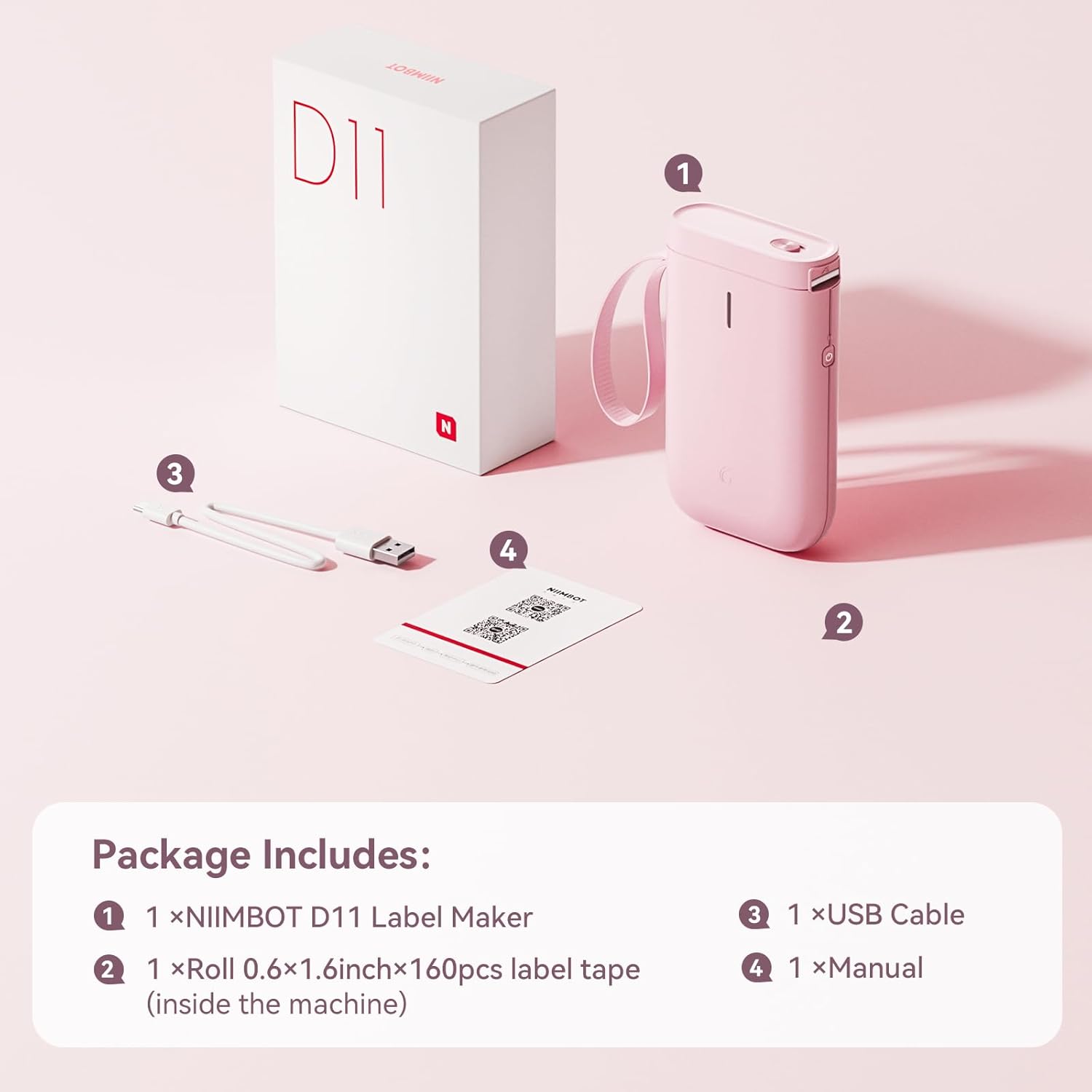

Image: Visual representation of the NIIMBOT D11 Label Maker package contents, including the device, USB cable, label roll, and manual.
3. Persediaan
3.1 Mengecas Peranti
Before first use, fully charge the NIIMBOT D11 Label Maker using the provided USB cable. Connect the USB cable to the charging port on the device and a compatible USB power source. The LED indicator will show charging status. A full charge may take several hours.
3.2 Memuatkan Kertas Label
- Locate the paper cover switch on the top of the device.
- Slide the switch to open the paper cover.
- Ensure the label roll is inserted correctly. The tip of the label tape should face towards the power button.
- Tutup penutup kertas dengan selamat.
- Press and hold the power button for 0.5 seconds to allow the machine to automatically align the label paper.

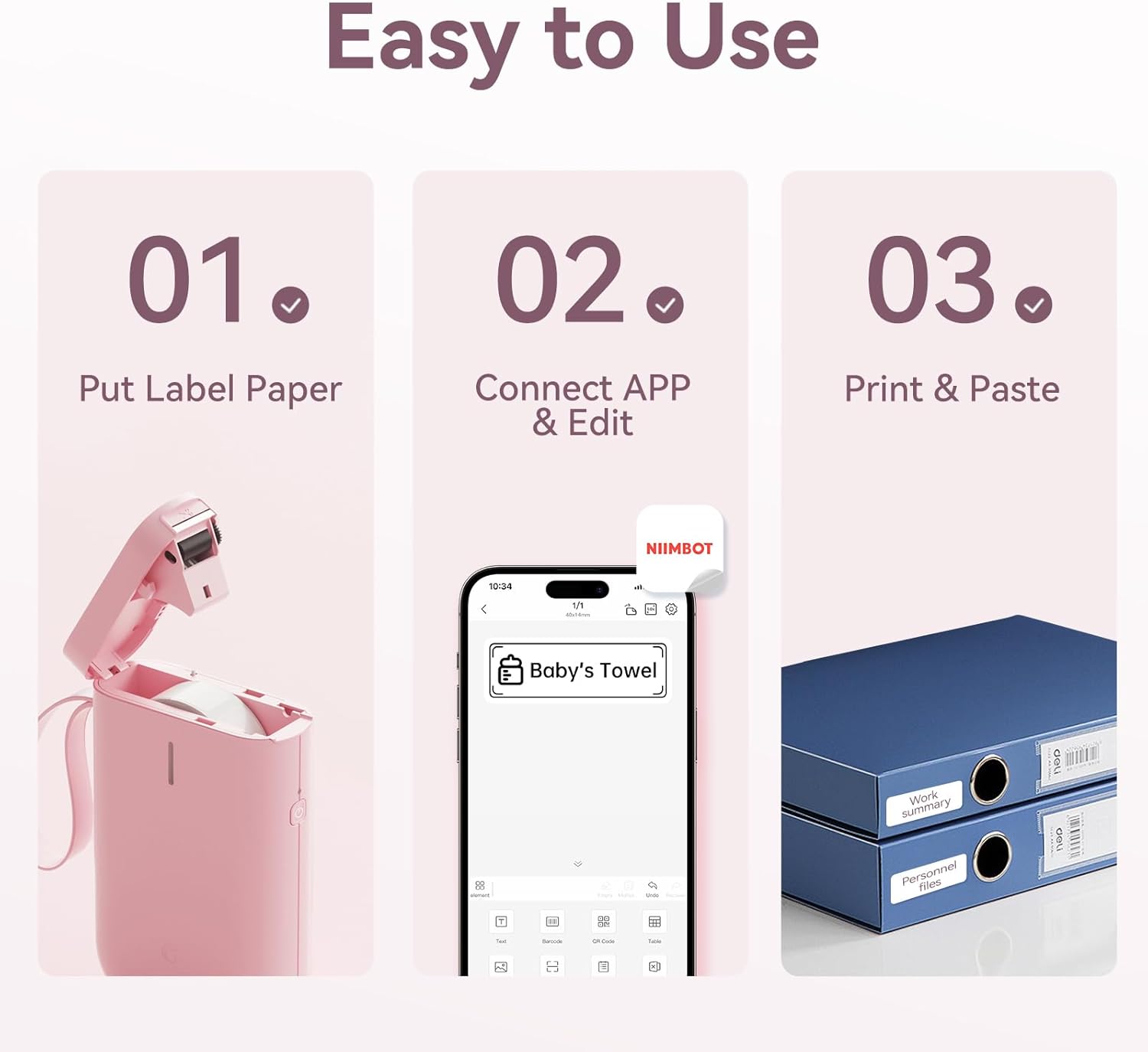

Image: Visual guide showing the three steps to load label paper, connect to the app, and print/paste labels.
Video: Detailed operation guide for the D11 Label Maker, including paper loading and basic functions.
3.3 Muat Turun dan Pemasangan Apl
The NIIMBOT D11 operates via the NIIMBOT mobile application. Download the app from your device's app store:
- For iOS devices: Search "NIIMBOT" in the Apple App Store.
- For Android devices: Search "NIIMBOT" in the Google Play Store.
Pasang aplikasi pada telefon pintar anda.
3.4 Pairing with Your Mobile Device
- Turn on the NIIMBOT D11 Label Maker by pressing the power button for 3 seconds. The blue light will flash.
- Dayakan Bluetooth pada peranti mudah alih anda.
- Open the NIIMBOT application.
- In the app, search for nearby devices and select "D11" from the list to connect.
- Once connected, the app will automatically identify the label paper template.
4. Arahan Operasi
4.1 Mencipta Label
The NIIMBOT app offers various features for label creation:
- teks: Enter custom text, adjust font, size, and style.
- ikon: Choose from a library of icons to enhance your labels.
- Kod Bar/Kod QR: Generate and print barcodes or QR codes for product identification or information.
- templat: Utilize pre-designed templates for common labeling needs (e.g., home organization, price tags).
- Imej: Insert simple images onto your labels.

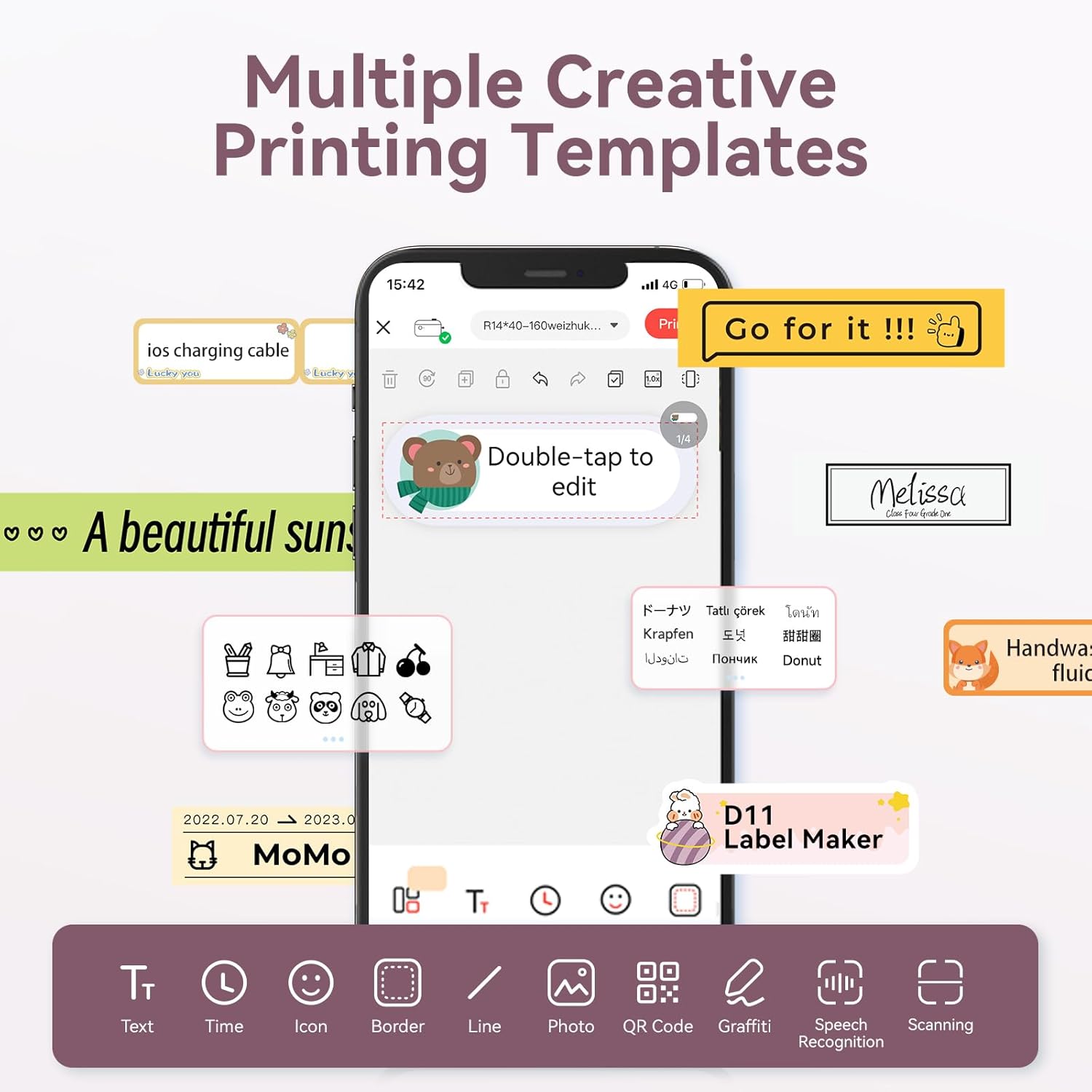

Image: The NIIMBOT app interface displaying various creative templates and editing options for labels.
4.2 Label Percetakan
Selepas mereka bentuk label anda dalam aplikasi:
- Review the label preview dalam apl.
- Adjust the number of copies and print density as needed.
- Click the "Print" button in the app. The label maker will print the labels.
- Gently tear off the printed labels from the machine.
Video: A demonstration of the D11 Label Maker in various scene applications, showcasing its ease of use and versatility.
Video: Tamatview of the D Series Label Maker with tape, highlighting its features and applications.
5. Aplikasi
The NIIMBOT D11 Label Maker is versatile and suitable for various labeling needs:
- Organisasi Rumah: Labeling containers, storage bins, pantry items, and personal belongings.
- Office & School: Menganjur files, documents, stationery, and school supplies.
- Perniagaan Kecil: Creating price tags, product labels, and inventory identification.
- Specialty Labels: Cable identification, jewelry tags, and food date marking.
Image: Collage showing labels used for home organization (medicine box), office files, business products (sweater with barcode), and school items (notebook).
Imej: Cthamples of labels demonstrating features like waterproof properties, food date marking, data cable organization, and personal item identification.
6. Penyelenggaraan
6.1 Pembersihan
To maintain optimal printing quality, regularly clean the print head. Use a soft, lint-free cloth lightly dampened with isopropyl alcohol. Gently wipe the print head. Ensure the device is powered off before cleaning.
6.2 Penyimpanan
Store the label maker in a cool, dry place away from direct sunlight and extreme temperatures. Remove any label rolls if storing for extended periods.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Peranti tidak dihidupkan | Bateri lemah | Cas peranti sepenuhnya. |
| Tidak dapat menyambung melalui Bluetooth | Bluetooth is off on phone; device not discoverable | Ensure phone's Bluetooth is on. Restart both device and phone. Re-pair in the app. |
| Kualiti cetakan buruk | Dirty print head; incorrect label roll insertion; low print density setting | Clean the print head. Re-insert label roll correctly. Increase print density in app. |
| Label tidak memberi makan dengan betul | Label roll jammed or incorrectly inserted | Open cover, check for jams, re-insert label roll, and perform auto-alignment. |
8. Spesifikasi
- Nama Model: D11
- Teknologi Percetakan: terma
- Ketersambungan: Bluetooth
- Kelajuan Cetakan Maksimum (Monokrom): 20 ppm
- Resolusi Cetakan Hitam dan Putih Maksimum: 203 dpi
- Bateri: 1 bateri Litium Ion (1200mAh)
- Dimensi Produk: 4.2 x 2.9 x 1.2 inci
- Berat Barang: 12.6 auns
- Peranti Serasi: Smartphones (iPhone, iOS & Android)
- Kaedah Kawalan: Apl
- Ciri Khas: Portable, Easy to Use, Clear Printing, Rechargeable
- Saiz Media Maks: Lebih kecil daripada A3
- Sheet Size Options: 0.47''X1.57'', 0.55''x1.18'', 0.55''X1.57'', 0.47''X1.18'', 0.59''X1.18'' Inches
9. Waranti dan Sokongan
For warranty information and customer support, please refer to the official NIIMBOT website or contact their customer service directly. The user manual included in your package may also contain specific warranty details and contact information.
Untuk sumber tambahan dan maklumat produk, lawati laman web Kedai NIIMBOT di Amazon.
