Jocca Multifunction Food Processor Model 2145 User Manual

1. Pengenalan

Thank you for choosing the Jocca Multifunction Food Processor Model 2145. This appliance is designed to simplify your cooking process with its versatile functions and integrated programs. Please read this manual carefully before first use to ensure safe and optimal operation. Keep this manual for future reference.

Langkah-langkah Keselamatan

• Sentiasa pastikan perkakas telah dicabut daripada plag elektrik sebelum memasang, membuka atau membersihkan.
• Jangan rendam tapak motor di dalam air atau sebarang cecair lain.
• Jauhkan tangan dan perkakas daripada menggerakkan bilah semasa operasi.
• Ensure all parts are correctly assembled before operating the appliance.
• Perkakas ini adalah untuk kegunaan rumah sahaja.

2. Komponen Produk

Familiarize yourself with the various parts of your Jocca Multifunction Food Processor.

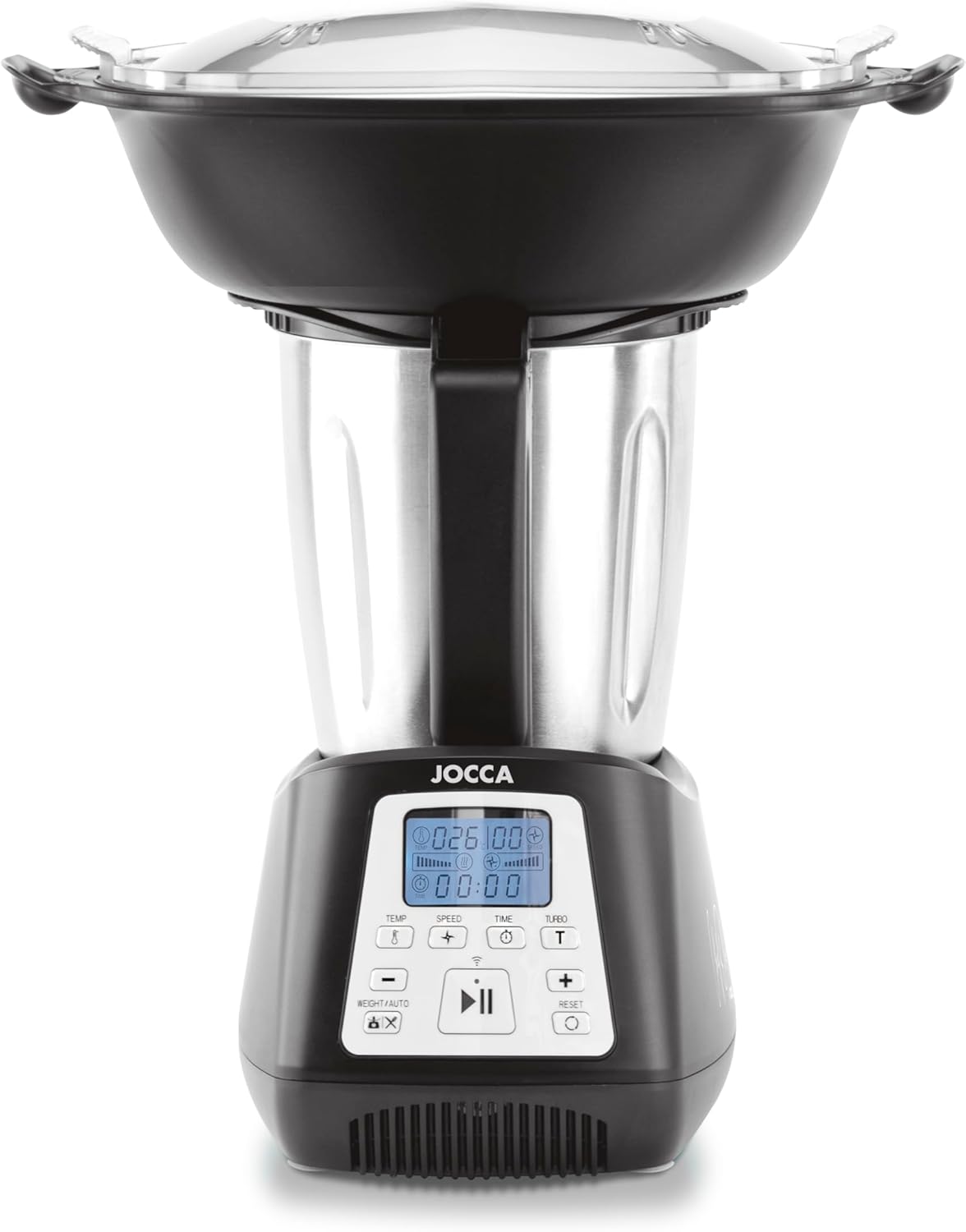

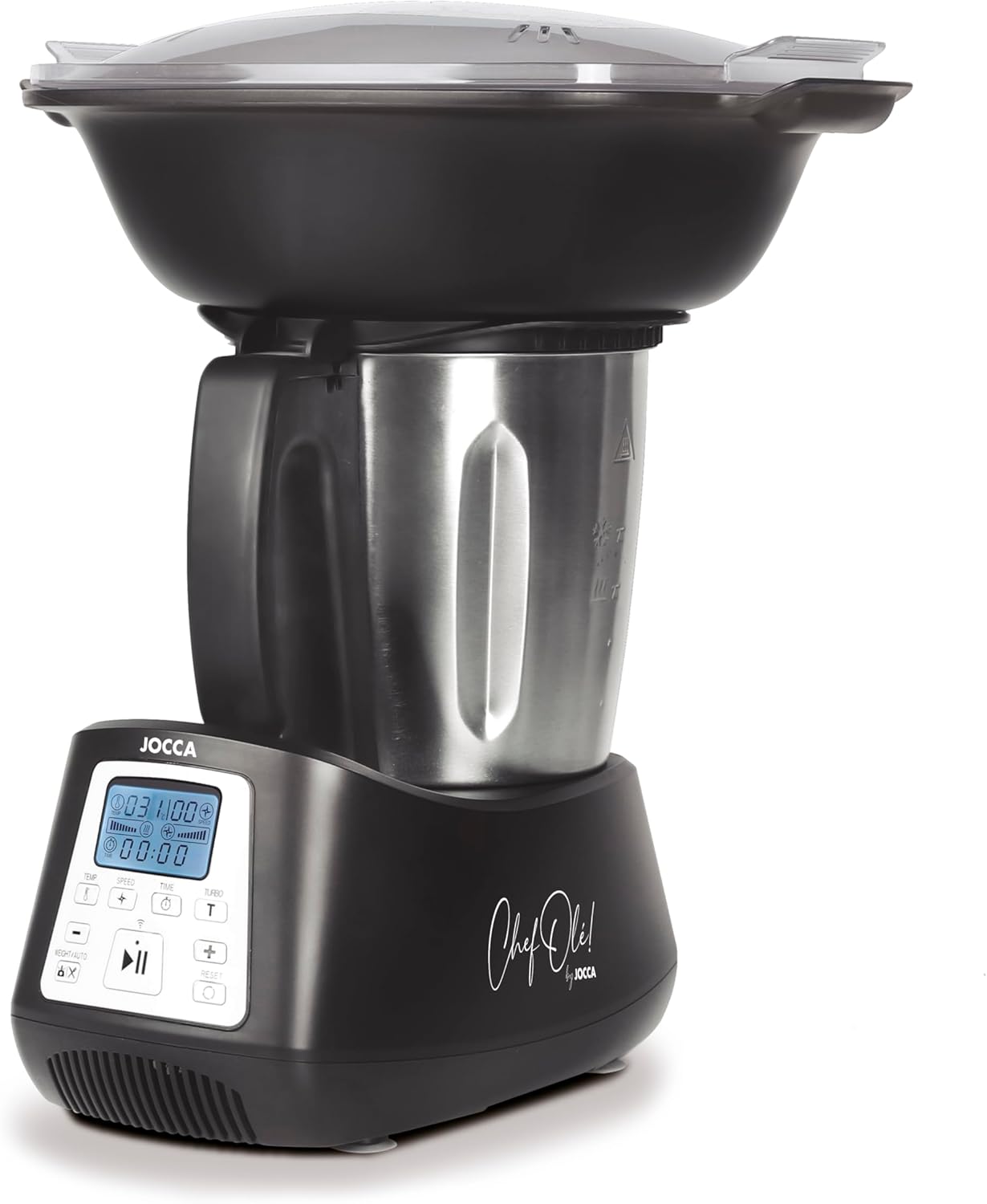

Imej 2.1: Depan view of the Jocca Multifunction Food Processor. This image displays the main unit with the stainless steel mixing bowl, the control panel, and the steaming basket assembly on top.

Bahagian Utama:

• Pangkalan Motor: Contains the motor, control panel, and integrated scale.
• Mangkuk Pengadun Keluli Tahan Karat: 3.5-liter capacity for processing ingredients.
• Lid for Mixing Bowl: Mengekalkan mangkuk semasa operasi.
• Bakul mengukus: For steaming ingredients inside the mixing bowl.
• Steaming Tray (2 levels): Allows for multi-level steaming.
• Steaming Lid: Covers the steaming trays.

Aksesori:

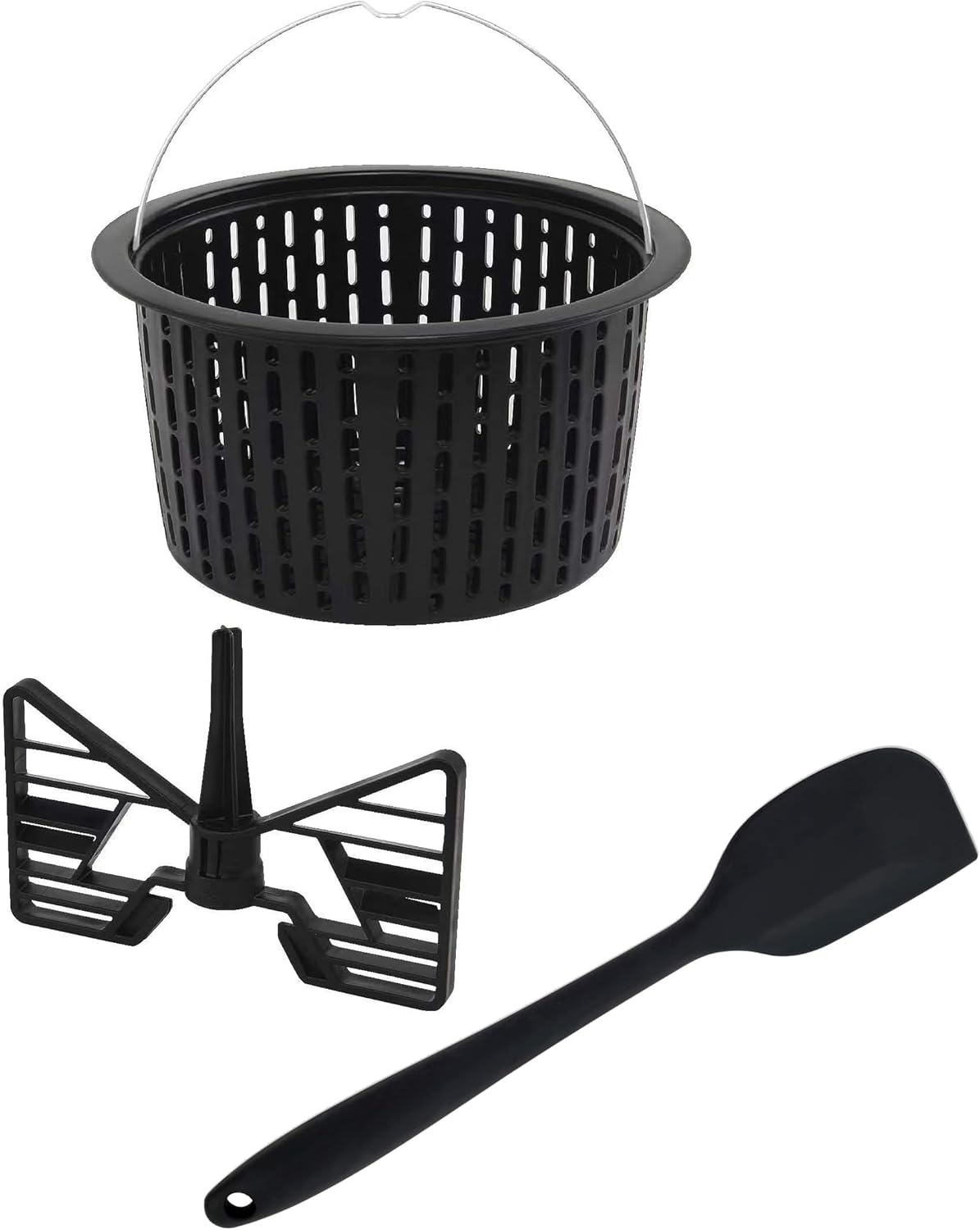

Imej 2.2: Included accessories: a basket, a mixing paddle, and a spatula. These tools assist in various food preparation tasks.

• Pisau memotong: For chopping, grinding, and crushing.
• Pencampuran dayung: Untuk pencampuran dan kacau perlahan-lahan.
• Spatula: For scraping and stirring ingredients.
• Cawan penyukat: Integrated into the lid.

3. Persediaan dan Penggunaan Pertama

Membongkar dan Pembersihan Awal:

1. Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
2. Wash the mixing bowl, lid, steaming baskets, mixing paddle, chopping blade, and spatula in warm soapy water. Rinse thoroughly and dry.
3. Lap tapak motor dengan iklanamp kain. Jangan rendam tapak motor di dalam air.

Perhimpunan:

1. Letakkan tapak motor di atas permukaan yang stabil, rata dan kering.
2. Insert the chopping blade or mixing paddle into the bottom of the mixing bowl, ensuring it is securely seated.
3. Place the mixing bowl onto the motor base, aligning it correctly until it clicks into place.
4. Secure the lid onto the mixing bowl. For steaming, place the steaming basket(s) and lid on top of the mixing bowl.

4. Arahan Operasi

The Jocca Food Processor offers 12 functions and 10 integrated programs to assist with various culinary tasks.

Imej 4.1: Close-up of the control panel, showing the digital display for temperature, speed, and time, along with various function buttons.

Panel Kawalan Terlaluview:

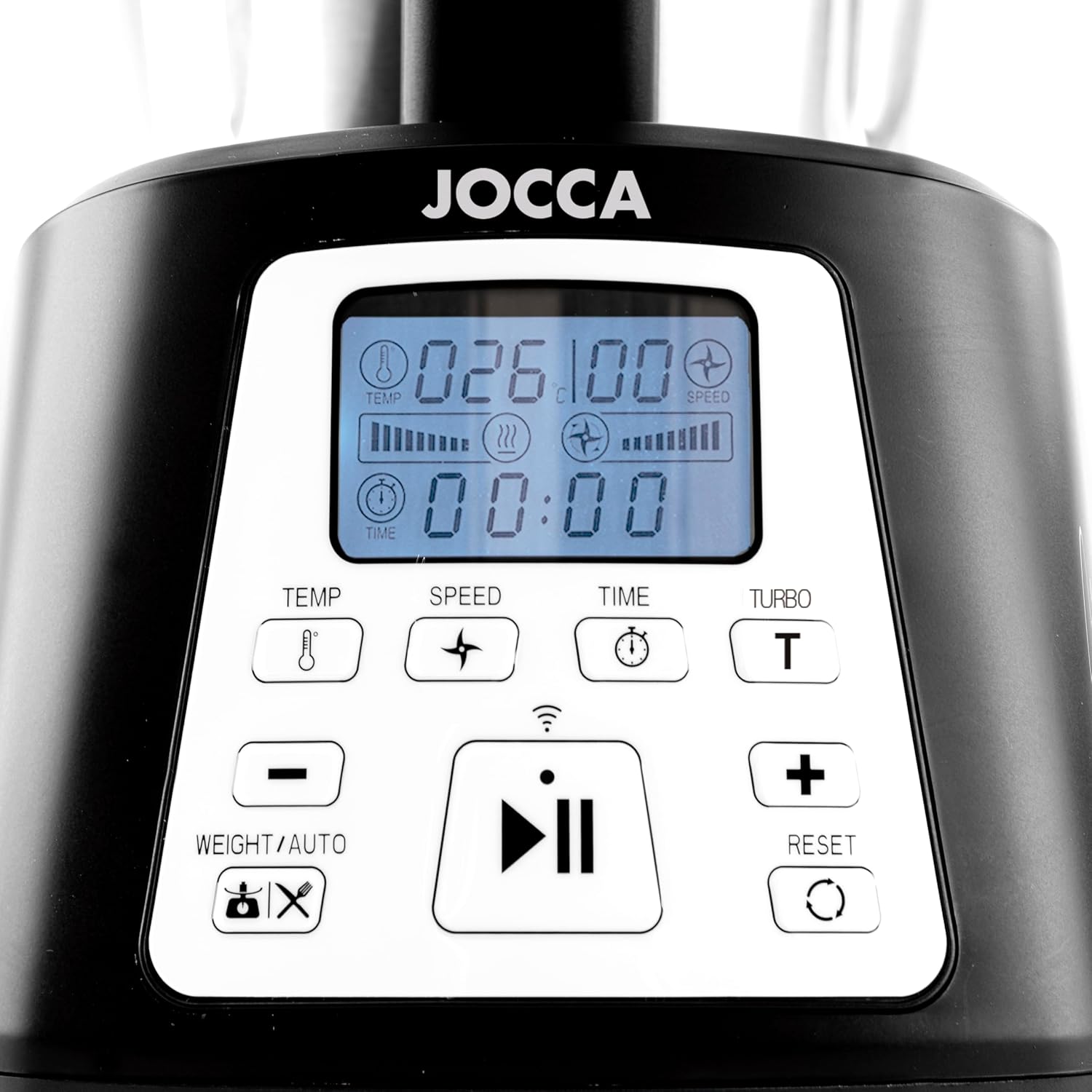

Imej 4.2: Terperinci view of the control panel buttons and display. This image highlights the temperature, speed, time, turbo, and integrated scale controls.

• Skrin Paparan: Shows current settings for temperature, speed, and time.
• Butang TEMP: Melaraskan suhu memasak.
• Butang SPEED: Selects one of 10 available speeds.
• Butang MASA: Menetapkan tempoh operasi.
• Butang TURBO: Activates maximum speed for short bursts.
• +/- Butang: Adjust values for temperature, speed, and time.
• WEIGHT/AUTO Button: Activates the integrated scale or selects automatic programs.
• Butang Mula/Jeda: Memulakan atau menghentikan operasi.
• Butang TETAP SEMULA: Resets settings or clears errors.

Functions and Programs:

The appliance features 12 functions and 10 pre-set programs. Use the WEIGHT/AUTO button to cycle through or select programs, and the +/- buttons to adjust parameters.

• Penimbangan: Use the integrated scale (up to 5000g) by pressing the WEIGHT/AUTO button.
• Mixing/Chopping/Grinding/Crushing: Utilize the chopping blade and adjust speed for desired consistency.
• menguli: Use the mixing paddle at low speeds for dough.
• mengukus: Place ingredients in the steaming baskets. Add water to the mixing bowl. Select the steaming function and desired temperature/time. The appliance supports two levels of steaming.
• Browning/Simmering/Melting: Set desired temperature and time for cooking tasks.
• Emulsifying: Use appropriate speed for creating emulsions.

Imej 4.3: The steaming basket, designed to fit inside the mixing bowl for healthy cooking.

Imej 4.4: The complete steaming assembly, including the lower steaming tray, upper steaming tray, and transparent lid, allowing for two levels of steaming.

Using the Tuya Smart App:

The Jocca Food Processor features Wi-Fi connectivity, allowing control via the Tuya Smart App. Download the app from your device's app store or scan the QR code found in the included recipe book. Follow the in-app instructions to pair your device and access additional recipes and remote control features.

Imej 4.5: The included 'Chef Olé' recipe book, which also provides a QR code for downloading the Tuya Smart App. The app offers additional recipes and smart control features. Download the app di sini.

5. Penyelenggaraan dan Pembersihan

Pembersihan berkala memastikan jangka hayat dan operasi bersih pemproses makanan anda.

Self-Cleaning Program:

The appliance includes a self-cleaning program. After use, add a small amount of water and a drop of dish soap to the mixing bowl. Select the self-cleaning program (refer to the control panel or app for specific activation) and let it run. Afterwards, rinse the bowl thoroughly.

Pembersihan Manual:

1. Sentiasa cabut plag perkakas sebelum membersihkan.
2. Remove the mixing bowl and all accessories.
3. Wash the mixing bowl, lid, blades, and accessories in warm soapy water. Use a brush for hard-to-reach areas. Be cautious with sharp blades.
4. Rinse all parts thoroughly and dry immediately to prevent water spots or corrosion.
5. Lap tapak motor dengan iklanamp kain. Jangan gunakan pembersih yang melelas atau rendam tapak di dalam air.

Imej 5.1: The included spatula is useful for scraping down the sides of the mixing bowl and assisting with cleaning.

6. Penyelesaian masalah

Jika anda menghadapi masalah dengan pemproses makanan anda, rujuk kepada masalah dan penyelesaian biasa berikut.

If the problem persists after attempting these solutions, please contact Jocca customer support.

7. Spesifikasi

Technical details for the Jocca Multifunction Food Processor Model 2145.

Imej 7.1: The Jocca Food Processor with indicated dimensions: approximately 33 cm height, 27 cm depth, and 15 cm width at the base.

8. Waranti dan Sokongan

For warranty information, please refer to the documentation included with your purchase or contact the retailer. For technical support, spare parts, or service inquiries, please contact Jocca customer service directly. Contact details can typically be found on the Jocca official webtapak atau pada resit pembelian anda.
