1. Pengenalan
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your SCHÜTTE 82602-A Duroplast toilet seat. Please read these instructions carefully before installation and retain them for future reference.
2. Produk Lebihview
2.1 Komponen Produk
The SCHÜTTE 82602-A toilet seat includes the following main components:
- Toilet seat and lid (Duroplast)
- Mounting hardware (hinges, screws, nuts, washers)
- Arahan pemasangan
2.2 Ciri-ciri Utama
- Automatic Soft-Close: The lid and seat close slowly and silently, preventing slamming and protecting the toilet bowl surface.
- Durable Duroplast Material: Constructed from robust Duroplast, offering high resistance to breakage and scratches.
- Hygienic Quick-Release: The seat can be easily detached for thorough cleaning, ensuring optimal hygiene.
- Universal O-Shape: Designed to fit most standard O-shaped toilet bowls, both wall-mounted and floor-standing.
- Easy Top-Fix Installation: Mounting hardware allows for quick and straightforward installation from the top of the toilet bowl.
3. Persediaan dan Pemasangan
3.1 Alat yang Diperlukan
- Sepana atau playar boleh laras
- Screwdriver (flathead or Phillips, depending on screw type)

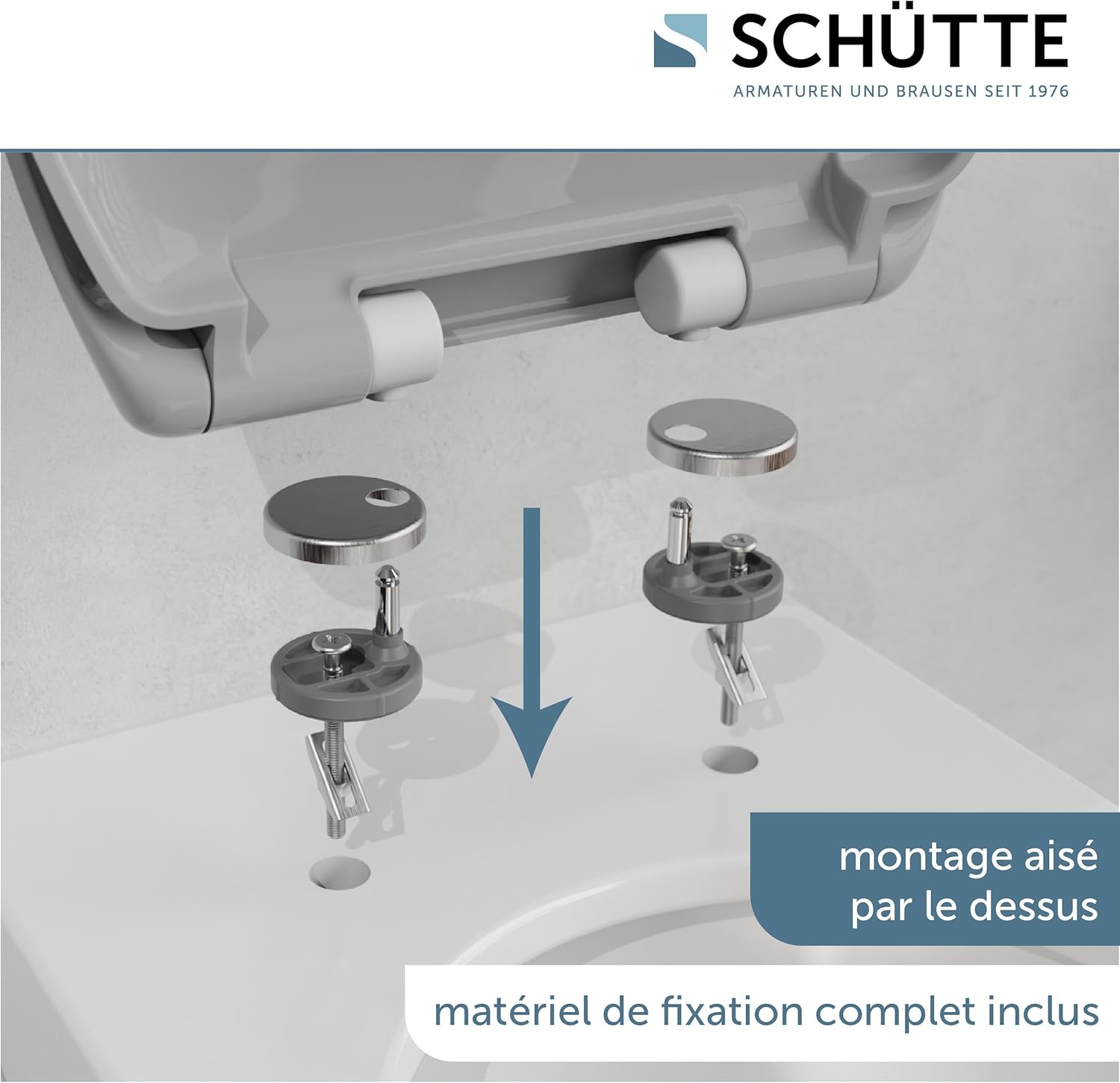

3.2 Pemasangan Langkah demi Langkah
Ikuti langkah ini untuk pemasangan yang betul:
- Sediakan Mangkuk Tandas: Ensure the toilet bowl surface where the seat will be mounted is clean and dry.
- Insert Mounting Bolts: Place the rubber expansion bolts into the mounting holes on the toilet bowl.
- Pasang Engsel: Position the hinge bases over the expansion bolts. Insert the screws through the hinge bases and into the expansion bolts.
- Ketatkan Skru: Using a screwdriver, tighten the screws. The rubber expansion bolts will expand, securing the hinge bases firmly to the toilet bowl. Do not overtighten.
- Adjust Hinge Position: Adjust the position of the hinge bases to align with the mounting points on the toilet seat. Ensure the distance between the hinges is correct for your seat.
- Attach Toilet Seat: Align the toilet seat's quick-release mechanism with the hinge pins on the installed hinge bases. Press down firmly until you hear a click, indicating the seat is securely attached.
3.3 Dimensi
The toilet seat is designed for universal fit with standard O-shaped toilet bowls. Refer to the diagram below for detailed measurements:
4. Arahan Operasi
4.1 Soft-Close Function
The SCHÜTTE 82602-A toilet seat is equipped with an automatic soft-close mechanism. To operate, simply push the lid or seat down gently. The integrated dampeners will engage, allowing the lid and seat to lower slowly and quietly without requiring manual guidance. Avoid forcing the lid or seat down, as this can damage the soft-close mechanism.
5. Penyelenggaraan dan Pembersihan
5.1 Pembersihan Am
To maintain hygiene and prolong the life of your toilet seat, clean it regularly with mild soap and water. Use a soft cloth or sponge. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the Duroplast surface and the soft-close mechanism.
5.2 Detaching for Thorough Cleaning (Quick-Release)
For comprehensive cleaning of the toilet bowl and the seat's underside, utilize the quick-release function:
- Lift the Seat and Lid: Raise both the toilet seat and lid to their fully upright position.
- Locate Release Buttons: On the back of the seat, near the hinges, you will find two release buttons or levers.
- Press and Lift: Simultaneously press the release buttons/levers and lift the entire toilet seat assembly straight up from the hinge pins.
- Bersih: Clean the detached seat and the toilet bowl thoroughly.
- Lampirkan semula: Align the seat with the hinge pins and press down until it clicks securely back into place.
6. Penyelesaian masalah
Bahagian ini membincangkan isu-isu biasa yang mungkin anda hadapi dengan tempat duduk tandas anda.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Seat or lid slams shut. | Soft-close mechanism is damaged or obstructed. | Do not force the lid or seat down. If the mechanism is damaged, contact customer support. |
| Seat feels loose or wobbly. | Mounting screws are not sufficiently tightened. | Re-tighten the mounting screws. Ensure the hinge bases are properly seated. |
| Seat does not fit the toilet bowl. | Toilet bowl shape or dimensions are incompatible. | Verify your toilet bowl's dimensions against the product specifications (see Section 3.3). This seat is designed for standard O-shaped bowls. |
| Difficulty detaching or reattaching seat. | Release buttons not fully pressed or seat not aligned. | Ensure both release buttons are pressed simultaneously. Align the seat precisely with the hinge pins before pressing down. |
7. Spesifikasi Teknikal
| Spesifikasi | Nilai |
|---|---|
| Nombor Model | 82602-A |
| bahan | Duroplast, Stainless Steel Hinges |
| warna | Kelabu |
| bentuk | Oval (O-shape) |
| Dimensi (L x W x H) | 45.3 x 37.6 x 2.51 cm (approx. 452 x 375 mm) |
| Berat badan | 1.8 Kilogram |
| Max. Load Capacity (Seat) | 250 kg (as per product description) |
| Hinge Adjustment Range | Approx. 55 - 170 mm |
| Ciri Khas | Soft-close, Quick-release, Top-fix installation |
8. Waranti dan Sokongan
8.1 Maklumat Waranti
This SCHÜTTE toilet seat comes with a Waranti 5 tahunWaranti ini meliputi kecacatan pembuatan dan kecacatan bahan di bawah penggunaan biasa. Sila simpan bukti pembelian anda untuk tuntutan waranti.
8.2 Sokongan Pelanggan
For any questions, technical assistance, or warranty claims, please contact your retailer or the manufacturer directly. Refer to the product packaging or the manufacturer's official weblaman web untuk maklumat hubungan.
