pengenalan
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Schütte Slim Toilet Seat, Model 82630-A. Please read these instructions carefully before installation and retain them for future reference.
Ciri-ciri Produk
- Duroplast Material: Constructed from durable, unbreakable Duroplast, designed to withstand up to 250 kg of load.
- Mekanisme Tutup Lembut: Integrated automatic lowering system for silent and gentle closing of the lid and seat. Tested for 15,000 lowering cycles.
- Quick-Release Function: Allows for easy removal and reattachment of the toilet seat for thorough cleaning.
- Fit Universal: Designed to fit most standard toilet ceramics.
- Easy Top-Fix Installation: Patented adhesive pad technology and a mounting template simplify the installation process.
Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- Schütte Slim Toilet Seat (Lid and Ring)
- Mounting Hardware (screws, adhesive pads, anchors)
- Templat Pemasangan
- Manual Arahan
Image: All components included in the package, showing the toilet seat, mounting screws, anchors, and the mounting template.
Spesifikasi
| Atribut | Nilai |
|---|---|
| Nombor Model | 82630-A |
| bahan | Duroplas |
| Dimensi (L x W x H) | 46.2 x 37.2 x 2.51 cm |
| Berat badan | 2.11 kg |
| Kapasiti Muatan | Sehingga 250 kg |
| Soft-Close Cycles Tested | 15,000 |
Image: Technical drawing showing the dimensions of the toilet seat, including length, width, and hinge spacing.

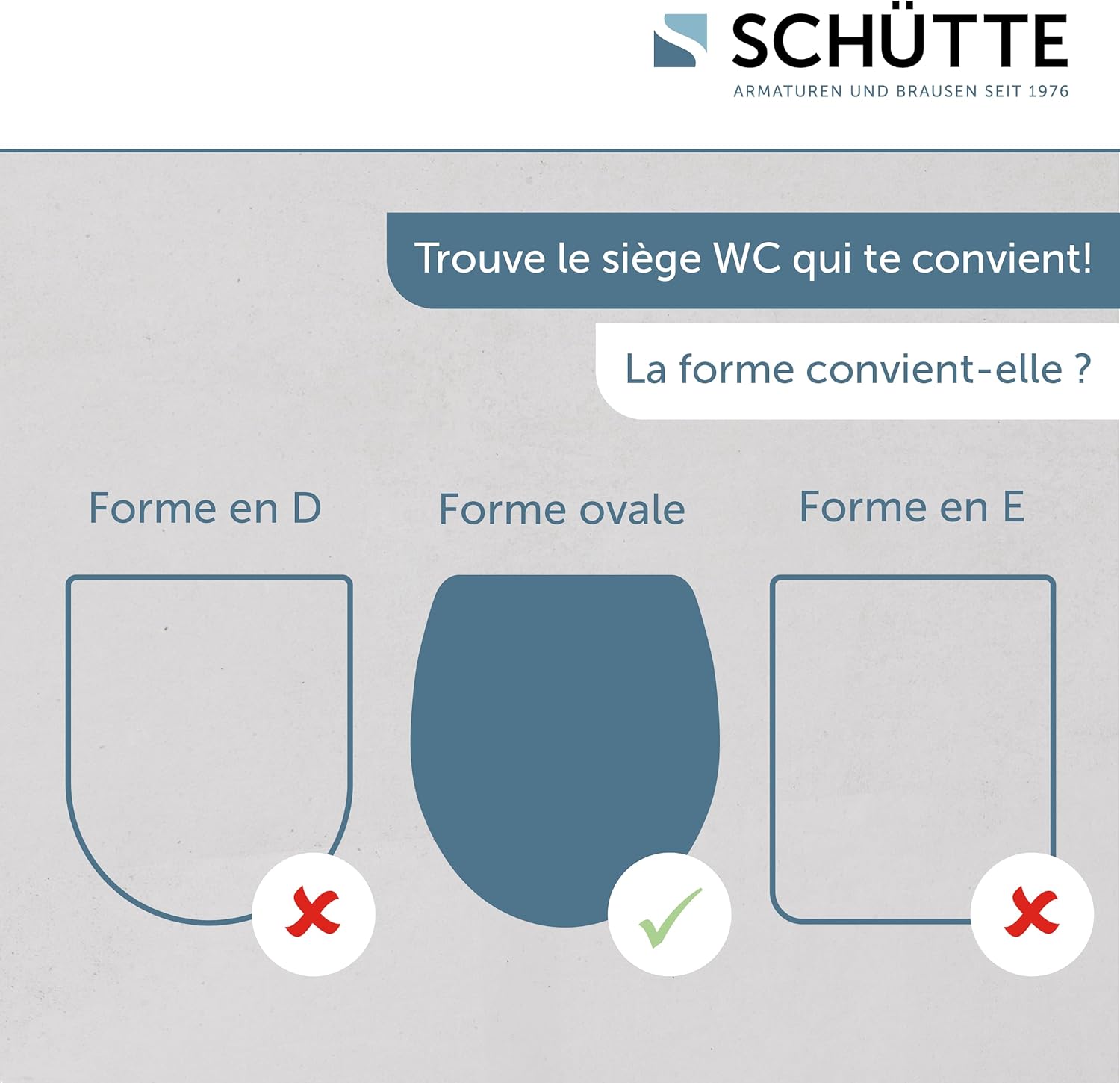

Image: Visual guide indicating the oval shape of the toilet seat, suitable for oval toilet bowls.
Arahan Pemasangan
Follow these steps for proper installation of your Schütte Slim Toilet Seat:
- Sediakan Mangkuk Tandas: Ensure the toilet bowl surface where the seat will be mounted is clean and dry. Remove any old toilet seat and hardware.
- Letakkan Templat Pemasangan: Place the provided mounting template over the toilet bowl holes. This template assists in accurate alignment.
- Pasang Perkakasan Pemasangan:
- Insert the anchors into the toilet bowl holes.
- Place the mounting bases over the anchors.
- Secure the bases using the screws, ensuring they are tightened firmly but do not overtighten. The patented adhesive pads on the bases will help secure them.

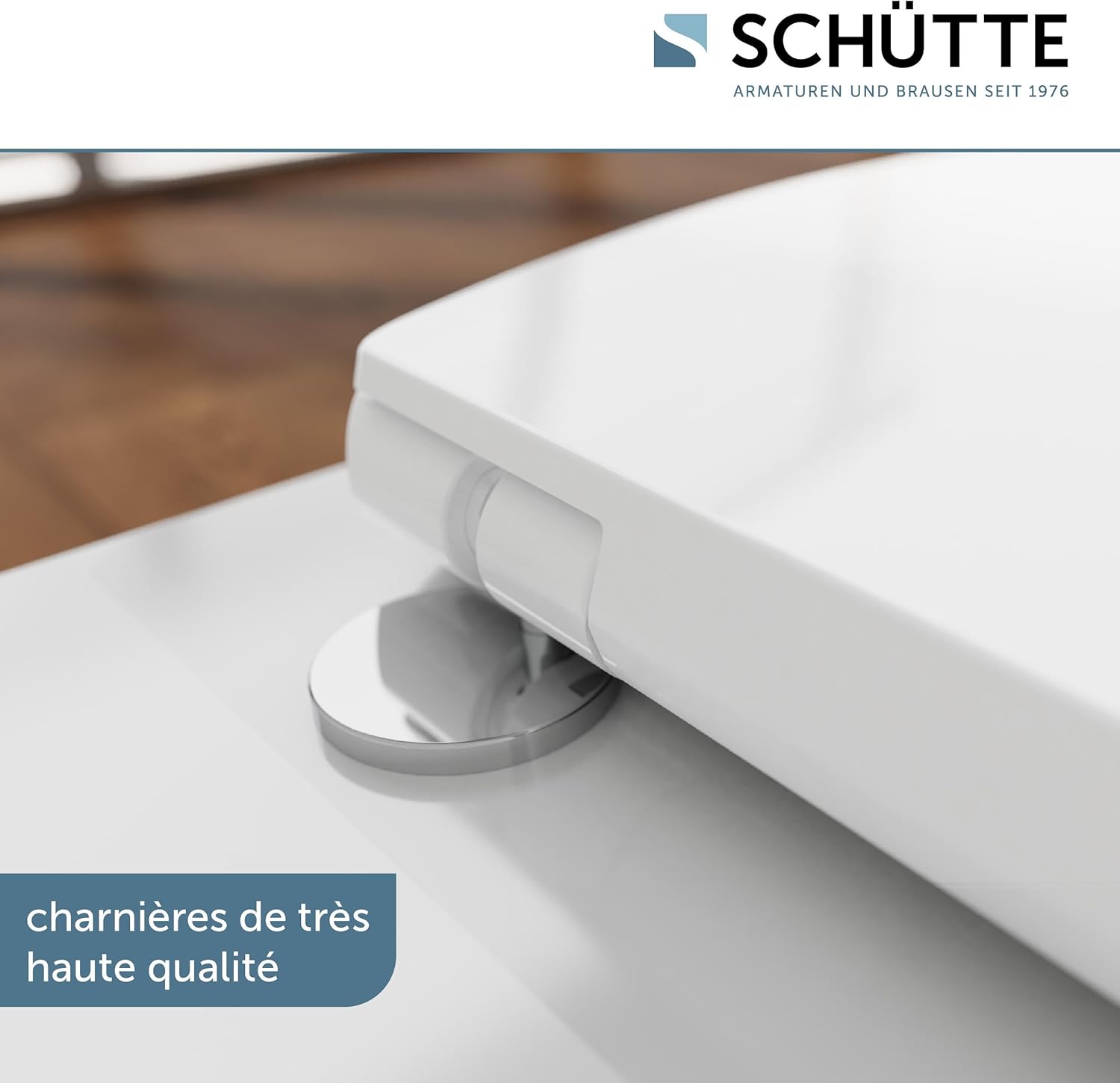

Image: Detail of the high-quality hinges and mounting points, showing the robust construction.
Image: Illustration demonstrating the top-fix installation process, where components are secured from above the toilet bowl.
- Attach the Toilet Seat: Align the toilet seat's quick-release hinges with the installed mounting bases. Press down firmly until you hear a click, indicating the seat is securely attached.
- Kestabilan Ujian: Gently try to move the seat to ensure it is stable and does not wobble. Adjust the mounting bases if necessary.
Image: The toilet seat positioned on a toilet bowl with the mounting template visible, illustrating the easy top-fix installation and alignment.
Operasi
Soft-Close Function
The Schütte Slim Toilet Seat features an integrated soft-close mechanism. To operate, simply push the lid or seat downwards gently. The mechanism will engage, allowing the lid and seat to close slowly and silently without slamming.
Image: The toilet seat lid slowly closing, demonstrating the soft-close feature for silent operation.
Penjagaan dan Penyelenggaraan
Regular cleaning will ensure the longevity and hygiene of your toilet seat.
Quick-Release for Cleaning
To thoroughly clean the toilet seat and the ceramic bowl underneath:
- Locate the quick-release buttons or levers near the hinges.
- Press or lift the buttons/levers to disengage the seat from the mounting bases.
- Lift the entire toilet seat assembly off the toilet bowl.
- Clean the seat and the toilet bowl using mild cleaning agents and a soft cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the Duroplast surface.
- Once clean and dry, reattach the seat by aligning it with the mounting bases and pressing down until it clicks into place.
Image: A hand demonstrating the quick-release function, showing how the seat can be easily lifted off the mounting posts for cleaning.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Seat wobbles after installation. | Mounting screws are loose or not properly aligned. | Remove the seat, re-tighten the mounting screws, and ensure the bases are correctly aligned before reattaching the seat. |
| Soft-close function is not working smoothly. | Mechanism might be obstructed or damaged. | Ensure no debris is obstructing the hinges. If the issue persists, contact customer support. |
| Difficulty removing the seat for cleaning. | Quick-release buttons/levers not fully engaged or pressed. | Ensure the quick-release buttons/levers are fully pressed or lifted as per the design to disengage the seat. |
Waranti dan Sokongan
Schütte provides a warranty for this product. For specific warranty details, please refer to the documentation included with your purchase or visit the official Schütte webtapak.
For any questions regarding the product, installation, or claims, you may contact Schütte customer service:
- Pengeluar: Franz Joseph Schütte GmbH
- Nombor Perhubungan: 05407-8152903
- Webtapak: www.schuette.de
