Manual Pengguna Pemanjang Wifi Tanpa Wayar Mercusys TP-Link MW300RE

1. Pengenalan

This manual provides essential instructions for the setup, operation, and maintenance of your Mercusys TP-Link MW300RE Wireless Wifi Extender. This device is designed to expand your existing wireless network coverage, eliminating Wi-Fi dead zones and improving signal strength in areas previously difficult to reach.

The MW300RE features a compact design, three external antennas with MIMO technology for enhanced performance, and a smart signal indicator to assist with optimal placement. It supports a single band speed of 300 Mbps and can also function as a wireless adapter via its Ethernet port.

2. Produk Lebihview

The Mercusys MW300RE is a wall-plug Wi-Fi range extender. Below are its key components and features:

• Antena Luaran: Three adjustable antennas for optimal signal reception and transmission.
• Palam Kuasa: Integrated power plug for direct wall outlet connection.
• Butang WPS/Set Semula: Used for quick setup (WPS) and factory reset.
• LED isyarat: A multicolor LED indicator that helps determine the best location for the extender.
• Pelabuhan Ethernet: Allows wired connection for devices or to function as a wireless adapter.

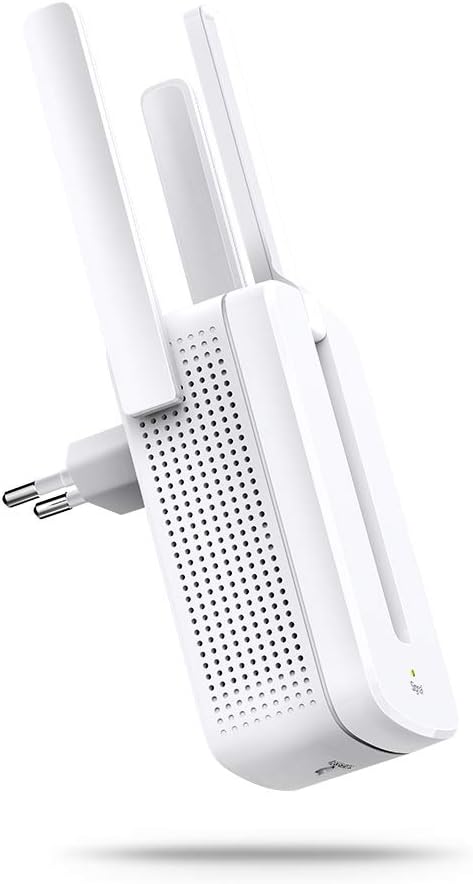

Rajah 2.1: Depan view of the Mercusys MW300RE Wireless Wifi Extender, highlighting its three external antennas.

Rajah 2.2: belakang view of the Mercusys MW300RE, showing the integrated power plug and product information label.

Rajah 2.3: Depan view of the extender, showing the signal indicator light at the bottom.

3. Persediaan

The Mercusys MW300RE can be set up quickly using the WPS (Wi-Fi Protected Setup) button or through a web pelayar.

3.1. Quick Setup using WPS Button

1. Hidupkan kuasa: Plug the MW300RE into an electrical outlet near your main router. Wait for the Power LED to turn solid.
2. Tekan WPS pada Penghala: Tekan butang WPS pada penghala Wi-Fi utama anda.
3. Tekan WPS pada Extender: Within two minutes, press the WPS button on your MW300RE extender.
4. Pengesahan Sambungan: The Signal LED on the extender should change color (e.g., solid green or orange) to indicate a successful connection. If it does not, try repositioning the extender closer to the router and repeat the steps.

Rajah 3.1: Visual guide for WPS button setup, illustrating the sequence of pressing WPS on both the router and the extender.

3.2. Persediaan melalui Web Browser (Alternative Method)

1. Sambungkan ke Extender: Plug the MW300RE into an electrical outlet. Connect your computer or mobile device to the extender's default Wi-Fi network (e.g., "Mercusys_Extender").
2. Akses Web Antara muka: Buka a web browser and enter the default management address (usually mwlogin.net or an IP address like 192.168.1.254).
3. log masuk: Cipta kata laluan log masuk apabila diminta.
4. Ikuti Arahan Pada Skrin: The setup wizard will guide you through selecting your main Wi-Fi network and configuring the extender's settings.
5. Pindahkan Extender: Once configured, unplug the extender and move it to a location between your router and the Wi-Fi dead zone. Ensure the Signal LED indicates a good connection (e.g., solid green).

4. Mengendalikan Extender

After successful setup, the MW300RE will extend your Wi-Fi coverage. Here's how to ensure optimal operation:

4.1. Penempatan Optimum

The location of your extender is crucial for performance. Use the Smart Signal Indicator LED to find the best spot:

• Hijau Pepejal: Sambungan yang baik. Pemanjang berada di lokasi yang ideal.
• Solid Orange/Red: Weak connection. Move the extender closer to your router.
• Mati: No connection. Move the extender closer to your router or check the power.

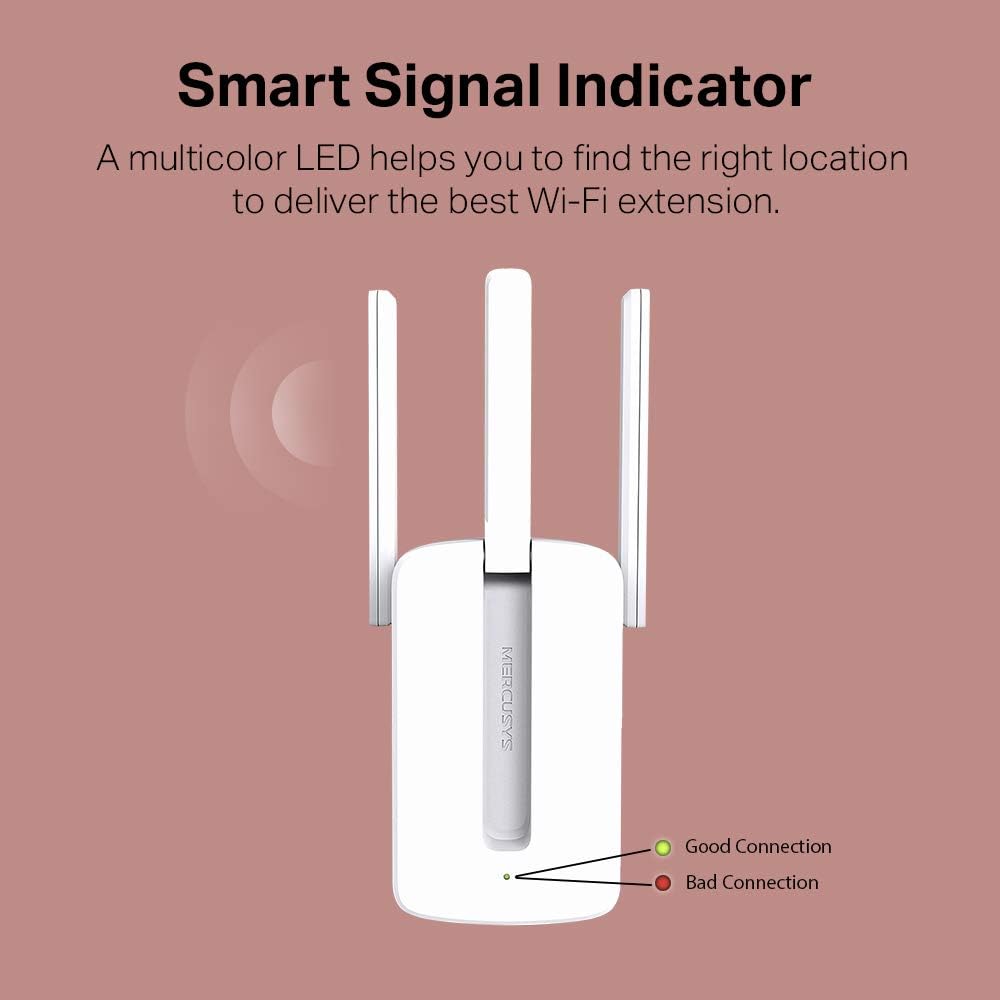

Rajah 4.1: Explanation of the Smart Signal Indicator LED colors for optimal placement.

Rajah 4.2: Illustration of the MW300RE extending Wi-Fi coverage to eliminate dead zones in a home environment.

4.2. Menggunakan Port Ethernet

The Ethernet port on the MW300RE allows you to connect a wired device, such as a desktop computer, gaming console, or smart TV, to your Wi-Fi network. This functions as a wireless adapter for that device, providing a stable wired connection while still extending Wi-Fi wirelessly.

5. Penyelenggaraan

To ensure the longevity and optimal performance of your Mercusys MW300RE, follow these maintenance guidelines:

• Jaga kebersihan: Lap peranti dengan kain lembut dan kering secara berkala. Elakkan penggunaan pembersih cecair atau aerosol.
• Pengudaraan: Ensure the ventilation holes are not blocked. Do not place the device in enclosed spaces or cover it with cloth.
• Keadaan Persekitaran: Operate the device within its specified temperature and humidity ranges. Avoid direct sunlight, excessive heat, or moisture.
• Kemas kini Firmware: Check the official Mercusys website periodically for firmware updates. Updating firmware can improve performance, add features, and fix bugs.
• Kitaran Kuasa: If you experience persistent issues, try power cycling the device (unplug it, wait 10 seconds, then plug it back in).

6. Penyelesaian masalah

If you encounter problems with your MW300RE, refer to the following common issues and solutions:

• No Internet Access after Connecting to Extender:
  • Sahkan bahawa penghala utama anda mempunyai akses internet.
  • Check the Signal LED on the extender. If it's off or red, reposition the extender closer to the router.
  • Cuba mulakan semula penghala dan pemanjang anda.
  • Ensure the extender is configured correctly. If necessary, perform a factory reset and reconfigure.
• Weak Signal or Slow Speed:
  • Relocate the extender to an optimal position, using the Signal LED as a guide (solid green indicates a good connection).
  • Ensure there are no major obstructions (thick walls, metal objects, large appliances) between the router, extender, and your devices.
  • Minimize interference from other electronic devices operating on the 2.4 GHz band (e.g., microwaves, cordless phones).
• Persediaan WPS Gagal:
  • Ensure your router supports WPS and that WPS is enabled.
  • Press the WPS button on your router and then on the extender within two minutes.
  • If WPS continues to fail, use the web browser setup method (Section 3.2).
• Forgot Management Password:
  • Perform a factory reset on the extender. With the extender powered on, use a pin to press and hold the Reset button for about 5 seconds until the LEDs flash. The extender will revert to factory default settings, and you can set a new password during re-setup.

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information, technical support, and additional resources, please refer to the official Mercusys website or the documentation included with your product. You can typically find FAQs, troubleshooting guides, and contact information for customer service there.

The product is manufactured by TP-Link. For the most up-to-date support, visit the Mercusys support page.
