Schütte 84100-A Soft Close Wooden Core Toilet Seat Instruction Manual

1. Produk Lebihview

This manual provides instructions for the Schütte 84100-A wooden core toilet seat, featuring a soft-close mechanism for quiet and gentle closing. Constructed with a durable wooden core and a high-quality coating, this toilet seat is designed for longevity and ease of maintenance. It is engineered to support a maximum load of 150 kg.

Image 1.1: The Schütte 84100-A toilet seat shown installed on a modern toilet. This image illustrates the product's appearance when mounted.

2. Persediaan dan Pemasangan

The Schütte 84100-A toilet seat includes a complete mounting kit and detailed assembly instructions to facilitate straightforward installation. Ensure all components are present before beginning.

2.1. Alat yang Diperlukan (Tidak Termasuk)

• Sepana atau playar boleh laras
• Screwdriver (if required by specific hinge type)

2.2. Langkah Pemasangan

1. Sediakan Tandas: Ensure the toilet bowl is clean and dry. Remove any old toilet seat and hardware.
2. Pasang Engsel: Position the mounting hinges into the holes on the toilet bowl. The design allows for adjustment to fit various hole spacings (110-200 mm).
3. Engsel Selamat: From underneath the toilet bowl, tighten the nuts onto the hinge bolts until secure. Do not overtighten.
4. Mount the Seat: Align the toilet seat with the attached hinges and press down firmly until it clicks into place. The quick-release mechanism allows for easy attachment and removal.
5. Laraskan Kedudukan: If necessary, adjust the position of the seat on the hinges to ensure proper alignment with the toilet bowl.

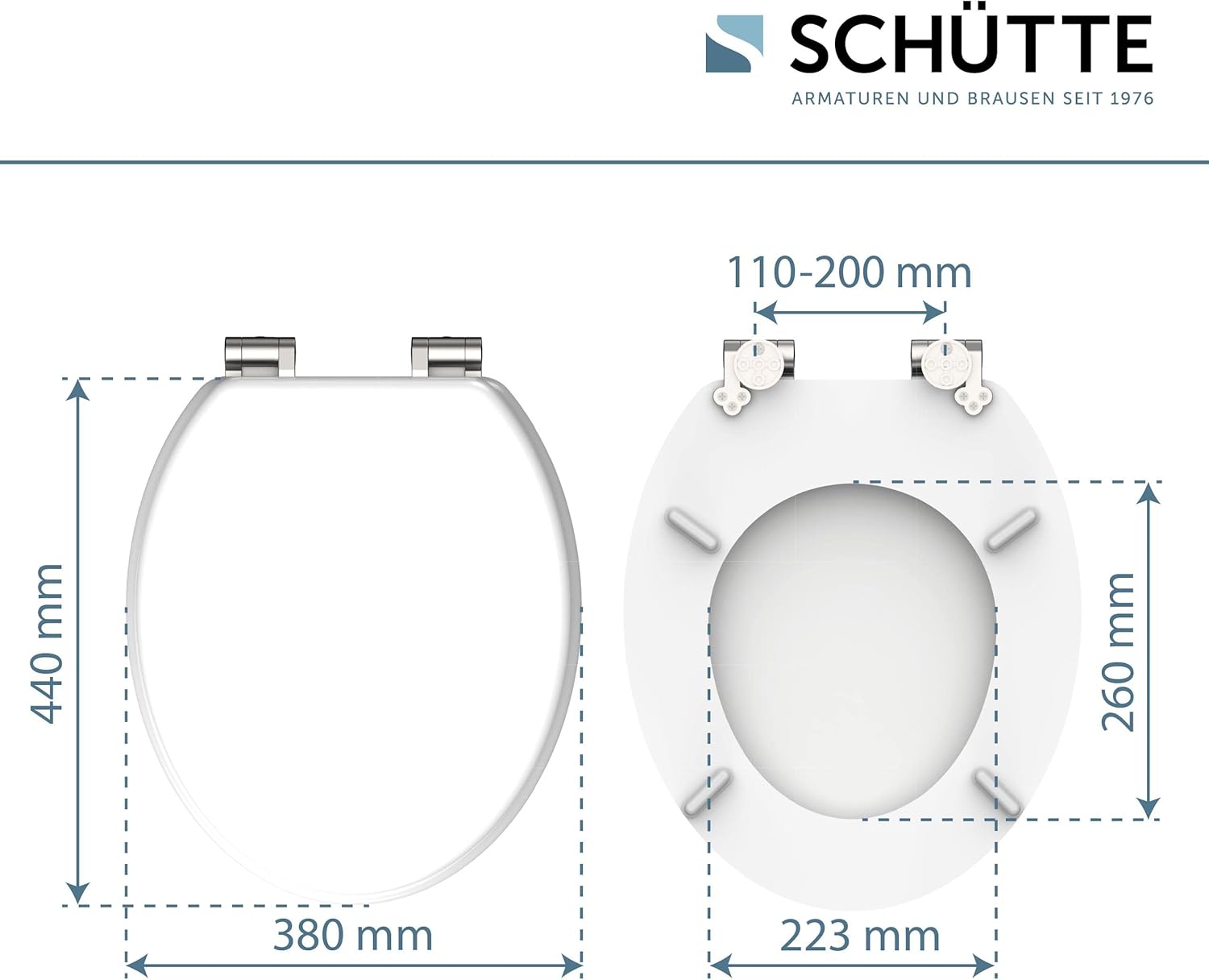

Image 2.1: Dimensional drawing of the Schütte 84100-A toilet seat, indicating key measurements for compatibility and installation, including hinge spacing (110-200 mm), seat width (380 mm), and length (440 mm).

3. Arahan Operasi

The Schütte 84100-A toilet seat is equipped with an integrated soft-close mechanism for enhanced comfort and durability.

3.1. Soft-Close Function

• To close the toilet seat or lid, simply give it a light tap downwards.
• bersepadu damping system will engage, allowing the seat and lid to lower gently and silently without slamming.
• This mechanism protects the seat from damage, reduces noise, and increases the product's lifespan.

4. Penyelenggaraan dan Penjagaan

Proper care ensures the longevity and hygienic condition of your Schütte toilet seat.

4.1. Pembersihan

• The smooth, high-quality coated surface of the wooden core is easy to clean.
• For daily cleaning, use only water and a soft, damp kain.
• Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the surface and coating.
• For thorough cleaning, the seat can be easily removed from the hinges using the quick-release function.

4.2. Penjagaan Am

• Regularly check the tightness of the mounting hardware and retighten if necessary to prevent wobbling.
• Ensure the soft-close mechanism operates smoothly. If it becomes stiff, clean the hinge area. Do not apply oil or grease to the soft-close mechanism.

5. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi.

5.1. Seat Wobbles

• Check if the mounting bolts underneath the toilet bowl are securely tightened.
• Ensure the seat is correctly engaged with the quick-release hinges.

5.2. Soft-Close Not Working Properly

• Ensure the hinges are clean and free from debris.
• Verify that the seat is correctly installed on the hinges.
• Jika masalah berterusan, hubungi sokongan pelanggan.

6. Spesifikasi

7. Waranti dan Sokongan

Schütte, a leading German manufacturer with over 40 years of experience in sanitary products, stands behind the quality of its products.

7.1. Sokongan Pelanggan

For any questions regarding the product, assembly, or to report a complaint, please contact Schütte customer service:

• telefon: +49 (0) 5407-81529-0 – 3
• lokasi: Wallenhorst, Germany

Please have your model number (84100-A) available when contacting support.
