SCHÜTTE AQUASTAR 60520 Shower System Instruction Manual

pengenalan

Thank you for choosing the SCHÜTTE AQUASTAR 60520 Shower System. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read these instructions carefully before installation and retain them for future reference.

Arahan Keselamatan

• Pastikan semua talian bekalan air dimatikan sebelum memulakan pemasangan.
• Pemasangan hendaklah dilakukan oleh profesional yang berkelayakan jika anda tidak pasti tentang sebarang langkah.
• Gunakan hanya perkakasan pemasangan yang disediakan.
• Do not use abrasive cleaners or solvents on any part of the shower system, as this may damage the finish.
• Regularly check all connections for leaks.
• Ensure the wall structure can support the weight of the shower system.

Kandungan Pakej

Sahkan bahawa semua komponen yang disenaraikan di bawah terdapat dalam pakej anda:

• 1x Aquastar Shower Set with Shelf
• 1x Overhead Shower Head (diameter 250 mm)
• 1x Mandian Tangan
• 1x Shower Hose (150 cm)
• 1x Connection Hose (70 cm)
• 1x Hand Shower Holder
• 1x Shower Bar/Column
• 1x Pemasangan Dinding
• Complete Mounting Material
• Multilingual Assembly Instructions (refer to this manual for English instructions)

Image: All components included in the SCHÜTTE AQUASTAR 60520 Shower System package.

Persediaan dan Pemasangan

Follow these steps for proper installation of your shower system. It is recommended to have basic plumbing knowledge or consult a professional.

1. Sediakan Kawasan Pemasangan: Turn off the main water supply. Clear the installation area in your shower.
2. Pasang Pendakap Dinding: Position the wall mount at the desired height. The adjustable wall mount allows for the use of existing drill holes if suitable. Mark the drill holes, drill them, and secure the wall mount using the provided screws and wall plugs.
3. Install the Shower Column: Attach the shower column to the wall mount. Ensure it is securely fastened and vertical.
4. Sambungkan Bekalan Air: Connect the 70 cm connection hose from your existing water outlet to the shower system's inlet. Ensure all connections are tight to prevent leaks.
5. Attach the Shelf and Diverter: Slide the shelf onto the shower column. The integrated diverter button on the shelf allows switching between the overhead and hand shower.
6. Install the Overhead Shower Head: Screw the overhead shower head onto the curved arm of the shower column. Ensure the connection is hand-tightened and secure.
7. Attach the Hand Shower and Hose: Connect the 150 cm shower hose to the hand shower and then to the outlet on the shower column. Place the hand shower into its adjustable holder on the column.
8. Pemeriksaan Akhir: Turn on the main water supply and check all connections for leaks. Test both the overhead and hand showers to ensure proper function and water flow.

Image: The height of the shower column is individually adjustable to suit user height.

Image: The elegant design shelf provides space for shower utensils and features a comfortable push-button diverter for easy switching between shower heads.

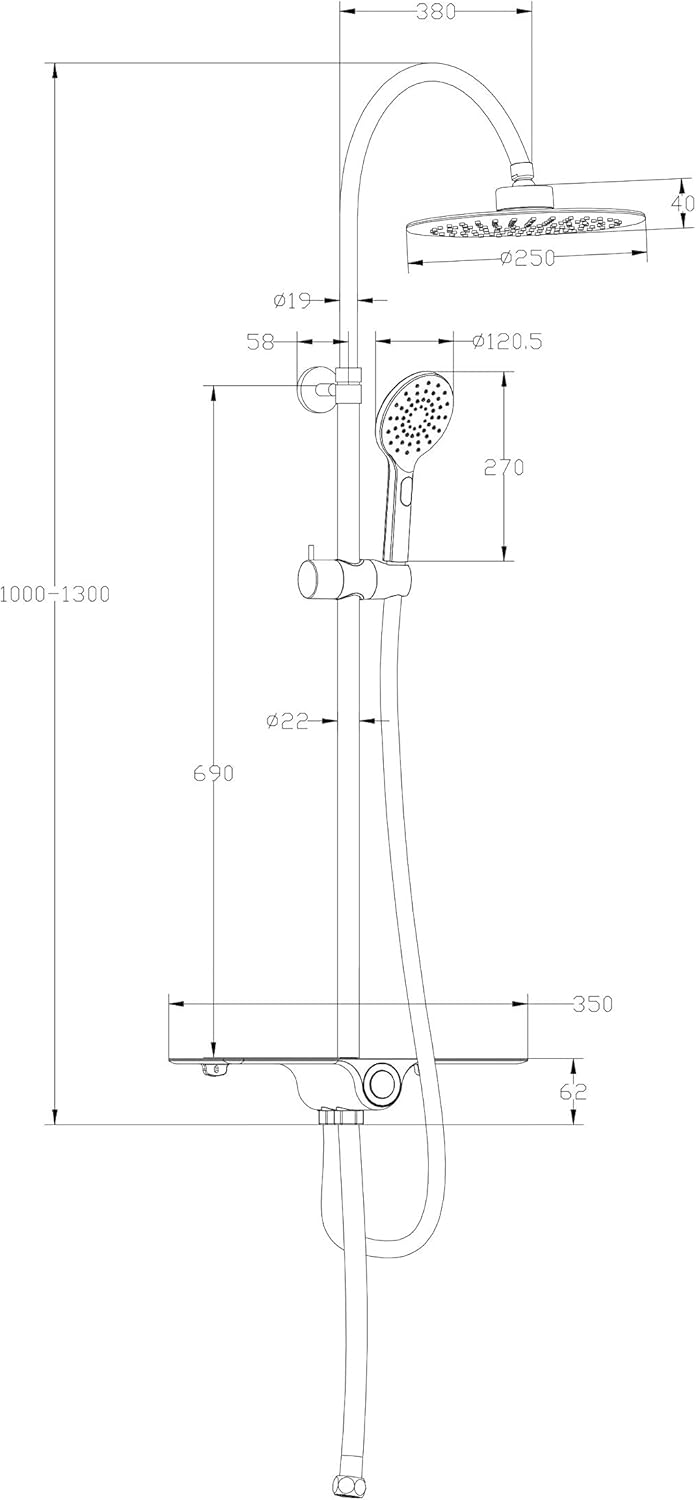

Image: Technical drawing showing the dimensions of the SCHÜTTE AQUASTAR 60520 shower system, including adjustable height and shower head sizes.

Arahan Operasi

The SCHÜTTE AQUASTAR 60520 Shower System offers a comfortable and versatile showering experience.

• Kawalan Aliran Air: Use your existing shower mixer (not included) to control water temperature and flow rate.
• Switching Between Shower Heads: Press the integrated button on the shelf to easily switch the water flow between the overhead rain shower and the hand shower.
• Hand Shower Spray Types: The hand shower features 3 adjustable spray types. Rotate the shower head's face or a dedicated selector (if present) to cycle through different spray patterns (e.g., Rain, Massage, Rain/Massage combination).
• Overhead Rain Shower: The ultra-flat, laser-welded stainless steel overhead shower head provides a wide, even rain spray for a relaxing experience.

Image: The modern hand shower allows selection of three functions: Rain, Massage, and a combination of Rain/Massage, via a push button.

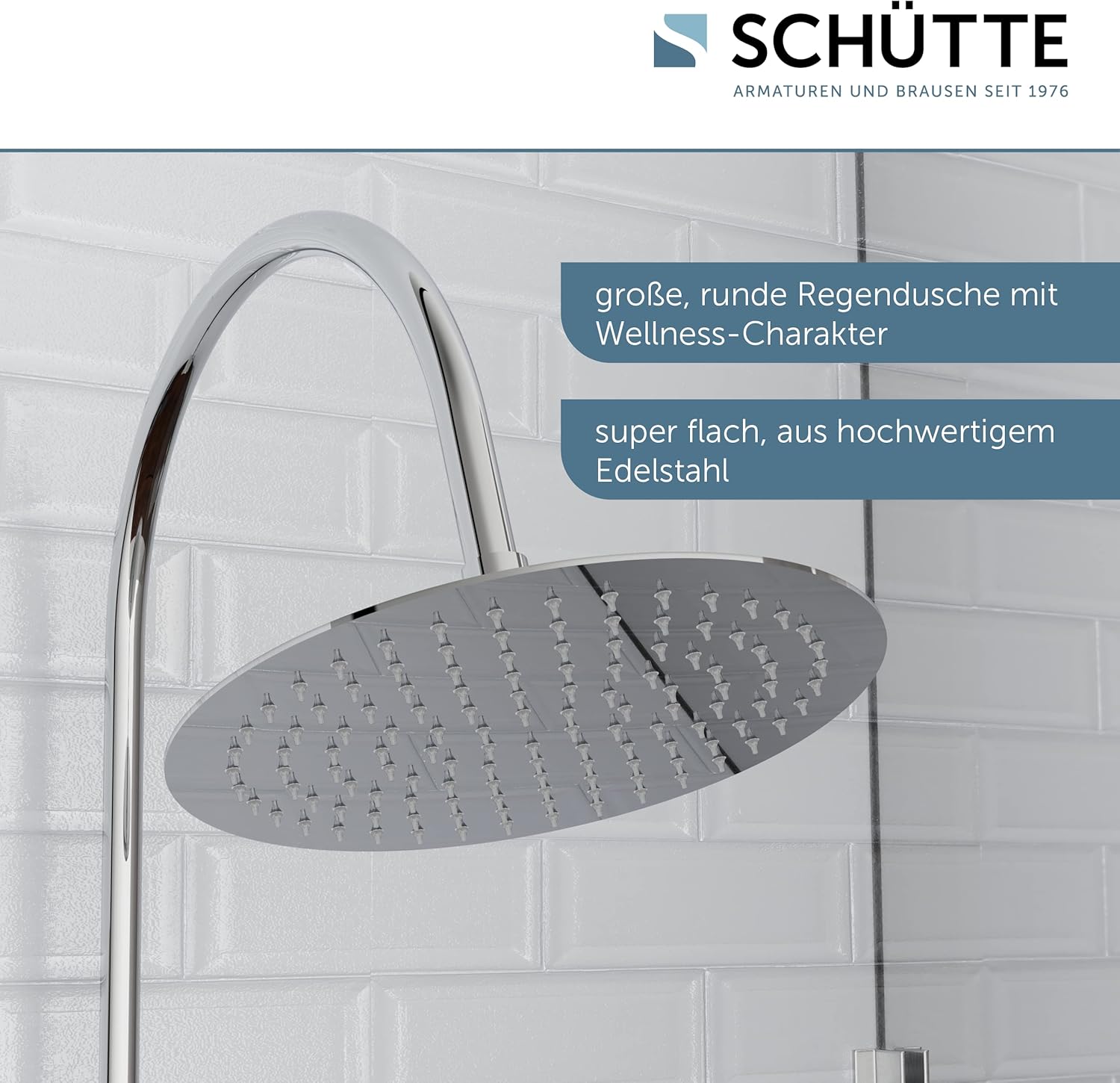

Image: The large, round rain shower head, super flat and made from high-quality stainless steel, offers a wellness-like showering experience.

Penyelenggaraan

Proper maintenance will ensure the longevity and optimal performance of your SCHÜTTE AQUASTAR 60520 Shower System.

• Pembersihan: Clean the surfaces regularly with a soft cloth and mild soap solution. Avoid abrasive cleaners, scouring pads, or chemical solvents, as these can damage the chrome finish and stainless steel.
• Penyingkiran Kerak Kapur: For limescale deposits on the shower nozzles, gently rub them with your fingers or a soft brush. For stubborn deposits, use a mild descaling agent specifically designed for bathroom fixtures, following the product's instructions. Rinse thoroughly after cleaning.
• Penjagaan hos: Periodically check the shower hose for kinks or damage. Replace if necessary.
• Pemeriksaan Am: Regularly inspect all components for wear and tear. Ensure all connections remain tight.

Menyelesaikan masalah

Jika anda menghadapi masalah dengan sistem pancuran mandian anda, rujuk masalah dan penyelesaian biasa berikut:

If the problem persists after attempting these solutions, please contact SCHÜTTE customer support.

Spesifikasi

Waranti dan Sokongan

SCHÜTTE provides a Waranti pengilang selama 3 tahun on this product, subject to internal conditions. For any questions, suggestions, or support needs, please contact our customer service team.

Maklumat Hubungan:
Phone: +49 (0) 5407-81529-0-3
(Please note: This number is based in Germany and international call charges may apply.)

For further information, you may also visit the official SCHÜTTE store on Amazon: SCHÜTTE Amazon Store
