1. Produk Lebihview
The Casio Enticer LTP-2089L-7AVDF is an elegant analog watch designed for women, featuring a white dial and a genuine leather band. This timepiece combines classic aesthetics with practical functionality, including multiple sub-dials for date, day, and 24-hour indication. It is built with an ion-plated case and mineral glass for durability, offering 50-meter water resistance suitable for daily use.

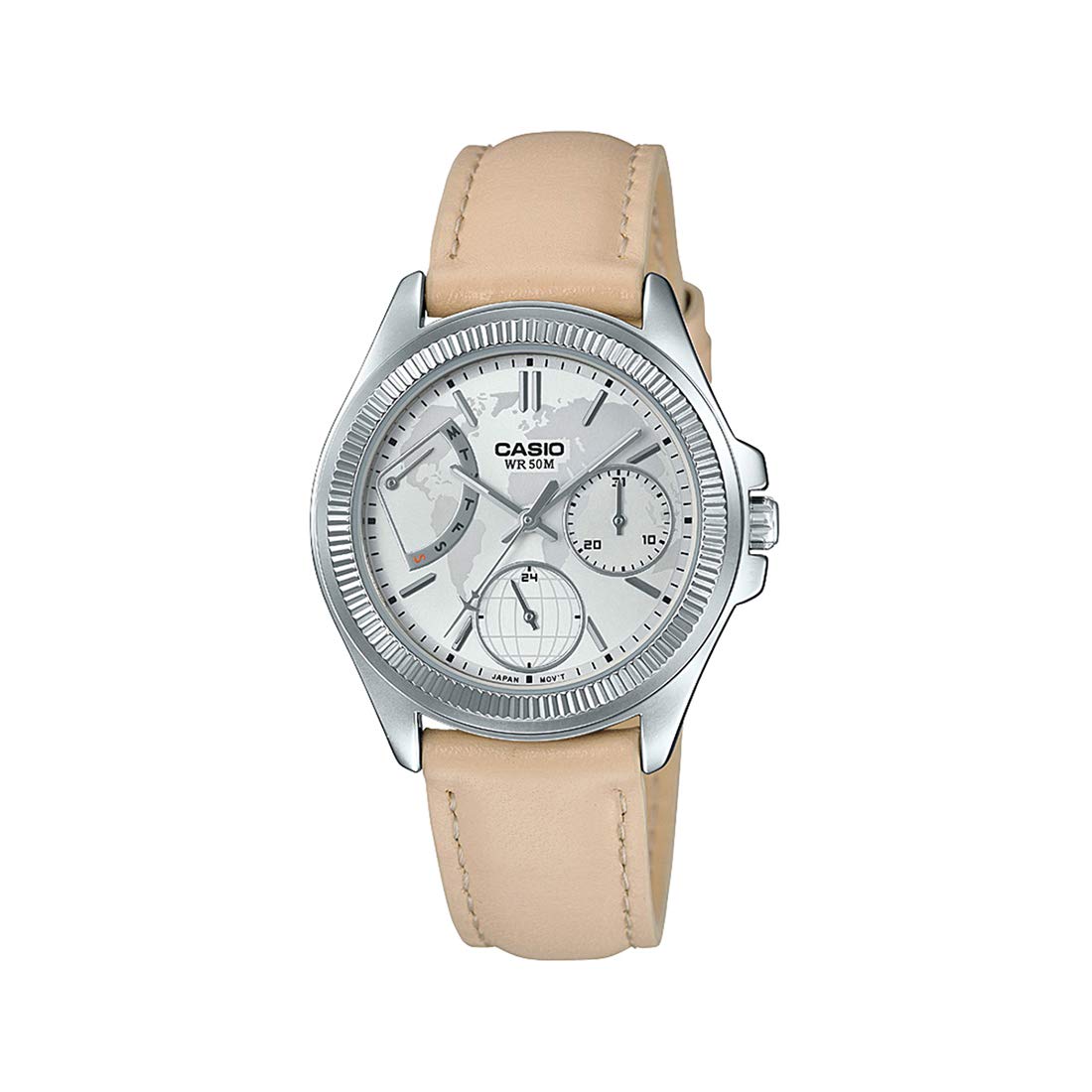

Figure 1.1: Casio Enticer LTP-2089L-7AVDF watch. This image displays the watch's overall design, including the white dial, sub-dials, and beige leather strap.
2. Persediaan Awal
2.1 Membongkar dan Pemeriksaan
Carefully remove the watch from its packaging. Inspect the watch for any visible damage. Ensure the crown is pushed in completely to start the watch if it is not already running.
2.2 Menetapkan Masa
- Tarik mahkota keluar ke kedudukan klik kedua. Jarum saat akan berhenti.
- Rotate the crown to set the hour and minute hands. When setting the minute hand, advance it four or five minutes past the desired time, then turn it back to the exact time.
- Tolak mahkota kembali ke kedudukan normal. Jarum saat akan menyambung pergerakan.
2.3 Menetapkan Tarikh dan Hari
- Tarik mahkota keluar ke kedudukan klik pertama.
- Rotate the crown to adjust the date and day indicators. Turn the crown clockwise to adjust the date and counter-clockwise to adjust the day.
- Set the date and day for the previous day. For example, if today is the 10th, set it to the 9th.
- Tarik mahkota keluar ke kedudukan klik kedua.
- Advance the time by rotating the crown until the date and day change to the current day. Continue to set the correct time, ensuring the AM/PM is correctly set (the date changes at midnight).
- Tolak mahkota kembali ke kedudukan normal.
2.4 Adjusting the Leather Band
The genuine leather band features a buckle closure. Adjust the buckle to a comfortable fit on your wrist, ensuring it is neither too tight nor too loose. The band should allow for slight movement without rotating freely.
3. Mengendalikan Jam Tangan
3.1 Membaca Masa
The watch displays time using three analog hands: hour, minute, and second. The main dial indicates the current time.
3.2 Reading the Date and Day
Jam tangan ini mempunyai tiga sub-dail:
- Petunjuk Tarikh: Memaparkan hari semasa dalam bulan tersebut.
- Petunjuk Hari: A retrograde dial that indicates the day of the week.
- Petunjuk 24 Jam: Shows the current time in a 24-hour format, useful for distinguishing AM/PM.
3.3 Tahan Air
This watch is rated for 50-meter (5 ATM) water resistance. This means it is suitable for everyday use and can withstand splashes, rain, and brief immersion in water. It is bukan sesuai untuk berenang, menyelam atau mandi dengan air panas, kerana wap boleh menembusi anjing laut.
4. Penjagaan dan Penyelenggaraan
4.1 Membersihkan Jam Tangan Anda
Wipe the watch case and mineral glass regularly with a soft, dry cloth to remove dirt and moisture. For the leather band, wipe it with a slightly damp cloth and allow it to air dry completely. Avoid using chemical cleaners or abrasive materials.
4.2 Penggantian Bateri
The watch is powered by an SR920SW battery with an approximate life of 3 years. When the watch stops or the second hand moves erratically, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.
4.3 Langkah Berjaga-jaga Rintangan Air
- Ensure the crown is always pushed in completely to maintain water resistance.
- Do not operate the crown or pushers while the watch is wet or submerged in water.
- Avoid exposing the watch to extreme temperature changes, which can affect the water resistance seals.
4.4 Leather Band Care
Leather bands can deteriorate over time due to sweat, moisture, and direct sunlight. To prolong its life:
- Elakkan pendedahan berpanjangan kepada cahaya matahari langsung atau suhu tinggi.
- Remove the watch before showering or swimming.
- If the band gets wet, wipe it dry immediately and allow it to air dry naturally.
5. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tonton tidak berjalan | Battery depleted; Crown pulled out | Replace battery (professional service recommended); Push crown fully in |
| Masa/tarikh yang salah | Time/date not set correctly; Crown accidentally pulled out | Refer to Section 2.2 and 2.3 for setting instructions; Push crown fully in |
| Condensation inside watch | Exposure to extreme temperature changes; Water resistance compromised | Consult a professional watch technician immediately to prevent damage |
6. Spesifikasi
- Nombor Model: LTP-2089L-7AVDF
- Bahan kes: Ion plated metal
- Bahan Band: Kulit Tulen
- kaca: Kaca Mineral
- Tahan Air: 50 meter (5 ATM)
- Pergerakan: Kuarza
- Ketepatan: ±20 saat sebulan
- Jenis Bateri: SR920SW
- lebih kurang Hayat Bateri: 3 tahun
- Case Dimensions (H×W×D): 37 × 33.4 × 9.2 mm
- Jumlah Berat: 38 g
- Jenis Paparan: Analog (3 hands: hour, minute, second)
- Dail: 3 dials (24-hour, date, retrograde day)
Figure 6.1: Watch dimensions. The image illustrates the watch case height of 37 mm, shown in comparison to a standard credit card (85.6mm x 53.98mm) for scale.
7. Waranti dan Sokongan
7.1 Waranti Pengilang
This Casio watch comes with a 2-year manufacturer warranty from the date of purchase. An additional 6 months warranty is provided for products registered online.
How to Avail Warranty:
- Daftarkan produk anda di https://register.casio.in/.
- To claim your warranty, produce the original bill copy/invoice at an authorized Casio service center. The warranty card and stamp are not mandatory for online purchases.
7.2 Sokongan Pelanggan
For any service-related inquiries or feedback, please contact Casio India Customer Support:
- Nombor Talian Bantuan: 011-66999200
- e-mel: casiocare@casio.co.in
