1. Pengenalan
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Schütte 79836 RIO Kitchen Faucet. Please read this manual thoroughly before installation and retain it for future reference.

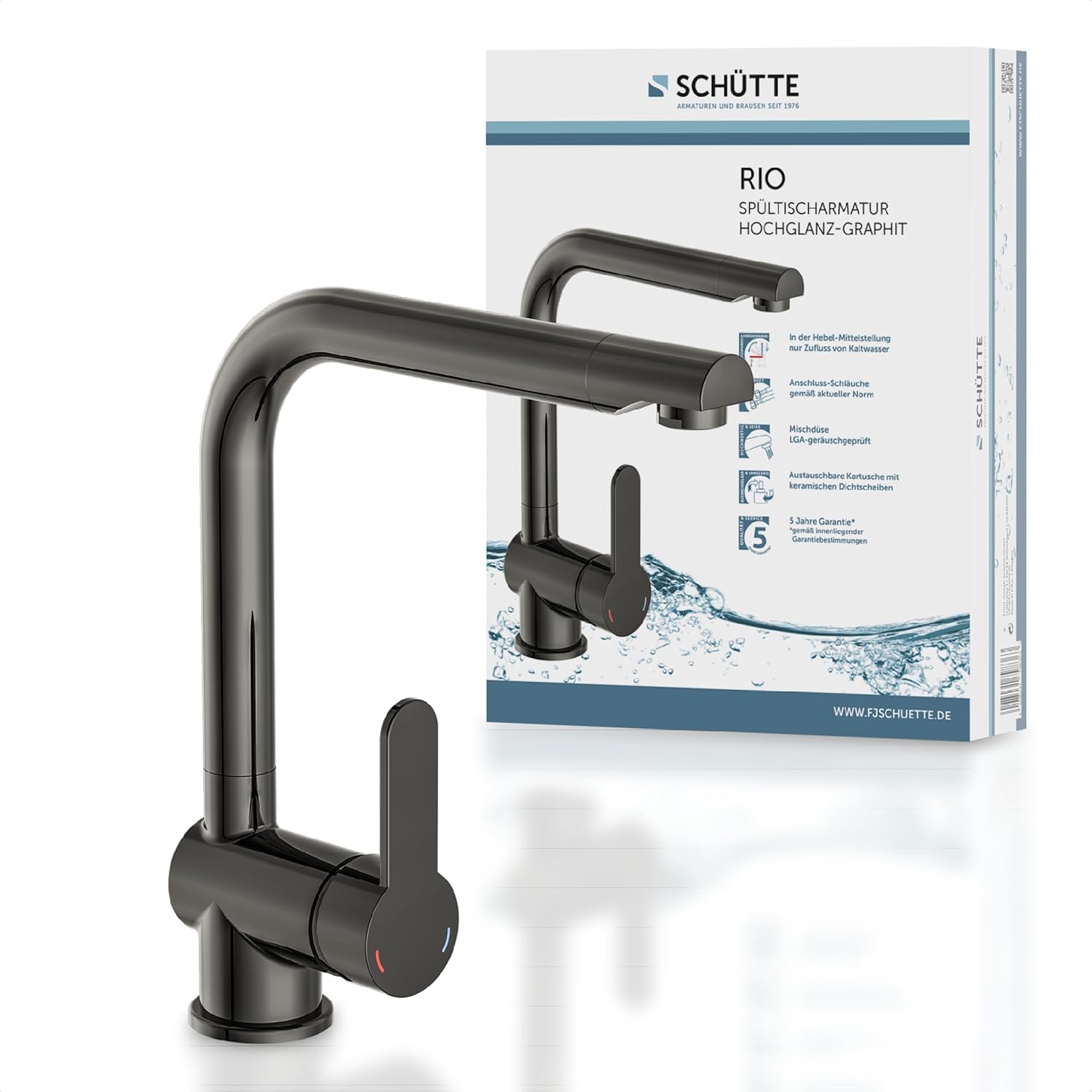

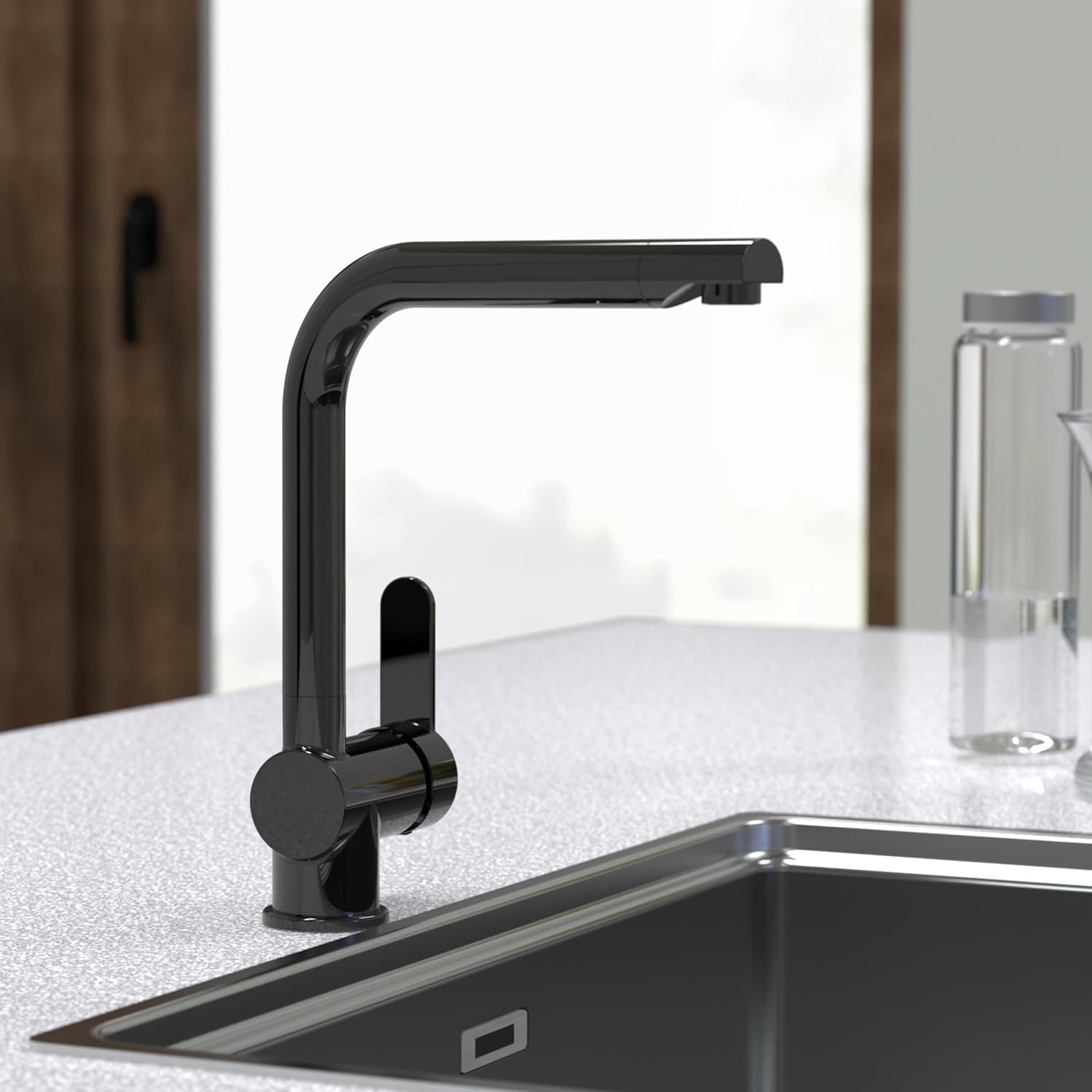

Image 1.1: Schütte RIO Kitchen Faucet (Model 79836) in Graphite Glossy finish, shown with its product packaging.
2. Arahan Keselamatan
- Pastikan bekalan air dimatikan sebelum memulakan pemasangan.
- Gunakan alatan dan peralatan pelindung yang sesuai semasa pemasangan.
- Jika anda tidak pasti tentang sebarang langkah, rujuk kepada tukang paip yang berkelayakan.
- Do not use abrasive cleaners or harsh chemicals on the faucet's finish.
- Periksa semua sambungan untuk kebocoran selepas pemasangan.
3. Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- 1x RIO Kitchen Faucet with high swivel spout
- 2x Flexible connection hoses (DVGW certified, 350 mm)
- 1x Central connector for mounting
- 1x Mounting hardware set
- 1x Instruction manual (German, refer to this English version for details)
Image 3.1: All components included in the package for the Schütte RIO Kitchen Faucet.
4. Spesifikasi
| Pengeluar | F.J. Schütte |
| Nombor Model | 79836 |
| warna | Graphite Glossy |
| bahan | Loyang, Keluli Tahan Karat |
| Dimensi (L x W x H) | 27.3 x 11 x 29.8 cm |
| Berat badan | 1.59 Kilogram |
| Kaedah Pemasangan | Lubang tunggal |
| Bilangan Pemegang | 1 |
| Ketinggian spout | 32 Sentimeter |
| Tekanan Maksimum | 5 Bar |
| Ciri Khas | Muncung Pusing 360° |
Image 4.1: Dimensional drawing of the Schütte RIO Kitchen Faucet, showing key measurements.
5. Persediaan dan Pemasangan
Ikuti langkah ini untuk pemasangan yang betul:
- Sediakan Sinki: Ensure the mounting hole in your sink or countertop is clean and has a diameter between 35-50 mm.
- Pasang Faucet: Masukkan badan paip ke dalam lubang pelekap.
- Selamatkan Faucet: From underneath the sink, attach the central connector and mounting hardware. Tighten securely to prevent movement.
- Sambungkan Hos Air: Attach the two flexible connection hoses to the corresponding hot and cold water lines. Ensure a tight, leak-free connection.
- Ujian untuk Kebocoran: Slowly turn on the main water supply and check all connections for any signs of leakage.
Image 5.1: Illustration demonstrating the straightforward installation process for the faucet, suitable for hole diameters of 35-50 mm.
6. Arahan Operasi
The Schütte RIO Kitchen Faucet features a single-lever design for easy control of water flow and temperature.
- Aliran Air: Angkat tuil ke atas untuk meningkatkan aliran air. Tolak ke bawah untuk mengurangkan atau menghentikan aliran.
- Kawalan Suhu: Gerakkan tuil ke kiri untuk air panas dan ke kanan untuk air sejuk.
- Fungsi Mula Sejuk: When the lever is in the central position, only cold water flows initially. This energy-saving feature helps prevent unnecessary hot water consumption.
- Muncung Pusing: The high spout can swivel 360°, providing flexibility for various tasks, such as filling large pots or cleaning double sinks.
Image 6.1: Visual representation of the energy-saving cold-start function, where the central lever position delivers cold water.

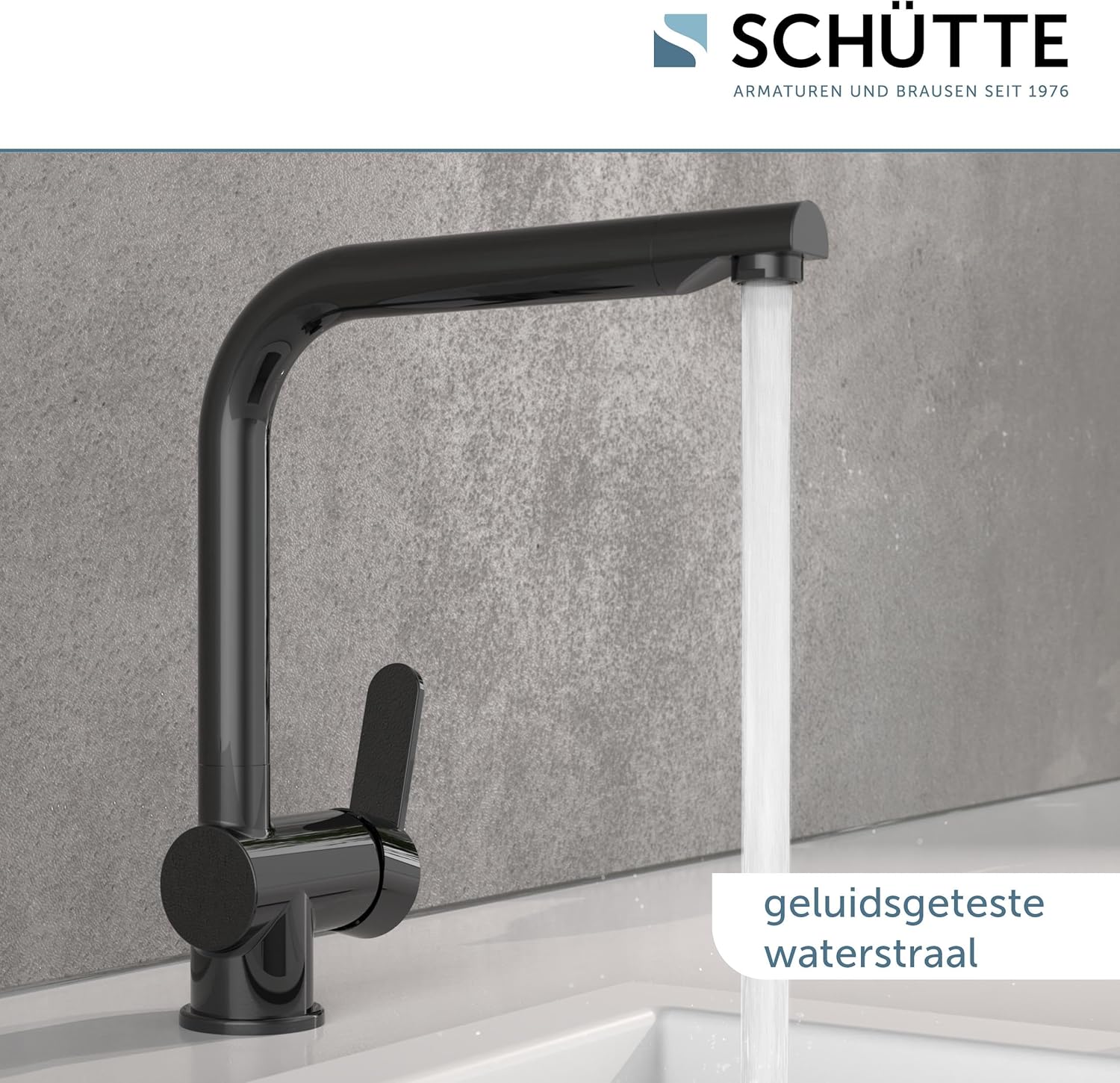

Image 6.2: The faucet in operation, demonstrating a quiet water stream.
7. Penyelenggaraan dan Pembersihan
To ensure the longevity and appearance of your faucet, follow these maintenance guidelines:
- Pembersihan tetap: Bersihkan paip dengan kerap menggunakan kain lembut dan sabun lembut.
- Elakkan Pembersih Keras: Do not use abrasive sponges, scouring agents, or cleaners containing alcohol, acids, or solvents, as these can damage the finish.
- Penyelenggaraan Aerator: Periodically unscrew and clean the aerator (at the tip of the spout) to remove any mineral deposits that may affect water flow.
- Penggantian Kartrij: In case of persistent drips or issues with temperature control, the ceramic cartridge may need replacement. Schütte provides replacement cartridges.
8. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Aliran air rendah | Clogged aerator; partially closed shut-off valve | Clean or replace aerator; ensure shut-off valves are fully open. |
| Air menitis dari muncung | Kartrij usang | Replace the ceramic cartridge. |
| Kebocoran pada sambungan | Sambungan longgar; meterai rosak | Tighten connections; check and replace seals if necessary. |
| Tiada air panas/sejuk | Water supply turned off; blocked supply line | Check hot/cold water supply valves; inspect supply lines for kinks or blockages. |
9. Waranti dan Sokongan
Schütte offers a Waranti pengilang selama 5 tahun on this product, subject to internal conditions. For any questions, suggestions, or support needs, please contact Schütte directly.
Maklumat Hubungan:
- telefon: +49 (0) 5407-81529-0 – 3
- Webtapak: www.fjschuette.de
