Manual Arahan Penghala Dwi Jalur Tanpa Wayar MERCUSYS AC1200 AC12

1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your MERCUSYS AC1200 Wireless Dual Band Router, model AC12. Please read this guide thoroughly to ensure proper setup and optimal performance of your device.

The MERCUSYS AC1200 Router offers high-speed Wi-Fi connectivity with dual-band support, designed to provide reliable internet access for your home or office network.

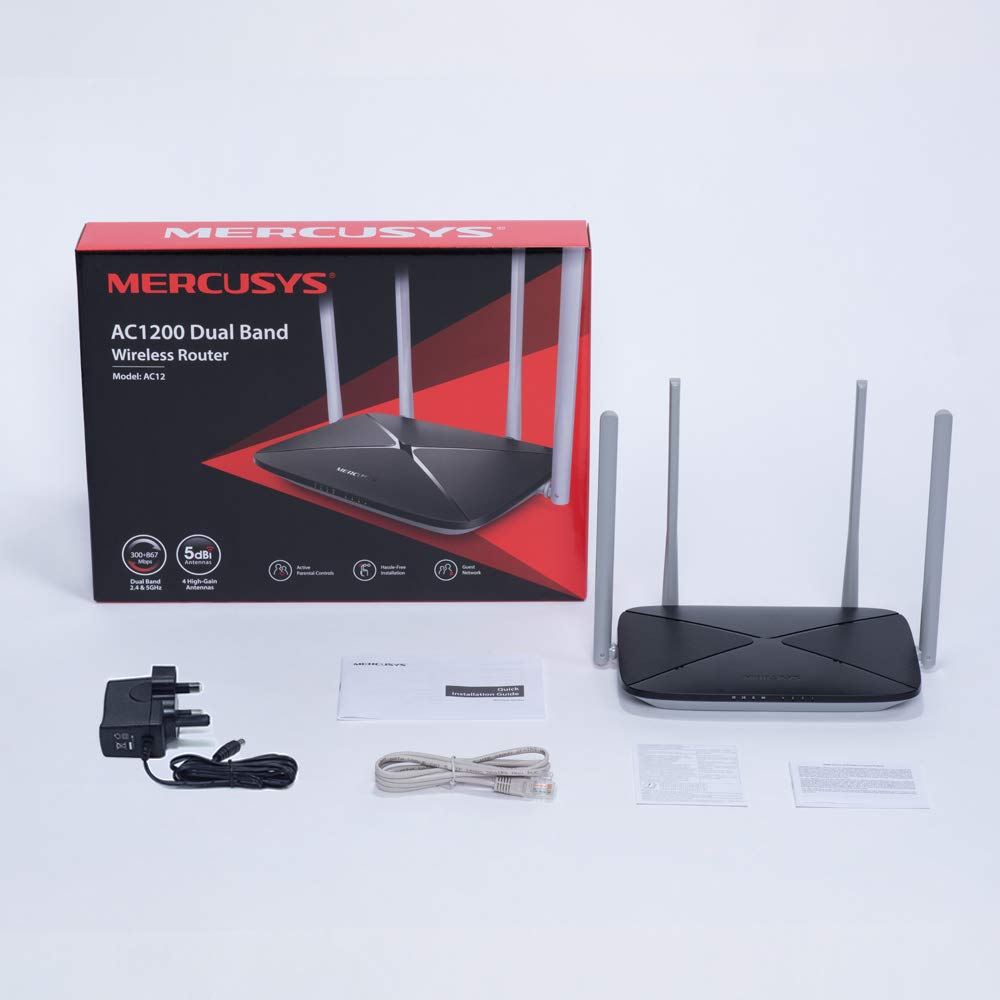

2. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej produk anda:

• MERCUSYS AC1200 Dual Band Wireless Router (AC12)
• Penyesuai kuasa
• Panduan pemasangan pantas
• Kabel Ethernet

3. Perkakasan Terlaluview

3.1 Panel Depan

The front panel features LED indicators that provide status information about the router's operation, including power, internet connection, and Wi-Fi activity.

3.2 Panel Belakang

The rear panel contains all the physical ports and buttons necessary for connecting the router to your network and power source.

• WAN Port (Orange): Menyambung ke modem atau peralatan penyedia perkhidmatan internet (ISP) anda.
• LAN Ports (Blue): Connects to wired devices such as computers, gaming consoles, or network printers. The AC12 model features 4 LAN ports.
• Input Kuasa: Menyambung kepada penyesuai kuasa yang disediakan.
• Butang Tetapkan Semula/WPS: Used to reset the router to factory settings or to initiate a Wi-Fi Protected Setup (WPS) connection.

3.3 Antena

The router is equipped with four external 5dBi omni-directional antennas, designed to enhance wireless coverage and signal strength.

4. Panduan Persediaan

Follow these steps to set up your MERCUSYS AC1200 Router:

1. Sambung Perkakasan:
   • Matikan modem anda.
   • Connect the modem's Ethernet cable to the WAN port (orange) of the AC12 router.
   • Connect your computer to one of the LAN ports (blue) on the router using an Ethernet cable, or connect wirelessly using the default Wi-Fi name (SSID) and password printed on the router's label.
   • Power on your modem, then power on the AC12 router.
2. Configure Router via Web Antara muka:

   Buka a web browser on your connected computer or device. The intuitive webpage guides you through the setup process in minutes.

   • Langkah 1: Create a unique login password for the router's management page.
   • Langkah 2: Choose your internet service type and enter any required information provided by your ISP.
   • Langkah 3: Set your wireless network name (SSID) and password for both 2.4 GHz and 5 GHz bands.

5. Arahan Operasi

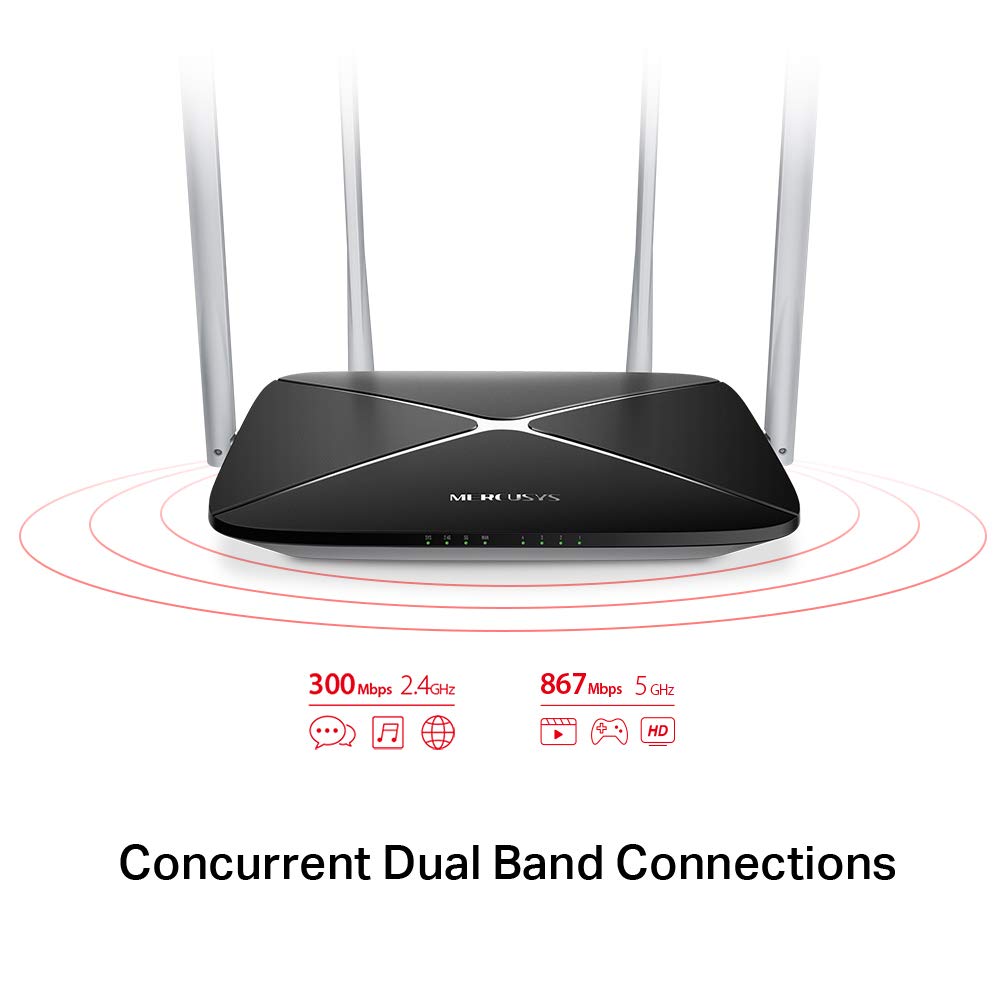

5.1 Dual Band Wi-Fi

The AC1200 router operates on two distinct Wi-Fi bands:

• Jalur 2.4 GHz: Provides speeds of up to 300 Mbps, suitable for general internet use, web menyemak imbas, dan e-mel.
• Jalur 5 GHz: Offers faster speeds of up to 867 Mbps, ideal for online gaming, HD video streaming, and other bandwidth-intensive applications.

5.2 Enhanced Wireless Coverage

The four external 5dBi omni-directional antennas are designed to provide extensive wireless coverage and strong signal intensity throughout your home or office, minimizing weak spots and dropped connections.

5.3 Rangkaian Tetamu

The Guest Network feature allows you to provide secure Wi-Fi access to guests without sharing your main network password. This enhances security by isolating guest devices from your primary network resources.

5.4 Protokol Keselamatan

The router supports WPA-PSK / WPA2-PSK security protocols to protect your wireless network from unauthorized access.

6. Penyelenggaraan

• Kemas kini Firmware: Regularly check the MERCUSYS official webtapak untuk kemas kini perisian tegar bagi memastikan prestasi dan keselamatan yang optimum.
• Pembersihan Fizikal: Pastikan penghala bersih dan bebas daripada habuk. Gunakan kain lembut dan kering untuk membersihkan. Jangan gunakan pembersih cecair.
• penempatan: Place the router in a central location, away from obstructions and devices that may cause interference (e.g., microwaves, cordless phones).
• Memulakan semula: Jika anda mengalami masalah rangkaian, cuba mulakan semula penghala dengan mencabut penyesuai kuasa selama 10 saat dan kemudian palamkannya semula.

7. Penyelesaian masalah

• Tiada Akses Internet:
  • Check if the WAN port LED is lit. If not, ensure the Ethernet cable from your modem is securely connected.
  • Sahkan bahawa modem anda berfungsi dengan betul.
  • Mulakan semula modem dan penghala anda.
  • Hubungi Penyedia Perkhidmatan Internet (ISP) anda jika masalah berterusan.
• Isyarat Wi-Fi Lemah:
  • Letakkan semula penghala ke kedudukan yang lebih tengah.
  • Ensure antennas are positioned vertically.
  • Minimize physical obstructions (walls, large furniture) between the router and your devices.
  • Avoid placing the router near other electronic devices that may cause interference.
• Tidak Boleh Mengakses Penghala Web Halaman Pengurusan:
  • Pastikan peranti anda disambungkan ke penghala (berwayar atau tanpa wayar).
  • Verify that you are using the correct IP address (e.g., 192.168.1.1 or mwlogin.net) dalam anda web pelayar.
  • Kosongkan cache penyemak imbas anda atau cuba penyemak imbas lain.
• Lupa Kata Laluan Wi-Fi atau Kata Laluan Log Masuk:
  • You can reset the router to factory default settings by pressing and holding the Reset/WPS button on the rear panel for approximately 6-10 seconds until the LEDs flash. Note that this will erase all your custom settings.

8. Spesifikasi

9. Waranti dan Sokongan

9.1 Maklumat Waranti

This MERCUSYS AC1200 Router comes with a Waranti 3 tahun. Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal use conditions.

9.2 Sokongan Teknikal

For technical assistance, please visit the official MERCUSYS website or contact their customer support. Manufacturer: TP-Link Technologies Co.,Ltd.
