Hunter Sprinkler SJ506 Swing Joint Instruction Manual
Model: SJ506
1. Pengenalan
The Hunter Sprinkler SJ506 Swing Joint is designed to provide flexible and durable connections between lateral pipes and sprinkler heads. This component allows for easy adjustment of sprinkler height and position, ensuring optimal coverage and simplifying installation, especially in areas with varying grades or where future adjustments may be necessary. It helps prevent damage to sprinkler heads from heavy equipment or ground shifts by absorbing stress.
2. Produk Lebihview
The SJ506 Swing Joint features a 1/2-inch threaded connection and a 6-inch length, providing ample flexibility for various sprinkler installations. Its robust construction ensures long-term reliability in demanding irrigation environments.

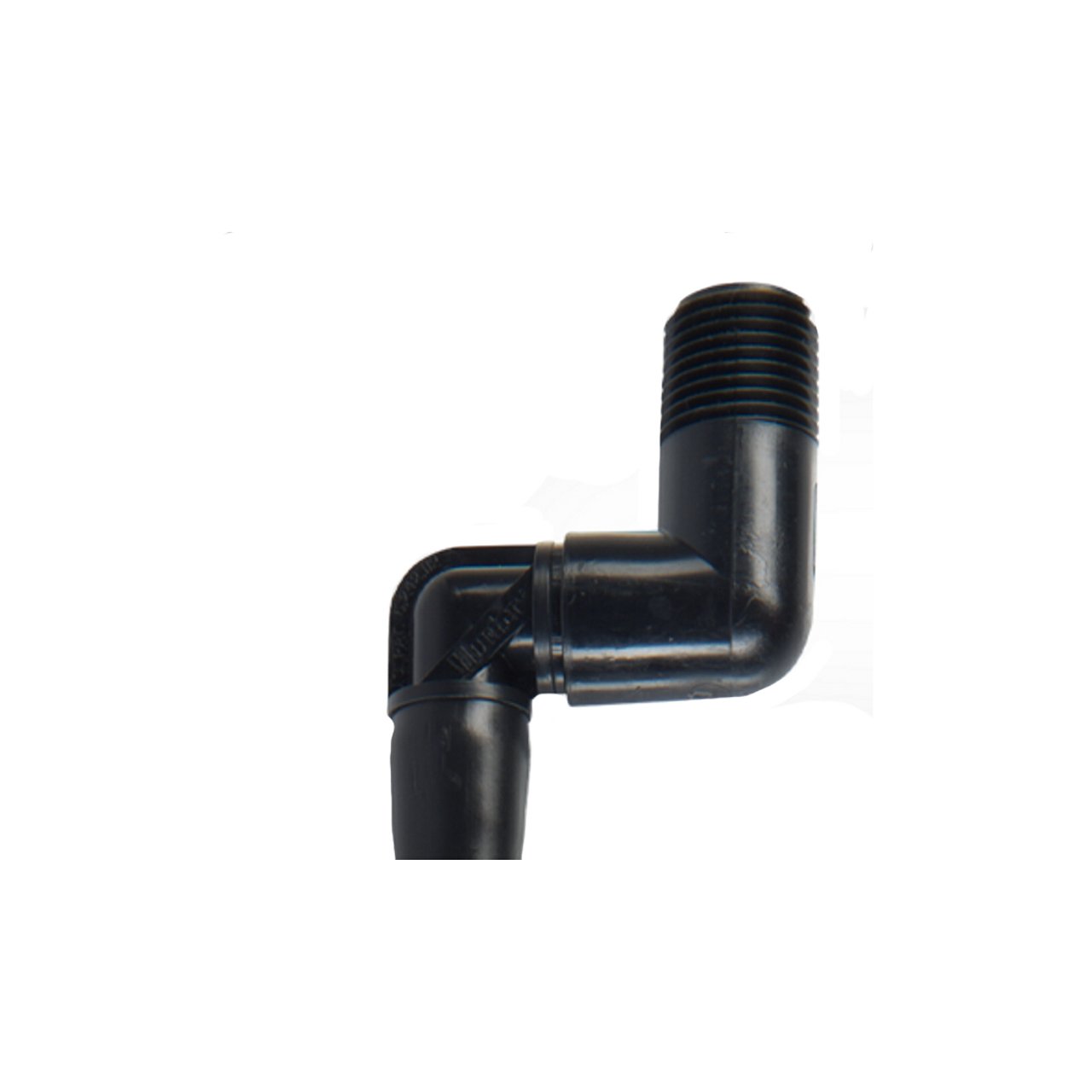

Rajah 1: Hunter SJ506 Swing Joint. This image displays the swing joint with its threaded ends, illustrating its compact and flexible design for connecting sprinkler heads to irrigation pipes.
Ciri-ciri Utama:
- Flexible Connection: Allows for precise positioning and height adjustment of sprinkler heads.
- Pembinaan Tahan Lama: Engineered for longevity in underground irrigation systems.
- Standard Threading: 1/2-inch NPT threads for compatibility with common sprinkler heads and fittings.
- Panjang Optimum: 6-inch length provides sufficient reach and flexibility for most applications.
3. Arahan Pemasangan
Proper installation of the SJ506 Swing Joint is crucial for the efficient operation and longevity of your sprinkler system. Follow these steps carefully:
- Prepare the Trench: Ensure the trench for your lateral pipe is dug to the appropriate depth, allowing for the sprinkler head to be flush with the finished grade.
- Connect to Lateral Pipe: Thread one end of the SJ506 Swing Joint onto the appropriate fitting on the lateral irrigation pipe. Use PTFE tape (Teflon tape) on the threads to ensure a watertight seal. Hand-tighten, then use a wrench for an additional 1/2 to 1 full turn. Do not overtighten.
- Attach Sprinkler Head: Thread the sprinkler head onto the other end of the SJ506 Swing Joint. Again, use PTFE tape on the threads and tighten securely, but do not overtighten.
- Adjust Position and Height: Position the sprinkler head to be vertical and adjust its height so that the top of the sprinkler head is level with the finished grade of the landscape. The flexibility of the swing joint allows for easy manipulation.
- Uji Sistem: Before backfilling the trench, turn on the water supply to the irrigation zone to check for leaks at all connections and to verify proper sprinkler operation and coverage.
- Backfill Trench: Once all connections are secure and leak-free, carefully backfill the trench, ensuring not to disturb the sprinkler head's position.
Nota: Always consult local plumbing codes and safety regulations before beginning any irrigation installation.
4. Fungsi dan Operasi
The Hunter SJ506 Swing Joint functions as a flexible connector, allowing for movement and adjustment of the sprinkler head relative to the rigid lateral pipe. This flexibility is critical for:
- Grade Adjustments: Easily raise or lower sprinkler heads to match changes in landscape grade or to accommodate new turf growth.
- Perlindungan Kesan: The joint absorbs impact from lawnmowers, vehicles, or foot traffic, reducing the risk of damage to the sprinkler head or the lateral pipe.
- Penjajaran Tepat: Ensures sprinkler heads are perfectly vertical and aligned for optimal spray patterns and water distribution.
Once installed, the swing joint requires no active "operation" but continuously provides its benefits by maintaining the sprinkler's position and protecting the system.
5. Penyelenggaraan
The Hunter SJ506 Swing Joint is designed for minimal maintenance. However, periodic checks can help ensure its continued performance:
- Pemeriksaan Kebocoran: Annually inspect the connections for any signs of leaks, especially during system startup after winterization.
- Position Check: Periodically verify that sprinkler heads connected via swing joints remain at the correct height and vertical alignment. Adjust as needed.
- Musim sejuk: Ensure your entire irrigation system, including swing joints, is properly winterized to prevent freeze damage in cold climates. This typically involves blowing out the system with compressed air.
6. Penyelesaian masalah
Most issues related to swing joints are installation-related. Here are common problems and their solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kebocoran pada sambungan | Insufficient PTFE tape; loose connection; damaged threads. | Disassemble, reapply PTFE tape generously (3-5 wraps), and retighten connections. Inspect threads for damage and replace if necessary. |
| Sprinkler head not vertical | Improper initial adjustment; ground settling. | Carefully excavate around the sprinkler head and readjust the swing joint until the head is vertical. Backfill carefully. |
| Sprinkler head too high/low | Incorrect initial height setting; changes in landscape grade. | Excavate around the sprinkler head and adjust the swing joint's position to achieve the desired height relative to the finished grade. |
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | SJ506 |
| Saiz Benang | 1/2-inch NPT (National Pipe Taper) |
| Panjang | 6 inci |
| Dimensi Produk | 5 x 7 x 10 inci (dimensi pembungkusan/penghantaran) |
| Berat Barang | 2.4 auns |
| Pengeluar | Standard Plumbing Supply-LG |
8. Waranti dan Sokongan
Hunter Industries products are manufactured to high-quality standards. For specific warranty information, please refer to the official Hunter Industries webtapak atau hubungi sokongan pelanggan mereka secara langsung. Simpan resit pembelian anda sebagai bukti pembelian.
For technical assistance or further inquiries, please visit the Hunter Industries official weblaman web atau hubungi pengedar sah mereka.
- Industri Pemburu Webtapak: www.hunterindustries.com
- Sokongan Pelanggan: Rujuk kepada webtapak untuk butiran hubungan khusus untuk wilayah anda.
