ASUS H81M-A MicroATX Motherboard User Manual

1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of the ASUS H81M-A MicroATX motherboard. Please read this manual thoroughly before beginning the installation process to ensure correct setup and optimal performance. Retain this manual for future reference.

2. Produk Lebihview

The ASUS H81M-A is a MicroATX form factor motherboard designed for Intel LGA 1150 processors. It supports DDR3 memory and features ASUS 5X Protection for enhanced durability and reliability. This motherboard provides essential connectivity options for a personal computer system.

Rajah 2.1: Atas view of the ASUS H81M-A MicroATX motherboard, showing CPU socket, RAM slots, PCIe slots, and various connectors.

3. Ciri-ciri

• ASUS 5X Protection: Provides comprehensive protection for the motherboard, ensuring quality, reliability, and durability.
• USB 3.0 Boost (UASP Support): Offers faster data transfer speeds for USB 3.0 devices.
• HDMI & DVI Outputs: Supports high-definition visual output for integrated graphics.
• Soket LGA 1150: Compatible with Intel 4th Generation Core i3, Core i5, and Core i7 processors.
• Sokongan Memori DDR3: Two DIMM slots supporting up to 1600 MHz DDR3 SDRAM.

4. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej sebelum meneruskan pemasangan:

• ASUS H81M-A Motherboard
• I / O Shield
• Kabel SATA 6Gb/s (2x)
• Manual Pengguna (dokumen ini)
• Menyokong DVD (pemacu dan utiliti)

Figure 4.1: Included accessories: I/O shield and two SATA data cables.

5. Persediaan dan Pemasangan

5.1. Langkah-langkah Keselamatan

• Sentiasa putuskan sambungan kord kuasa daripada alur keluar dinding sebelum menyentuh mana-mana komponen.
• Pakai tali pergelangan tangan anti-statik atau kerap sentuh objek logam yang dibumikan untuk melepaskan elektrik statik.
• Kendalikan komponen di tepinya untuk mengelak daripada menyentuh bahagian sensitif.

5.2. Pemasangan CPU

1. Cari soket LGA 1150 pada papan induk.
2. Buka tuil soket CPU dan angkat plat beban logam.
3. Carefully align the notches on the CPU with the keys on the socket. Ensure the gold triangle on the CPU aligns with the triangle on the socket.
4. Perlahan-lahan letakkan CPU ke dalam soket tanpa memaksanya.
5. Tutup plat beban dan selamatkannya dengan tuil.

5.3. Pemasangan Memori (RAM).

1. Cari dua slot DIMM DDR3.
2. Buka klip di kedua-dua hujung slot DIMM.
3. Selaraskan takuk pada modul memori DDR3 dengan kunci dalam slot DIMM.
4. Masukkan modul memori dengan kuat ke dalam slot sehingga klip terpasang pada tempatnya.

5.4. Pemasangan Papan Induk ke dalam Casis

1. Install the I/O shield into the chassis's rear panel opening.
2. Align the motherboard with the standoffs inside the chassis.
3. Selamatkan papan induk dengan skru, pastikan ia terpasang dengan kukuh.

5.5. Menyambung Peranti dan Kuasa

Connect the necessary cables to the motherboard:

• Penyambung Kuasa ATX: Connect the 24-pin and 4-pin ATX power cables from the power supply to the motherboard.
• Peranti SATA: Connect SATA data cables from storage drives (HDD/SSD) to the SATA 6Gb/s ports on the motherboard.
• Penyambung Panel Depan: Connect the power switch, reset switch, HDD LED, and power LED cables from the chassis front panel to the corresponding headers on the motherboard. Refer to the motherboard diagram for exact pin locations.
• Port USB: Connect front panel USB 2.0 and USB 3.0 cables to the respective headers.
• Audio: Connect the front panel audio cable to the audio header.
• Panel I/O Belakang: Connect external devices such as keyboard, mouse, monitor, and network cable to the rear I/O ports.

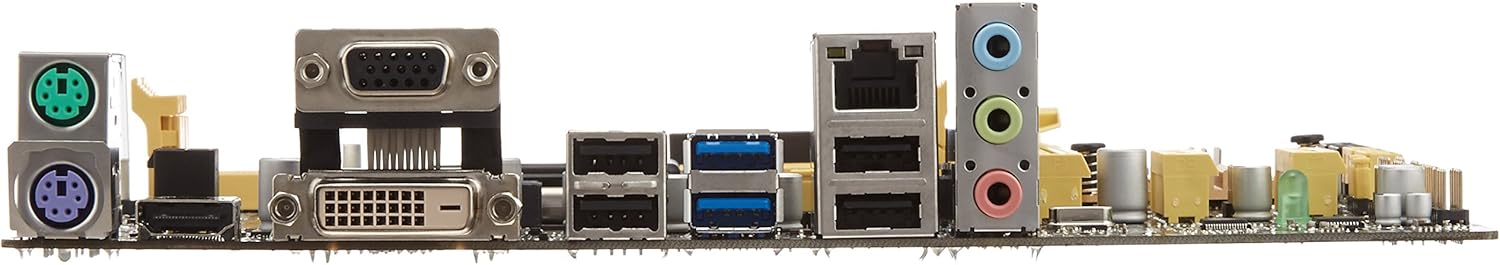

Figure 5.1: Rear I/O panel of the ASUS H81M-A motherboard, showing PS/2 ports, VGA, DVI, HDMI, USB 2.0, USB 3.0, LAN, and audio jacks.

6. Arahan Operasi

6.1. Hidupkan Pertama

After completing all hardware installations, connect the power cord to the power supply and press the power button on your chassis. The system should initiate the Power-On Self-Test (POST).

6.2. Persediaan BIOS

Untuk memasuki utiliti persediaan BIOS, tekan butang Padam key during the POST process. The BIOS allows you to configure system settings, boot order, and monitor hardware status.

6.3. Pemasangan Sistem Pengendalian

Insert your operating system installation media (USB drive or DVD) and configure the boot order in the BIOS to boot from the installation media. Follow the on-screen instructions to install your operating system.

6.4. Pemasangan Pemandu

After installing the operating system, install the necessary drivers from the provided support DVD or download the latest drivers from the ASUS official website. This includes chipset drivers, audio drivers, LAN drivers, and graphics drivers (if using integrated graphics).

7. Penyelenggaraan

7.1. Pembersihan

Regularly clean dust from the motherboard and other components using compressed air. Ensure the system is powered off and unplugged before cleaning. Avoid using liquid cleaners directly on components.

7.2. Kemas Kini BIOS

Periksa sokongan ASUS secara berkala website for BIOS updates. BIOS updates can improve system stability, compatibility, and performance. Follow the instructions provided by ASUS carefully when updating the BIOS to avoid system damage.

8. Penyelesaian masalah

Bahagian ini menyediakan penyelesaian kepada isu biasa yang mungkin anda hadapi.

• Tiada Kuasa: Ensure all power cables (24-pin ATX and 4-pin CPU) are securely connected to the motherboard and power supply. Verify the power supply switch is in the 'ON' position.
• Tiada Paparan: Check that the monitor is correctly connected to the motherboard's video output (VGA, DVI, or HDMI) or to a dedicated graphics card. Ensure RAM modules are properly seated.
• System Fails to POST: Recheck CPU and RAM installation. Disconnect all non-essential peripherals. Note that this motherboard does not include an onboard speaker for audible POST error codes, making diagnosis more challenging.
• Peranti USB Tidak Berfungsi: Ensure front panel USB headers are correctly connected. Check BIOS settings for USB controller status.
• Sistem Pengoperasian Tidak Boleh Dibut: Verify the boot order in BIOS. Ensure the storage drive containing the OS is properly connected and detected.

For more complex issues, consult the ASUS support webtapak atau hubungi sokongan teknikal.

9. Spesifikasi

10. Waranti dan Sokongan

Untuk maklumat jaminan, sila rujuk kad jaminan yang disertakan dengan produk anda atau lawati laman web rasmi ASUS website. Technical support and additional resources can be found at www.asus.com/support/. Please have your product model (H81M-A) and serial number ready when contacting support.
