ANDTE 120 Pints Energy Star Dehumidifier User Manual

1. परिचय

Thank you for choosing the ANDTE 120 Pints Energy Star Dehumidifier. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.

2. सुरक्षितता सूचना

वापरकर्त्याला किंवा इतरांना इजा होऊ नये आणि मालमत्तेचे नुकसान होऊ नये म्हणून, खालील सूचनांचे पालन करणे आवश्यक आहे. सूचनांकडे दुर्लक्ष केल्यामुळे चुकीच्या पद्धतीने ऑपरेशन केल्यास हानी किंवा नुकसान होऊ शकते.

• Always plug into a grounded 3-prong outlet. Do not remove the ground prong.
• अडॅप्टर वापरू नका.
• एक्स्टेंशन कॉर्ड वापरू नका.
• Unplug the dehumidifier before cleaning or servicing.
• खराब झालेल्या पॉवर कॉर्ड किंवा प्लगने डिह्युमिडिफायर चालवू नका.
• Place the unit on a level, sturdy surface to prevent tipping.
• Maintain at least 8 inches of clearance around the unit for proper airflow.
• एअर इनलेट किंवा आउटलेट ब्लॉक करू नका.
• हे उपकरण कमी झालेल्या शारीरिक, संवेदनक्षम किंवा मानसिक क्षमता किंवा अनुभव आणि ज्ञानाचा अभाव असलेल्या व्यक्तींद्वारे (मुलांसह) वापरण्यासाठी हेतू नाही, जोपर्यंत त्यांना त्यांच्या सुरक्षिततेसाठी जबाबदार असलेल्या एखाद्या व्यक्तीद्वारे उपकरणाच्या वापराबाबत पर्यवेक्षण किंवा सूचना दिल्या जात नाहीत.

3. उत्पादन संपलेview

The ANDTE 120 Pints Dehumidifier is designed for efficient moisture removal in large spaces up to 6500 sq. ft. It features smart humidity control, multiple operating modes, and convenient drainage options.

घटक समाविष्ट:

• ANDTE 120 Pints Dehumidifier x 1
• Removable Water Tank x 1
• Detachable & Washable Filter x 1
• 6.56 Feet Drain Hose x 1
• पॉवर कॉर्ड x 1
• वापरकर्ता मॅन्युअल x 1

युनिट आकृती:

आकृती 1: समोर view of the ANDTE 120 Pints Dehumidifier, showcasing त्याच्या कॉम्पॅक्ट डिझाइन आणि डिजिटल डिस्प्लेमुळे.

नियंत्रण पॅनेल:

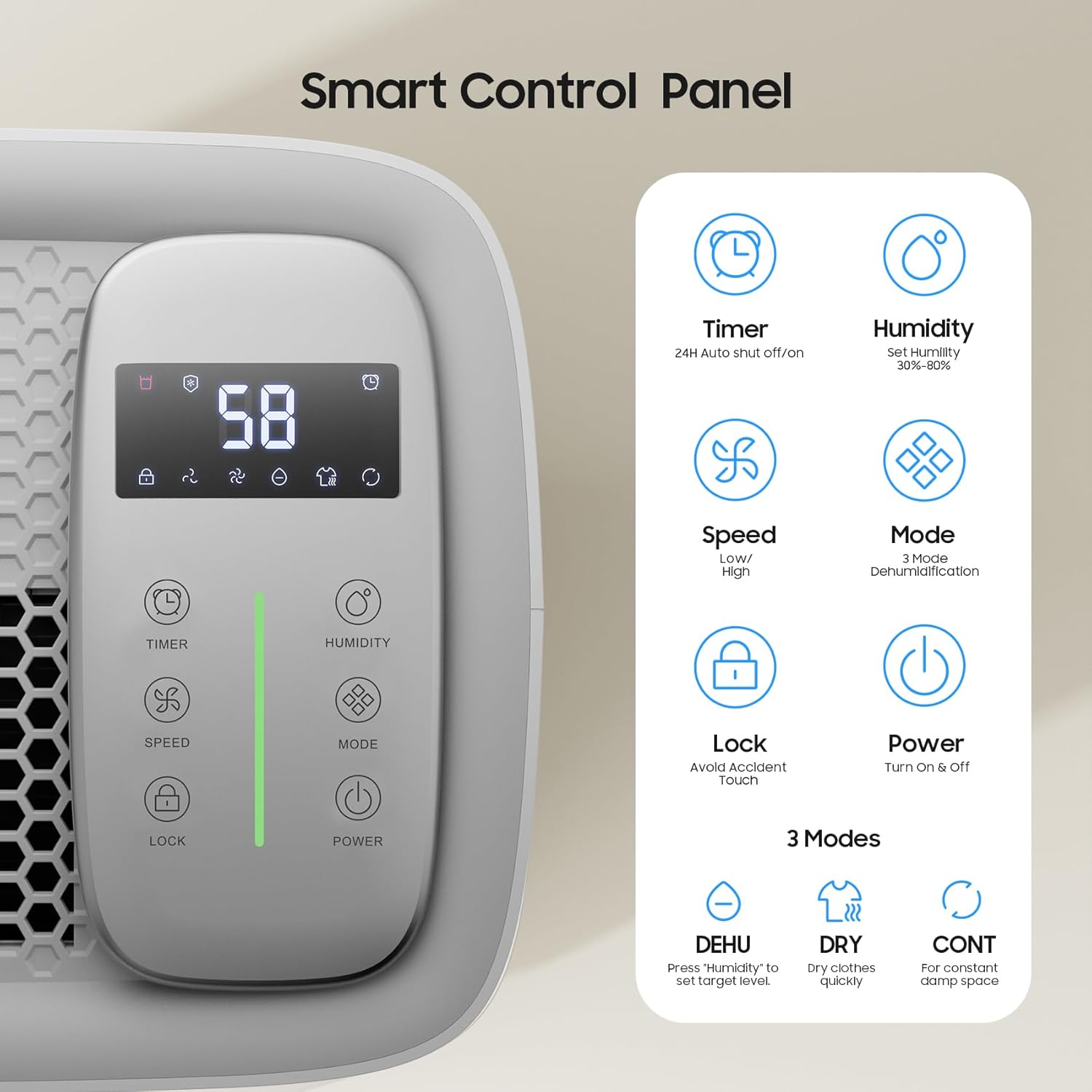

आकृती ४.१: सविस्तर view of the touch control panel, showing buttons for Timer, Humidity, Speed, Mode, Lock, and Power, along with the digital display.

• डिजिटल प्रदर्शनः Shows current humidity level and settings.
• टाइमर बटण: Sets the 24-hour auto shut-off/on timer.
• आर्द्रता बटण: Adjusts the target humidity level (30%-80%).
• स्पीड बटण: पंख्याचा वेग (कमी/जास्त) निवडतो.
• मोड बटण: Cycles through DEHU, DRY, and CONT modes.
• लॉक बटण: चाइल्ड लॉक सक्रिय/निष्क्रिय करते.
• पॉवर बटण: युनिट चालू/बंद करते.

4. सेटअप

अनपॅक करणे:

Carefully remove the dehumidifier and all accessories from the packaging. Inspect the unit for any shipping damage. Keep packaging materials for future storage or transport.

प्लेसमेंट:

For optimal performance, place the dehumidifier in a location where the humidity is highest and air circulation is good. Ensure there is at least 8 inches of space around the unit for proper airflow. The unit is equipped with wheels for easy mobility.

वीज कनेक्शन:

Plug the power cord into a grounded 3-prong electrical outlet. The unit will enter standby mode.

ड्रेनेज पर्याय:

तुमचे डिह्युमिडिफायर दोन ड्रेनेज पद्धती देते:

1. Manual Drainage (1.32 Gal / 5L Tank): The unit will automatically shut off and alert you when the water tank is full. Remove the tank, empty the collected water, and reinsert it securely.
2. Continuous Drainage (Drain Hose): For uninterrupted operation, connect the included 6.56ft drain hose to the drainage port on the back of the unit. Ensure the hose is sloped downwards to allow gravity to drain water to a suitable floor drain.

Figure 3: An illustration demonstrating how to connect the continuous drain hose and how to manually empty the 1.32-gallon water tank.

5. ऑपरेटिंग सूचना

पॉवरिंग चालू/बंद:

दाबा शक्ती डिह्युमिडिफायर चालू किंवा बंद करण्यासाठी बटण.

Setting Humidity (DEHU Mode):

In DEHU mode, press the आर्द्रता button to set your desired humidity level between 30% and 80% Relative Humidity (RH). The unit will operate until the set humidity is reached, then cycle on and off to maintain it.

मोड निवड:

दाबा मोड उपलब्ध ऑपरेटिंग मोडमधून सायकल करण्यासाठी बटण:

• DEHU Mode: Precise humidity control for maintaining a comfortable environment.
• ड्राय मोड: Designed for fast clothes drying. Place the unit near damp कपडे
• चालू मोड: Continuous operation for highly damp spaces, such as basements or bathrooms, without a specific humidity target.

Figure 4: Visual representation of the DEHU mode for customized humidity, DRY mode for clothes drying, and CONT mode for continuous operation in damp मोकळी जागा

पंख्याची गती:

दाबा गती button to select between Low and High fan speeds. Low speed offers quieter operation, while High speed provides faster dehumidification.

टाइमर कार्य:

वापरा टाइमर button to set a 24-hour timer for automatic power on or off. This feature helps conserve energy by operating only when needed.

Figure 5: The dehumidifier operating quietly in a living space, emphasizing its low noise level and 24-hour timer function for scheduled operation.

चाइल्ड लॉक:

दाबा आणि धरून ठेवा कुलूप button to activate or deactivate the child lock feature, preventing accidental changes to settings.

6. देखभाल

पाण्याची टाकी रिकामी करणे:

When the water tank is full, the unit will beep and display a 'Full' alert. Carefully pull out the water tank from the front of the unit, discard the collected water, and slide the tank back into place until it clicks securely.

सतत ड्रेनेज:

If using the continuous drainage option, regularly check the drain hose for kinks or blockages to ensure proper water flow. Ensure the hose outlet is lower than the unit's drainage port.

फिल्टर साफ करणे:

The dehumidifier is equipped with a detachable and washable filter. It is recommended to clean the filter every two weeks or more frequently depending on usage and air quality. Remove the filter, wash it with warm, soapy water, rinse thoroughly, and allow it to air dry completely before reinserting.

ऑटो डीफ्रॉस्ट:

The unit features an auto-defrost function that automatically melts frost buildup on the evaporator coils. This protects the internal components and prolongs the service life of the dehumidifier. During defrosting, the dehumidification function will temporarily pause, and the fan may continue to run.

7. समस्या निवारण

ग्राहक समर्थनाशी संपर्क साधण्यापूर्वी, सामान्य समस्यांसाठी कृपया खालील समस्यानिवारण मार्गदर्शक पहा:

8. तपशील

9. हमी आणि समर्थन

Your ANDTE dehumidifier comes with a 1 वर्षाची वॉरंटी खरेदीच्या तारखेपासून. याव्यतिरिक्त, अ 30-day new exchange/refund policy is provided. For any inquiries, technical assistance, or warranty claims, please contact ANDTE customer support. Please refer to the contact information provided on the product packaging or the official ANDTE webसाइट
