परिचय
The GROHE 47310000 3/4-Inch Thermo-Element is a high-quality thermostatic cartridge designed for precise temperature control in shower and bath installations. This component ensures consistent water temperature, enhancing user comfort and safety by preventing sudden temperature fluctuations. It is engineered for durability and reliable performance within compatible GROHE systems.

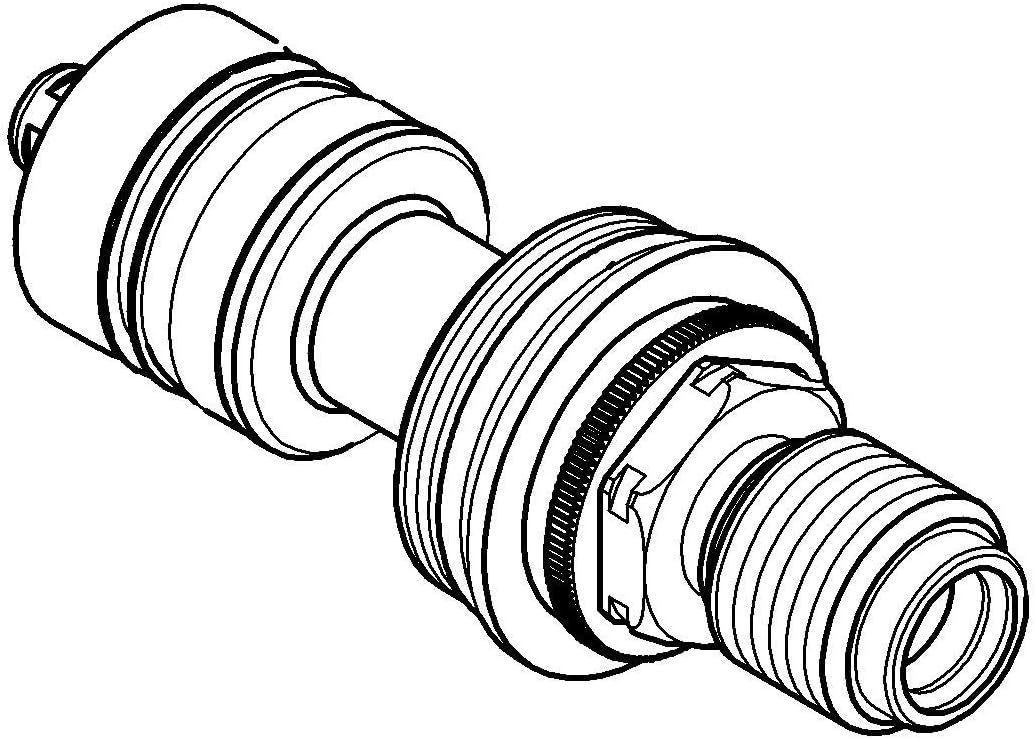

This image displays a detailed technical drawing of the GROHE 47310000 3/4-Inch Thermo-Element, highlighting its cylindrical shape and connection points.
सेटअप आणि स्थापना
Installation of the GROHE 47310000 Thermo-Element should be performed by a qualified professional to ensure proper function and to comply with local plumbing codes. Always ensure the main water supply is turned off before beginning any installation or maintenance work.
- तयारी: Turn off the main water supply to the fixture where the thermo-element will be installed. Drain any remaining water from the pipes.
- प्रवेश: Remove the trim, handle, and any retaining nuts or screws to access the existing thermostatic cartridge or the cartridge housing.
- काढणे (बदलल्यास): Carefully extract the old cartridge. Note its orientation for reference.
- स्वच्छता: Clean the cartridge housing thoroughly to remove any mineral deposits or debris. This ensures a proper seal and optimal performance for the new element.
- स्थापना: Insert the new GROHE 47310000 Thermo-Element into the housing, ensuring it is correctly oriented and seated. Apply a thin layer of silicone grease to the O-rings if recommended by the specific fixture's instructions.
- सुरक्षित: Reinstall any retaining nuts or screws, tightening them securely but without over-tightening.
- Calibration (if required): Some thermostatic mixers require temperature calibration after cartridge replacement. Refer to your specific fixture's manual for calibration instructions. This typically involves setting the maximum hot water temperature.
- चाचणी: Turn the main water supply back on slowly. Check for leaks and test the water temperature and flow.
This chart illustrates the compatibility of various GROHE thermostatic elements, including model 47310, with different GROHE shower and bath systems. It helps identify the correct element for specific installations.
ऑपरेटिंग सूचना
The GROHE 47310000 Thermo-Element works within your thermostatic mixer to maintain a constant water temperature. Once installed, its operation is integrated with your fixture's controls.
- तापमान समायोजन: Use the temperature control handle on your thermostatic mixer to select your desired water temperature. The thermo-element will automatically mix hot and cold water to achieve and maintain this setting, even if incoming water pressure or temperature fluctuates.
- प्रवाह नियंत्रण: Use the flow control handle (if present on your mixer) to adjust the water volume.
- सुरक्षितता थांबा: Most GROHE thermostatic mixers include a safety stop button, typically set at 38°C (100°F), to prevent accidental scalding. To exceed this temperature, you must consciously override the safety stop.
देखभाल
Regular maintenance helps ensure the longevity and optimal performance of your GROHE thermostatic element.
- स्वच्छता: Periodically clean the visible parts of your thermostatic mixer with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or solvents, as these can damage the finish.
- खनिज तयार करणे: In areas with hard water, mineral deposits can affect the performance of the thermo-element. If you notice a decrease in temperature control accuracy or flow, the cartridge may need descaling. This typically requires professional servicing.
- व्यावसायिक तपासणी: Consider having your plumbing system, including thermostatic elements, inspected by a qualified plumber every few years, especially if you experience persistent issues.
समस्यानिवारण
If you encounter issues with your thermostatic mixer, the following troubleshooting steps may help. For complex problems, contact a qualified plumber.
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| पाण्याचे तापमान विसंगत | Mineral buildup in the thermo-element; fluctuating water pressure; incorrect calibration. | Clean or descale the thermo-element (professional service recommended); check water pressure; recalibrate the mixer. |
| गरम किंवा थंड पाणी नाही | Water supply turned off; blocked inlet filters; faulty thermo-element. | Ensure water supply is on; clean inlet filters; replace thermo-element if faulty. |
| पाण्याचा प्रवाह कमी झाला | Blocked inlet filters; mineral buildup; low water pressure. | Clean inlet filters; descale the system; check household water pressure. |
| Leaks from the mixer | Loose connections; damaged O-rings or seals; cracked housing. | Tighten connections; replace O-rings/seals; contact a professional for housing damage. |
तपशील
- मॉडेल क्रमांक: 47310000
- ब्रँड: वाढवा
- आकार: 0.75 इंच
- साहित्य: पितळ
- रंग: स्टारलाईट क्रोम
- आयटमचे परिमाण (L x W x H): 0.75 x 0.75 x 1.5 इंच
- कनेक्टर प्रकार: बुचसे
- थ्रेड आकार: १/२-इंच
- थ्रेड प्रकार: NPT
- आयटम वजन: ०.४ किलोग्रॅम (अंदाजे १४.१ औंस)
- तुकड्यांची संख्या: 1
- निर्माता: वाढवा
हमी आणि समर्थन
For specific warranty information regarding your GROHE 47310000 3/4-Inch Thermo-Element, please refer to the documentation provided with your complete GROHE fixture or visit the official GROHE website. GROHE products are known for their quality and durability, and the manufacturer typically offers support for their components.
If you require technical assistance, replacement parts, or have questions not covered in this manual, please contact GROHE customer service directly. Contact details can usually be found on the GROHE official website or in the packaging of your product.
