mozos TUN-BASIC Tuner for Stringed Instruments
Precautions
- Avoid use in direct sunlight, extreme temperature or humidity, excessive dust, dirt or vibration or close to magnetic fields.
- Be sure to power off the unit when not in use and remove the battery for extended periods of inactivity.
- Radios and televisions placed nearby may experience reception interference.
- To avoid damage, do not apply excessive force to the switches or controls.
- For cleaning, wipe with a clean, dry cloth. Do not use flammable liquid cleaners such as benzene or thinner.
- To avoid damage fire, or electrical shock, do not place liquids near this equipment.

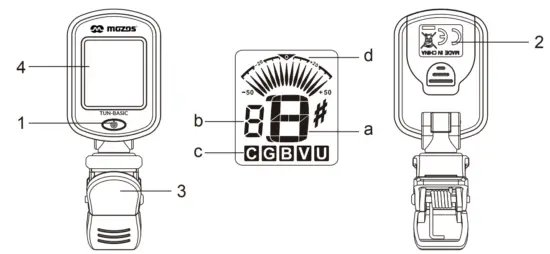

Controls and functions
- Power button (press and hold 2 seconds) & Tuning modes switch
- Battery Compartment
- Clip
- Display:
- a. Note name (for tuning modes of Chromatic/ Guitar/Bass/Violin/Ukulele )
- b. String number (for tuning modes of Guitar/ Bass/Violin/Ukulele)
- c. Tuning mode
- d. Meter
Specifications
| Tuning element: | chromatic, guitar, bass, violin, ukulele |
| 2-color backlight: | green – tuned, white – detuned |
| Reference frequency/Calibration A4: | 440 Hz |
| Tuning range: | A0 (27.5 Hz)-C8 (4186.00 Hz) |
| Tuning accuracy: | ±0.5 cents |
| Power supply: | one 2032 battery (included 3V) |
| Material: | ABS |
| Dimensions: | 29x75x50mm |
| Weight: | 20g |
Tuning procedure
- Press the power button and hold 2 seconds to turn on (off) the tuner.
- Press the power button continuously to select tuning mode out of Chromatic, Guitar, Bass, Violin and Ukulele.
- Clip the tuner onto your instrument.
- Play a single note on your instrument, the note name (and string number) will appear in the display. The screen colour will change. And the meter moves.
- Back light turns green; and meter stands in the middle: note in tune
- Back light stays white; and meter points to left or right: flat or sharp note
* In Chromatic mode, the display shows the note name.
* In Guitar, Bass, Violin and Ukulele mode, the display shows the string number and the note name.
Power saving function
If there is no signal inputs in 3 minutes after the power is on, the tuner will turn off automatically.
Installing the battery
Pressing on the cover as marked in the back of the product, open the case, insert a CR2032 coin battery being careful to observe the correct polarity. Battery life may differ according to the conditions of use. If the unit malfunctions, and turning the power OFF and then ON does not resolve the problem, please remove and wait for 5 minutes to reinstall the battery.
Battery attached is only for testing. Please change to a new high standard battery when necessary.
Declaration of Conformity
Hereby Mozos Sp. z o. o. declares that the Mozos TUN-BASIC devices comply with the essential requirements and other relevant provisions of the following directives: EMC Directive 2014/30/EU. Test standards: EN 55032:2015+A1:2020+A11:2020, EN 55035:2017+A11:2020, ENIEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019. The full CE declaration of conformity can be found at www.mozos.pl/deklaracje. The use of the WEEE symbol (crossed-out bin) means that this product may not be treated as household waste. Proper disposal of used equipment allows you to avoid threats to human health and the natural environment resulting from the possible presence of hazardous substances, mixtures and components in the equipment, as well as improper storage and processing of such equipment. Selective collection also allows for the recovery of materials and components from which the device was manufactured. For details on recycling this product, please contact the retailer where you purchased it or your local authority. Made in China for: Mozos sp.z oo. Sokratesa 13/37 01-909 Warszawa NIP: PL 1182229831 BDO registration number: 00055828
Customer Support
Producent: Mozos Sp. z o. o. ; Sokratesa 13/37; 01-909; Warszawa;
NIP: PL1182229831; BDO:000558288; serwis@mozos.pl; mozos.pl;
Made in China; Wyprodukowano w ChRL; Vyrobeno v Číně
