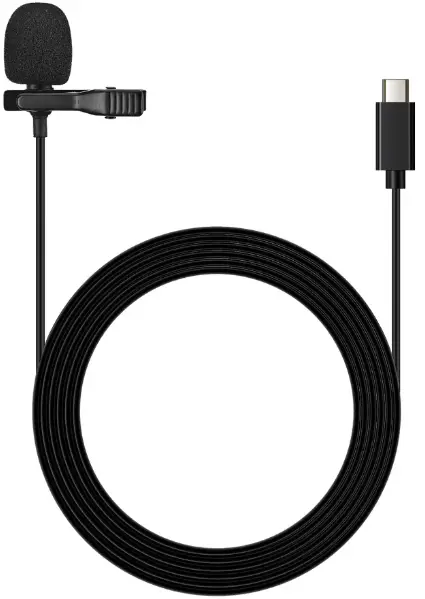

MOJOGEAR USB-C Pin Microphone with Lightning Connection

Introduction

Thank you for purchasing LituFoto products!
The VV10 Lavalier microphone is an omnidirectional electret condenser microphone with high sensitivity and signal-to-noise ratio to ensure stable audio output. It can be widely used in smartphones, DSLRs, camcorders, tablets, PCs and other devices. No power supply design, compact and delicate, plug-and-play, easy to carry, recording anytime and anywhere, whether it is a film and television, vocal singing, recording, musical instrument pickup, conference is a perfect audio solution. Please read this manual carefully before use, and after reading, please keep this manual for future reference.

Precautions

1. Make sure that the microphone is as close as possible to the recording object.
2. In noisy environments, a certain amount of ambient noise is unavoidable.
3. Make sure the equipment is properly inserted into place when it is connected.
4. When not in use, it should be stored in a dry and clean place, and avoid storing or using it in places with high temperature and humidity, so as not to affect sensitivity and tone.
5. Wire pulling and bumping may cause the microphone sensitivity to be reduced or even damaged.
6. Please keep it dry. Do not touch this product with wet hands. Do not immerse the product in water or expose to rain.
7. This product can not be waterproof, please pay attention to moisture in rainy days and wet conditions.
8. Keep out of reach of children.

Product Specification

• Product Name: Lavalier Microphone
• Microphone Type: Electret Condenser Microphone
• Directional: Omnidirectional
• Frequency response: 30 Hz – 20K Hz
• Sensitivity: -35‡3dB(0dB=1V/Pa,at 1KHz)
• S/N Ratio: >65d
• Interface: 3.5mm / Type-C / Lightning
• Cable length: 1.5M / 3M / 6M
• Weight: 25g / 36g / 60g

Standard Provision

• Lavalier Microphone: 1pcs
• Storage Bag: 1pcs
• Clip: 1pcs
• Sponge Cover: 1pcs
• Instruction Manual: 1pcs

Cable Description

3.5-Port audio connection cable:

1. Original 3.5TRS connecting plug, suitable for cameras, camcorders and other devices:
2. Adapter cable 3,5TRRS connecting plug, suitable for smartphone, tablet PC, Mac computer and other devices:
3. Type-C audio connection plug:
4. Lightning audio connection plug:

Connection Device

1. Plug the microphone cable into the audio input of the device you need to connect.
2. Open the audio or video recording app, and start recording.

Warranty service terms

1. This product is guaranteed for one year.
2. Warranty is calculated from the date of first purchase of the product. The purchase date is based on the date of registration of the warranty card when the product is purchased.
3. When a quality problem requires a warranty, return the warranty card, purchase document, and product to your dealer or factory for repair services.

Not applicable warranty

1. Product or component exceeds warranty.
2. Cannot provide warranty card or valid certificate for purchase.
3. Damage or broken caused by failure to use the instructions.
4. Broken or damage caused by improper handling, dropping, or shipping.
5. Malfunction or damage caused by contact with or exposure to improper temperature, solvents, acids, bases, flooding, or moisture.
6. Malfunctions and damage caused by repairs, disassembles, and changes by users.
7. Malfunctions or damage due to force or accident.
8. Malfunctions or damage caused by other non-quality problems.

The appearance of the product is scratched, discolored, worn and consumed during use, which is not a fault within the warranty scope. Damage or economic loss caused by improper use has nothing to do with the company.
