1. Бүтээгдэхүүн дууссанview
The Goobay 95175 is a wall-mounted infrared motion detector designed for both indoor and outdoor applications. It features a 180-degree detection area and a range of up to 12 meters, making it suitable for automatically switching lights, lamps, and LEDs. Its IP44 rating ensures protection against splashing water, allowing for reliable operation in outdoor environments.
This sensor accurately detects the movement of people and animals, particularly effective in darkness or low-light conditions. The sensor head is rotatable and tiltable, enabling optimal adjustment of the detection area to suit specific requirements.

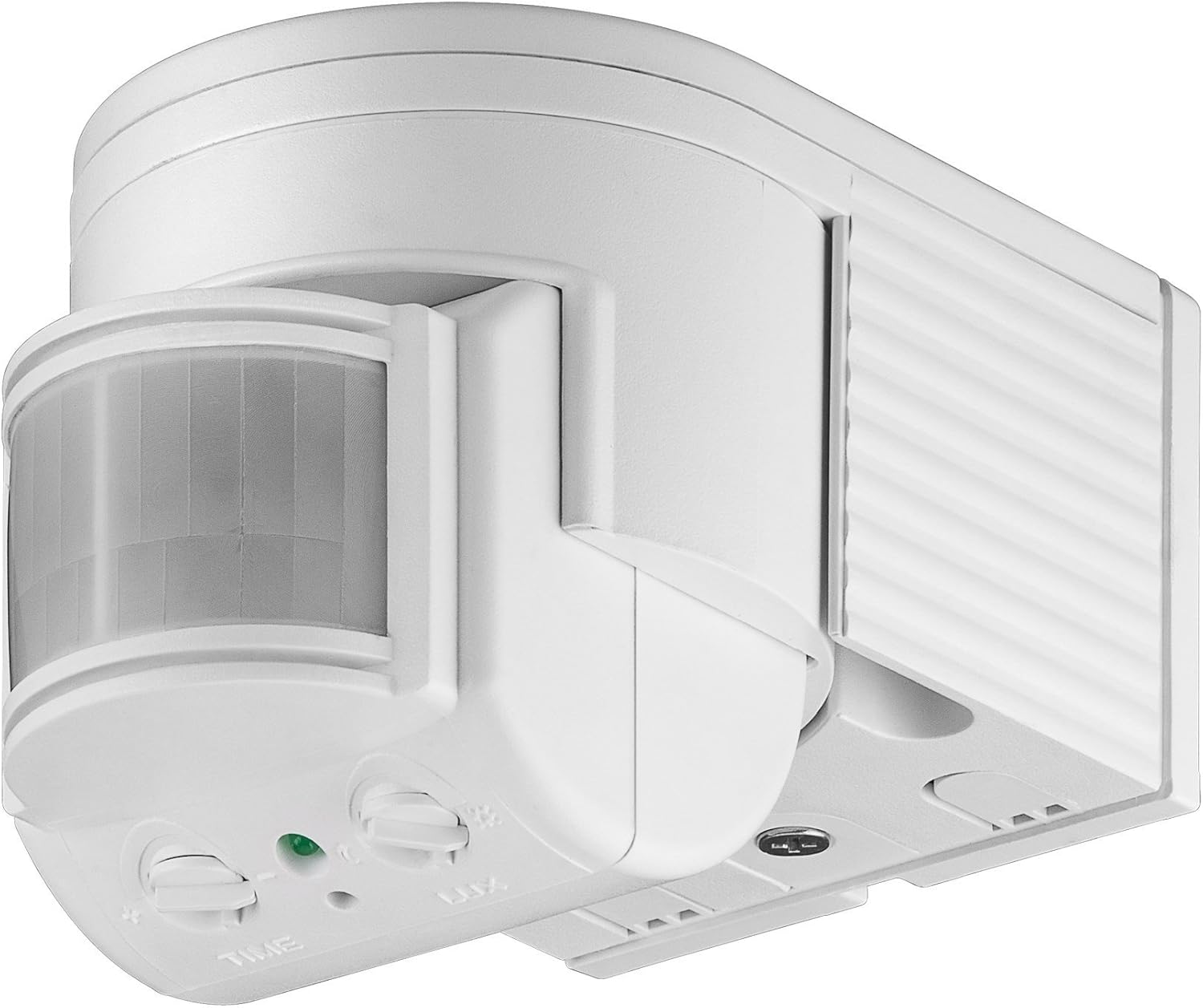

Image 1: Goobay 95175 Infrared Motion Detector. This image shows the white, wall-mounted motion detector with its adjustable sensor lens and control knobs for time and light sensitivity.
2. Аюулгүй ажиллагааны заавар
- Цахилгааны аюулгүй байдал: Installation and maintenance must be performed by a qualified electrician in accordance with local electrical codes and regulations.
- Эрчим хүчийг салгах: Always disconnect power to the circuit at the main fuse box or circuit breaker before performing any installation, wiring, or maintenance.
- Ботьtage: Үйлдлийн эзлэхүүнийг баталгаажуулна ууtage of 230V (AC) is correctly supplied.
- IP44 үнэлгээ: The device is protected against splashing water (IP44). Do not immerse in water or expose to direct high-pressure water jets.
- Суурилуулалт: Mount the device securely to a stable surface.
- Хүүхдүүд: Төхөөрөмжийг хүүхдэд хүрэхгүй газар хадгална уу.
3. Бүтээгдэхүүний онцлог
- Илрүүлэх өнцөг: 180 градус.
- Илрүүлэх хүрээ: 12 метр хүртэл.
- Хамгаалалтын ангилал: IP44 (splash-proof), suitable for outdoor use.
- Мэдрэгчийн тохируулга: Rotatable and tiltable sensor head for precise area coverage.
- Гэрэл мэдрэмтгий байдал: Adjustable from 3 lux (darkness) to 2000 lux (daylight).
- Ашиглалтын хугацаа: Adjustable from 10 seconds to 420 seconds (7 minutes).
- Шилжүүлэгч хүчин чадал: Maximum 300W, minimum 1W.
- Үйл ажиллагааны ботьtage: 230V (AC).
- Суурилуулалтын өндөр: Recommended between 1.8 meters and 2.5 meters.
4. Тохиргоо ба суурилуулалт
This motion detector is designed for surface wall mounting. Ensure the mounting location is stable and provides the desired detection coverage.
4.1 Mounting Location Considerations
- Avoid mounting near heat sources (e.g., vents, direct sunlight) that could cause false triggers.
- Do not point the sensor directly at moving objects like trees or busy roads if not desired.
- The recommended installation height is between 1.8 m and 2.5 m for optimal performance.
4.2 Утас тавих заавар
- Цахилгааныг салгах: Turn off the main power supply to the installation area at the circuit breaker.
- Утас бэлтгэх: Strip the insulation from the electrical wires (Live, Neutral, Load) according to standard electrical practices.
- Холбох утас: Use the screw terminals inside the detector to connect the wires. Typically:
- Connect the Live (L) wire from the power supply to the Live terminal on the detector.
- Connect the Neutral (N) wire from the power supply to the Neutral terminal on the detector.
- Connect the Load (L') wire (to the light fixture) to the Load terminal on the detector.
- Аюулгүй утас: Бүх холболтууд нягт, найдвартай байгаа эсэхийг шалгаарай.
- Mount Detector: Secure the detector to the wall using appropriate screws and anchors.
- Эрчим хүчийг сэргээх: Суурилуулалт дуусч, баталгаажсаны дараа хэлхээний цахилгаан хангамжийг сэргээнэ үү.
5. Ашиглалтын заавар
The Goobay 95175 motion detector features adjustable settings for light sensitivity and operating duration.
5.1 Adjusting Light Sensitivity (LUX)
The 'LUX' knob controls the ambient light level at which the detector becomes active. Rotate the knob:
- Towards the 'moon' symbol (lower lux value) for activation only in darker conditions (e.g., night).
- Towards the 'sun' symbol (higher lux value) for activation in brighter conditions (e.g., twilight or even daylight).
5.2 Adjusting Operating Duration (TIME)
The 'TIME' knob sets how long the connected light remains on after motion is detected and no further motion is sensed. Rotate the knob:
- Towards '-' for a shorter duration (minimum 10 seconds).
- Towards '+' for a longer duration (maximum 420 seconds / 7 minutes).
5.3 Adjusting Sensor Angle
The sensor head can be manually rotated and tilted to precisely define the detection area. Adjust the sensor to cover the desired zone and avoid unwanted triggers.
6. Засвар үйлчилгээ
The Goobay 95175 motion detector requires minimal maintenance.
- Цэвэрлэгээ: Periodically wipe the sensor lens with a soft, dry cloth to remove dust or dirt that might obstruct detection. Do not use abrasive cleaners or solvents.
- Шалгалт: Төхөөрөмжийг эвдэрсэн эсвэл холболт суларсан шинж тэмдэг байгаа эсэхийг тогтмол шалгаж байгаарай.
7. Алдаа засах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Хөдөлгөөнтэй үед гэрэл асдаггүй. | No power; incorrect wiring; LUX setting too high; sensor obstructed; faulty bulb. | Check power supply; verify wiring connections; adjust LUX setting to 'moon' for testing; clear sensor path; replace bulb. |
| Гэрэл тасралтгүй асдаг. | Constant motion in detection area; TIME setting too long; faulty sensor. | Adjust sensor angle to exclude constant motion; reduce TIME setting; if problem persists, sensor may be faulty. |
| Гэрэл санамсаргүй байдлаар асдаг. | Heat sources or moving objects in detection area; sensor too sensitive. | Adjust sensor angle to avoid heat sources or unwanted movement (e.g., trees, pets); ensure secure mounting to prevent vibration. |
| Detection range is too short/long. | Incorrect installation height; sensor angle not optimized. | Verify installation height is within 1.8m - 2.5m; adjust sensor head angle. |
8. Техникийн үзүүлэлтүүд
| Брэнд | Губай |
| Загварын дугаар | 95175 |
| Үйлдвэрлэгч | Wentronic GmbH |
| Хэмжээ (L x W x H) | 11.9 x 7.3 x 8.1 см |
| Жин | 223 грамм (7.87 унц) |
| Өнгө | Цагаан |
| Эрчим хүчний төрөл | Хувьсах гүйдэл (Хувьсах гүйдэл) |
| Ботьtage | 230 вольт |
| Илрүүлэх өнцөг | 180 градус |
| Хамгийн их илрүүлэх хүрээ | 12 метр |
| Шилжүүлэгч хүчин чадал | 1W (min) - 300W (max) |
| Гэрлийн мэдрэмжийн хүрээ | 3 lx - 2000 lx |
| Operating Duration Range | 10 seconds - 420 seconds (7 minutes) |
| Суурилуулалтын өндөр | 1.8 m - 2.5 m |
| Хамгаалалтын үнэлгээ | IP44 |
| Температурын хүрээ | 40 Degrees Celsius (Operating) |
| Батерей шаардлагатай | Үгүй |
| Тохиромжтой төхөөрөмжүүд | Lighting control, smart home hub, security system |
9. Баталгаат хугацаа ба дэмжлэг
For warranty information or technical support, please refer to the documentation provided with your purchase or contact Goobay customer service directly. Keep your proof of purchase for any warranty claims.
Үйлдвэрлэгч: Wentronic GmbH
