ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your NPYSVSSS Thermostatic Dual Shower System. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
സുരക്ഷാ വിവരങ്ങൾ
- ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ പ്ലംബിംഗ് കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും ചോർച്ചയില്ലാത്തതാണെന്നും ഉറപ്പാക്കുക.
- The thermostatic valve is designed to maintain a safe water temperature, typically set to 100°F (38°C) to prevent scalding. Do not bypass or alter this safety feature.
- ഒപ്റ്റിമൽ പ്രകടനത്തിനും സുരക്ഷയ്ക്കും പ്രൊഫഷണൽ ഇൻസ്റ്റാളേഷൻ ശുപാർശ ചെയ്യുന്നു.
- Turn off the main water supply before performing any maintenance or installation.
- Do not use abrasive cleaners or harsh chemicals on the shower system's finish.
പാക്കേജ് ഉള്ളടക്കം
Carefully unpack all components and verify that all items listed below are present and undamaged. If any items are missing or damaged, please contact customer support.
Image: All components of the NPYSVSSS Thermostatic Dual Shower System laid out on a white surface, including the main shower heads, handheld shower, mixing valve, and accessories.
- 12-inch Ceiling Mounted Rain Shower Head
- 8-inch Wall Mounted Rain Shower Head
- 3-Way Thermostatic Shower Mixing Valve
- 2-in-1 Function Handheld Shower with Hose
- Shower Head Arms (for ceiling and wall mounts)
- Mounting Hardware and Installation Instructions
- ത്രെഡ് സീൽ ടേപ്പ്
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of this shower system requires plumbing knowledge. It is highly recommended to hire a qualified professional for installation. Ensure the main water supply is turned off before beginning.
- മതിൽ തയ്യാറാക്കുക: Ensure the wall is prepared for the recessed thermostatic mixing valve. The valve body should be securely mounted according to the provided template.
- വാട്ടർ ലൈനുകൾ ബന്ധിപ്പിക്കുക: Connect the hot and cold water supply lines to the designated inlets on the thermostatic mixing valve. Ensure all connections are watertight.
- Install Shower Head Arms: Install the ceiling-mounted shower arm and the wall-mounted shower arm. Apply thread seal tape to all threaded connections.
- Attach Shower Heads: Securely attach the 12-inch rain shower head to the ceiling arm and the 8-inch rain shower head to the wall arm.
- Install Handheld Shower: Mount the handheld shower holder to the wall. Connect the shower hose to the handheld shower and the designated outlet on the mixing valve.
- Install Trim Plate and Handles: Once all plumbing connections are made and tested for leaks, install the decorative trim plate and control handles onto the thermostatic mixing valve.

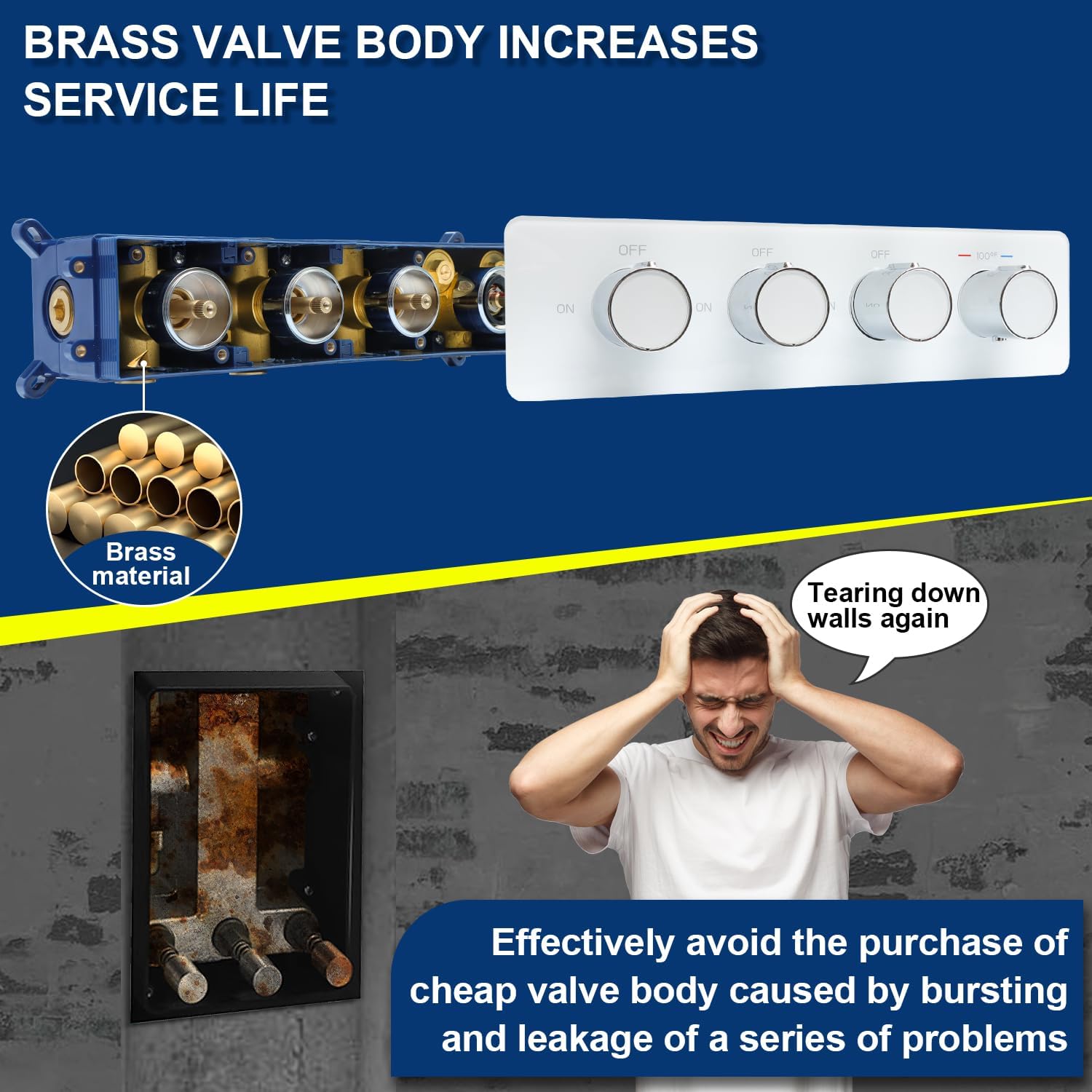

Image: Close-up of the brass valve body, highlighting its robust construction for durability and leak prevention.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Your NPYSVSSS Thermostatic Dual Shower System offers multiple functions for a customized showering experience.
Image: The thermostatic shower mixing valve, showing the temperature control knob and function selectors. The temperature is set to a safe 100°F (38°C).
- താപനില നിയന്ത്രണം: The bottom knob controls the water temperature. Push the safety button and rotate to adjust the temperature. The default safe temperature is 100°F (38°C).
- ഫംഗ്ഷൻ തിരഞ്ഞെടുക്കൽ: The three upper knobs control the water flow to different outlets:
- One knob for the 12-inch ceiling-mounted rain shower head.
- One knob for the 8-inch wall-mounted rain shower head.
- One knob for the handheld shower.
- ഹാൻഡ്ഹെൽഡ് ഷവർ മോഡുകൾ: The handheld shower features two modes:
- മഴ മോഡ്: For a gentle, wide spray suitable for showering.
- ജെറ്റ് മോഡ്: A high-pressure stream for targeted cleaning or rinsing.
Video: Demonstration of the 16-inch Thermostatic Shower System's live water flow, showcasing the various spray patterns and functions. Note: This video shows a 16-inch head, while your product includes 12-inch and 8-inch heads.
Video: Product showcase of a dual shower system, illustrating the simultaneous operation of different shower functions.
വീഡിയോ: കഴിഞ്ഞുview of the NPYSVSSS dual shower heads system, demonstrating its features and functionality.
മെയിൻ്റനൻസ്
പതിവായി വൃത്തിയാക്കലും അറ്റകുറ്റപ്പണിയും നിങ്ങളുടെ ഷവർ സിസ്റ്റത്തിന്റെ ദീർഘായുസ്സും ഒപ്റ്റിമൽ പ്രകടനവും ഉറപ്പാക്കും.
- ഫിനിഷ് വൃത്തിയാക്കൽ: Use a soft cloth and mild soap or a non-abrasive bathroom cleaner. Rinse thoroughly with water and dry with a soft cloth to prevent water spots. Avoid cleaners containing ammonia, bleach, or abrasive particles.
- Cleaning Shower Nozzles: The silicone nozzles on the shower heads are designed for easy cleaning. Periodically rub the nozzles with your finger to dislodge any mineral buildup. For stubborn buildup, a vinegar solution can be used.
- Thermostatic Valve Care: The thermostatic valve is designed for consistent performance. If you notice temperature fluctuations, consult a professional plumber.
Image: Visual comparison highlighting the rust-resistant and easy-to-clean properties of the NPYSVSSS shower system compared to other brands.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| താഴ്ന്ന ജല സമ്മർദ്ദം | ഷവർ ഹെഡ് നോസിലുകൾ അടഞ്ഞുകിടക്കുന്നു; ഭാഗികമായി അടഞ്ഞ ഷട്ട്-ഓഫ് വാൽവ്; വീട്ടിലെ ജല സമ്മർദ്ദം കുറവാണ്. | Clean shower head nozzles; ensure shut-off valves are fully open; consult a plumber for household water pressure issues. |
| പൊരുത്തപ്പെടാത്ത ജല താപനില | Thermostatic valve calibration issue; insufficient hot water supply; pressure imbalance. | Recalibrate the thermostatic valve (refer to installation guide); check hot water heater; consult a plumber. |
| കണക്ഷനുകളിൽ നിന്നുള്ള ചോർച്ചകൾ | Loose connections; worn out washers/seals; insufficient thread seal tape. | Tighten connections; replace washers/seals; reapply thread seal tape. |
സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: NPYSVSSS
- മോഡൽ നമ്പർ: NPY-014
- നിറം: പോളിഷ് ചെയ്ത Chrome
- മെറ്റീരിയൽ: Brass (valve body, handles), 304 Stainless Steel (shower hose)
- ഫിനിഷ് തരം: പോളിഷ് ചെയ്തു
- ഹാൻഡിലുകളുടെ എണ്ണം: 4 (1 temperature, 3 function selectors)
- ഇനത്തിൻ്റെ ഭാരം: 25 പൗണ്ട് (ഏകദേശം)
- മൗണ്ടിംഗ് തരം: Ceiling Mount (for 12-inch head), Wall Mount (for 8-inch head and handheld)
- തല വലുപ്പങ്ങൾ: 12 inches (ceiling), 8 inches (wall)
- ഹാൻഡ്ഹെൽഡ് ഷവർ: 2-in-1 function (Rain mode, Jet mode)
Image: Diagram showing the dimensions of shower heads. Note: This image displays 16-inch and 6-inch heads, while your product includes 12-inch and 8-inch heads.
ചിത്രം: വിശദമായത് view of the handheld shower sprayer, highlighting its powerful jet, solid brass construction, flexible hose, and durable threaded interface.
വാറൻ്റിയും പിന്തുണയും
Your NPYSVSSS Thermostatic Dual Shower System comes with a 5 വർഷത്തെ വാറൻ്റി on major parts. If you have any questions, concerns, or require technical assistance, please do not hesitate to contact us.
ബന്ധപ്പെടാനുള്ള ഇമെയിൽ: NPYSVSSS@126.COM
We aim to reply within 12 hours.
Image: Graphic displaying the NPYSVSSS contact email and the 5-year product warranty period.
