1. ആമുഖം
Thank you for choosing the NPYSVSSS Thermostatic Dual Shower System. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read these instructions carefully before installation and retain them for future reference.
This luxury shower system features a 12-inch ceiling-mounted rain shower head, an 8-inch wall-mounted rain shower head, a 4-function thermostatic mixing valve, and a 2-in-1 handheld shower with rain and jet modes, all in a sleek Matte Black finish.
2. ഉൽപ്പന്ന ഘടകങ്ങൾ
The NPYSVSSS Thermostatic Dual Shower System includes the following main components:
- 12-inch Ceiling Mounted Rain Shower Head
- 8-inch Wall Mounted Rain Shower Head
- 3-Way Thermostatic Shower Mixing Valve
- 2-in-1 Function Handheld Shower (Rain mode & Jet mode)
- 59-inch Shower Hose (304 stainless steel)
- Shower Head Arms (2 units)

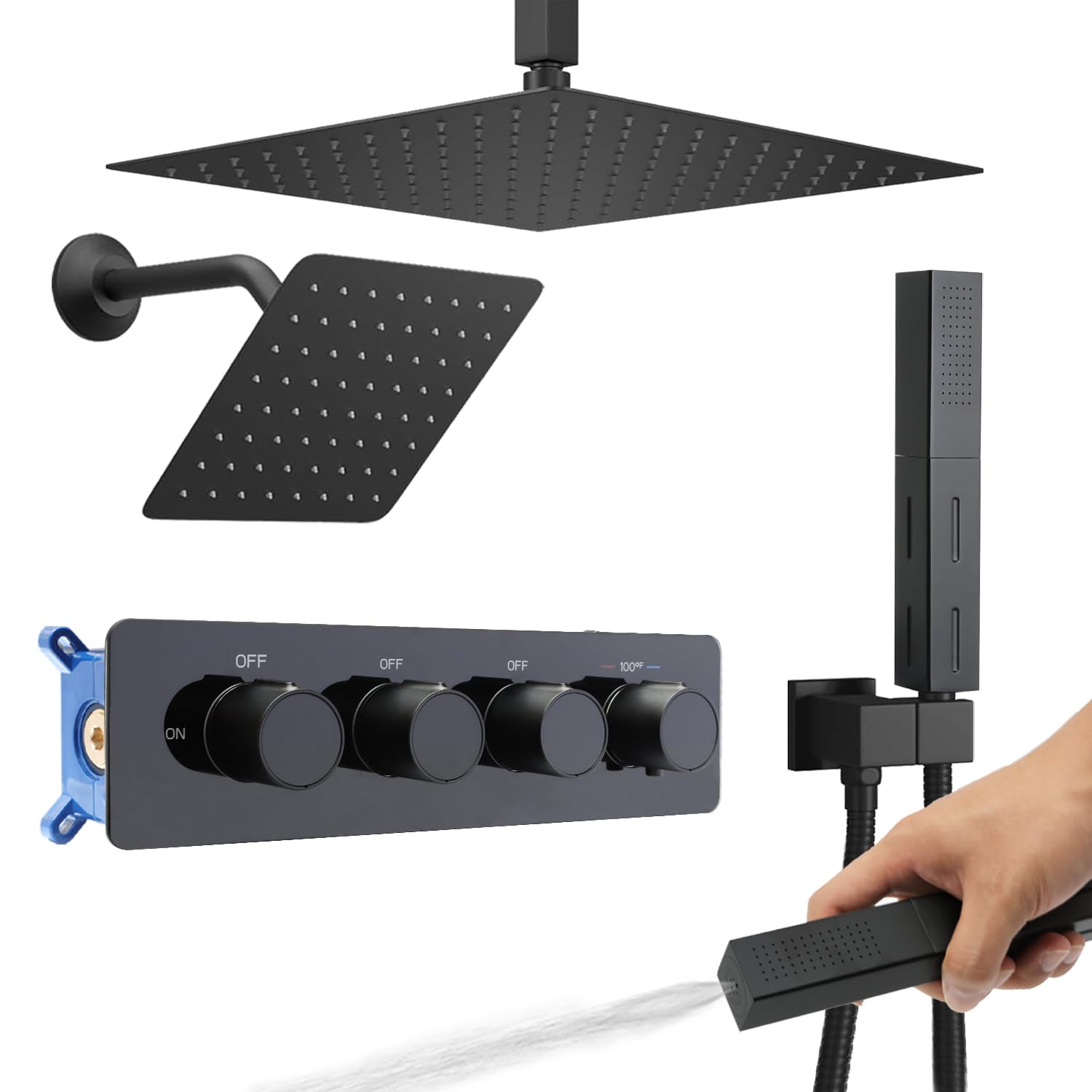

ചിത്രം: കഴിഞ്ഞുview of the NPYSVSSS Thermostatic Dual Shower System components, including the ceiling-mounted and wall-mounted shower heads, thermostatic valve, and handheld shower.
3 പ്രധാന സവിശേഷതകൾ
- ഡ്യുവൽ ഷവർ ഹെഡുകൾ: Features both a 12-inch ceiling-mounted and an 8-inch wall-mounted rain shower head, which can operate simultaneously. The smaller head is suitable for children's baths and water conservation.
- Thermostatic Mixing Valve: Provides precise temperature control, safely stopping at 100°F (38°C) to prevent scalding. No need to readjust temperature for each use, ideal for families with children or elderly individuals.
- Upgraded 4-Function Valve: Allows simultaneous use of 1 to 3 functions. Each function (ceiling shower, wall shower, handheld shower) is controlled individually for independent on/off and water flow adjustment.
- 2-in-1 Handheld Shower: Offers two modes: a gentle rain mode for showering and a high-pressure jet mode for cleaning/sanitation. Designed for water efficiency.
- നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Major parts are made of brass, ensuring longevity and resistance to corrosion.
Image: The thermostatic shower system in operation, highlighting the three functions (rainfall, handheld, and wall-mounted rain) that can be used simultaneously, with adjustable water flow.
Image: Close-up of the 2-in-1 handheld shower sprayer, illustrating its powerful jet and rain modes, solid brass construction, 59-inch flexible hose, and threaded interface for durability.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Professional installation is recommended for this shower system. Ensure all local plumbing codes are followed. Before beginning, turn off the main water supply.
4.1. പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ
- എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക.
- Ensure adequate water pressure and hot/cold water lines are correctly identified.
- Prepare the wall cavity for the thermostatic mixing valve.
4.2. Thermostatic Valve Installation
- Mount the thermostatic mixing valve body securely within the wall cavity, ensuring it is level and at the correct depth.
- Connect the hot and cold water supply lines to the designated inlets on the valve.
- Connect the outlet lines for the ceiling shower, wall shower, and handheld shower to the corresponding ports (Out 1, Out 2, Out 3).
- Install the decorative faceplate and control knobs onto the valve body.
Video: An animation demonstrating the installation process of the thermostatic mixing valve, including connecting water lines and attaching the control panel. This video also shows the G1/2" to NPT1/2" adapter for hot water connection.
ചിത്രം: വിശദമായത് view of the thermostatic shower mixing valve, showing the temperature lock feature at 100°F (38°C) for safety and consistent water temperature.
4.3. ഷവർ ഹെഡും ഹാൻഡ്ഹെൽഡ് ഇൻസ്റ്റാളേഷനും
- Install the 12-inch ceiling-mounted shower head and its arm according to the provided instructions, ensuring a secure connection to the ceiling water outlet.
- Install the 8-inch wall-mounted shower head and its arm, connecting it to the designated wall water outlet.
- Attach the handheld shower holder to the wall. Connect the 59-inch shower hose to the handheld shower and the corresponding outlet on the mixing valve.
Image: The 12-inch ceiling-mounted and 8-inch wall-mounted shower heads operating simultaneously, demonstrating the dual functionality.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Your NPYSVSSS Thermostatic Dual Shower System is designed for ease of use and precise control.
5.1. താപനില നിയന്ത്രണം
- The thermostatic valve maintains a constant water temperature, typically set at 100°F (38°C) for safety.
- To adjust the temperature, press the safety button on the temperature knob and rotate it to your desired setting. Rotate towards the red indicator for hotter water and blue for cooler water.
5.2. Function Selection and Flow Control
- Each shower function (ceiling shower, wall shower, handheld shower) has an independent control knob.
- Rotate the respective knob to turn a function ON or OFF.
- The flow rate for each function can be adjusted by rotating its dedicated knob.
- Multiple functions can be used simultaneously (up to 3 functions).
5.3. Handheld Shower Modes
- The handheld shower offers two modes: Rain and Jet.
- Rotate the head of the handheld shower to switch between the gentle rain spray and the powerful jet spray.
6. പരിപാലനം
പതിവായി വൃത്തിയാക്കലും അറ്റകുറ്റപ്പണിയും നിങ്ങളുടെ ഷവർ സിസ്റ്റത്തിന്റെ ദീർഘായുസ്സും ഒപ്റ്റിമൽ പ്രകടനവും ഉറപ്പാക്കും.
- വൃത്തിയാക്കൽ: Use a soft cloth and mild soap or a non-abrasive bathroom cleaner. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the Matte Black finish.
- നോസൽ വൃത്തിയാക്കൽ: The shower heads feature soft silicone nozzles. To remove mineral buildup, gently rub the nozzles with your finger or a soft brush.
- Thermostatic Valve: Periodically check the thermostatic valve for any signs of leakage or malfunction. If issues arise, consult a professional plumber.
Image: A comparison highlighting the durable, easy-to-clean glass material of the NPYSVSSS valve panel, contrasting it with other brands that may be susceptible to rust and difficult to clean.
7. പ്രശ്നപരിഹാരം
If you encounter any issues with your shower system, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| താഴ്ന്ന ജല സമ്മർദ്ദം | ഷവർ ഹെഡ് നോസിലുകൾ അടഞ്ഞുകിടക്കുന്നു; ഭാഗികമായി അടഞ്ഞ ഷട്ട്-ഓഫ് വാൽവ്; വീട്ടിലെ ജല സമ്മർദ്ദം കുറവാണ്. | Clean shower head nozzles; ensure shut-off valves are fully open; consult a plumber for household water pressure issues. |
| പൊരുത്തപ്പെടാത്ത ജല താപനില | Thermostatic valve malfunction; hot/cold water supply issues. | Ensure hot and cold water supplies are stable; if problem persists, contact customer support or a professional plumber. |
| Leaking from Shower Head/Hose | Loose connections; worn-out washers/seals; damaged component. | Tighten connections; replace worn washers/seals; inspect for damage and replace parts if necessary. |
| Water Not Switching Functions | Diverter valve issue; debris in valve. | Ensure knobs are fully rotated; if problem persists, professional inspection of the valve may be required. |
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | NPYSVSSS |
| മോഡൽ നമ്പർ | NPY-014 |
| നിറം | മാറ്റ് ബ്ലാക്ക് |
| മെറ്റീരിയൽ | Brass (main parts) |
| ഫിനിഷ് തരം | മാറ്റ് |
| ഹാൻഡിലുകളുടെ എണ്ണം | 4 |
| മൗണ്ടിംഗ് തരം | Wall Mount (for valve and wall shower head), Ceiling Mount (for ceiling shower head) |
| ഇനത്തിൻ്റെ ഭാരം | 19.8 പൗണ്ട് |
| തല വലുപ്പങ്ങൾ | 12 inches (ceiling), 8 inches (wall) |
| ഹാൻഡ്ഹെൽഡ് ഹോസ് നീളം | 59 inches (304 stainless steel) |
| Thermostatic Lock Temperature | 100°F (38°C) |
9. വാറൻ്റിയും പിന്തുണയും
NPYSVSSS offers a 5 വർഷത്തെ വാറൻ്റി on major parts of this shower system. If you have any questions, concerns, or require technical assistance, please do not hesitate to contact us.
ബന്ധപ്പെടാനുള്ള ഇമെയിൽ: NPYSVSSS@126.COM
We are committed to responding to your inquiries within 12 hours.
Image: NPYSVSSS contact email and information about the five-year product warranty.
