AHB 58-inch Fireplace TV Stand with 52-inch Electric Fireplace Instruction Manual

1. ആമുഖം

വാങ്ങിയതിന് നന്ദി.asing the AHB 58-inch Fireplace TV Stand with a 52-inch Electric Fireplace. This product is designed to provide both a stylish entertainment center and a functional electric fireplace, enhancing the ambiance and comfort of your living space. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your new product.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read all instructions carefully before assembly and use. Failure to follow these instructions may result in fire, electric shock, or injury.

• ഇലക്ട്രിക്കൽ സുരക്ഷ: Ensure the fireplace is connected to a properly grounded outlet. Do not overload electrical circuits. Keep the power cord away from heated surfaces and foot traffic areas.
• വെൻ്റിലേഷൻ: Do not block the air vents of the electric fireplace. Maintain clear space around the unit to ensure proper airflow and prevent overheating.
• പ്ലേസ്മെൻ്റ്: Place the TV stand on a flat, level, and stable surface. Avoid placing the unit near flammable materials, curtains, or bedding.
• അസംബ്ലി: Assembly requires two people. Follow all assembly steps precisely. Do not overtighten screws.
• ഭാരം ശേഷി: Do not exceed the maximum weight capacity for the TV stand. Refer to the specifications section for details.
• കുട്ടികളും വളർത്തുമൃഗങ്ങളും: Keep children and pets away from the operating fireplace and ensure they do not play with the unit or its controls.

3. പാക്കേജ് ഉള്ളടക്കം

Your AHB Fireplace TV Stand will be delivered in two separate packages: one for the TV stand components and one for the electric fireplace insert. These packages may arrive on different days. Please ensure you have received both packages and all components before beginning assembly.

ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ:

• 58-inch TV Stand components (engineered wood panels, hardware)
• 52-ഇഞ്ച് ഇലക്ട്രിക് ഫയർപ്ലേസ് ഇൻസേർട്ട്
• LED light strip and controller
• Fireplace remote control
• Decorative media (firewood logs and crystal accessories)
• അസംബ്ലി നിർദ്ദേശങ്ങൾ

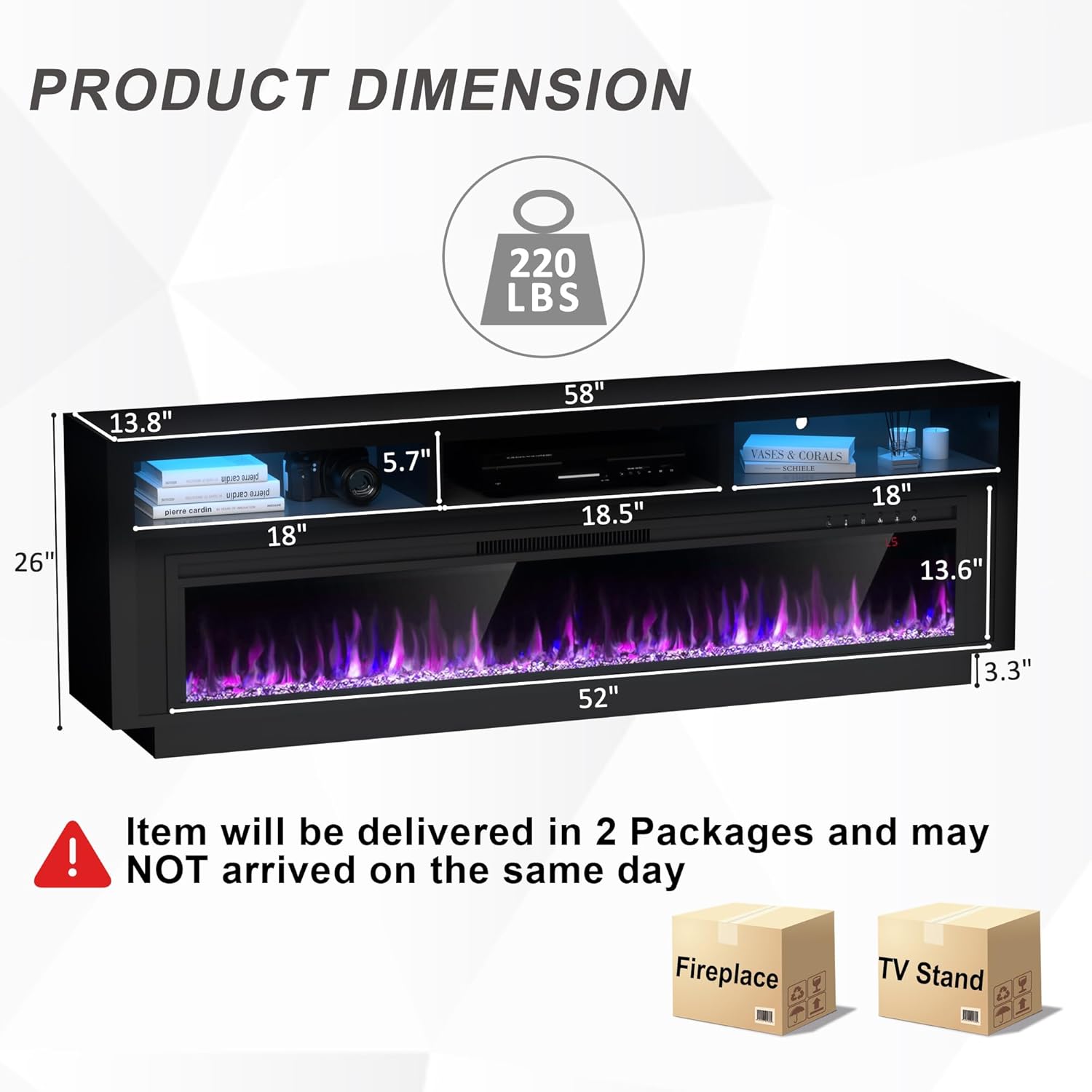

Product dimensions and illustration of two-package delivery.

4. സജ്ജീകരണവും അസംബ്ലിയും

Assembly of the TV stand and installation of the electric fireplace requires careful attention to detail. It is recommended to have two people for assembly.

4.1 TV Stand Assembly

1. Unpack all components and lay them out on a soft, clean surface to prevent scratches. Identify all parts and hardware using the provided assembly instructions.
2. Begin by assembling the base frame of the TV stand, connecting the side panels and support beams using the provided screws and dowels.
3. Install the internal shelves and dividers, ensuring they are securely fastened. The design includes open storage spaces for media components.
4. Attach the top panel of the TV stand.
5. Install the LED light strip along the designated areas of the TV stand. Peel off the protective backing and firmly press the strip into place. Use the included light strip holders to secure it further.

4.2 Electric Fireplace Installation

1. Carefully unbox the electric fireplace insert.
2. Remove the front panel of the fireplace insert by unscrewing it.
3. Place your preferred decorative media (firewood logs or crystal accessories) evenly inside the fireplace.
4. Reattach the front panel to the fireplace insert.
5. Slide the assembled electric fireplace insert into the designated opening in the TV stand. Ensure it fits snugly and is aligned correctly.
6. Secure the fireplace insert to the TV stand using the provided screws.
7. Route the power cords for both the fireplace and LED lights through the cable management holes located at the back of the TV stand.

Features like cable holes, thickened back plate, and base lighting for convenience and stability.

Choose between firewood or crystal accessories for your fireplace.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Your AHB Fireplace TV Stand features an electric fireplace with various settings and integrated LED lighting for enhanced customization.

5.1 ഇലക്ട്രിക് അടുപ്പ് പ്രവർത്തനം

The electric fireplace can be controlled via the control panel on the unit or the included remote control.

• ശക്തി: Press the power button to turn the fireplace ON or OFF.
• ഹീറ്റർ: Adjust the heating power between 750W and 1500W. The fireplace can be used with or without heat.
• താപനില: Set the desired heating temperature, ranging from 62°F to 82°F.
• ജ്വാല നിറങ്ങൾ: Choose from 12 realistic flame colors to match your mood or decor.
• Flame Dimmer: Adjust the flame effect brightness with 5 levels (L1-L5).
• ടൈമർ: 1 മുതൽ 8 മണിക്കൂർ വരെ ഒരു ഓട്ടോമാറ്റിക് ഷട്ട്-ഓഫ് ടൈമർ സജ്ജമാക്കുക.

കഴിഞ്ഞുview of 12 flame colors and remote control functions.

വിശദമായി view of the fireplace control panel.

5.2 LED ലൈറ്റ് ഓപ്പറേഷൻ

The integrated LED lights offer extensive customization options, controlled by a separate remote.

• വർണ്ണ തിരഞ്ഞെടുപ്പ്: Choose from 16 changeable LED colors.
• വർണ്ണ കോമ്പിനേഷനുകൾ: Enjoy up to 192 kinds of color combinations for a personalized ambiance.
• മോഡുകൾ: The LED kit may include various modes such as Mic Mode, Music Mode, and Timing Mode, allowing the lights to react to sound or operate on a schedule.

Explore 192 lighting combinations for your space.

6. പരിപാലനം

Regular maintenance ensures the longevity and safe operation of your fireplace TV stand.

• വൃത്തിയാക്കൽ: Dust the unit regularly with a soft, dry cloth. For stubborn marks, use a slightly damp cloth and mild cleaner, then wipe dry. Do not use abrasive cleaners.
• Fireplace Vents: Periodically check and clean the fireplace air vents to ensure they are free from dust and debris, which can impede airflow and cause overheating.
• ഇലക്ട്രിക്കൽ കോർഡ്: Inspect the power cord for any signs of damage, fraying, or overheating. If damage is found, discontinue use and contact customer support.
• ഹാർഡ്‌വെയർ: എല്ലാ സ്ക്രൂകളും ഫാസ്റ്റനറുകളും ഇറുകിയതാണെന്ന് ഉറപ്പാക്കാൻ ഇടയ്ക്കിടെ പരിശോധിക്കുക. ആവശ്യമെങ്കിൽ വീണ്ടും മുറുക്കുക.

7. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your AHB Fireplace TV Stand, refer to the following common troubleshooting steps:

• അടുപ്പ് ഓണാക്കുന്നില്ല:
  • ഗ്രൗണ്ടഡ് ഇലക്ട്രിക്കൽ ഔട്ട്‌ലെറ്റിലേക്ക് പവർ കോർഡ് സുരക്ഷിതമായി പ്ലഗ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
  • സർക്യൂട്ട് ബ്രേക്കർ തകരാറിലാണോയെന്ന് പരിശോധിക്കുക.
  • Verify the power button on the unit or remote control is pressed.
• ഹീറ്റ് ഔട്ട്പുട്ട് ഇല്ല:
  • Confirm the heater function is activated and the temperature setting is above the ambient room temperature.
  • Check for any obstructions blocking the air vents.
• LED വിളക്കുകൾ പ്രവർത്തിക്കുന്നില്ല:
  • Ensure the LED light strip is properly connected to its power source.
  • Check the battery in the LED remote control.
• റിമോട്ട് കൺട്രോൾ പ്രതികരിക്കുന്നില്ല:
  • റിമോട്ട് കൺട്രോളിൽ ബാറ്ററികൾ മാറ്റിസ്ഥാപിക്കുക.
  • റിമോട്ടിനും യൂണിറ്റിന്റെ സെൻസറിനും ഇടയിൽ തടസ്സങ്ങളൊന്നുമില്ലെന്ന് ഉറപ്പാക്കുക.

If these steps do not resolve the issue, please contact AHB customer support for further assistance.

8 സ്പെസിഫിക്കേഷനുകൾ

The TV stand is suitable for TVs up to 65 inches.

9. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please refer to the documentation included with your product or contact AHB customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
