iWALK Amour Air Duo2 (Model BTA005-001)

iWALK Amour Air Duo2 True Wireless Bluetooth Earbuds

ഉപയോക്തൃ നിർദ്ദേശ മാനുവൽ

Model: Amour Air Duo2 (BTA005-001)

1. ആമുഖം

Thank you for choosing the iWALK Amour Air Duo2 True Wireless Bluetooth Earbuds. These earbuds are designed to provide an immersive audio experience with powerful bass, advanced noise cancelling technology, and a comfortable, secure fit. This manual will guide you through the setup, operation, and maintenance of your new earbuds.

പ്രധാന സവിശേഷതകൾ:

  • വിപുലമായ ഡിസൈൻ: Sleek, stylish, and innovative design for individuality and technology.
  • All-Day Playtime: Up to 7.5 hours of playtime on a single charge, with a total of 24 hours using the charging case. Supports wireless charging and USB-C.
  • പ്രീമിയം സൗണ്ട് ക്വാളിറ്റി: Built-in advanced TWS chip for harmonized trebles and undistorted bass.
  • Strong Connection & Features: Stable Bluetooth 5.0 connection, automatic pairing, IPX5 Water-Resistant, Dual-Voice Calls, and Smart Assistant support.
  • Comfortable Experience: Ergonomic design with S/M/L ear tips for a snug and secure fit. Ultra-thin charging case for portability.

പാക്കേജ് ഉള്ളടക്കം:

  • iWALK Amour Air Duo2 Earbuds
  • വയർലെസ് ചാർജിംഗ് കേസ്
  • USB-C ചാർജിംഗ് കേബിൾ
  • Multiple Sized Ear Tips (S/M/L)

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

Familiarize yourself with the components of your iWALK Amour Air Duo2 earbuds and charging case.

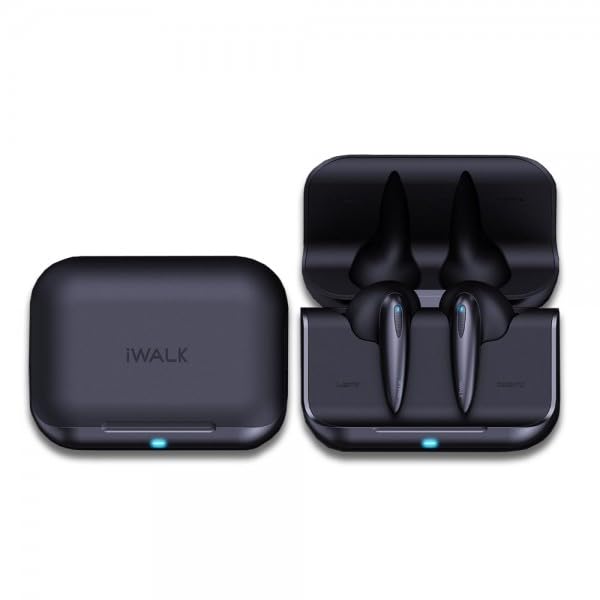

iWALK Amour Air Duo2 Earbuds and Charging Case

Image: The iWALK Amour Air Duo2 earbuds shown alongside their open charging case, highlighting their compact design.

iWALK Amour Air Duo2 Earbuds with feather, indicating lightweight design

Image: A pair of iWALK Amour Air Duo2 earbuds resting on a feather, illustrating their unique and lightweight design (4.0g).

Diagram showing different ear tip sizes (S, M, L) and an earbud comfortably fitted in an ear.

Image: A visual representation of the comfortable and snug fit of the earbuds, along with the three included ear tip sizes (Small, Medium, Large).

3. സജ്ജീകരണം

3.1 Charging the Earbuds and Case:

ആദ്യമായി ഉപയോഗിക്കുന്നതിന് മുമ്പ്, ഇയർബഡുകളും ചാർജിംഗ് കേസും പൂർണ്ണമായും ചാർജ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.

  • കേസ് ചാർജ് ചെയ്യുന്നത്: Connect the provided USB-C cable to the charging port on the case and to a power source. Alternatively, place the case on a compatible wireless charging pad. The indicator light on the case will show charging status.
  • ഇയർബഡുകൾ ചാർജ് ചെയ്യുന്നു: Place the earbuds into their respective slots in the charging case. They will automatically begin charging. The indicator lights on the earbuds or case will confirm charging.
Diagram showing 20 hours total playtime with 4.5 hours single charge and 1 hour full charge for earbud.

Image: An illustration detailing the battery life: 4.5 hours on a single earbud charge, 1 hour for a full earbud charge, and 20 hours total playtime with the charging case.

3.2 Pairing with Your Device:

The iWALK Amour Air Duo2 earbuds feature one-step pairing for convenience.

  1. Ensure the charging case has power and the earbuds are inside.
  2. Open the charging case and lift the earbuds out. They will automatically enter pairing mode.
  3. നിങ്ങളുടെ സ്മാർട്ട്‌ഫോണിലോ ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കിയ ഉപകരണത്തിലോ, ബ്ലൂടൂത്ത് ക്രമീകരണങ്ങളിലേക്ക് പോകുക.
  4. ഇതിനായി തിരയുക new devices and select "Amour Air Duo2" from the list.
  5. Once connected, the earbuds will automatically pair with your device whenever you take them out of the charging case.
Screenshot of a phone's Bluetooth settings showing 'Amour Air Duo2' as a discoverable device.

Image: A visual guide demonstrating the one-step pairing process, showing the earbuds and a smartphone screen with the 'Amour Air Duo2' listed in Bluetooth devices.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Touch Controls:

The iWALK Amour Air Duo2 earbuds utilize intuitive touch controls for various functions. Specific touch commands may vary slightly; refer to the quick start guide included with your product for precise actions.

  • പ്ലേ/താൽക്കാലികമായി നിർത്തുക: ഇയർബഡുകളിൽ ഏതെങ്കിലുമൊന്നിൽ ഒറ്റ ടാപ്പ് ചെയ്യുക.
  • അടുത്ത ട്രാക്ക്: വലതുവശത്തെ ഇയർബഡിൽ രണ്ടുതവണ ടാപ്പ് ചെയ്യുക.
  • മുമ്പത്തെ ട്രാക്ക്: ഇടതുവശത്തെ ഇയർബഡിൽ രണ്ടുതവണ ടാപ്പ് ചെയ്യുക.
  • ഉത്തരം/അവസാന കോൾ: ഇൻകമിംഗ് കോൾ വരുമ്പോൾ ഏത് ഇയർബഡിലും ഒറ്റ ടാപ്പ് ചെയ്യുക.
  • കോൾ നിരസിക്കുക: ഇൻകമിംഗ് കോൾ വരുമ്പോൾ ഇയർബഡുകളിൽ ഏതെങ്കിലുമൊന്ന് 2 സെക്കൻഡ് അമർത്തിപ്പിടിക്കുക.
  • വോയ്‌സ് അസിസ്റ്റന്റിനെ സജീവമാക്കുക: ഇയർബഡുകളിൽ ഏതെങ്കിലുമൊന്നിൽ (ഉദാ: സിരി, ഗൂഗിൾ അസിസ്റ്റന്റ്) മൂന്ന് തവണ ടാപ്പ് ചെയ്യുക.

4.2 Mono and Twin Mode:

The earbuds support both mono and twin (stereo) modes, allowing for flexible usage.

  • ഇരട്ട മോഡ്: Use both earbuds simultaneously for a stereo audio experience. This is the default mode when both earbuds are taken out of the case.
  • മോണോ മോഡ്: Use only one earbud (left or right) while the other is in the case or turned off. This is useful for calls or when you need to be aware of your surroundings.
Diagram showing Mono Mode with one earbud connected to a phone and Twin Mode with both earbuds connected.

Image: A comparison illustrating the use of the earbuds in Mono Mode (single earbud connected) and Twin Mode (both earbuds connected for stereo sound).

4.3 Calling Functions:

The earbuds are equipped with a built-in microphone for clear calls and support dual-voice calls.

  • കോളുകൾക്ക് മറുപടി / അവസാനിപ്പിക്കുക: മുകളിൽ വിവരിച്ചതുപോലെ ടച്ച് നിയന്ത്രണങ്ങൾ ഉപയോഗിക്കുക.
  • Dual-Voice Calls: Both earbuds can be used during a call, providing a more immersive and clear conversation experience.

5. പരിപാലനം

5.1 വൃത്തിയാക്കൽ:

മികച്ച പ്രകടനവും ശുചിത്വവും ഉറപ്പാക്കാൻ, നിങ്ങളുടെ ഇയർബഡുകളും ചാർജിംഗ് കേസും പതിവായി വൃത്തിയാക്കുക.

  • Use a soft, dry, lint-free cloth to wipe the surface of the earbuds and case.
  • ചെവിയുടെ അറ്റങ്ങൾക്കായി, അവ ഇയർബഡുകളിൽ നിന്ന് നീക്കം ചെയ്ത് ആവശ്യമെങ്കിൽ നേരിയ സോപ്പ് ലായനി ഉപയോഗിച്ച് വൃത്തിയാക്കുക, തുടർന്ന് നന്നായി കഴുകി വീണ്ടും ഘടിപ്പിക്കുന്നതിന് മുമ്പ് പൂർണ്ണമായും ഉണക്കുക.
  • ഇയർബഡുകളിലെയും കേസിന്റെ ഉള്ളിലെയും ചാർജിംഗ് കോൺടാക്റ്റുകൾ ഉണങ്ങിയ കോട്ടൺ സ്വാബ് ഉപയോഗിച്ച് സൌമ്യമായി വൃത്തിയാക്കുക.

5.2 ജല പ്രതിരോധം:

The iWALK Amour Air Duo2 earbuds are IPX5 water and sweat resistant, meaning they can withstand splashes and sweat. They are not designed for submersion in water.

  • Do not expose the earbuds to running water or submerge them.
  • Dry the earbuds thoroughly after exposure to sweat or splashes before placing them back in the charging case to prevent damage to the charging contacts.
iWALK Amour Air Duo2 Earbuds with water splashing, indicating IPX5 water resistance.

Image: The iWALK Amour Air Duo2 earbuds shown with water splashing, illustrating their IPX5 water and sweat resistant capabilities.

5.3 സംഭരണം:

ഉപയോഗത്തിലില്ലാത്തപ്പോൾ, ഇയർബഡുകൾ സംരക്ഷിക്കുന്നതിനും ചാർജ്ജ് ചെയ്‌ത നിലയിൽ നിലനിർത്തുന്നതിനും അവ ചാർജിംഗ് കേസിൽ സൂക്ഷിക്കുക.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your iWALK Amour Air Duo2 earbuds, try the following solutions:

7 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the iWALK Amour Air Duo2 Earbuds:

ഫീച്ചർസ്പെസിഫിക്കേഷൻ
മോഡലിൻ്റെ പേര്അമൂർ എയർ ഡ്യുവോ2
ഇനം മോഡൽ നമ്പർBTA005-001
കണക്റ്റിവിറ്റി ടെക്നോളജിവയർലെസ്, ബ്ലൂടൂത്ത് 5.0
വയർലെസ് കമ്മ്യൂണിക്കേഷൻ ടെക്നോളജിബ്ലൂടൂത്ത്
ഫോം ഫാക്ടർചെവിയിൽ
ചെവി പ്ലേസ്മെൻ്റ്ചെവിയിൽ
നിയന്ത്രണ രീതിസ്പർശിക്കുക
പ്രത്യേക സവിശേഷതകൾBuilt-In Voice Assistant, Noise Cancellation
ജല പ്രതിരോധ നിലIPX5 വാട്ടർ റെസിസ്റ്റൻ്റ്
ബാറ്ററി ലൈഫ് (ഇയർബഡുകൾ)7.5 മണിക്കൂർ വരെ (ഒറ്റ ചാർജ്)
ആകെ പ്ലേടൈം (കേസിനൊപ്പം)24 മണിക്കൂർ വരെ
ചാർജിംഗ്യുഎസ്ബി-സി, വയർലെസ് ചാർജിംഗ്
മെറ്റീരിയൽപ്ലാസ്റ്റിക്
ഇനത്തിൻ്റെ ഭാരം180 ഗ്രാം (ആകെ പാക്കേജ് ഭാരം)
ഉൽപ്പന്ന അളവുകൾ15 x 10 x 3 സെ.മീ

8. വാറൻ്റിയും പിന്തുണയും

iWALK products are manufactured to the highest quality standards. For information regarding warranty coverage and terms, please refer to the warranty card included with your product or visit the official iWALK webസൈറ്റ്.

If you require technical assistance or have questions not covered in this manual, please contact iWALK customer support through their official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിൽ നൽകിയിരിക്കുന്ന ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ.

കൂടുതൽ വിവരങ്ങൾക്ക്, നിങ്ങൾക്ക് സന്ദർശിക്കാവുന്നതാണ് iWALK Store on Amazon.
