1. ഉൽപ്പന്നം കഴിഞ്ഞുview
This Thermostatic Rain Shower System offers a luxurious and customizable showering experience. It features a large 16x32 inch dual-function overhead shower, multiple adjustable body massage jets, and a convenient handheld spray. The thermostatic mixing valve ensures a consistent and safe water temperature, preventing sudden changes. All functions can be operated simultaneously, with independent flow control for each.
പ്രധാന സവിശേഷതകൾ:
- വ്യക്തിഗത നിയന്ത്രണം: Four-way showers (fog water, rainfall, massage waist spray, handheld) can be turned on/off separately, and flow can be adjusted independently.
- Anti-scald Thermostatic Valve: Maintains a consistent water temperature, providing a safe and comfortable shower, especially for children and the elderly.
- Dual-Function Overhead Shower: Features both mist mode and rainfall shower mode, which can be used individually or simultaneously.
- ഫുൾ ബോഡി മസാജ്: Equipped with 6 multi-directional adjustable body massage jets for comprehensive coverage.
- നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Major parts are made of brass, ensuring longevity and reliability.
2. പാക്കിംഗ് ലിസ്റ്റ്
താഴെ പട്ടികപ്പെടുത്തിയിരിക്കുന്ന എല്ലാ ഘടകങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:
- 1 * 16×32" dual-function shower head (brass)
- 1 * thermostatic shower valve (brass)
- 8 * ceiling shower arm (brass)
- 6 * adjustable shower body jet (brass)
- 1 * hand shower head (brass)
- 1 * handheld holder & connector (brass)
- 1 * 1.5m shower hose (304 stainless steel)
- 1 * installation manual (PDF available ഇവിടെ)
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
This shower system is designed for easy installation using standard US plumbing connections. For detailed step-by-step instructions, please refer to the comprehensive installation manual provided in PDF format.
പ്രധാന കുറിപ്പുകൾ:
- Supply pipe should use 1/2NPT.
- Maximum bearing pressure: 125psi.
- Ensure proper sealing of all connections to prevent leaks.
- ഒപ്റ്റിമൽ പ്രകടനത്തിനും സുരക്ഷയ്ക്കും പ്രൊഫഷണൽ ഇൻസ്റ്റാളേഷൻ ശുപാർശ ചെയ്യുന്നു.
Figure 3.1: Illustration of flush mount shower head installation, showing how the shower arm recesses into the ceiling.
ചിത്രം 3.2: വിശദമായി view of the thermostatic valve, highlighting the G1/2" connections and the 38°C temperature lock feature.
Video 3.1: An animated demonstration of the shower head assembly and water flow patterns. This video illustrates the internal workings and various spray modes of the 2-in-1 luxury shower head.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The NPYSVSSS shower system offers versatile control over your showering experience. The main control panel features multiple knobs for individual function activation and flow adjustment.
4.1. താപനില നിയന്ത്രണം:
The thermostatic mixing valve automatically locks the water temperature at 38°C (100°F) for safety. To adjust the temperature beyond this preset, push the pin on the temperature knob to override the limit and turn to your desired setting (Hot 'H' or Cold 'C').
4.2. Shower Function Selection and Flow Control:
Each of the four shower modes (fog water, rainfall, massage waist spray, handheld) has an independent control knob. Turn the knob to activate the desired function. You can use multiple functions simultaneously. Rotate the knob further to adjust the water flow rate for that specific function.
ചിത്രം 4.1: ഓവർview of the shower system, showing the main control panel and various water outlets.
4.3. Dual-Function Overhead Shower:
The large overhead shower offers both rainfall and mist modes. Select your preferred mode or activate both for a unique experience. The soft silicone nozzles are designed for easy cleaning.
Figure 4.2: Close-up illustrating the soft water delivery and easy-clean soft silicone nozzles of the overhead shower.
4.4. Body Massage Jets:
The 6 adjustable body jets provide a targeted massage. Each jet can be individually adjusted to direct water flow for a customized full-body experience. They feature solid brass construction and flexible silicone nozzles.

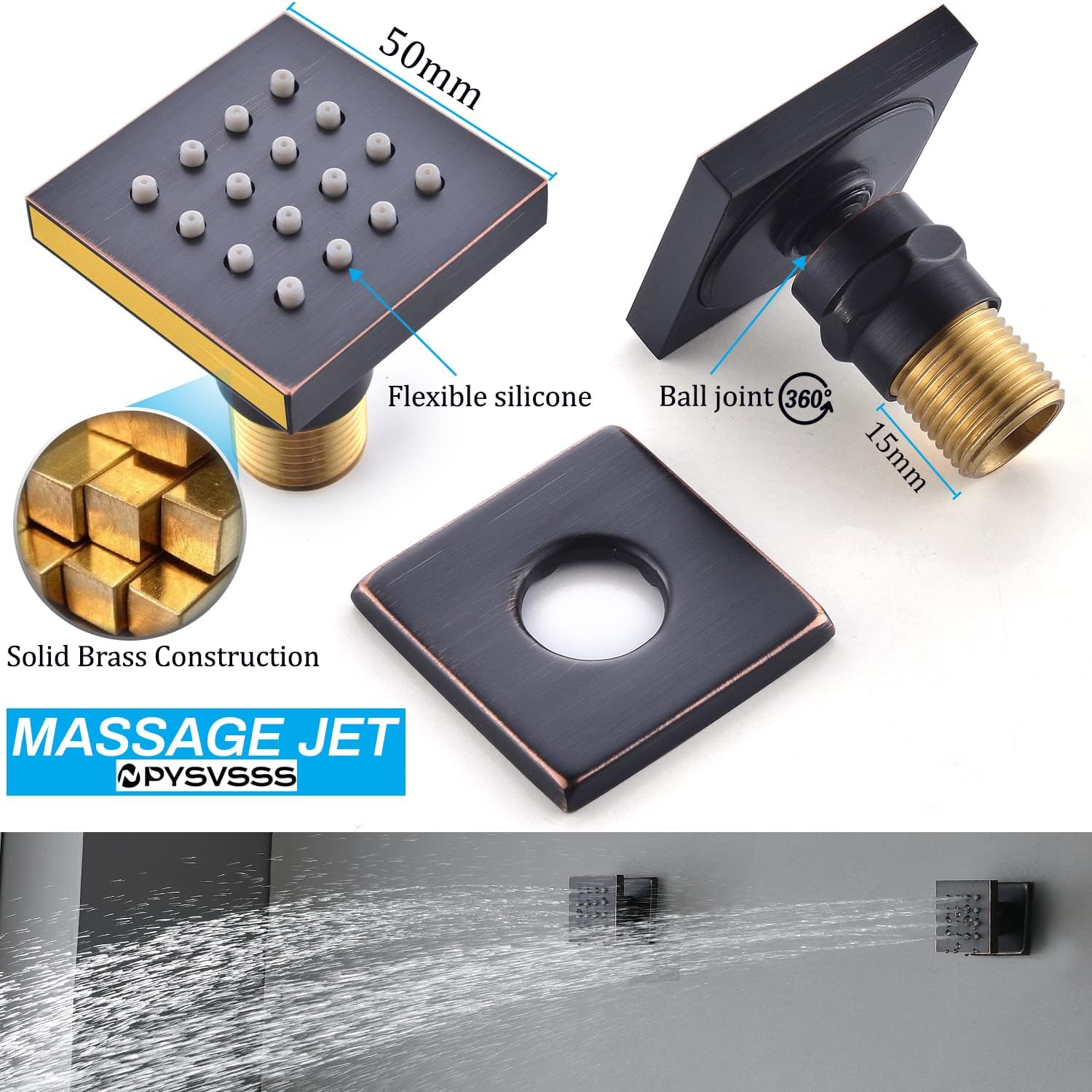

ചിത്രം 4.3: വിശദമായി view of a massage jet, showing its dimensions, solid brass construction, and flexible silicone nozzles.
4.5. Handheld Shower:
The handheld shower provides flexibility for rinsing specific areas or cleaning the shower enclosure. It features brass construction, 360° rotation, and comes with a 59-inch long hose.
Figure 4.4: The handheld shower, emphasizing its robust brass construction and flexible hose.
5. പരിപാലനം
To ensure the longevity and optimal performance of your shower system, regular maintenance is recommended.
- വൃത്തിയാക്കൽ: Clean the shower head and body jets regularly to prevent mineral buildup. Use a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive sponges, which can damage the finish.
- നോസൽ പരിപാലനം: The soft silicone nozzles on the shower head and body jets can be easily cleaned by gently rubbing them to dislodge any mineral deposits.
- Thermostatic Valve: Periodically check the thermostatic valve for proper temperature regulation. If you notice inconsistencies, consult a qualified plumber.
6. പ്രശ്നപരിഹാരം
If you encounter any issues with your shower system, please refer to the following common troubleshooting steps:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| താഴ്ന്ന ജല സമ്മർദ്ദം | Clogged nozzles, restricted water supply, or low household water pressure. | Clean shower head and body jet nozzles. Check main water supply valve. Consult a plumber if household pressure is consistently low. |
| പൊരുത്തപ്പെടാത്ത ജല താപനില | Thermostatic valve malfunction or insufficient hot/cold water supply. | Ensure both hot and cold water supplies are fully open. If the issue persists, contact customer support or a qualified plumber. |
| കണക്ഷനുകളിൽ നിന്നുള്ള ചോർച്ചകൾ | അയഞ്ഞ കണക്ഷനുകൾ അല്ലെങ്കിൽ കേടായ മുദ്രകൾ. | Tighten all connections. Inspect and replace any worn or damaged O-rings or gaskets. |
| Water Not Switching Functions | Control knob mechanism issue. | Ensure the knob is fully turned to the desired position. If the problem continues, contact customer support. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | NPYSVSSS |
| മോഡൽ നമ്പർ | NPY-025 |
| നിറം | എണ്ണ തേച്ച വെങ്കലം |
| മെറ്റീരിയൽ | പിച്ചള |
| ഫിനിഷ് തരം | എണ്ണ തടവി |
| ഹാൻഡിലുകളുടെ എണ്ണം | 5 |
| ഹാൻഡിൽ മെറ്റീരിയൽ | ലോഹം |
| മൗണ്ടിംഗ് തരം | സീലിംഗ് മൗണ്ട് |
| ഉൽപ്പന്ന അളവുകൾ | 40 x 20 x 8.8 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 42.8 പൗണ്ട് |
| Supply Pipe Requirement | 1/2NPT |
| Maximum Bearing Pressure | 125psi |
| Back Massage Jets Flow Rate | 1.5 GPM/5.7 LPM |
| Handheld Flow Rate | 1.8 GPM/6.8 LPM |
| Top Spray Flow Rate | 2 GPM/7.6 LPM |
8. വാറൻ്റിയും പിന്തുണയും
This NPYSVSSS shower system comes with a 5 വർഷത്തെ വാറൻ്റി covering major parts. We are committed to providing excellent customer service.
If you have any questions, require assistance with installation, or experience any issues with your product, please do not hesitate to contact us via email. We will actively handle your inquiry.
Figure 8.1: Contact information for customer support and warranty details.
ഇമെയിൽ: NPYSVSSS@126.COM
