Generic TP.V56.PB816 LED TV Mother Board Instruction Manual

1. ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of the Generic TP.V56.PB816 LED TV Mother Board. This mainboard is designed to be compatible with 32 to 40 inch LED TV panels. Please read this manual thoroughly before proceeding with installation or operation to ensure proper functionality and safety.

2 സുരക്ഷാ വിവരങ്ങൾ

Warning: Electrical components can be dangerous. Ensure power is disconnected before handling the mainboard. Professional installation is recommended.

Power Supply Alignment: It is critical that all mainboard power supply connections are correctly aligned to the specified standard. Incorrect alignment can lead to severe damage to the screen or the mainboard itself.

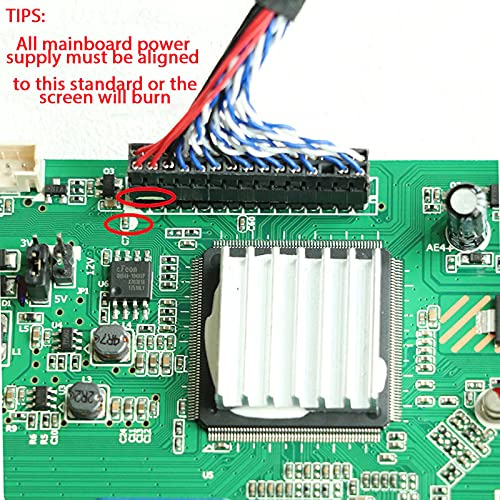

ചിത്രം: ക്ലോസ്-അപ്പ് view of the TP.V56.PB816 mainboard highlighting critical power connection points. Ensure correct alignment to prevent damage.

3. പാക്കേജ് ഉള്ളടക്കം

താഴെ കൊടുത്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x TP.V56.PB816 LED TV Mother Board
• 1 x റിമോട്ട് കൺട്രോൾ

Image: The TP.V56.PB816 LED TV Mother Board shown with its accompanying remote control.

4 സ്പെസിഫിക്കേഷനുകൾ

5. Setup and Firmware Update

This section details the process for updating the firmware on your TP.V56.PB816 mainboard. This procedure is crucial for initial setup and ensuring compatibility with your specific LED panel.

Firmware Writing Procedure:

1. Step 1: Prepare USB Drive
   Ensure your USB drive is completely empty. Format it if necessary.
2. Step 2: Copy Firmware Files
   Copy the corresponding resolution program (*.Bin file) along with any associated TXT file to the root directory of your USB drive. Select the correct firmware based on your screen size.
3. Step 3: Connect USB Drive
   Connect the prepared USB drive to the USB interface on the TV Mainboard.
4. Step 4: Connect Keyboard
   Connect the keyboard to the TV Mainboard.
5. Step 5: Power On and Monitor
   Connect the power supply to the mainboard. Observe the keyboard light. If the light is flashing, the firmware writing process is in progress. Wait for the light to turn solid green, indicating that the process is complete.

Important Note: During Step 5, the power supply must not be interrupted. Cutting off power during the firmware update can permanently damage the mainboard. The same firmware can only be burned once.

Troubleshooting Firmware Update:

If there is no flashing light after connecting the power supply in Step 5:

1. വൈദ്യുതി വിതരണം വിച്ഛേദിക്കുക.
2. Remove and re-insert the USB drive.
3. Reconnect the power supply and observe the keyboard light again.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

After successfully burning the firmware, the mainboard will typically be in standby mode.

• ഓണാക്കുന്നു: Use the provided remote control to turn on the TV.
• ചിത്ര ക്രമീകരണം: If the picture appears upside down, you can adjust its orientation using the remote control. Refer to the remote control's specific buttons for picture settings or orientation.

7. പരിപാലനം

To ensure the longevity and optimal performance of your TP.V56.PB816 LED TV Mother Board, follow these general maintenance guidelines:

• ഉണക്കി സൂക്ഷിക്കുക: മെയിൻബോർഡിൽ ഈർപ്പം അല്ലെങ്കിൽ ദ്രാവകങ്ങൾ പുരട്ടുന്നത് ഒഴിവാക്കുക.
• സൌമ്യമായി വൃത്തിയാക്കുക: If cleaning is necessary, use a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation around the mainboard to prevent overheating.
• ശ്രദ്ധയോടെ കൈകാര്യം ചെയ്യുക: Avoid dropping or subjecting the mainboard to physical shock.

8. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങളെ ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നു:

• ഇഷ്യൂ: TV does not power on after installation.
  പരിഹാരം: Verify all power connections are secure and correctly aligned. Ensure the power supply is functional. If firmware was recently updated, confirm the update completed successfully (green keyboard light). Use the remote control to power on, as the board may be in standby.
• ഇഷ്യൂ: Picture is upside down.
  പരിഹാരം: Use the remote control to access picture settings and adjust the display orientation.
• ഇഷ്യൂ: Firmware update fails or keyboard light does not flash.
  പരിഹാരം: Refer to the "Troubleshooting Firmware Update" steps in Section 5. Ensure the USB drive is empty except for the correct firmware files and is properly inserted.
• ഇഷ്യൂ: No display or distorted image.
  പരിഹാരം: Check the panel connection to the mainboard. Ensure the correct firmware for your panel size has been installed.

9. വാറൻ്റി വിവരങ്ങൾ

Specific warranty details for the Generic TP.V56.PB816 LED TV Mother Board are not provided in the product information. Please refer to your purchase documentation or contact your retailer for warranty terms and conditions.

10. പിന്തുണ

For technical assistance or further inquiries regarding the Generic TP.V56.PB816 LED TV Mother Board, please contact the seller or the manufacturer, WESTORN TRUE LIFE, through the platform where the product was purchased. Please have your model number (TP.V56.PB816) and purchase details ready when contacting support.
