EcoVolt OSCAL PowerMax 3600 Solar Generator User Manual

1. Вовед

This manual provides essential instructions for the safe and efficient operation of your EcoVolt OSCAL PowerMax 3600 Solar Generator. Please read this manual thoroughly before using the product and retain it for future reference.

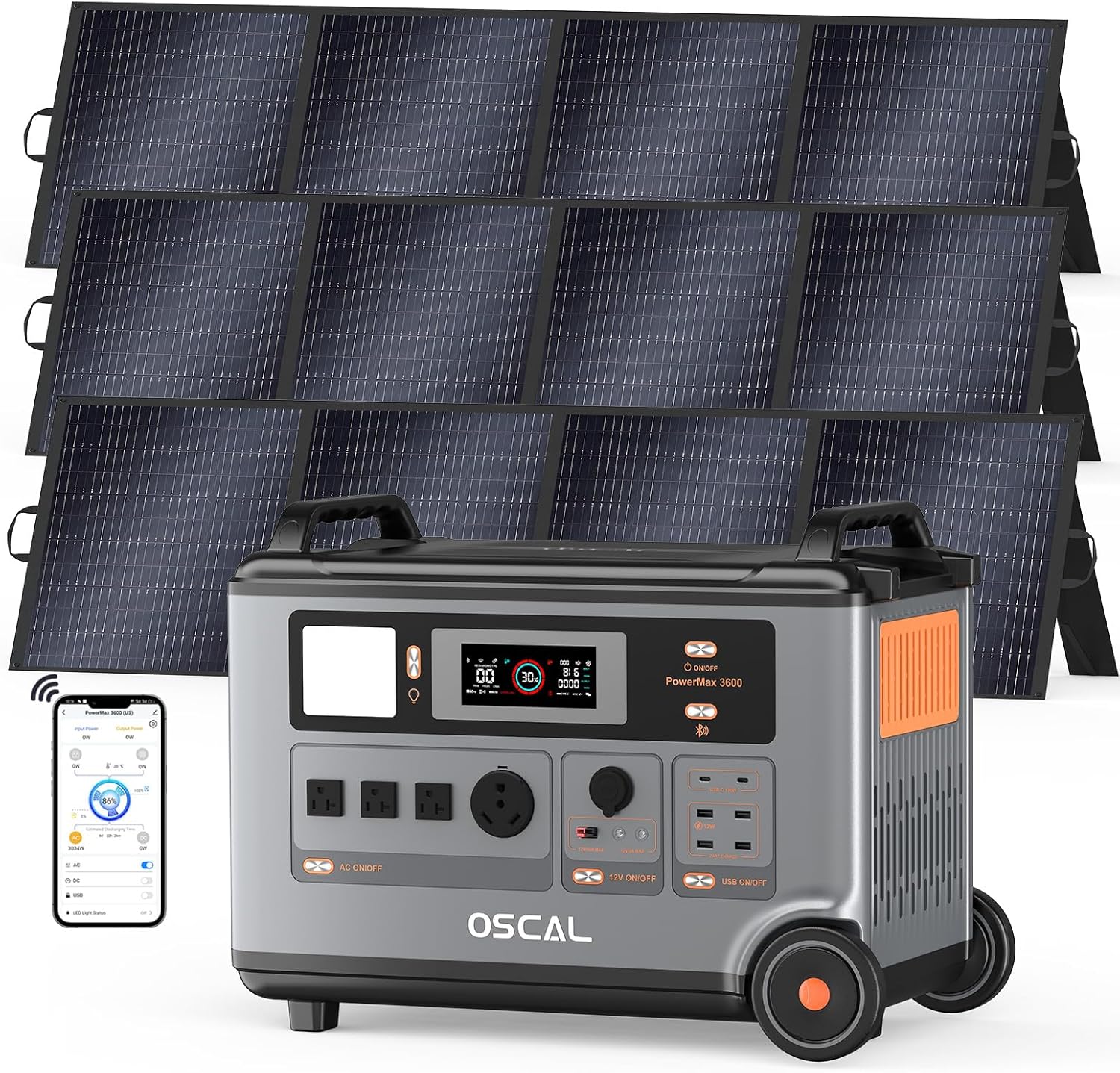

Image 1.1: The EcoVolt OSCAL PowerMax 3600 Solar Generator with three accompanying solar panels.

The PowerMax 3600 is a high-capacity portable power station designed to provide reliable electricity for various applications, including home backup, outdoor camping, and remote work. It features a 3600Wh capacity and 3600W output (6000W peak), capable of powering a wide range of appliances.

2. Што има во кутијата

При распакување, проверете дали се вклучени сите од следниве елементи:

• PowerMax 3600 Power Station
• 3 x 200W Solar Panels (as per product variant)
• Кабел за полнење со наизменична струја
• Кабел за полнење автомобил
• Сончев кабел за полнење
• Упатство за употреба (овој документ)
• Гарантна картичка

Image 2.1: Contents of the PowerMax 3600 package and available outlets.

3. Карактеристики и компоненти на производот

3.1. Во текотview of Ports and Controls

The PowerMax 3600 is equipped with a variety of input and output ports to accommodate diverse charging and powering needs.

Слика 3.1: Детално view of the PowerMax 3600's versatile output ports.

• Приклучоци за наизменична струја (x4): Pure sine wave, 3x 20A, 1x 30A TT-30, 100-120Vac (50Hz/60Hz). Total 3600W (6000W Peak).
• USB-A излез (x1): 12V Макс.
• USB-A Fast Charging (x3): 18W Max per port, total 54W.
• USB-C излез (x2): 100W Max per port, total 200W.
• Излез на полнач за автомобил: 12V, 10A, 120W Max.
• DC5521 Излез (x2): 12 V, 3 А, 36 W.
• Излез на Андерсон: 12.6V, 30A, 378W Max.
• Екран за прикажување: Provides real-time information on power usage, battery level, and charging status.
• Контролни копчиња: Individual buttons for AC, DC, and USB outputs, along with a main power button.

3.2. Преносливост и дизајн

The PowerMax 3600 is designed for ease of transport, featuring sturdy handles and integrated wheels.

Image 3.2: The PowerMax 3600 demonstrating its portability with a pull handle and wheels.

• Димензии: 23.2"Д x 13.8"Ш x 17.3"В
• Нето тежина: Approximately 97lb (44.45kg)

3.3. Проширлив капацитет

The PowerMax 3600's capacity can be expanded from 3600Wh up to 57600Wh by connecting additional BP3600 batteries (sold separately).

Image 3.3: Expandable capacity of the PowerMax 3600 with BP3600 batteries.

4. Поставување

Before initial use, ensure the PowerMax 3600 is fully charged.

1. Отпакување: Внимателно извадете ги сите компоненти од пакувањето. Проверете дали има оштетувања.
2. Поставување: Place the power station on a flat, stable surface in a well-ventilated area, away from direct sunlight, heat sources, and moisture.
3. Почетна наплата: Connect the AC charging cable to the power station and a standard wall outlet. Allow the unit to charge completely until the display indicates 100%.
4. Поврзување со соларен панел (опционално): If using solar panels, connect them to the solar input port on the PowerMax 3600 using the provided solar charging cable. Ensure panels are positioned for maximum sun exposure.

5. Упатства за работа

5.1. Вклучување/исклучување

• To power on the unit, press and hold the main power button for a few seconds until the display illuminates.
• За да го исклучите, повторно притиснете и задржете го главното копче за вклучување додека екранот не се исклучи.

5.2. Charging the PowerMax 3600

PowerMax 3600 поддржува повеќе методи на полнење:

• Полнење со наизменична струја: Connect the AC charging cable to a wall outlet. The unit can charge from 0-100% in approximately 1.2 hours with 1800W AC input.
• Соларно полнење: Connect solar panels (up to 1600W max input) using the solar charging cable. Charging time depends on solar intensity and panel wattage.
• Полнење автомобил: Use the car charging cable to charge from a vehicle's 12V outlet.

Image 5.1: Charging speed options for the PowerMax 3600.

5.3. Празнење (напојување на уреди)

To power your devices:

1. Ensure the PowerMax 3600 is powered on.
2. Press the corresponding output button (AC, DC, or USB) for the port you wish to use. The button will illuminate to indicate it is active.
3. Connect your device to the appropriate port.
4. Monitor the display for real-time power output and remaining battery life.

Image 5.2: The PowerMax 3600 powering multiple devices simultaneously.

5.4. Emergency Power Supply (EPS) Mode

The PowerMax 3600 features an EPS function. When connected to an AC power source and also powering devices, it can automatically switch to battery power within 5-8 milliseconds in the event of a power outage. This ensures uninterrupted power for critical equipment.

Image 5.3: PowerMax 3600 operating in EPS mode, providing uninterrupted power.

5.5. Контрола на АПП

Download the OSCAL application on your smartphone to manage and monitor the PowerMax 3600 remotely via Bluetooth or Wi-Fi.

• Преземи: Пребарај за "OSCAL" in your smartphone's app store.
• Спарување: Follow the in-app instructions to pair your device with the PowerMax 3600.
• Функции: The app allows you to monitor power usage, check battery status, control output ports, and adjust settings.

Image 5.4: OSCAL smartphone application for remote control and monitoring.

6. Одржување

Proper maintenance ensures the longevity and optimal performance of your PowerMax 3600.

• Чистење: Користете сува, мека крпа за чистење на надворешноста на уредот. Не користете абразивни средства за чистење и не го потопувајте уредот во вода.
• Складирање: If storing for extended periods, charge the unit to 50-80% every 3-6 months to preserve battery health. Store in a cool, dry place away from direct sunlight.
• Траење на батеријата: The LiFePO4 battery is designed for 3,500+ charge cycles, providing a long service life.
• Вентилација: Ensure ventilation openings are clear and unobstructed during operation to prevent overheating.

7 Смена на проблеми

If you encounter issues with your PowerMax 3600, refer to the following common problems and solutions:

Доколку проблемот продолжи, контактирајте ја поддршката за корисници.

8. Спецификации

9. Гаранција и поддршка

The EcoVolt PowerMax 3600 Solar Generator comes with a 2-year warranty. Please refer to the included warranty card for detailed terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact EcoVolt customer service. Contact information can typically be found on the warranty card or the official EcoVolt webсајт.

Производител: Шенжен Доук Комуникејшн Ко., ООД
