MIDLAND BTR1 Advanced Intercom
Product Specifications
- Model: BTR1 ADVANCED
- High Definition Sound
- Output Power: 100mW
- Frequency (GHz) 2.402 – 2.480
- Max power (mW) 100
ON/OFF
DESCRIPTION OF BUTTONS

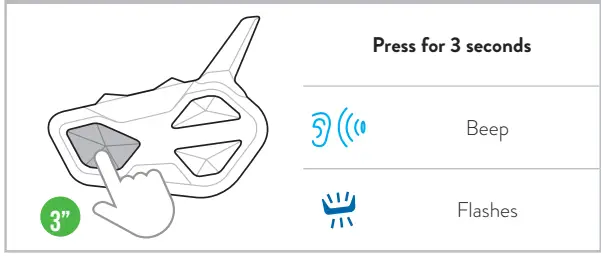

SWITCH ON

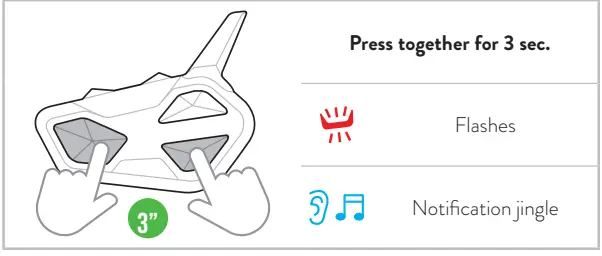

SWITCH OFF
PAIRINGS
DESCRIPTION OF BUTTONS
ATTENTION: To carry out any pairings you need to access Settings. If the Control button is pressed for fewer than 7 seconds, the device will switch itself on instead of accessing Settings. If this occurs, repeat the process.
ACCESS SETTINGS
PHONE, GPS, TFT PAIRING
Note: to pair a 2nd device in mono audio, repeat this procedure using Vol -.
MIDLAND INTERCOM PAIRING
Note: to pair another Midland intercom, follow the same procedure using the Up/Down buttons.
OTHER BRAND INTERCOM PAIRING (UNIVERSAL INTERCOM)
PAIRING 4 UNITS IN CONFERENCE
Note: the Conference mode allows the simultaneous communication amongst units. All units must be paired in a “chain” configuration: the Down button of the first unit must be paired to the Up button of the second unit and so on. For a detailed description of the function go to paragraph “Conference” of the complete user manual or watch the video tutorial
RESET BLUETOOTH PAIRINGS
EXIT SETTINGS MODE CANCEL PAIRING
OPERATING MODES
- Intercom Mode: to communicate with another device.
- Phone Mode: for phone calls or for managing music.
- FM Radio Mode: to listen to radio, search and store stations.
Note: Phone mode and Intercom mode are enabled only when your intercom is paired to other devices.
INTERCOM MODE
FUNCTION DESCRIPTION
TO OPEN/CLOSE INTERCOM MANUALLY
Nota: to communicate with Rider 1/3 repeat the process pressing the Up/(Rider 1)/Down (Rider 3) buttons.
VOX ACTIVATION/DEACTIVATION
TO OPEN/CLOSE INTERCOM BY VOICE
Note: Voice activation is only possible when the intercom device is paired with the Control button.
SHORTCUT: In Intercom/FM radio modes pressing Control 2 times activates/deactivates the music.
TO OPEN/CLOSE UNIVERSAL INTERCOM
Note: to activate/deactivate the audio from a different brand device, use the voice call command (for some models it is necessary to send the voice call twice)
TO ENABLE/DISABLE THE CONFERENCE MODE
Note: in Conference mode, the devices paired to Vol+/Vol- are temporarily disconnected.
TO OPEN/CLOSE CONFERENCE
PHONE MODE
FUNCTION DESCRIPTION
MAKING A CALL
Note: If you have a phone paired with the Vol – button, use the Down button.
SHORTCUT: In Phone mode by pressing the UP/DOWN buttons twice, turns the Intercom on/off (Rider 1, 3).
ANSWERING/ENDING A CALL – REJECTING A CALL
Note: If you have a phone paired with the Vol – button, use the Down button.
MUSIC
RADIO MODE
FUNCTION DESCRIPTION
FM RADIO
Go to our website midlandeurope.com, download the complete manual and the BT Updater software.
Customize your intercom and discover all the functions with the BTPRO SetApp. Download it here:
Frequently Asked Questions
- How do I pair the device with other intercom systems?
To pair with other intercom systems, follow the pairing instructions provided in the manual. Ensure both devices are in pairing mode and follow the specific steps for successful connection. - How do I switch between different operating modes?
To switch between operating modes (Intercom, Music Playback, Radio), use the designated buttons as outlined in the manual. Press once or hold for a specified duration to switch modes accordingly.
