Midea MC-IF7454AJ1-A Induction Hob
SAFETY INSTRUCTIONS
Intended Use
The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.
Explanation of Symbols
This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.
Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!
SAFETY WARNINGS
Your safety is important to us. Please read this information before using your cooktop.
INSTALLATION
Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.
Cut Hazard
• Take care – panel edges are sharp.
• Failure to use caution could result in injury or cuts.
Important Safety Instructions
• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.
• This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.
• A steam cleaner is not to be used.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot
• Do not use a steam cleaner to clean your cooktop.
• After use, switch off the hob element by its control and do not rely on the pan detector.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Danger of fire: do not store items on the cooking surfaces.
CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.
• WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless continuously supervised.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
Danger of fire: do not store items on the cooking surfaces.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use Of inappropriate guards can cause accidents.
OPERATION AND MAINTENANCE
Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If the cooktop surface should
break or crack, switch the appliance off immediately at the mains power
supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
Health Hazard
• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such
as insulin pumps) must consult with their doctor or implant manufacturer
before using this appliance to make sure that their implants will not be
affected by the electromagnetic field.
• Failure to follow this advice may result in death.
Hot Surface Hazard
• During use, accessible parts of this appliance will become hot enough to
cause burns.
• DO not let your body, clothing or any item other than suitable cookware
contact the Induction glass until the surface is cool.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of
children.
• Failure to follow this advice could result in burns and scalds.
Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed when the safety cover
is retracted. use with extreme care and always store safely and out of reach
of children.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Never leave the appliance unattended when in use. Boilover causes smoking
and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit cards, memory
cards) or electronic devices (e.g. computers, MP3 players) near the appliance,
as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in
this manual (i.e. by using the touch controls). Do not rely on the pan
detection feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is
in use.
• Children or persons with a disability which limits their ability to use the
appliance should have a responsible and competent person to instruct them
in its use. The instructor should be satisfied that they can use the appliance
without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be done by a
qualified technician.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass
surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your
cooktop, as these can scratch the Induction glass.
• This appliance is intended to be used in household and similar applications
such as: -staff kitchen areas in shops, offices and other working environments;
-farm houses; -by clients in hotels, motels and other residential type
environments; -bed and breakfast type environments.
• WARNING: The appliance and its accessible parts become hot during use.
• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless continuously
supervised.
Congratulations on the purchase of your new Induction Hob.
We recommend that you spend some time to read this Instruction / Installation
Manual in order to fully understand how to install correctly and operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this Instruction /
Installation Manual for future reference.
SPECIFICATIONS
Cooking Hob MC-lF7454AJ1-A
Cooking Zones 4 Zones
Supply Voltage 220-240V-
Installed Electric Power 7400W
Product Size DxWxH(mm) 590X520X62 560X490
Building-in Dimensions AxB (mm) 50Hz or 60Hz
Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.
PRODUCT OVERVIEW

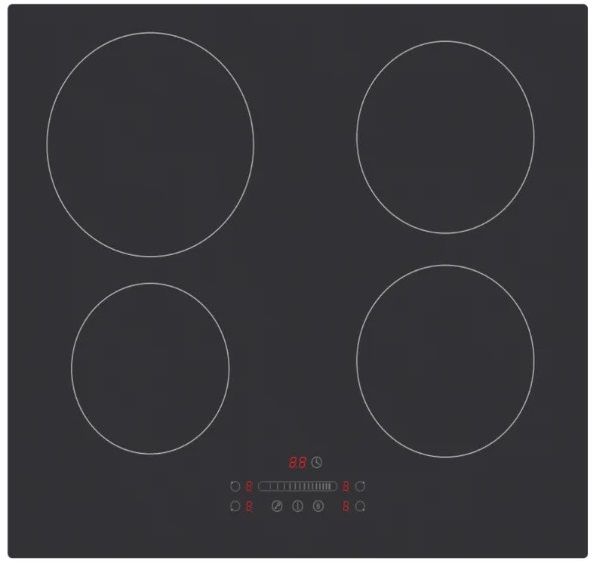

Top View
Control Panel
NOTE All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.
Working Theory
Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.
Before Using Your New Induction Hob
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your Induction hob.
QUICK START GUIDE
Take care when frying as the oil and fat heat up very quickly, particularly if you’re using
PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents
a serious fire risk.
Cooking Tips
• When food comes to the boil. reduce the temperature setting.
• IJsing a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.
Simmering, Cooking rice
• Simmering occurs below boiling point. at around 85 •C, when bubbles are just rising occasionally to
the surface of the cooking liquid. It is the key to delicious soups and tender stews because the
flavours develop without overcooking the food. You should also cook egg-based and flour thickened
sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the
lowest setting to ensure the food is cooked properly in the time recommended.
Searing Steak
To cook juicy flavorsome steaks:
I. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower
the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the
steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak
to gauge how cooked it is – the firmer it feels the more •well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender
before serving.
For Stir-frying
I. Choose an ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities,
cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting,
return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Detection Of Small Articles
When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in I minute. The fan will keep cooking down the induction hob for a further I minute.
Heat Settings
The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you.
PRODUCT INSTALLATION
Selection Of Installation Equipment
Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. As shown below:
Note: The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least 3mm.
Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
WARNING: Ensuring Adequate Ventilation
Make sure the induction cooker hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the hob. Follow the requirements below.
There are ventilation holes around outside of the hob. YOU MUST ensure these holes are not
blocked by the worktop when you put the hob into position.
• Be aware that the glue that join the plastic or wooden material to the furniture, has to resist to
temperature not below 1500C, to avoid the unstuck of the paneling.
• The rear wall, adjacent and surrounding surfaces must therefore be able to withstand an
temperature of 900C.
Before Installing The Hob, Make Sure That
• The work surface is square and level, and no structural members interfere with space requirements.
• The work surface is made of a heat-resistant and insulated material.
• If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated
in the permanent wiring, mounted and positioned to comply with the local wiring rules and
regulations.
• The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in
all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the
requirements).
• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation.
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces
surrounding the hob.
Before installing onto the workbench, it is necessary to stick the sealing strip onto the back of the glass
plate:
• Flip the entire machine over to the back of the glass plate;
• Take out the sponge strip from the self-sealing bag and tear off the double-sided adhesive on the back of the sponge strip;
sticke sponge s rip on o the back of the glass plate.
• The sponge strip should not exceed the edge of the glass plate.
OPERATION INSTRUCTIONS
Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.
Choosing The Right Cookware
• Only use cookware with a base suitable for induction cooking.
Look for the induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out a magnet test.
Move a magnet towards the base Of the pan. If it is attracted, the pan is suitable for induction.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If u does not flash in the display and the water is heating, the pan is suitable.
• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
• If the ferromagnetic part covers only partially the base of the pan, only the ferromagnetic area will heat up, the rest of the base may not heat up a sufficient temperature for cooking.
• If the ferromagnetic area is not homogeneous, but presents others material such as aluminum this may affect the heating up and the pan detection.
• If the base of the pan is similar to the pictures below the pan may not detected.
• Do not use cookware with jagged edges or a curved base.
How To Use
Start Cooking
1. Touch the ON/OFF control. After power on, the buzzer beeps once, all displays show indicating that the induction hob or has entered the state of standby mode.
2. Place a suitable pan on the cooking zone that you wish to use.
• Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
3. Touching the heating zone selection control, and an indicator next to the key will flash.
4. Select a heat setting by touching the slider control.
• If you don’t choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1.
• You can modify the heat setting at any time during cooking.
If the display flashes alternately with the heat setting
This means that:
• you have not placed a pan on the correct cooking zone or,
• the pan you’re using is not suitable for induction cooking or,
• the pan is too small or not properly centered on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display “I—I” will automatically disappear after 1 minute if no suitable pan is placed on it.
DISPOSAL AND RECYCLING
Important instructions for environment
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol
for waster electrical and electronic equipment (VVEEE).
This symbol indicates that this product shall not be disposed with other
household wastes at the end of its service life. Used device must be
returned to official collection point for recycling of electrical electronic
devices. To find these collection systems please contact to your local
authorities or retailer where the product was purchased. Each household
performs important role in recovering and recycling of old appliance.
Appropriate disposal of used appliance helps prevent potential negative
consequences for the environment and human health.
Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the Directive.
Package information
Packaging materials of the product are manufactured from recyclable
materials in accordance with our National Environment Regulations.
Do not dispose of the packaging materials together with the domestic
or other wastes. Take them to the packaging material collection points
designated by the local authorities.
Documents / Resources
 |
Midea MC-IF7454AJ1-A Induction Hob [pdf] User Manual MC-IF7454AJ1-A Induction Hob, MC-IF7454AJ1-A, Induction Hob, Hob |
