MICROTECH 2D Height Gauge Instructions

Use the graphic analog scale for visual reference during measurements.
Utilize features like Preset, Go/NoGo, Max/Min, Formula, Timer, and Memory as needed.

For wireless functionality, ensure the device is within range and folders are organized for data storage.

SPECIFICATION

Item No

Range

Resolut.

Accur.

Fine adjust precis.. wheel

2D connection

Measuring HUB

ON-line Graphic

Analog scale

Preset

Go/NoGo

Max/Min

Formula

Timer

Memory

Wireless

USB

μm

1443030371

0-300

0-13

0,001

±15

•

1443050371

0-500

0-25

±20

•

1443090371

0-1000

0-50

±30

•

TECHNICAL DATA

Parameters
LED display	color 2,4 inch 320×240
Indication system	MICS 4.0
Power supply	Rechargeable Li-Pol battery 500 mAh
Charging port	micro-USB
Case material	Aluminium
Wireless data transfer	Long range / HID
USB data transfer	USB HID

MAIN INFO

SWITCH ON DEVICE – button push (1 sec)

SWITCH OFF DEVICE – button push (3 sec)/ auto switch off
DATA TRANSFER – programming throw menu

DOWNLOAD APP

DOWNLOAD MDS APP FOR MICROTECH DEVICES WIRELESS CONNECTION FROM www.microtech.ua, Google & App Store

DATA TRANSFER

3 MODES OF DATA TRANSFER (USB + 2 WIRELESS MODES)

WIRELESS CONNECTION TO MDS APP
WIRELESS data transfer to MICROTECH MDS app for Windows, Android, iOS

WIRELESS HID and USB HID data transfer (like a keyboard) directly to any customer app and system

7 WAYS HOW TO TRANSFER DATA TO PC OR TABLET

MAIN SCREEN

MAIN SCREEN on 2D mode

FUNCTIONS

2D CONNECTION PROCESS

Slave device WIRELESS menu- 1.1 Push CLEAR button and 1.2 Activate 2D Slave mode 2D-S
MASTER deviceWIRELESS menu- 2.1 Push CLEAR button and 2.2 Activate 2D Master mode 2D-M

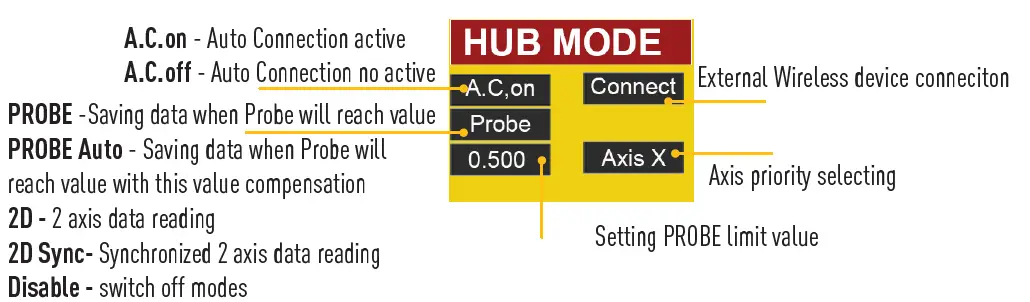

MASTER device HUB connection menu- 3.1 Activate 2D or 2D Sync mode and 3.2 Setting A.C.on /off (auto-reconnect) and 3.3 setting of saving on memory and transfer data (X, Y or XY synchronized)
MASTER device HUB connection menu- 4.1 Push the CONNECT button and start searching Slave devices (40s) 4.2 Push for the MAC address of the indicated slave device to start the connection. 4.3. If the MASTER device indicates SUCCESSFUL CONNECTION – you can start measurements, but If the MASTER device indicates CONNECTION ERROR – re-connect devices again (from step 1).

PROBE MODE

2D CONNECTION PROCESS

Slave deviceWIRELESS menu- 1.1 Push CLEAR button and 1.2 Activate 2D Slave mode 2D-S
MASTER deviceWIRELESS menu- 2.1 Push CLEAR button and 2.2 Activate 2D Master mode 2D-M
MASTER device HUB connection menu- 3.1 Activate PROBE or PROBE Auto mode and 3.2 Setting A.C.on / off (auto-reconnect) and 3.3 Axis priority and 3.4 Probe limit value
MASTER device HUB connection menu- 4.1 Push the CONNECT button and start searching Slave devices (the 40s) 4.2 Push for the MAC address of the indicated slave device to start the connection. 4.3. If the MASTER device indicates SUCCESSFULLCONNECTION – you can start measurements, but If the MASTER device indicates CONNECTION ERROR – re-connect devices again (from step 1).

VIDEO INSTRUCTION of 2D and PROBE MODE CONNECTION

INDUSTRY 4.0 INSTRUMENTS

MORE INFORMATION

MICROTECH

ADDRESS: Innovative Measuring Instruments 61001, Kharkiv, Ukraine, str. Rustaveli, 39

tel.: +38 (057) 739-03-50
www.microtech.ua
tool@microtech.ua

Frequently Asked Questions

Q: How do I update the device?
- A: To update the device, connect it to a computer with an internet connection and follow the on-screen prompts for updates.
Q: Can I download additional apps for this product?
- A: Yes, you can download the MDS app for enhanced functionality and data management.
Q: What is the origin of this product?
- A: This product is made in Ukraine.
