MICROCHIP PD-USB-DP30 PoE to USB-C Power and Data Adapter Up To 23.5W
PD-USB-DP30 Quick Start Guide

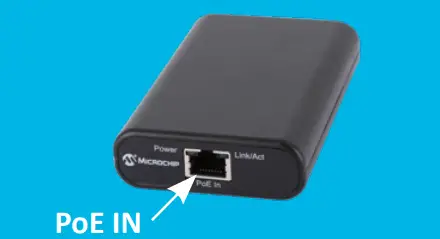

- . Connect an IEEE® 802.3af/at/bt-compliant PSE to the PD-USB-DP30’s “PoE IN” RJ45 socket using a standard Cat 5/5e/6 Ethernet cable. (Note: The maximum allowed length of the Ethernet cable is 100 meters).
- Check that the “Power” LED is yellow to verify that the PD-USB-DP30 is powered on.

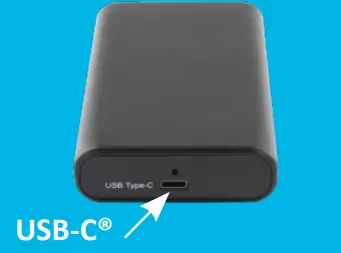

- Connect one side of the supplied USB Type-C® cable to the PD-USB-DP30’s USB-C socket. (Note: Any USB-C connection polarity is allowed.)
- Connect the other side of the USB Type-C cable to the USB-C powered device.
- Verify that the USB-C-powered device is getting power from the PD-USB-DP30.
LED Indicators
|
LED |
Appearance |
Status |
|
Power |
No Light |
PD-USB-DP30 is:
powered off or powered on as a dongle |
|
Yellow On |
PD-USB-DP30 is powered on | |
|
Link/ Act |
No Light | No data link |
| Green On | Data link on | |
| Green Blinking |
Data activity on |
Specifications
Data
- PoE IN
- 10/100/1000 Mbps
- USB Type-C
- USB 2.0
- USB 3.1 Gen 1
Power
- PoE IN
- Input Voltage: 42-57 VDC
- Input Current: 1.75A max
- USB Type-C
- 5 Vdc/3A
- 9 Vdc/2.61A
- 15 Vdc/1.57A
- 20 Vdc/1.18A
Environmental Information
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Operating Humidity: 90% Max (non-condensing)
- Storage Temperature: −20°C to +70°C (−4°F to +158°F)
- Storage Humidity: 95% Max (non-condensing)
- Dimensions: 22.4 mm (H) x 66.8 mm (W) x 105.2 mm (L)
- Weight: 150g
Notes
- If the USB host is running the Windows® operating system, the device driver should be automatically installed (plug and play) after the PD-USB-DP30 is connected. Linux® may require driver
installation in case the LAN7800 Ethernet controller is missing. Apple® requires driver installation. - If the USB host doesnt recognize the PD-USB-DP30 as a USB device, please go to the LAN7800 product page to download and install the appropriate device driver.
- Powering multiple PD-USB-DP30 from the same PoE multiport midspan may affect data/power performance to connected USB-C devices if they are sharing common peripheral equipment such as monitors, projectors, etc.
Technical Support
For technical support please visit the Microchip Technical Support Portal www.microchip.com/support
LAN7800 Driver
To download device drivers for the LAN7800 please visit the LAN7800 WEB page: LAN7800 USA/Canada: +1 877 480 2323 The Microchip name and logo and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. All other trademarks mentioned herein are property of their respective companies.
