VEVOR Ice Crusher Machine (Model: WF-A168-S) Instruction Manual

1. Hua Neke Atuview

This VEVOR Ice Crusher Machine is designed for high-efficiency ice crushing, suitable for both home and commercial use. Featuring a powerful 300W motor and 4 stainless steel blades, it can produce up to 220 lbs of fine shaved ice per hour. Its user-friendly design includes a raised body for easy collection and operation, one-touch control, and anti-splash features for a clean experience.

Āhuatanga matua:

• High-Efficiency Crushing: 300W motor, 2000 RPM, 4 stainless steel blades, 220 lbs/h capacity.
• User-Friendly Raised Body: Accommodates various containers, large ice bowl included, reduces bending.
• Mahi Kotahi-Pa: Simple ice loading, press switch, push handle to start.
• Hoahoa Anti-Splash: Curved ice cube container, baffle, ice outlet, and cover minimize splashing.
• Hanga Roa: Premium stainless steel exterior, curved aluminum handle, reinforced anti-slip base.

2. Nga Tohutohu Haumaru

• Me whakarite kia momotu te mīhini i te hiko i mua i te horoinga, i te tiakitanga rānei.
• Keep hands and foreign objects away from the ice inlet and blades during operation.
• Do not operate the machine without the cover securely in place.
• Use only ice cubes; do not insert other food items or hard objects.
• Kaua e taea e nga tamariki.
• Place the machine on a stable, dry, and level surface.

3. Tatūnga

1. Wewete ana: Carefully remove all components from the packaging. Verify all parts are present: main unit, stainless steel bowl, and user manual.
2. Turanga: Position the ice crusher on a stable, flat, and dry countertop. Ensure there is adequate space around the unit for ventilation and operation.
3. Te Whakatakotoranga o te Peihana: Place the provided stainless steel ice bowl securely under the ice outlet.
4. Hononga Hiko: Plug the power cord into a grounded electrical outlet (110V for this model). Ensure the power switch is in the "OFF" position before plugging in.

This image shows the VEVOR Ice Crusher Machine in a kitchen setting, demonstrating its compact size and the output of finely crushed ice into the collection bowl. Key features like 220 lbs/h capacity, 300W motor, 4 stainless steel blades, and 1400 RPM are visually emphasized.

4. Nga Tohutohu Whakahaere

1. Whakaritea te Tiopapa: Ensure ice cubes are separated and not frozen together. Small to medium-sized cubes work best.
2. Load Ice: Lift the handle to open the ice inlet. Place a suitable amount of ice cubes into the inlet. Do not overfill.
3. Whakahiko: Hurihia te whakakā hiko whero ki te tūnga "ON".
4. Start Crushing: Firmly push down the handle. The machine will automatically start crushing ice as the handle is depressed. Apply steady pressure for consistent results.
5. Collect Shaved Ice: The finely shaved ice will dispense into the collection bowl below.
6. Stop Crushing: Release the handle to stop the crushing process. Flip the power switch to "OFF" when finished.

This image illustrates the three easy steps for operating the VEVOR Ice Crusher: 1. Place the ice into the top hopper. 2. Press the red power switch on the side. 3. Push down the ergonomic handle to begin shaving ice.

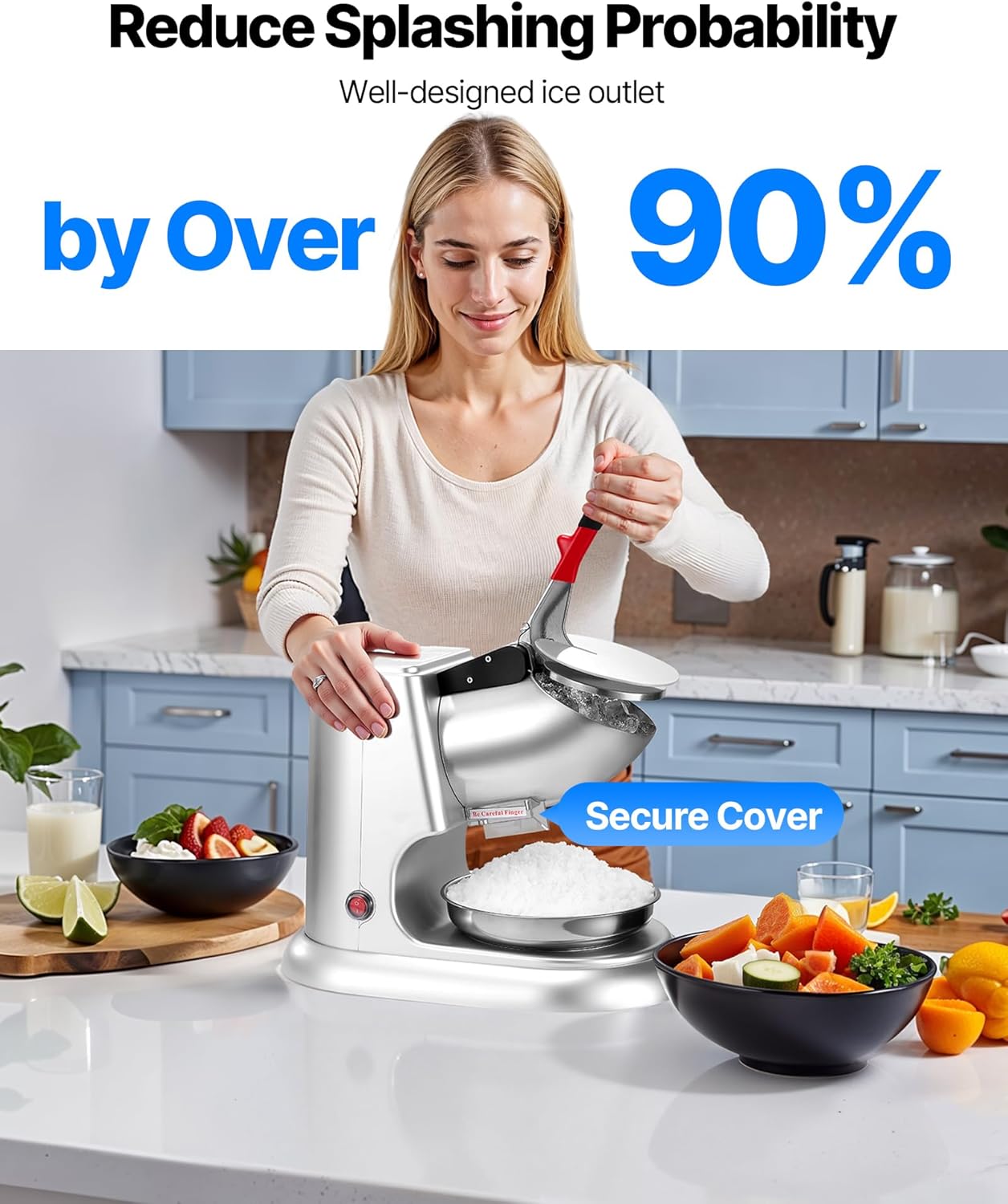

A woman is shown operating the VEVOR Ice Crusher in a kitchen, highlighting the secure cover and well-designed ice outlet that reduces splashing by over 90%. The crushed ice is collected neatly in the bowl.

Ataata Hua Mana:

5. Tiaki me te Whakapai

1. Wetewete: Wewetehia te miihini mai i te putanga hiko i mua i te horoi.
2. Matatahi Ma: Carefully wipe the blades with a damp cloth. Exercise extreme caution as blades are sharp.
3. Whare Ma: Horoia te taha o waho o te miihini ki te ngohengohe, damp kakahu. Kaua e rukuhia te wae matua ki te wai.
4. Wash Bowl: The stainless steel collection bowl can be washed with warm, soapy water and rinsed thoroughly. Dry completely before storing.
5. Hau maroke: Allow all components to air dry completely before reassembling or storing to prevent rust and mildew.

This image highlights the thoughtful design elements of the VEVOR Ice Crusher, including its premium stainless steel shell for aesthetics and durability, a curved aluminum handle for easy grip and pressure application, and a reinforced base for stability and anti-slip functionality.

6. Te Raru

• Miihini Kaore i te timata:
  • Me mohio kua honoa te taura hiko ki tetahi putanga mahi.
  • Tirohia mēnā kei te tūnga "ON" te pana hiko.
  • Verify the handle is fully depressed, as it acts as a safety switch.
• Ice Not Shaving Properly (Chunky Ice):
  • Ensure ice cubes are not too large or too small.
  • Apply consistent and firm pressure on the handle.
  • Check if the blades are clean and free from obstructions.
• Excessive Splashing:
  • Ensure the ice inlet cover is properly closed and the collection bowl is correctly positioned.
  • Do not overfill the ice inlet.

7. Whakatakotoranga

This image provides a visual representation of the VEVOR Ice Crusher's dimensions (11.61" height, 8.86" width, 5.35" depth) and lists its key specifications, including model number WF-A168, rated power 300W, ice crushing capacity 220 lbs/h, product weight 12.13 lbs, and included accessories.

8. Pūtāhui me te Tautoko

Mo nga korero whakamana me te tautoko a nga kaihoko, tirohia te VEVOR mana webpaetukutuku, whakapā atu ranei ki ta raatau ratonga kaihoko. Puritia to riirii hoko mo etahi kereme whakamana.

Kaihanga: VEVOR

Toa Amazon: Tirohia te Toa VEVOR i Amazon
