Kupu Whakataki
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Samsung LS27AM501NWXXL 27-inch FHD Smart Monitor. Please read this manual thoroughly before using your monitor to ensure proper and safe operation. This monitor combines OTT media services, mobile connectivity, and remote PC capabilities.
Nga Korero Haumaru Nui
Me whai tonu i nga tikanga tiaki haumaru ina whakamahi i tenei hua hei whakaiti i te tupono o te ahi, te wiri hiko, me te whara o te tangata. Puritia tenei pukapuka hei tohutoro a meake nei.
- Kaua e tukuna te kaitirotiro ki te ua, te makuku ranei.
- Kaua e whakatuwheratia te aroturuki casing. Tukuna nga ratonga katoa ki nga kaimahi ratonga whai tohu.
- Me whakarite kia tika te hau. Kaua e araia nga whakatuwheratanga hau.
- Whakamahia anake te taura hiko me te urutau e whakaratohia ana me te aroturuki.
- Clean the monitor with a soft, dry cloth. Avoid liquid cleaners.
Ihirangi mokete
Manatokona kei roto katoa nga mea kei roto i to pouaka hua:
- 1 Unit Monitor
- 1 Taura Hiko
- 1 HDMI Taura
- 1 Mana Mamao

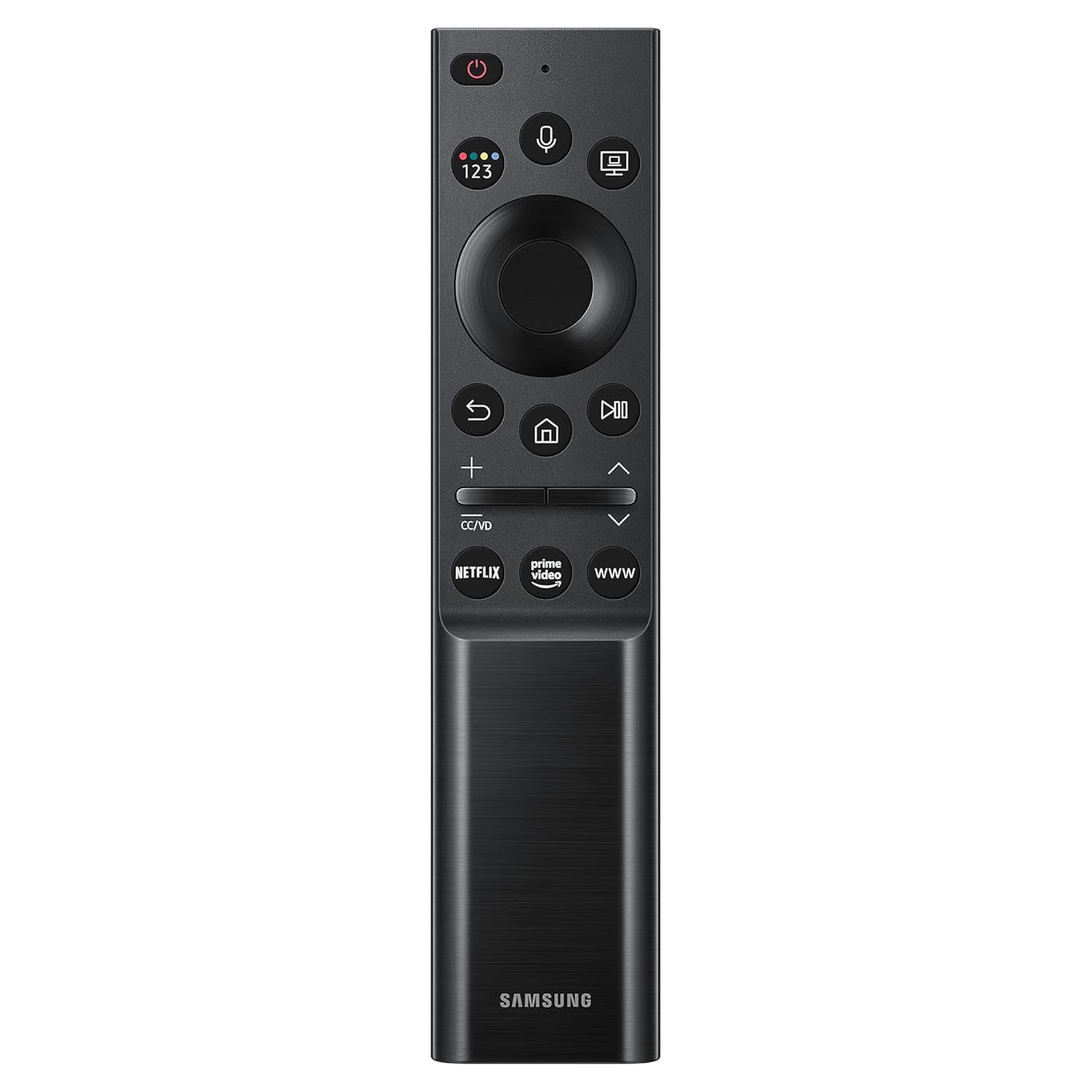

Image: The included remote control for the Samsung Smart Monitor, featuring dedicated buttons for streaming services and navigation.
Tatūnga
1. Huihui i te Tu
Carefully attach the stand base to the stand neck, then secure the assembled stand to the back of the monitor. Ensure all screws are tightened securely.
Image: The monitor's slim metal stand and 3-sided borderless design, illustrating its aesthetic and compact form factor.
2. Hononga taura
Connect the power cable to the monitor and a wall outlet. Use the supplied HDMI cable to connect your computer or other devices to the monitor's HDMI ports.
Whakaahua: He taipitopito view of the monitor's rear panel, highlighting the HDMI IN 1 (ARC), HDMI IN 2, USB 1, and USB 2 ports for various connections.

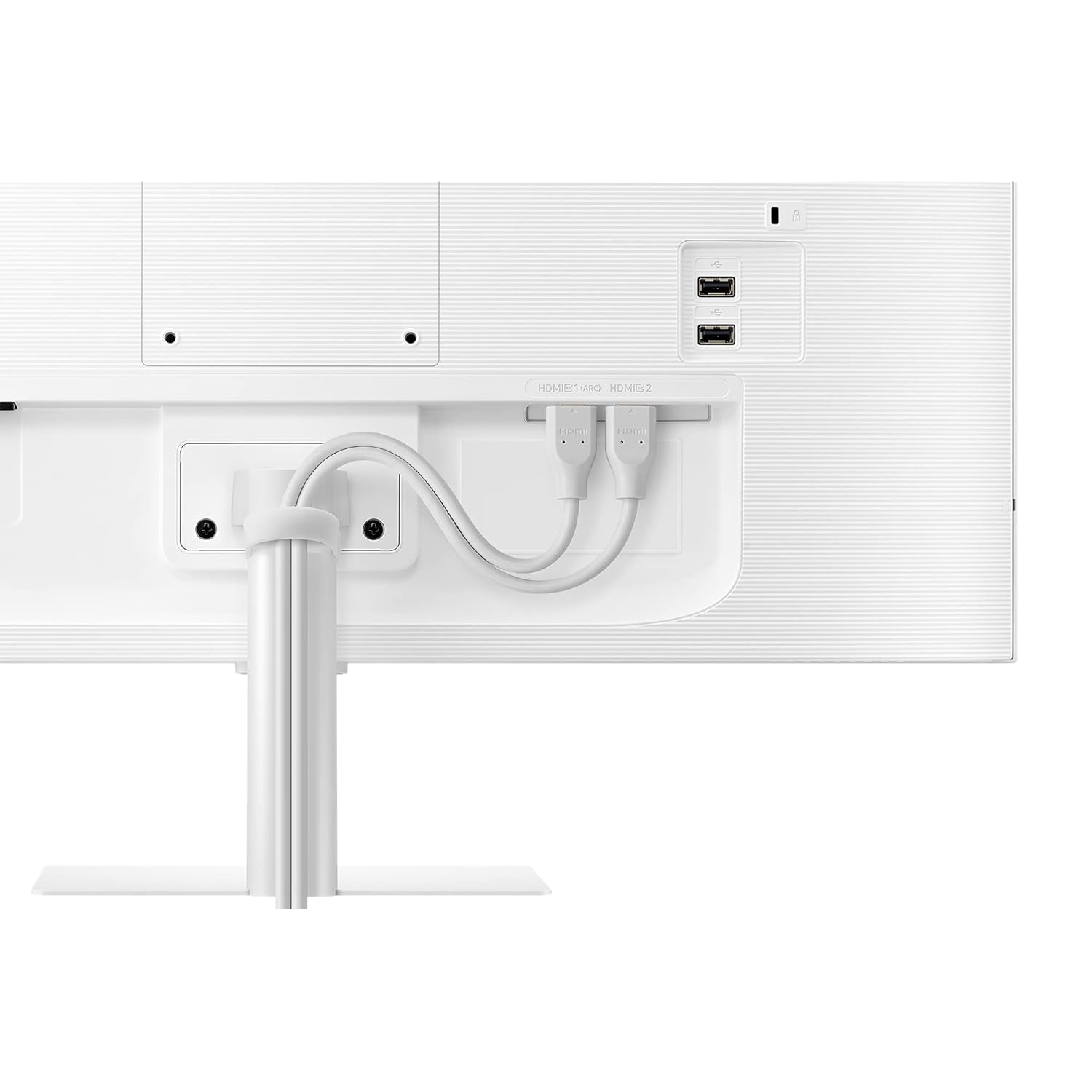

Image: The rear of the monitor with HDMI cables neatly routed through the stand, demonstrating proper cable management for a clean setup.
3. Hia Tuatahi
Press the power button on the monitor or the remote control to turn on the monitor. Follow the on-screen instructions for initial setup, including network connection and smart features configuration.
Nga Tohutohu Whakahaere
Nga Waahanga Waea Ataata
Your Samsung Smart Monitor integrates a Smart Hub, allowing direct access to various entertainment applications without needing a separate PC. Use the remote control to navigate the Smart Hub.
- Ratonga Rere: Access pre-installed apps like Netflix, YouTube, Prime Video, and Apple TV.
- Uru Mamao: Connect to your office PC remotely or access Microsoft 365 applications directly from the monitor.
Image: A hand holding the monitor's remote control, pointing towards the screen displaying various streaming application icons such as Netflix, Prime Video, and YouTube.
Image: The monitor screen showing Microsoft 365 applications, illustrating the "PC on Screen" and remote access capabilities for productivity.
Hononga Pukoro
The monitor supports wireless DeX, allowing you to use your compatible mobile device as a full PC experience. You can also mirror your mobile screen to the monitor.
- Ahokore DeX: Connect your Samsung Galaxy phone wirelessly to the monitor to use mobile productivity apps in a desktop environment.
- Whakaata Mata: Cast content from your smartphone or tablet directly to the monitor.
Image: A user working at a desk with the Samsung Smart Monitor, demonstrating the Wireless DeX feature connecting a smartphone to the monitor for a desktop-like experience.
Pikitia Urutau
The monitor features Adaptive Picture technology, which automatically adjusts screen brightness based on ambient light conditions for optimal viewing whakamarie.
Image: The monitor displaying a scenic image with an on-screen brightness adjustment bar, illustrating the Adaptive Picture feature that automatically optimizes display brightness.
Kēmu Ultrawide View
For an enhanced gaming experience, activate Ultrawide Game View to adjust the screen aspect ratio to 21:9, revealing more of the game environment.
Image: The monitor displaying a football game in a 21:9 aspect ratio, demonstrating the Ultrawide Game View feature for an expanded field of vision.
Whakawhiti Pūtake Aunoa
The monitor can automatically detect and switch to a newly connected device, eliminating the need for manual input selection.
Image: A diagram illustrating the Auto Source Switch feature, where the Samsung M5 monitor automatically detects and displays content from a connected laptop, unlike conventional monitors that show "No Signal."
Kaiāwhina reo
Utilize built-in voice assistants like Bixby or SmartThings for hands-free control of your monitor and connected smart home devices.
Image: A woman speaking into the remote control, demonstrating the voice assistant feature (Bixby, SmartThings) for controlling the monitor.
Te tiaki
- Te horoi i te Mata: Me ata horoia te mata ki te kakahu ngohengohe, kore-puru. Mo nga tohu pakeke, kia ngawari dampen te kakahu ki te wai, te otinga horoi mata-motuhake ranei. Kaua e rehu tika te wai ki runga i te mata.
- Te horoi i te Casing: Whakamahia he kakahu ngohengohe, maroke hei muru i te aroturuki casing. A ape i te kai horoi, te whakarewa ranei.
- Whakahau: Me whakarite kia kaua e araia nga tuwhera o te hau i runga i te kaupane kia kore ai e wera rawa.
- Whakahaere Hiko: Unplug the monitor from the power outlet during lightning storms or when it will be unused for extended periods.
Raparongoā
Karekau he Mana
- Tirohia mehemea kei te hono pai te taura hiko ki te aroturuki me te putanga hiko.
- Manatokohia kei te mahi te putanga hiko ma te hono ki tetahi atu taputapu.
- Kia tino pēhia te pātene mana o te mata, o te mana mamao rānei.
Kore he Tohu / Mata Patea
- Confirm that the HDMI cable is properly connected to both the monitor and the source device (PC, laptop, etc.).
- Select the correct input source using the monitor's remote control or OSD menu.
- Me mohio kei te hiko te taputapu puna me te whakaputa tohu.
Picture Issues (Distorted, Flickering, Incorrect Colors)
- Check the HDMI cable for damage or loose connections. Try a different cable if available.
- Adjust the display resolution and refresh rate on your source device to match the monitor's specifications.
- Tāutahia anō ngā tautuhinga o te aroturuki ki ngā tautuhinga wheketere mā te tahua OSD.
Mana Mamao Kaore i te Mahi
- Me whakarite karekau he arai i waenga i te mana mamao me te aroturuki.
- Whakakapihia nga pākahiko i te mana mamao.
Whakatakotoranga
| Āhuahira | Taipitopito |
|---|---|
| Waitohu | Samsung |
| Tau tauira | LS27AM501NWXXL |
| Rahi Mata | 27 Inihi (68.6 cm) |
| Whakatau | 1920 x 1080 (FHD 1080p) |
| Aspect Ratio | 16:9 |
| Momo Paewhiri | VA |
| Tautoko HDR | HDR 10 |
| Hononga | 2 x HDMI, 2 x USB |
| Tae | Mā |
| Ahu (LxWxH) | 19.4 x 61.6 x 45.5 cm |
| Taumaha Tūemi | 5 kg |
| Āhuatanga Maamaa | Smart Hub (Netflix, YouTube, Prime Video, Apple TV), Wireless DeX, Remote Access, Adaptive Picture, Ultrawide Game View, Voice Assistant (Bixby, SmartThings), Auto Source Switch |
Whakaahua: Te taha mua view of the Samsung Smart Monitor, illustrating its physical dimensions: 615.5 mm width, 455.4 mm height, and 193.5 mm depth with the stand.
Pūtāhui me te Tautoko
Ka tae mai tenei hua me te 3 Tau Rarangi from the manufacturer, Samsung.
For technical support, service, or warranty claims, please contact Samsung customer service:
- Samsung India Pvt Ltd: 180040 7267864, 1800 5 7267864
- Refer to the official Samsung webpaetukutuku mō ngā mōhiohio tautoko me ngā taipitopito whakapā hou rawa atu.
