1. Fampidirana
This manual provides essential instructions for the safe operation, assembly, maintenance, and troubleshooting of your Simpson Cleaning King Brute KB65132 CRX420 Gas Pressure Washer. This industrial-grade hot water pressure washer is designed for demanding cleaning tasks, delivering 4000 PSI at 4.0 GPM.
The Simpson Cleaning King Brute KB65132 CRX420 Gas Pressure Washer, a robust unit designed for heavy-duty cleaning tasks, featuring a gas engine and hot water capability.
2. Information momba ny fiarovana
Always read and understand all safety warnings and instructions before operating the pressure washer. Failure to follow these instructions may result in serious injury or property damage.
Fiarovana ankapobeny
- Manaova fitaovana fiarovana manokana (PPE) sahaza, anisan'izany ny fiarovana ny maso, ny fiarovana ny fandrenesana ary ny fonon-tanana.
- Never point the spray gun at people, animals, or electrical equipment.
- Hamarino tsara fa voafehy tsara ny fifandraisana rehetra alohan'ny hanombohana ny fitaovana.
- Operate the pressure washer in a well-ventilated area.
- Arovy ny ankizy sy ny biby fiompy lavitra ny faritra fandidiana.
Fuel and Engine Safety
- Use fresh, clean gasoline for the engine and diesel for the burner.
- Do not refuel a hot or running engine. Allow the engine to cool before adding fuel.
- Store fuel in approved containers and away from ignition sources.
- Be aware of hot surfaces on the engine and burner during and after operation.
3. Ireo singa mihoatraview
Familiarize yourself with the main components of your Simpson King Brute pressure washer.

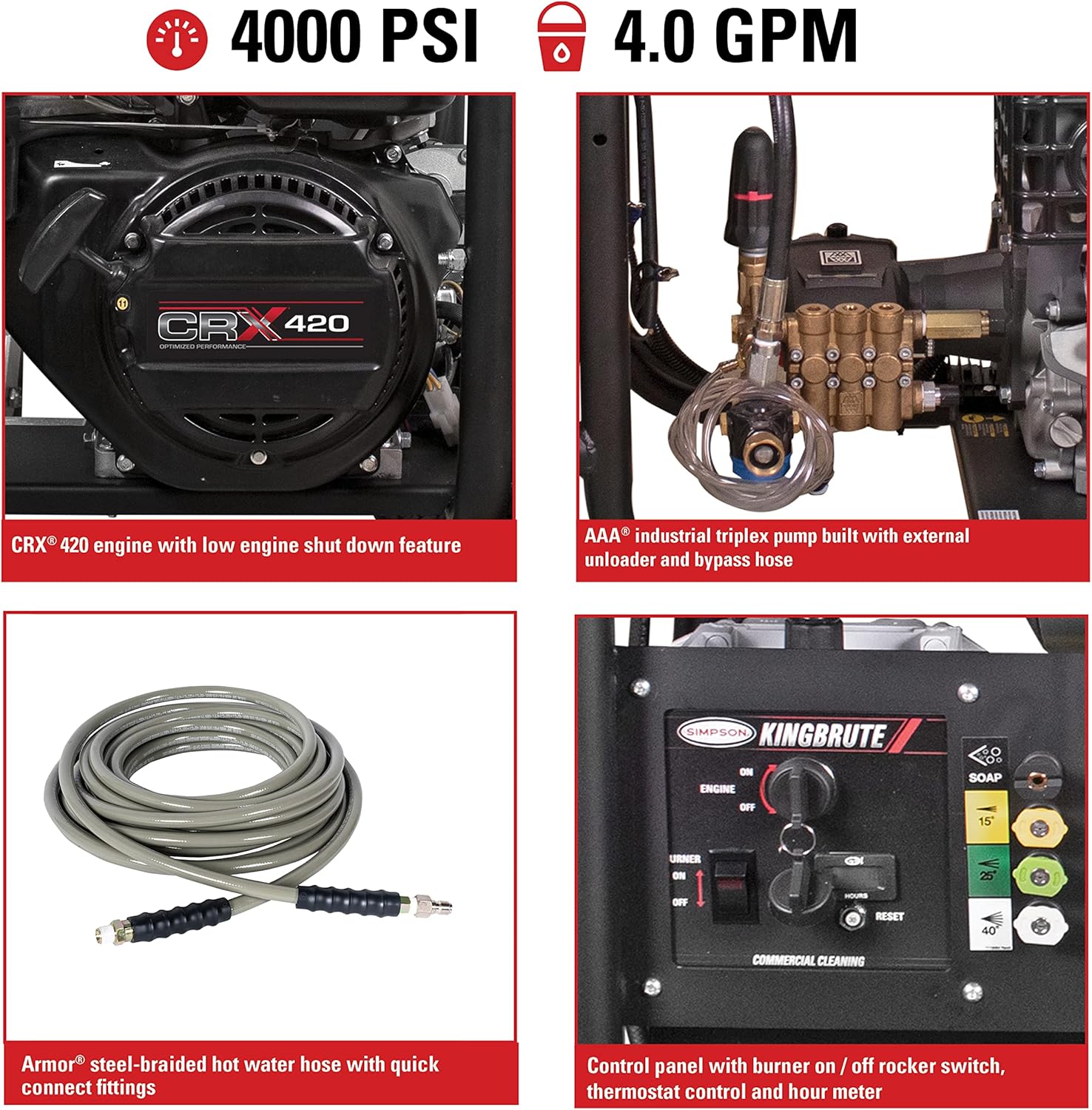

Fampisehoana collageasing the main components: the CRX 420 engine, the AAA industrial triplex plunger pump, the durable Armor steel-braided hot water hose, and the intuitive control panel with nozzle selections.
CRX 420 Engine
The CRX 420 direct drive engine provides reliable power for demanding cleaning tasks. It features a low-oil shutdown mechanism to protect the engine from damage.
A detailed close-up of the CRX 420 engine, highlighting its branding and design, which powers the pressure washer.
AAA Industrial Triplex Plunger Pump
This premium pump delivers 4000 PSI at 4.0 GPM and includes an external unloader and bypass hose for consistent performance and durability.

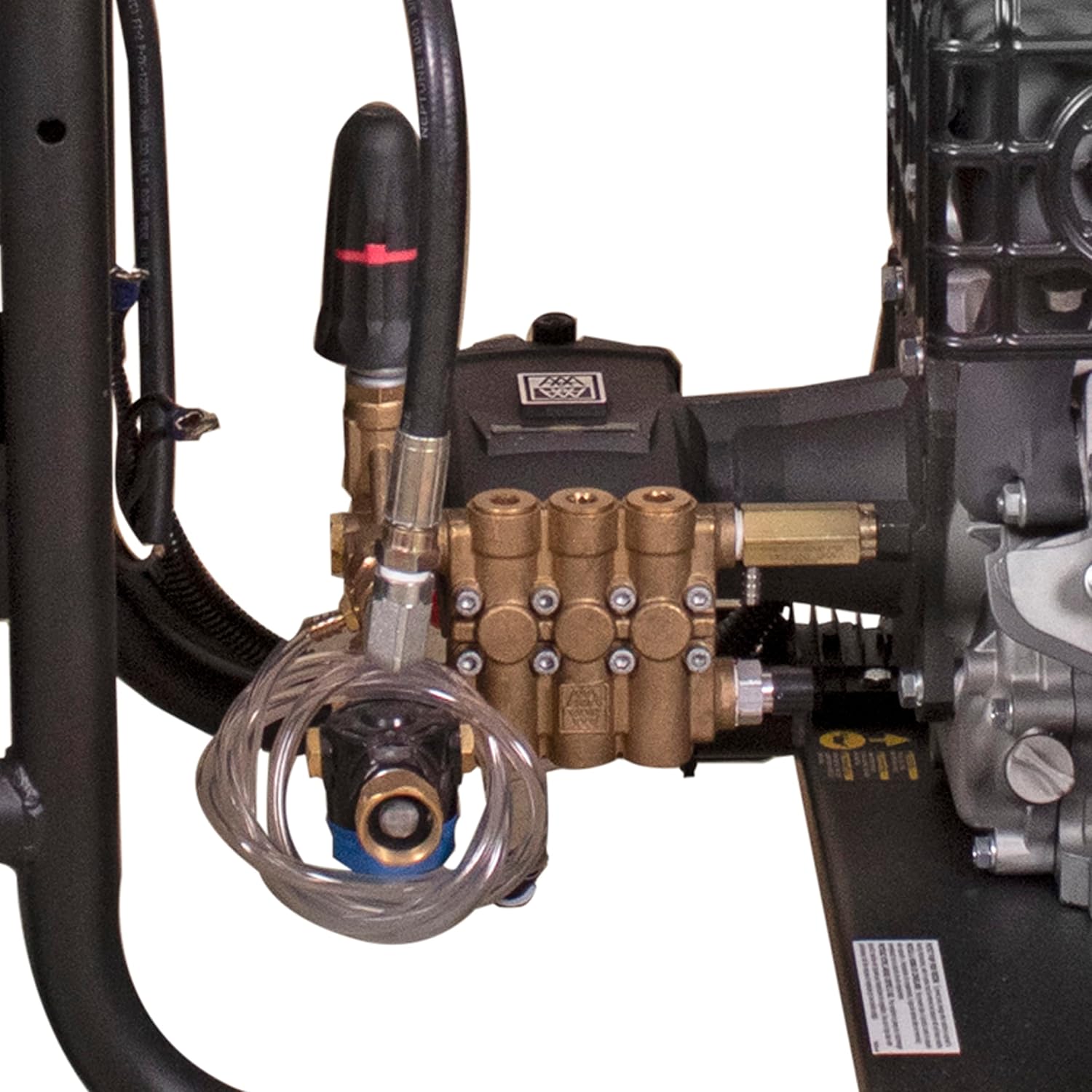

A close-up view of the AAA industrial triplex plunger pump, a key component responsible for delivering high-pressure water, featuring its external unloader and bypass hose.
Takelaka fikirakirana
The control panel features an on/off rocker switch for the burner, a thermostat control, and an hour meter. It also provides convenient storage for quick-connect nozzle tips.
A sisiny view of the pressure washer, emphasizing the control panel with its various switches and nozzle tip storage.
Hose and Wand
The unit includes a 3/8-inch x 50-foot steel-braided hot water pressure washer hose and a heat-resistant pressure washer gun with a 48-inch wand, featuring an insulated grip for comfort and control.
A sisiny view of the pressure washer, showing the coiled hot water hose and the spray gun attached to the unit.
4. Fametrahana
Follow these steps for initial assembly and preparation before first use.
- Famoahana: Esory tsara ny singa rehetra amin'ny fonosana. Ataovy azo antoka fa misy ny ampahany rehetra voatanisa ao amin'ny lisitry ny entana.
- Fivoriambe kodia: Attach the wheels to the frame as per the assembly diagram in the full manual. The four 13-inch pneumatic tires are designed for easy maneuverability.
- Fametrahana tanana: Secure the handle to the main frame.
- Ampifandraiso amin'ny Hose High Pressure: Connect one end of the 50-foot steel-braided hose to the pump outlet and the other end to the spray gun. Ensure connections are tight.
- Famatsiana rano mampifandray: Attach a garden hose (minimum 5/8-inch diameter) to the water inlet on the pump. Ensure the water supply is clean and free of debris.
- Ampio menaka motera: Fill the engine crankcase with the recommended engine oil to the appropriate level. Refer to the engine manual for specific oil type and capacity.
- Ampio solika: Fill the engine fuel tank with fresh, unleaded gasoline (1.6 gal capacity). Fill the burner fuel tank with diesel (5.0 gal capacity). Do not overfill.
- Nozzle Selection: Choose the appropriate quick-connect nozzle (15°, 25°, 40°, or Soap) for your cleaning task and insert it into the wand.
5. Torolàlana miasa
Araho ireto dingana ireto mba hahazoana asa azo antoka sy mahomby amin'ny mpanasa fanerena anao.
Manomboka ny fanasan-damba fanerena
- Open Water Supply: Turn on the water faucet completely to ensure a steady flow to the pump.
- Diovy ny rivotra: Squeeze the trigger on the spray gun to purge air from the system until a steady stream of water flows out.
- Manomboka motera: Follow the engine manufacturer's instructions for starting the CRX 420 engine. This typically involves setting the choke, throttle, and pulling the recoil starter or using the electric start if equipped.
- Engage Burner (for Hot Water): Once the engine is running, switch the burner on using the rocker switch on the control panel. Adjust the thermostat to the desired water temperature. Allow a few moments for the water to heat up.
Mampiasa ny Pressure Washer
- Always start spraying away from the object to be cleaned to avoid damage.
- Maintain a safe distance from the cleaning surface, adjusting as needed for desired cleaning power.
- Use the appropriate nozzle for the task. Wider spray patterns (e.g., 40°) are for general cleaning, while narrower patterns (e.g., 15°) provide more concentrated power. The soap nozzle is for applying detergents.
- Move the spray gun in a sweeping motion to ensure even cleaning.
Fanakatonana ny mpanasa fanerena
- Turn Off Burner: Switch off the burner on the control panel.
- Vonoy ny motera: Follow the engine manufacturer's instructions for shutting down the engine.
- Vonoy ny famatsiana rano: Akatona ny faucet rano.
- Manamaivana ny tsindry: Kitiho ny trigger amin'ny basy famafazana mba hamoahana ny tsindry sisa tavela ao amin'ny rafitra.
- Esory ny fantsona: Esory ny fantson-dranon'ny zaridaina sy ny fantsom-pamokarana avo lenta.
6. Fikojakojana
Ny fikojakojana tsy tapaka dia miantoka ny fampandehanana tsara indrindra ary manitatra ny fiainan'ny mpanasa fanerena anao.
- Jereo ny menaka motera: Before each use, check the engine oil level and add if necessary. Change oil according to the engine manual's schedule.
- Jereo ny hoses sy ny fifandraisana: Regularly check the high-pressure hose, garden hose, and all connections for leaks, cuts, or damage. Replace damaged components immediately.
- Madio nozzles: Clear any blockages from the nozzle tips using the provided nozzle cleaning tool.
- Tsidiho ny sivana rivotra: Check the engine air filter regularly and clean or replace it as needed, especially in dusty conditions.
- Fitsipi-tsilaka: Inspect and clean or replace the spark plug periodically as recommended by the engine manufacturer.
- ririnina: Before storing the unit for extended periods or in freezing temperatures, properly winterize the pump and engine to prevent damage. Consult the full manual for detailed winterization procedures.
7. Famahana olana
Ity fizarana ity dia miresaka momba ireo olana mahazatra mety hatrehinao. Raha misy olana sarotra kokoa, dia manatona teknisianina mahay.
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy manomboka ny motera | No fuel; low engine oil; spark plug issue; choke setting incorrect | Add fuel; check/add oil (low-oil shutdown engaged); inspect/replace spark plug; adjust choke |
| Tsy misy tsindry rano | Water supply off; clogged nozzle; air in pump; kinked hose | Turn on water; clean nozzle; purge air from system; straighten hose |
| Burner tsy mirehitra | No diesel fuel; electrical issue; igniter malfunction | Check/add diesel; inspect electrical connections; consult service manual |
| Pulsating pressure | Air in pump; restricted water flow; worn pump seals | Purge air; check water supply/filter; contact service for pump repair |
8. Famaritana
Key technical details for the Simpson Cleaning King Brute KB65132 CRX420 Gas Pressure Washer.
| endri-javatra | antsipirihany |
|---|---|
| MODELY | KB65132 |
| maotera | CRX 420 |
| Naoty fanerena | 4000 PSI |
| Taham-pidirana | 4.0 GPM |
| Karazana paompy | AAA Industrial Triplex Plunger Pump |
| halavan'ny hose | 50 Feet (Steel-Braided, Hot Water) |
| Fahaizana solika motera | 1.6 Gallons (Gasoline) |
| Burner Fuel Capacity | 5.0 Gallons (Diesel) |
| Haben'ny vokatra (L x W x H) | 53"L x 28"W x 44"H (Shipping) / 42"L x 28"W x 47.5"H (Operational) |
| Lanja entana | 430 lbs (Shipping) / 396 lbs (Operational) |
| fanajana | 49-State Compliant, CSA Certified |
A diagram illustrating the precise dimensions of the pressure washer: 42 inches in length, 28 inches in width, and 47.5 inches in height.
9. Fampahalalana momba ny fiantohana
The Simpson Cleaning King Brute KB65132 CRX420 Gas Pressure Washer comes with the following limited warranties:
- maotera: Garantie voafetra 3 taona
- paompy: Garantie voafetra 5 taona
- Frame: Garantie voafetra 10 taona
For detailed terms and conditions, please refer to the warranty card included with your product or visit the official Simpson Cleaning website.
An overview of the Simpson King Brute pressure washer, highlighting its 3-year engine warranty, 5-year pump warranty, 10-year frame warranty, and overall dimensions.
10. Fanohanana
For further assistance, technical support, or to inquire about replacement parts, please contact Simpson Cleaning customer service or visit their official website.
