Boky Torolalana ho an'ny Mpampiasa Triton 06933 ho an'ny Tranofiara Snowmobile

1. Fampidirana

Ity boky torolalana ity dia manome toromarika feno momba ny fametrahana, ny fampiasana ary ny fikojakojana ny Triton 06933 Snowmobile Trailer Gas Shock Lift Kit. This kit is specifically designed to assist in tilting and holding the front of Triton straight front snowmobile trailers, significantly enhancing the ease and safety of loading and unloading snowmobiles.

The gas shock mechanism helps counteract the weight of trailer covers or salt shields, preventing the trailer tongue from slamming down during loading. Please read all instructions carefully before proceeding with installation or use.

2. Information momba ny fiarovana

• Always wear appropriate safety gear, including eye protection and gloves, during installation.
• Ensure the trailer is on a stable, level surface and properly secured before beginning any work.
• Keep hands and fingers clear of pinch points when installing or testing the gas shock.
• Do not attempt to modify the gas shock or any components of the kit.
• Raha tsy azonao antoka ny dingana rehetra dia miresaha amin'ny matihanina mahay.

3. Ny votoatin'ny fonosana

Verify that all components listed below are present in your kit before beginning installation:

• 1x Triton 06928 Gas Shock (approximately 27-inch shaft, 28.5 inches overall length)
• Mounting Brackets (various sizes)
• Bolts, Nuts, and Washers (complete mounting hardware)

Sary 1: All components included in the Triton 06933 Snowmobile Trailer Gas Shock Lift Kit. This image displays the gas shock, various mounting brackets, bolts, nuts, and washers.

4. Fametrahana sy fametrahana

This kit is designed for Triton straight front snowmobile trailers. Installation typically requires two wrenches, with a narrow adjustable wrench being helpful for the ball socket joints.

1. Fantaro ny toerana fametrahana: Locate suitable mounting points on your Triton straight front snowmobile trailer. The gas shock is designed to connect between the trailer frame and the tilting deck, allowing it to assist in lifting and holding the deck in the tilted position. Refer to Figure 2 for a typical installation example.
2. Mametraka brackets: Securely attach the provided mounting brackets to the trailer frame and tilting deck using the bolts, nuts, and washers. Ensure all fasteners are tightened to prevent movement.
3. Attach Gas Shock: Connect the ball socket ends of the gas shock to the installed mounting brackets. The swiveling mounting screws at either end of the shock should align with the ball studs on the brackets. Use a narrow adjustable wrench if needed to secure the ball socket joints.
4. Fampiasana fitsapana: Carefully tilt the trailer deck to ensure the gas shock operates smoothly and holds the deck in the desired tilted position. Verify that there is no binding or excessive strain on any components.

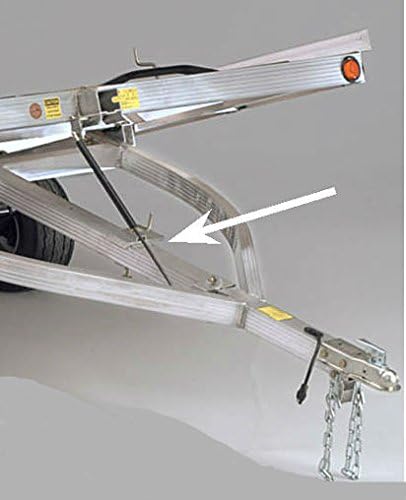

Sary 2: Example of the gas shock installed on a Triton snowmobile trailer. The white arrow indicates the position of the installed gas shock, connecting the trailer frame to the tilting deck.

5. Torolàlana miasa

Once installed, the Triton 06933 Gas Shock Lift Kit will assist in the manual tilting operation of your snowmobile trailer. When you lift the front of the trailer deck, the gas shock will extend, providing upward force to help hold the deck in the tilted position. This reduces the effort required to keep the trailer tilted, especially when loading or unloading snowmobiles, and prevents the deck from dropping unexpectedly.

• To tilt the trailer, manually lift the front of the trailer deck. The gas shock will extend to support the deck.
• To lower the trailer, apply downward pressure to the deck. The gas shock will compress as the deck returns to its horizontal position.
• Always ensure the trailer is stable and clear of obstructions before tilting or lowering.

6. Fikojakojana

Regular maintenance ensures the longevity and proper function of your gas shock lift kit:

• Fanaraha-maso maso: Periodically inspect the gas shock and all mounting hardware for signs of wear, corrosion, or damage. Check for loose bolts or cracked brackets.
• Fahadiovana: Keep the gas shock shaft clean and free of dirt, ice, or debris. Wipe down with a damp cloth as needed. Avoid using harsh chemicals that could damage seals.
• fanosorana: The gas shock is a sealed unit and does not require internal lubrication. However, ensure the ball socket joints are free to swivel.
• Fanamarinana ny fiasa: Test the shock's ability to hold the trailer deck in the tilted position. If it no longer provides adequate support, it may need replacement.

7. Famahana olana

If you encounter issues with your Triton 06933 Gas Shock Lift Kit, consider the following:

• Shock Does Not Hold Trailer Deck:
  • Verify that all mounting hardware is securely tightened.
  • Ensure the shock is installed correctly and not binding.
  • If the trailer is significantly heavier (e.g., due to multiple snowmobiles, heavy covers, or modifications), a single gas shock may not provide sufficient lift. Consider installing a second gas shock if your trailer design allows for it and additional support is needed.
  • The gas shock may have lost pressure over time. If it feels weak or offers no resistance, it may need replacement.
• Difficulty Tilting/Lowering Trailer:
  • Check for obstructions or debris around the shock or trailer hinge points.
  • Ensure the shock is not bent or damaged, which could impede its movement.

8. Famaritana

Sary 3: The Triton 06928 Gas Shock with an indicated overall length of 28-1/2 inches (28.5 inches).

9. Warranty sy fanohanana

For warranty information regarding your Triton 06933 Snowmobile Trailer Gas Shock Lift Kit, please refer to the documentation provided at the time of purchase or contact Triton directly through their official website. For technical support or assistance with installation, please reach out to Triton customer service or your authorized retailer.
