HBIR31 Low-bay
HBIR31/R Reinforced Low-bay
HBIR31/H High-bay
HBIR31/RH Reinforced High-bay

mesh PIR Standalone Motion Sensor with Bluetooth - Cover

Product Description

HBIR31 is a Bluetooth PIR standalone motion sensor with 80mA DALI power supply built in, which can control up to 40 LED drivers. It is ideal for typical indoor applications such as office, classroom, healthcare and other commercial areas. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects (especially for retrofit upgrade projects!). Meanwhile, simple device setup and commissioning can be done via app.

App Features

Quick setup mode & advanced setup mode
Tri-level control
Daylight harvest
Floorplan feature to simplify project planning
Web app/platform for dedicated project management
Koolmesh Pro iPad version for on-site configuration
Grouping luminaires via mesh network
Scenes
Detailed motion sensor settings
Dusk/Dawn photocell (Twilight function)
Push switch configuration
Schedule to run scenes based on time and date
Astro timer (sunrise and sunset)
Staircase function (master & slave)
Internet-of-Things (IoT) featured
Device firmware update over-the-air (OTA)
Device social relations check
Bulk commissioning (copy and paste settings)
Dynamic daylight harvest auto-adaptation
Power-on status (memory against power loss)
Offline commissioning
Different permission levels via authority management
Network sharing via QR code or keycode
Remote control via gateway support HBGW01
Interoperability with Hytronik Bluetooth product portfolio
Compatible with EnOcean switch EWSSB/EWSDB
Continuous development in progress…

Hardware Features

80mA DALI broadcast output for up to 40 LED drivers
Support to control DT8 LED drivers
2 Push inputs for flexible manual control
Ceiling/Surface mount box available as accessory
Two types of blind inserts / blanking plates
User-friendly design for installation
High bay version available (up to 15m in height)
5-year warranty

mesh PIR Standalone Motion Sensor with Bluetooth - icon 37 5.0 SIG mesh

mesh PIR Standalone Motion Sensor with Bluetooth - Hardware Features 1

mesh PIR Standalone Motion Sensor with Bluetooth - Hardware Features 2 mesh PIR Standalone Motion Sensor with Bluetooth - Hardware Features 3
https://apps.apple.com/cn/app/koolmesh/id1483721878 https://play.google.com/store/apps/details?id=com.koolmesh.sig

Smartphone app for both iOS & Android platform

mesh PIR Standalone Motion Sensor with Bluetooth - Hardware Features 4

mesh PIR Standalone Motion Sensor with Bluetooth - Hardware Features 5https://apps.apple.com/cn/app/koolmesh/id1570378349

Koolmesh Pro app for iPad

mesh PIR Standalone Motion Sensor with Bluetooth - Hardware Features 6

Web app/platform: www.iot.koolmesh.com

mesh PIR Standalone Motion Sensor with Bluetooth - Hardware Features 8 EnOceal
Self-powered loT
Fully support
EnOcean switch
EWSSB/EWSDB

Technical Specifications

Bluetooth Transceiver
Operation frequency 2.4 GHz – 2.483 GHz
Transmission power 4 dBm
Range (Typical indoor) 10~30m
Protocol 5.0 SIG Mesh
Sensor Data
Sensor Model PIR max* detection range
HBIR31 Installation Height : 6m
Detection Range(Ø) :9m
HBIR31/R Installation Height : 6m
Detection Range(Ø) :10m
HBIR31/H Installation height:15m (forklift) 12m (person)
Detection range (Ø):24m
HBIR31/RH Installation height:40m (forklift) 12m (person)
Detection range (Ø):40m
Detection angle 360º
Input & Output Characteristics
Stand-by power <1W
Operating voltage 220~240VAC  50/60Hz
Switched power Max. 40 devices, 80mA
Warming-up 20s
Safety & EMC
EMC standard (EMC) EN55015, EN61000, EN61547
Safety standard (LVD) EN60669-1, EN60669-2-1
AS/NZS60669-1/-2-1
RED EN300328, EN301489-1/-17
Certification CB, CE , EMC, RED, RCM
Environment
Operation temperature Ta: -20º C ~ +50º C
IP rating IP20

* For more details of detection range, please refer to “detection pattern” section.

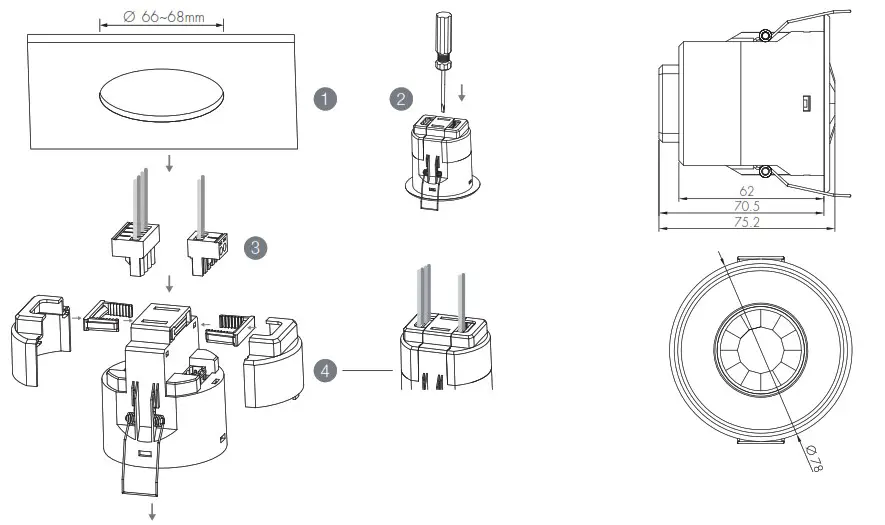

Mechanical Structure & Dimensions

mesh PIR Standalone Motion Sensor with Bluetooth - Mechanical Structure and Dimensions 1

mesh PIR Standalone Motion Sensor with Bluetooth - Mechanical Structure and Dimensions 2

  1. Ceiling (drill hole Ø 66~68mm)
  2. Carefully prise off the cable clamps.
  3. Make connections to the pluggable terminal blocks.
  4. Insert plug connectors and secure using the provided cable clamps, then clip terminal covers to the base.
  5. Fit detection blind (if required) and desired lens.
  6. Clip fascia to body.
  7. Bend back springs and insert into ceiling.

Wire Preparation

mesh PIR Standalone Motion Sensor with Bluetooth - Wire Preparation

Pluggable screw terminal. It is recommended to make connections to the terminal before fitting to the sensor.

Detection Pattern & Optional Accessories

1. HBIR31 (Low-bay)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern and Optional Accessories 1

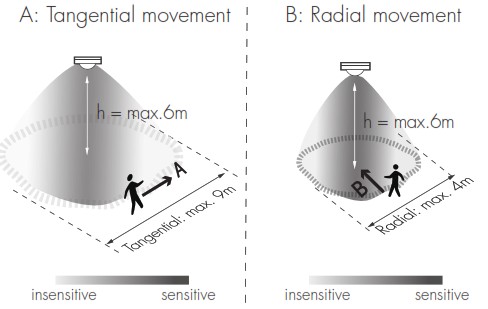

HBIR31: Low-bay flat lens detection pattern for single person @ Ta = 20º C
(Recommended ceiling mount installation height 2.5m-6m)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern and Optional Accessories 2

Mount height  Tangential (A) Radial (B)
2.5m max 50m² (Ø = 8m) max 13m² (Ø = 4m)
3m max 64m² (Ø = 9m) max 13m² (Ø = 4m)
4m max 38m² (Ø = 7m) max 13m² (Ø = 4m)
5m max 38m² (Ø = 7m) max 13m² (Ø = 4m)
6m max 38m² (Ø = 7m) max 13m² (Ø = 4m)

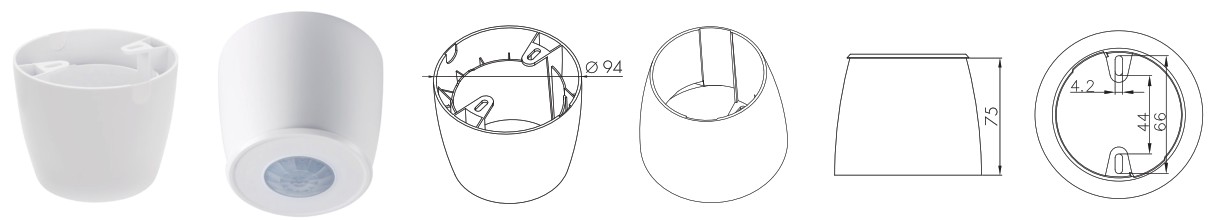

Optional Accessory — Ceiling/Surface Mount Box: HA03

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern and Optional Accessories 3

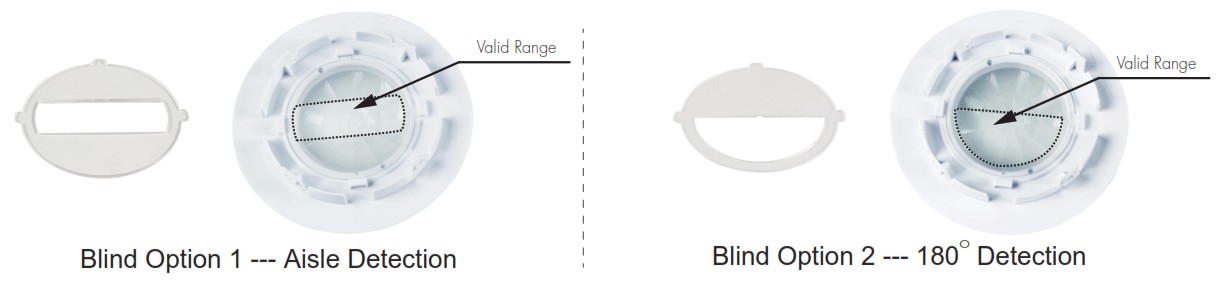

Optional Accessory — Blind Insert for Blocking Certain Detection Angles

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern and Optional Accessories 4

2. HBIR31/R (Reinforced Low-bay)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern and Optional Accessories5

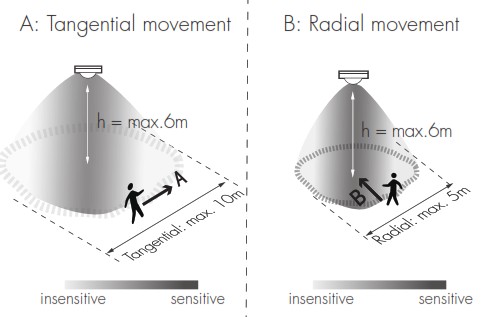

HBIR31/R: Low-bay convex lens detection pattern for single person @ Ta = 20º C
(Recommended ceiling mount installation height 2.5m-6m)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 6

Mount height  Tangential (A) Radial (B)
2.5m max 79m² (Ø = 10m) max 20m²  (Ø = 5m)
3m max 79m²  (Ø = 10m) max 20m²  (Ø = 5m)
4m max 64m² (Ø = 9m) max 20m²  (Ø = 5m)
5m max 50m²  (Ø = 8m) max 20m²  (Ø = 5m)
6m max 50m²  (Ø = 8m) max 20m²  (Ø = 5m)

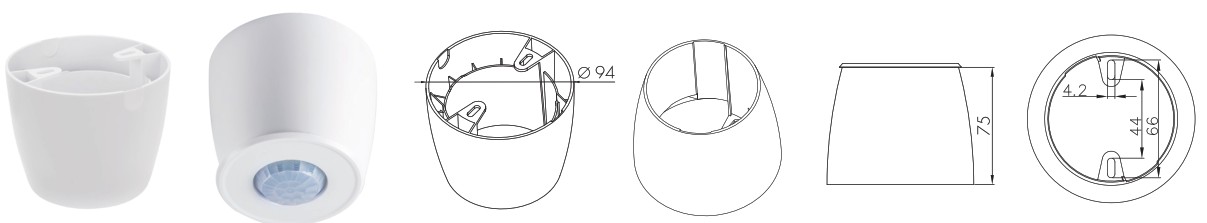

Optional Accessory — Ceiling/Surface Mount Box: HA03

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 7

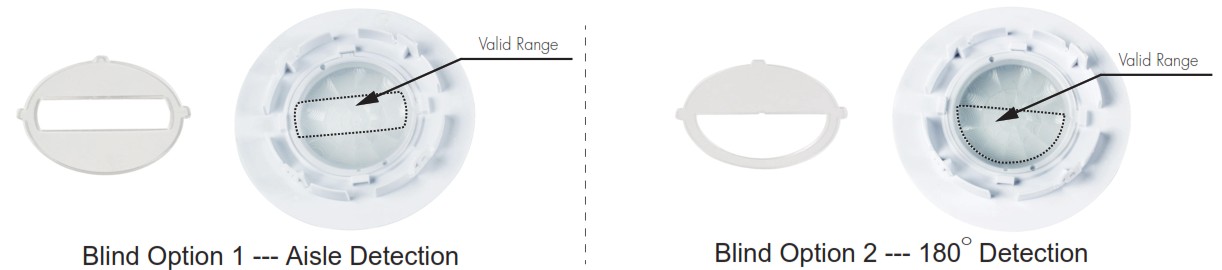

Optional Accessory — Blind Insert for Blocking Certain Detection Angles

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 8

3. HBIR31/H (High-bay)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 9

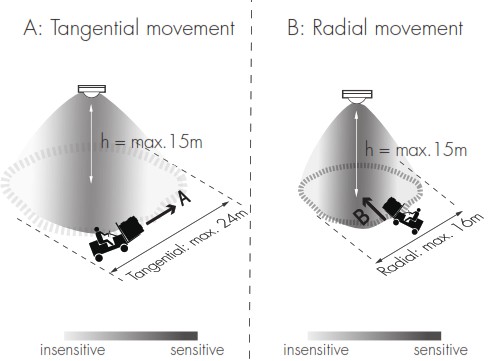

HBIR31/H: High-bay lens detection pattern for forklift @ Ta = 20º C
(Recommended ceiling mount installation height 10m-15m)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 10

Mount height  Tangential (A) Radial (B)
10m max 380m²(Ø = 22m) max 201m² (Ø = 16m)
11m max 452m² (Ø = 24m) max 201m² (Ø = 16m)
12m max 452m²(Ø = 24m) max 201m² (Ø = 16m)
13m max 452m² (Ø = 24m) max 177m² (Ø = 15m)
14m max 452m² (Ø = 24m) max 133m² (Ø = 13m)
15m max 452m² (Ø = 24m) max 113m² (Ø = 12m)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 11 HBIR31/H: High-bay lens detection pattern for single person @ Ta = 20º C
(Recommended ceiling mount installation height 2.5m-12m)

Mount height  Tangential (A) Radial (B)
2.5m max 50m² (Ø = 8m) max 7m² (Ø = 3m)
6m max 104m² (Ø = 11.5m) max 7m² (Ø = 3m)
8m max 154m² (Ø = 14m) max 7m² (Ø = 3m)
10m max 227m² (Ø = 17m) max 7m² (Ø = 3m)
11m max 269m² (Ø = 18.5m) max 7m² (Ø = 3m)
12m max 314m² (Ø = 20m) max 7m² (Ø = 3m)

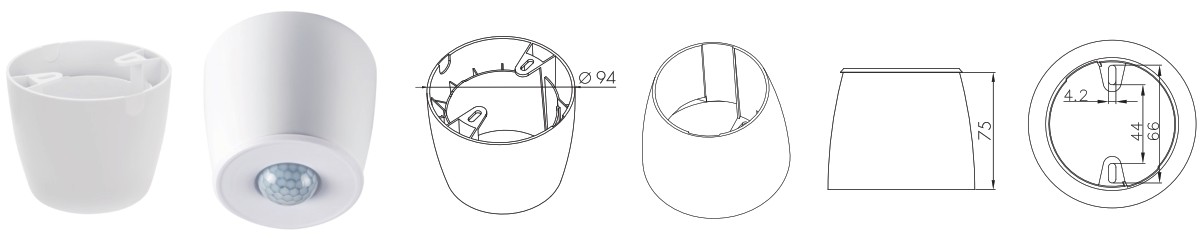

Optional Accessory — Ceiling/Surface Mount Box: HA03

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 13

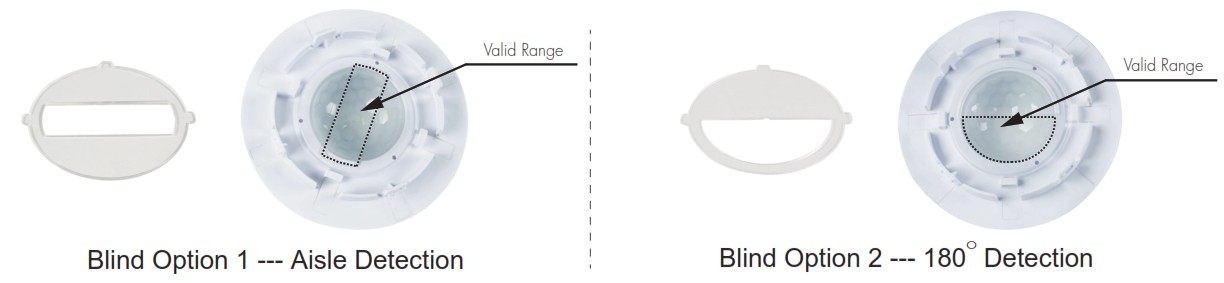

Optional Accessory — Blind Insert for Blocking Certain Detection Angles

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 14

4. HBIR31/RH (Reinforced High-bay with 3-Pyro)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 15

HBIR31/RH: Reinforced high-bay lens detection pattern for forklift @ Ta = 20º C
(Recommended ceiling mount installation height 10m-20m)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 16

Mount height Tangential (A) Radial(B)
10m max 346m² (Ø = 21m) max 177m² (Ø = 15m)
11m max 660m² (Ø = 29m) max 177m² (Ø = 15m)
12m max 907m² (Ø = 34m) max 154m² (Ø = 14m)
13m max 962m² (Ø = 35m) max 154m² (Ø = 14m)
14m max 1075m² (Ø = 37m) max 113m² (Ø = 12m)
15m max 1256m² (Ø = 40m) max 113m² (Ø = 12m)
20m max 707m² (Ø = 30m) max 113m² (Ø = 12m)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 17

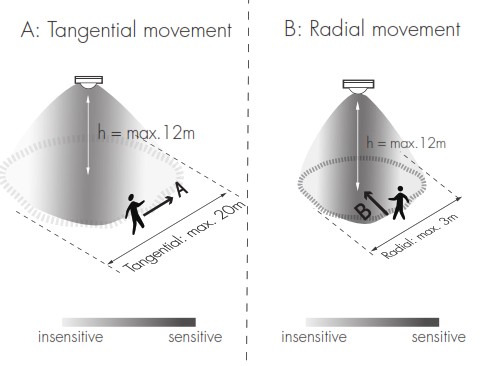

HBIR31/RH: Reinforced high-bay lens detection pattern for single person @ Ta = 20º C
(Recommended ceiling mount installation height 2.5m-12m)

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 18

Mount height  Tangential (A) Radial (B)
2.5m max 38m² (Ø = 7m) max 7m² (Ø = 3m)
6m max 154m² (Ø = 14m) max 7m² (Ø = 3m)
8m max 314m²(Ø = 20m) max 7m² (Ø = 3m)
10m max 531m² (Ø = 26m) max 13m² (Ø = 4m)
11m max 615m² (Ø = 28m) max 13m² (Ø = 4m)
12m max 707m² (Ø = 30m) max 13m² (Ø = 4m)

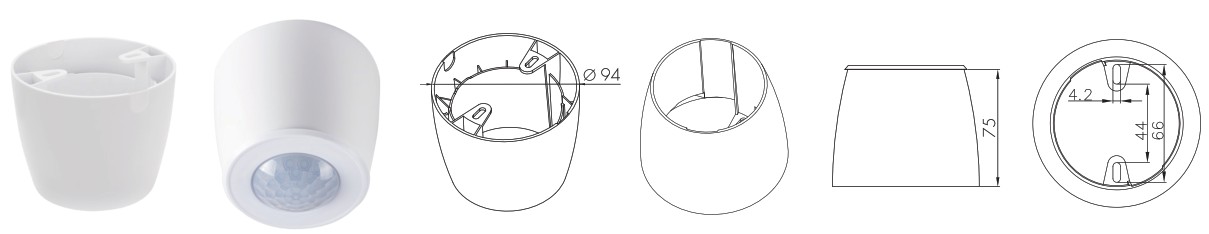

Optional Accessory — Ceiling/Surface Mount Box: HA03

mesh PIR Standalone Motion Sensor with Bluetooth - Detection Pattern 19

Wiring Diagram

mesh PIR Standalone Motion Sensor with Bluetooth - Wiring Diagram

Dimming Interface Operation Notes

Switch-Dim
The provided Switch-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches.
Detailed Push switch configurations can be set on Koolmesh app.

Switch Function Action Descriptions
Push switch Short press (<1 second)
* Short press has to be longer than
0.1s, or it will be invalid.
– Turn on/off – Recall a scene
– Turn on only – Exit manual mode
– Turn off only – Do nothing
Double push – Turn on only – Exit manual mode
– Turn off only – Do nothing
– Recall a scene
Long press ( ≥1 second) – Dimming
– Colour tuning – Do nothing
Simulate sensor / – Upgrade a normal on/off motion sensor
to a Bluetooth controlled motion sensor

Additional Information / Documents

  1. To learn more about detailed product features/funcvtions, please refer to
    www.hytronik.com/download ->knowledge ->Introduction of App Scenes and Product Functions
  2. Regarding precautions for Bluetooth product installation and operation, please kindly refer to
    www.hytronik.com/download ->knowledge ->Bluetooth Products – Precautions for Product Installation and Operation
  3. Regarding precautions for PIR Sensors installation and operation, please kindly refer to
    www.hytronik.com/download ->knowledge ->PIR Sensors – Precautions for Product Installation and Operation
  4. Data sheet is subject to change without notice. Please always refer to the most recent release on
    www.hytronik.com/products/bluetooth technology ->Bluetooth Sensors
  5. Regarding Hytronik standard guarantee policy, please refer to
    www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy

Subject to change without notice.
Edition: 17 Jun. 2021 Ver. A1
