MG8322 Modbus Gateway
User’s Manual
MG8322 Modbus Gateway
JerryPeng 0975-365-352
www.maxlong.com.tw
 |
 |
| http://www.maxlong.com.tw | http://www.maxlong.com.tw/product-detail/lora-converter |
Introduction
This MG8322 Modbus gateway provides the ways of connecting serial devices to Ethernet. It is designed to operate serial ports through Ethernet (10/100Mbps) over TCP/IP network. As the data is transmitted via Modbus protocol, therefore data acquisition and controlling is available to go through Intranet and Internet. There are two serial ports as one is a RS-232 and other one is RS-422/485. Configuration is easy to operate via web page setup.
This Modbus gateway is a high performance design composed with carefully selecting qualified components from reliable and certified sources. This operation manual will guide you to configure functions step by step.
This Modbus gateway provides RTU to TCP Slave, ASCII to TCP Slave ,TCP to RTU Slave , TCP to ASCII Slave Mode, and it also supports manual configuration via web browser.
1.1 Product Views
1.2 Wiring Architecture
Configuration
2.1Configuration Via Web
Step1➔ The first thing is to configure the Host PC’s IP address
IP :192.168.0.xx
Step2➔ Open a web page of configuration http://192.168.0.100
Step3➔ Default User name: “admin” and Password: “Leave it Blank”
Step4➔And now you have successfully connected to this Modbus gateway
2.2 Configuration Sections
2.2.1 System Setup
System Status: Display current status and time of the system
2.2.2 Network Setup

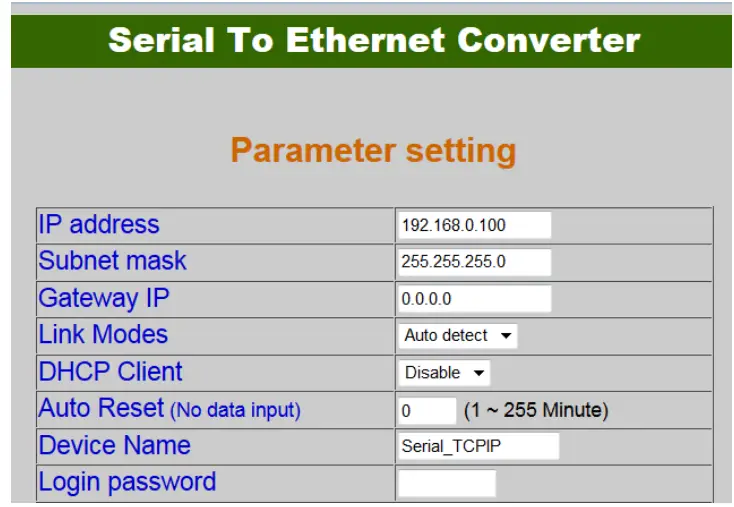

- Network Link Mode : default value is “Auto”
- IP Address : default value is “192.168.0.100”
- Subnet Mask : default value is “255.255.255.0”
- Gateway : default value is ”blank”
- Device Name : default value is “Serial_TCPIP”
- DHCP Client : Network configuration information automatically acquired，default value is “Disable”
2.2.3 Serial Port Setup
- Gateway Type: RTU Slave to TCP Master, and etc. 4 modes are seletable
- Message Timeouts : default value is 500ms
- Gateway Type: default value is RTU Slave to TCP Master and ASCII Slave to TCP Master, Configuration interface is as shown above:
Serial Device for RTU or ASCII：RTU or ASCII Asynchronous serial device settings
a. Device : Asynchronous serial device type currently supports RS232, RS485, RS422
b. Baud Rate: 960，19200 bps, and etc.
c. Parity : None, Odd, Even
d. Data Bits: 8, 7, 6, and etc.
e. Stop Bits : The end of the signal bits of bytes - Gateway Type is TCP Slave to RTU Master and TCP Slave to ASCII Master,
2.2.4 Modbus Setup
Configuration interface is as shown below:
Serial Device for RTU or ASCII：RTU or ASCII Asynchronous serial device settings
a. Device : Asynchronous serial device type currently supports RS232, RS485, RS422
b. Baud Rate: 960，19200 bps, and etc.
c. Parity : None, Odd, Even
d. Data Bits: 8, 7, 6
e. Stop Bits: The end of the signal bits of bytes
TCP Slave: Port can be specified, if not specified will use the default value
2.2.5 Reset Button
If any chance you forgot the login password or have incorrect settings making this Device inoperable, upon the power is on and the “SYS” LED light on, use a point tip to press this button and hold it for more than 20 seconds the release the point tip. The Device will reboot and all the parameters will be reset to the factory default.
This document is proprietary to MaxLong Corporation. Use or disclosure of the document, or the information contained therein, for any purposes other than MaxLong purposes is NOT permitted without prior written authorization by MaxLong
