matt E logoEVU-1-63-TP
Three-phase connection unit with
built in open PEN detection matt E EVU 1 63 TP Three Phase Connection Unit with Built In Open Pen Detection

EVU-1-63-TP Three Phase Connection Unit with Built In Open Pen Detection

The EVU-1-63-TP from matt:e is a simple, single dedicated connection unit with built in O-PEN technology that allows for the connection of 1 x 63amp three phase load to the existing PME earthing facility.
The unit incorporates a 5 pole isolator with built-in UV release which disconnects all poles including CPC in the event of a fault, manually resettable in line with BS: 7671 2018 Amendment 1 2020 Regulation 722.411.4.1 (iii)
The O-PEN technology does not  require earth rods or measuring electrodes to function correctly.

Product Features

  • Built in O-PEN technology
  • Standard mild steel IP4X enclosure
  • NO EARTH ELECTRODES REQUIRED
  • Phase loss protection
  • Built in 5 pole mains isolator with manually resettable UV release
  • Standard 1 Year parts warranty
  • Simple wire in wire out connection
  • With 1 x connection for 63amp 3 phase load
  • Designed and Built in the UK

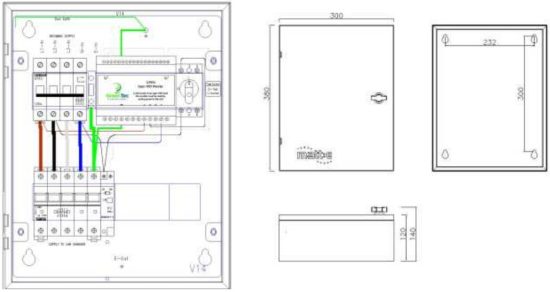

Dimensions and Specifications

matt E EVU 1 63 TP Three Phase Connection Unit with Built In Open Pen Detection - Dimensions and Specifications

Description Dedicated EV connection centre
Input Volts Nominal input voltage  three-phase 400V 50Hz
Max  Load 63 amps per phase
Cable Entry Facility Top and bottom
Terminal Capacity 25.0mm2
Dimensions ( H x W x D ) 380mm x 300mm x 150mm
Weight Approximately  7kG
Enclosure Mild Steel Powder Coated
Ingress Protection IP4X
Warranty The matt:e  EVU-1-63-TP is guaranteed for a period of  1 year from the date of purchase. This warranty is limited to the replacement of faulty components only.

…Simplifying EV connection matt E logot: 01543 227290
e: info@matt-e.co.uk
w: www.matt-e.co.uk
matt:e Ltd, Unit 5 Common Barn Farm Tamworth Road Lichfield WS14 9PX matt E EVU 1 63 TP Three Phase Connection Unit with Built In Open Pen Detection - Symbol 1
