MDPKIT-CON Quickdial
Collection Container
Instruction Manual
www.matcotools.com
Safety Information
Read and follow the instructions as set out in this manual.
Caution!
Warning
Failure to follow instructions as set out in this manual may result in personal injury.
Incorrect use of this diagnostic tool may result in damage to the tool or systems being tested.
Wear Eye Protection.
Operation – Vacuum Mode

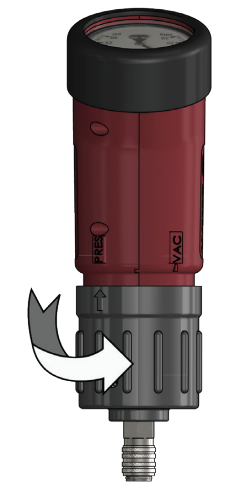

1.1 Set rotating sleeve to vacuum position.
1.2 Connect vacuum hose to pump.
1.3 Connect hose to collection container.
1.4 Suction hose to collection container.
1.5 Connect suction hose to system.
1.6 Operate pump to generate vacuum in collection container.
Caution – To ensure fluid is not drawn into vacuum pump keep collection container in upright position.Spare Parts
| Item No. | Part Number | Description |
| 1 | 02101 | Service Kit |
| 2 | 02102-MAT | Hook Kit |
| 3 | 02103 | Cap Kit |
| 4 | 02104 | Container |
| 5 | 02105 | Hose Assy |
