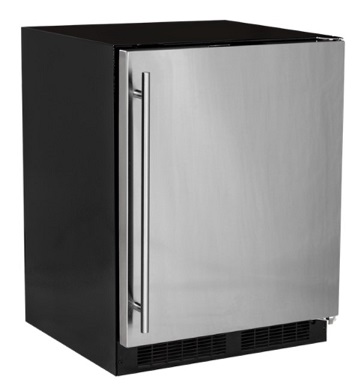

MARVEL MARE224-IS51A 24-in Low Profile Built-in Refrigerator with Door Storage User Manual
Service Parts List
marvelrefrigeration.com 616-754-5601
| MARE224-IS51A | ||
| ITEM | DESCRIPTION | MARVEL P/N |
| 1 | CONDENSER ASSEMBLY | S41015869 |
| 2 | MAIN CONTROL BOARD KIT | S42088820 |
| 3 | GRILLE | S41015806-BLK |
| 4 | LED LIGHT STRIP | S68100 |
| 5 | BLACK ROCKER LIGHT SWITCH | 42246922 |
| 6 | EVAPORATOR ASSEMBLY | 42249407 |
| 7 | THERMISTOR ASSEMBLY | S41015903-GRY |
| 8 | UI DISPLAY KIT | S68166-01 |
| 9 | ACCESS COVER | S41015716 |
| 10 | MECHANICAL HARNESS KIT * | S41015773 |
| 11 | CONDENSER FAN ASSEMBLY | 42249159 |
| 12 | COMPRESSOR | S41015395 |
| 13 | COMPRESSOR ELECTRICALS | S41015921 |
| 14 | DOOR ASSEMBLY | S42038995-BLL |
| 15 | EVAP FAN | 42249149 |
| 16 | DOOR GASKET | S31580-037 |
| 17 | DOOR STOP | S41015708-SS |
| 18 | STRIKER PLATE | S41015709-BLK |
| 19 | HINGE PKG | S52411635-CHR |
| 20 | HALF GLASS SHELF | S42413206-WHT |
| 21 | FULL FRAME GLASS SHELF | S42413205-002 |
| 22 | CRISPER GLASS SHELF | 42249325 |
| 23 | CRISPER BIN W/RAILS | 42249326 |
| 24 | UPPER DOOR BAR KIT | S41009473-AUPR |
| 25 | LOWER DOOR BAR KIT | S41009473-ALWR |
| 26 | LEG LEVELERS (4) | 42243808 |
| 27 | POWER CORD | S41050606 |
| 28 | DRAIN PAN | S41013227 |
| 29 | DRIER | S41013226 |
| 30 | KEYS(2) | 42244506 |
| 31 | CARTON ASSEMBLY* | 42249633 |
