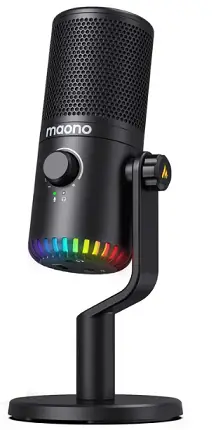

maono PD400X Link Dynamic Microphone

Specifications

• Model: Maono Link DM30, PD400X
• Compatibility: Works with devices supporting Maono Link software
• Connection: 3.5mm jack for headphones
• Features: Microphone audio processing, RGB light customization, real-time controls

Product Usage Instructions

Getting Started:

1. Download and install Maono Link on your computer.
2. Plug your Maono Link compatible device into your computer.
3. Connect headphones to the 3.5mm jack of your microphone.
4. Open Maono Link and click on the product icon to access the main control panel.

Main Menu:

1. Select a product to go to the operation page.
2. Click the icon to visit Maono social media page.
3. Access settings for software updates and language changes.

Basic Functions:

• Microphone audio processing features.
• RGB light customization with brightness and color options.
• Real-time control of microphone settings.

Advanced Functions:

• Select Pro mode for advanced audio processing features.
• Choose from 4 EQ modes for different sound profiles.
• Features like limiter and compressor to control audio dynamics.

Firmware Online Upgrade:

1. Check for firmware updates to keep your device up-to-date.
2. Perform a factory reset if needed to restore default settings.

FAQ

Q: How do I change the RGB light settings?
A: In the main menu, navigate to the RGB light section where you can adjust brightness, color, and display mode.

Q: What is the purpose of the limiter function?
A: The limiter prevents distortion by controlling the peak level of the audio signal below a certain threshold.

Getting Started

Connect to the Computer

Before you can start using it, you need to do a few things.

1. Download and install Maono Link on your computer
2. Plug your DM30,PD400X (or other device that supports Maono Link) into your computer
3. Connect your headphones to the 3.5MM jack of your microphone
4. Open your Maono Link and click on the product icon to enter the main control panel

Main Meau

1. Select a product to go to operation page.
2. Click the icon to go to Maono social media page.
3. Setting

Introduction to the settings page

1. Check for software updates
2. Change languages. Select Maono social media in bottom left area.

Basic Functions

1. Microphone audio processing features, RGB light customization, real-time control of microphone.
2. Fine mic gain headphone volume control, onebutton mute.
3. Four microphone tone options.
4. RGB light on/off switch, brightness adjustment,color selection, and display mode.

Advanced Function

Select Pro to get more advanced audio processing features 4 EQ modes

1. Flat：delivers original sound.
2. High-pass： reduces low-frequency noises.
3. Presence boost：boosts the mid-frequency vocal and instrument sound.
4. High-pass and presence boost.
5. Limiter：prevents distortion caused by high volume.
   Function Definition: The limiter can control the peak level below the threshold. Processors that can control the transient level and signal peak level below the threshold level can be called a limiter.
6. Compressor：limits the dynamic range of audio and prevents overload.
7. RBG light ：on/off, brightness, color and display mode are also available in Pro mode.

Firmware online upgrade

1. Check for Firmware Update：
   Can be updated to the latest firmware
2. Factory Reset：
   You can reset the microphone and restore the factory settings
