User Manual for ThermTec models including: CP650 CYCLOPS SERIES Thermal Imaging Monocular, CP650 CYCLOPS SERIES, Thermal Imaging Monocular, Imaging Monocular
ThermTec Cyclops CP650 Thermal Monocular - Night Vision Australia
ThermTec Cyclops Thermal Monocular User Manual - Night Vision Australia
Index of /wp-content/uploads/2023/01/
File Info : application/pdf, 21 Pages, 2.31MB

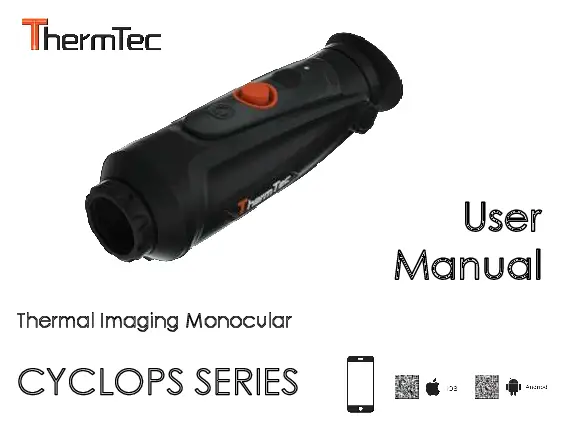

DocumentDocumentThermal Imaging Monocular CYCLOPS SERIES User Manual Table of Contents About This Manual 4 Regulatory Information 5 1. Introduction 6 1.1 Device Description & Features 6 1.2 Detection Range 8 1.3 Application Scenarios 8 1.4 Cautions 8 2. Packing List 9 3. Operation Guide 9 3.1 Battery Charging 9 3.2 Power on/off 10 3.3 Buttons and Controls 10 3.3.1 Buttons Features and 10 Introduction 3.3.2. Lens Adjustment 11 3.3.3 Rocker Button Operation 11 3.3.3.1 Zoom 11 3.3.3.2 Pseudo Color Switch 12 3.3.3.3 AI Ranging 13 3.3.4 Capture/Record 13 3.4 Settings 13 3.4.1 Image Setting 13 3.4.2 System Setting 14 3.4.3 Network Connection 15 3.4.3.1 App Download 15 3.4.3.2 Connect via Wi-Fi 16 3.4.3.3 Connect via Hotspot 16 3.4.4 APP Push Notification 17 3.4.5 File Management 18 3.5 External Video & Data Reading 19 3.6 System Software Upgrade 19 4. Technical Data 20 4.1 Product Size & Drawing 20 4.2 Specifications 21 About This Manual COPYRIGHT © 2022 ThermTec Technology Co., Ltd. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of ThermTec Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "ThermTec"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of ThermTec. Unless otherwise stipulated, ThermTec does not make any warranties, guarantees or representations, express or implied, regarding to the Manual. This Manual is applicable to Thermal Imaging Monocular. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Regulatory Information This product and, if applicable, the supplied accessories are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. Introduction 1.1 Device Description & Features Device Description ThermTec Cyclops Series Thermal Imaging Monocular, the new generation intelligent thermal imaging monocular, is designed with a 12m uncooled infrared detector and can be equipped with 15mm/25mm/35mm lens and 1024x768 OLED high-definition display. With AI image recognition algorithm, it enables users to get clear views under various lighting conditions, even in complete darkness, providing reliable and high-quality visual images for night activities. In particular, the function of easy connection to mobile phones enables users to share views in real time. Features 1. Mechanical Rocker Design It balances the central of gravity, providing an easier and outstanding handheld experience. 2. 12m VOx Detector The 12m VOx detector provides images with better quality, and ensures perfect detail recognition. 3. OLED Display Designed with 1024x768 OLED display, it brings outstanding HD image quality as well as great durability, making it operable in a broader temperature range as low as minus 20. 4. AI Intelligent Ranging Based on the deep learning algorithm, the monocular can automatically measure the object distance. 5. Two-way Wi-Fi Design It supports both WIFI and hotspot connection, which allows users to share images and videos with friends in real time. 6. Photo and Video Playback Integrated pictures and video recording makes sharing the thermal action quick and easy, with the functions of playback and APP sharing. 7. Long Battery Life Built-in battery with up to 12H super long standby, recording every and instant moment of your hunting and outdoor experience. 8. GPS Function Enable user to know his own coordinates in real time, which makes field activities safer. 9. Smooth Zooming Continuous 1.0-6.0 HD zooming ensures excellent sharpness and the highest resolution of details from minimum to maximum magnification. 10. IP67 Protection Design Provided with IP67-rated weatherproof performance, it is capable of capturing images/videos through rain, snow, smoke, smog, or dust. 1.2 Detection Range The illustration below shows the comparative range performance of the camera with different lens configurations. The data is based on detecting a man 1.8 meters tall*0.5 meters wide. 1.3 Application Scenarios · Animal Observation · Outdoor Adventure · Security Law Enforcement · Emergency Search and Rescue 1.4 Cautions 1. Prevent hard objects from colliding the lens and eyepiece of the thermal imager to avoid damage to the optical lens. 2. Do not aim the lens at high-temperature light sources, such as the sun, to avoid damage to the lens or thermal imaging detector. 3. Do not use the product in extremely cold or hot environment. Refer to the product parameter table for specific temperature requirements. 4. If the thermal imager is not used for a long time, it should be charged once every 3 months during the storage period. 5. To use the product in water environment, first make sure that the USB cover at the bottom of the thermal imager is tightly closed. 6. Do not irradiate the laser indicator of the thermal imager to human eyes. 7. If the thermal imager doesn't work properly, please contact the store or the nearest service center where the thermal imager is purchased. Do not disassemble or modify the thermal imager by yourself in any way. Packing List Monocular 1 Lanyard 1 USB cable 1 Video output cable 1 Carry bag 1 User manual 1 Monocular (x1) Lanyard (x1) USB cable (x1) Video output cable (x1) Carry bag (x1) User manual (x1) Operation Guide 3.1 Battery Charging The battery should be fully charged prior to use. Note: The battery is not user replaceable. Follow the below steps to charge the battery: 1. Lift the cover from the USB port. 2. Plug the cable provided into the USB port. 3. Plug the opposite end of the cable into a USB power source. Notes: When the charging indicator on the device becomes red, it means you need to charge the device immediately. The indicator turns to red when it is charging and turns to green when it finishes charging. After it turns to green, stop charging. 3.2 Power on/off Power on Hold the POWER button for four seconds and the boost screen will be shown. Power off When the device is turned on, hold the POWER button for four seconds to power off the device. Note: Refer to Figure 1 for the main view of the monocular. 3.3 Buttons and Controls 3.3.1 Button Features and Introduction Figure 1 Press and Hold Power on/off Press Laser indicator on/off Take videos Take photos DoubleClick Standby mode on/off Zoom in Zoom out Peseudo color switch Main menu AI ranging 3.3.2 Lens Adjustment Diopter Adjustment Looking through the eyepiece, adjust the position of diopter level to optimize the image sharpness on the OLED display. 3.3.3 Rocker Button Operation 3.3.3.1 Zoom Objective Lens Focusing Manually adjust the objective lens focus when necessary. 3.3.3.2 Pseudo Color Switch Use rocker button towards right to switch pseudo color. Color Palettes There are six color palettes by default. You can choose the pseudo color you want by customizing. Unwanted colors can be turned off in the system setting. White Red Black Green Golden Violet 3.3.3.3 AI Ranging Use the rocker button towards left to enable or disable AI ranging function (before this function is enabled, please make sure the device is in AI ranging mode. Otherwise, refer to Section 3.4 for setting). AI Ranging Function 3.3.4 Capture/Record Press to take photos. Then the photo icon in the upper left corner will flash once. Press and hold to take videos. Then the recording icon in the upper left corner starts flashing, and the recording starts timing. Press and hold again to stop recording. 3.4 Settings Double-click the rocker button to enter Setting menu. Note: Select by moving the rocker button, and short-press the rocker button to confirm the selection. 3.4.1 Image Setting Press to enter the Imaging Setting menu. There are five sub-menus for image setting, which are "Image Mode", "Sharpness", "Denoise", "Brightness" and "Contrast". 3.4.2 System Setting Press to enter the System Setting menu. Select by moving the rocker button, and short-press the rocker button to confirm the selection. Image Setting Mode Object mode WDR mode Sharpness 0-10 Denoise 0-10 Brightness 1-10 Contrast 1-10 Especially enhance target's detail. It's recommended to be used in bad weather conditions. Gain both background and target's detail with wide dynamic algorithm. Adjust image sharpness to make the image edge sharper. The recommended value is 5. Adjust image noise to make the image cleaner. The recommended value is 5. Adjust image brightness to make the image brighter. The recommended value is 5. Adjust image contrast to make the target more prominent in the image. The recommended value is 5. System Setting EIS Ranging AI MIL Electronic Image Stabilization. Can be turned on/off in the system setting. AI distance measurement MIL distance measurement PIP Picture- In the picture, the image is in- 2x enlarged from the picture center of the cross. Coordinate Reticle OLED Correction System Heat Tracking GPS OSD LED 0-7 Hue Brightness Manual/ Auto Reset Update Languag e Time zone Blind pixel The position of the crosshair in the picture can be adjusted and separately saved. Choose the style of the crosshair. "0" represents none, and "1-7" represents seven different styles. Blue, purple and gray are optional for OLED hue. The mask works to calibrate the uniformity of images. All configuration parameters are restored to the factory default values after resetting. You can adjust and upgrade the device system. Support multiple languages. Select local time zone and adjust the date and time. The blind pixel in the picture can be replaced. Turn on heat tracking to mark the target with the highest temperature in real time in the screen. Turn on GPS function to obtain real-time satellite positioning, longitude and latitude coordinates and time information. Turn off OSD. Turn off LED. The work indicator is turned off and the hidden work mode is started. EIS function: Turn on the EIS function to reduce the impact of body shaking on the image and keep the image stable when observing distant targets. Note: EIS function is only available for CP635/CP650. 3.4.3 Network Connection Press menu. to enter the Network Connection 3.4.3.1 APP Download Search "Smart Thermal" in APP store, or scan the below QR code to download the APP. 3.4.3.2 Connect via Wi-Fi Open smart device's personal hotspot. Short-press the rocker button to enter the sub-menus of Network Connection, and select WIFI for configuration. Access the Wi-Fi sub-menu on monocular and select the Wi-Fi released by smart devices, and then enter the password through the rocker button to connect the Wi-Fi. After the monocular is connected via Wi-Fi, open the mobile APP to connect the monocular. 3.4.3.3 Connect via Hotspot Short-press the rocker button to enter the submenus of Network Connection, and select WIFI for configuration. Access the Hotspot sub-menu, and the monocular will release a hotspot network. Set the hotspot name and password and confirm them through the rocker button. Enable mobile device to connect with monocular Hotspot by setting the WLAN on mobile device. After mobile device is connected with monocular Hotspot, open the mobile APP to connect the monocular. 3.4.4 APP Push Notification The APP push notification function can detect and identify the target type (human or animal) in real time, measure the distance, and pop up a push notification on the APP. The specific operation steps are as follows: Note: Android phones can get push notification always on display by launching the APP in the background. (1) Turn on AI and ranging function on the device. (2) Connect the APP with the device (follow Section 3.4.3). Select "Alarm"and " Open" to turn on the push notification. 3.4.5 File Management Short-press to enter the File Management menu. Select the image and video sub-menus to view the images and videos and play the videos. File Setting Image Video Access the Image submenu, and select photo files through the rocker button for management. Access the Video submenu, and select video files through the rocker button for management. 3.5 External Video & Data Reading Power on the device before using a type-C to AV video cable to output analog video. When external display is connected, the OLED of the device automatically turns off the display. Power on the device, use a type-C to USB cable to connect with the computer to read the video and image data in the memory. Note: video and image taken in analog format (usually taken by external display with analog output) will be saved in folder named "720", video and image directly taken by monocular will be saved in folder named "1024". 3.6 System Software Upgrade Connect the device to your computer and drag the upgrade file to the folder. Access the Setup menu and select Upgrade. The system will prompt that upgrading is in progress. When the upgrade succeeds, the device will restart automatically. 4.1 Dimensions Technical Data 4.2 Specifications Type CP315 CP325 CP335 CP635 CP650 Sensor Parameters Detector Type Vox Microbolometer Resolution/ Pixel pitch NETD Frame Rate Spectral range Lens 384 x 288/12m 640 x 512/12m 40mk@300k 8-14m 50Hz 35mk@300k 8-14m 50Hz 15mm 25mm 35mm 35mm 50mm FOV 17.5° x 13.1° Identification 375m Distance (1.8m man) Imaging Processing 10.5° x 7.5° x 7.9° 5.6° 627m 878m Digital zoom 1~6 continuous Color Palette 5+ Noise Reduction Image Enhancement 3D noise reduction IDE; HDR 12.5° x 8.8° x 10° 7.0° 878m 1250m Display OLED Diopter Control Eye Distance 0.39 inch; 1024x768 resolution -5~+5 40mm Function OLED 3 modes Language English Reticle 6+; adjustable coordinates Memory Card 16G AI Distance Yes Measurement Photo, Record, Yes Playback Heat Track Yes Lasor Indicator Yes GPS Yes Power Battery Type Internal Cell (18650 x 2) Battery Life Continuous working time 12h Interface Type-C Power charge; data reading; output analog video Wi-Fi Two-way Wi-Fi connection; APP remote control Environmental Parameters Working -20~+55 Temperature Protection Level IP67, 1 meter drop resistance Physical Parameters Weight 470g (with battery) Size 67mm x 63mm x 190mm Accessories External Cable Analog video cable; USB data cable Other Accessory Wrist strap; plush bag; user manual
