M OVEED ALL-IN-ONE Forensic Light Source System FORENSIC
Product Information
- Product Name: ALL-IN-ONE Forensic Light Source System OR-GJC8000
- Manufacturer: Hangzhou Hengli Electronic Technology Co., Ltd.
- Address: No. 4 building, Dinglan Rd 118th, Jianggan District, Hangzhou City, Zhejiang Province, China
- Telephone: 86-57186987719
- Fax: 86-57186431401
- Email: hzhl@lightmobile.com.
- Website: www.lightmobile.com
- United Social Credit Code (Business License): 91330104736016531K
- ISO Certification: ISO 9001 Certified
Product Features
- A multifunctional tool for forensic examiners at crime scenes and in forensic laboratories.
- Provides essential light sources to reveal/enhance contrast evidence.
- Includes general search, laser lights, multi-band lights, and footwear impression light.
- Light source intensity is adjustable.
Product Specifications
- Available Wavelengths:

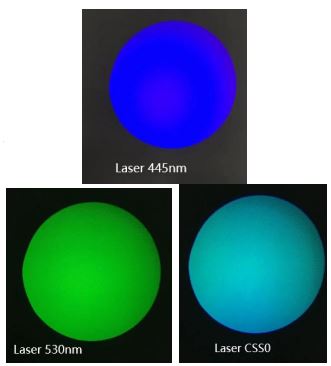

- Laser Lights (Luminous Power):
- 530nm (2W)
- 445nm (3W)
- CSS0 (4W)
- Multi-band Lights (Power):
- White light (10W)
- UV 365nm (10W)
- UV 395nm (8W)
- Footwear Impression Light (Power): 40W
- Laser Lights (Luminous Power):
- Beam Size:
- Beam Size of Laser and Multi-band Lights:
- Diameter at 0.5 meter: 39cm
- Diameter at 1 meter: 78cm
- Beam Size of Footwear Impression Light:
- At 0.5 meter: Width 36cm, Height 3.8cm
- At 1 meter: Width 72cm, Height 7.6cm
- Beam Size of Laser and Multi-band Lights:
- Single battery group for Footwear Impression Light (40W) has a run time of up to 70 minutes.
- Device Size: 190*101*66mm
More Options
- OR-GJC8000A-1:
- Footprint Light/Power: 40W
- White Light/Power: 10W
- UV 365nm/Power: 10W
- UV 395nm/Power: 8W
- OR-GJC8000A-2:
- Footprint Light/Power: 40W
- White Light/Power: 20W
- UV 365nm/Power: 10W
- OR-GJC8000B:
- Footprint Light/Power: 40W
- White Light/Power: 10W
- UV 365nm/Power: 10W
- UV 395nm/Power: 8W
- OR-GJC8000C-1:
- Footprint Light/Power: 40W
- White Light/Power: 10W
- UV 365nm/Power: 10W
- UV 395nm/Power: 8W
- OR-GJC8000C-2:
- Footprint Light/Power: 40W
- White Light/Power: 20W
- UV 365nm/Power: 15W
- OR-GJC8000D:
- Footprint Light/Power: 40W
- White Light/Power: 20W
- UV 365nm/Power: 10W
- UV 395nm/Power: 8W
- Green 525nm/Power: 8W
- Laser 530nm/Power: 2W
- Laser 445nm/Power: 3W
Kit Includes
- 1 Light Source
- 1 Interchangeable battery handle
- 2 Goggles
- 1 Charger
- 1 Carrying Case
Applications: For more information about applications, please contact the manufacturer.
FEATURES
- A most multifunctional tool to forensic examiners at crime scene and in the forensic laboratory.
- Providing essential light sources required to reveal/enhance contrast evidence, including general search, body fluids(semen, saliva, etc.); fingerprints; traces of physical evidence(hairs, fibres, etc.); footwear/tire impression, etc.
- Integrated design of Laser Lights, Multi-band Lights, Footwear Impression Oblique Light and White Uniform Search Light in one unit. Complete ALL-IN-ONE equipment.

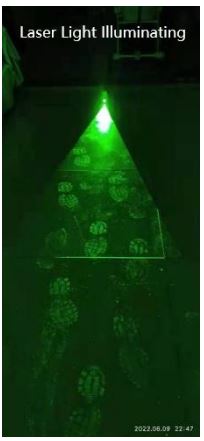

- Laser lights, Multi-band Lights and White Search Light give uniform light beam that is ideal for reveal and enhance evidence, Footwear Impression light gives oblique light beam that is ideal for detecting surface debris and shoe/tire prints.
Available Wavelengths (al-in-one) :
- Laser Lights (Luminous Power): 530m(2W); 445nm(3W); CSSO(4W)
- Multi-band Lights(Power): White light(10W); UV 365nm(10W); UV 395nm(8W)
- Footwear Impression Light(Power): 40W Light Source Intensity adjustable.
Beam Size:
- Beam Size of Laser and Multi-band Lights:
- Dia. at 0.5 meter ₴ 39cm
- Dia. at 1 meter > 78cm
- Beam Size of Footwear Impression Light:
- At 0.5 meter: W36cm * H3.8cm
- At 1 meter: W72cm * H7.6cm
SPECIFICATIONS
Single battery group for Footwear Impression Light(40W) run time up to 70min. Device Size: 190*101*66mm
OR-GJC8000 MORE OPTIONS:
| Footprint Light /
Power |
White Light /
Power |
UV 365nm / Power |
UV 395nm / Power |
Blue 450nm /
Power |
Green 525nm /
Power |
Laser 530nm /
Power |
Laser 445nm /
Power |
Laser CSS0 / Power |
|
|
OR-GJC8000A-1 |
40W | 10W | 10W | 8W | # | # | 2W | 3W | 4.5W |
| OR-GJC8000A–2 | 40W | 20W | 10W | # | # | # | 2W | 3W | 4.5W |
| OR-GJC8000B | 40W | 10W | 10W | 8W | # | # | Alternative | # | |
| OR-GJC8000C-1 | 40W | 10W | 10W | 8W | # | # | # | # | # |
| OR-GJC8000C-2 | 40W | 20W | 15W | # | # | # | # | # | # |
|
OR-GJC8000D |
40W | 20W | 10W | 8W | 8W | 8W | # | # | # |
| LED wavelengths ±5nm; Laser ±2nm. / Wavelengths customizable | |||||||||
KIT INCLUDES:
- 1 * Light Source
- 1 * Interchangeable battery handle
- 2 * Goggles
- 1 * Charger
- 1 * Carrying Case
PORTABLE & EASY OPERATION
APPLICATIONS
CONTACT
- Hangzhou Hengli Electronic Technology Co., Ltd.
- No. 4 building, Dinglan Rd 118th, Jianggan District,
- Hangzhou City, Zhejiang Province,China
- Tel: 86-57186987719 Fax: 86-57186431401
- Email: hzhl@lightmobile.com.
- United Social Credit Code(Business Licence): 91330104736016531K
- ISO 9001 Certified
Documents / Resources
 |
M OVEED ALL-IN-ONE Forensic Light Source System FORENSIC [pdf] User Manual OR-GJC8000, OR-GJC8000A-1, OR-GJC8000A--2, OR-GJC8000B, OR-GJC8000C-1, OR-GJC8000C-2, OR-GJC8000D, ALL-IN-ONE Forensic Light Source System FORENSIC, Forensic Light Source System FORENSIC, Light Source System FORENSIC, Source System FORENSIC, System FORENSIC, FORENSIC |
