Lumens RM-TT Array Microphone Cam Connect Pro

Specifications

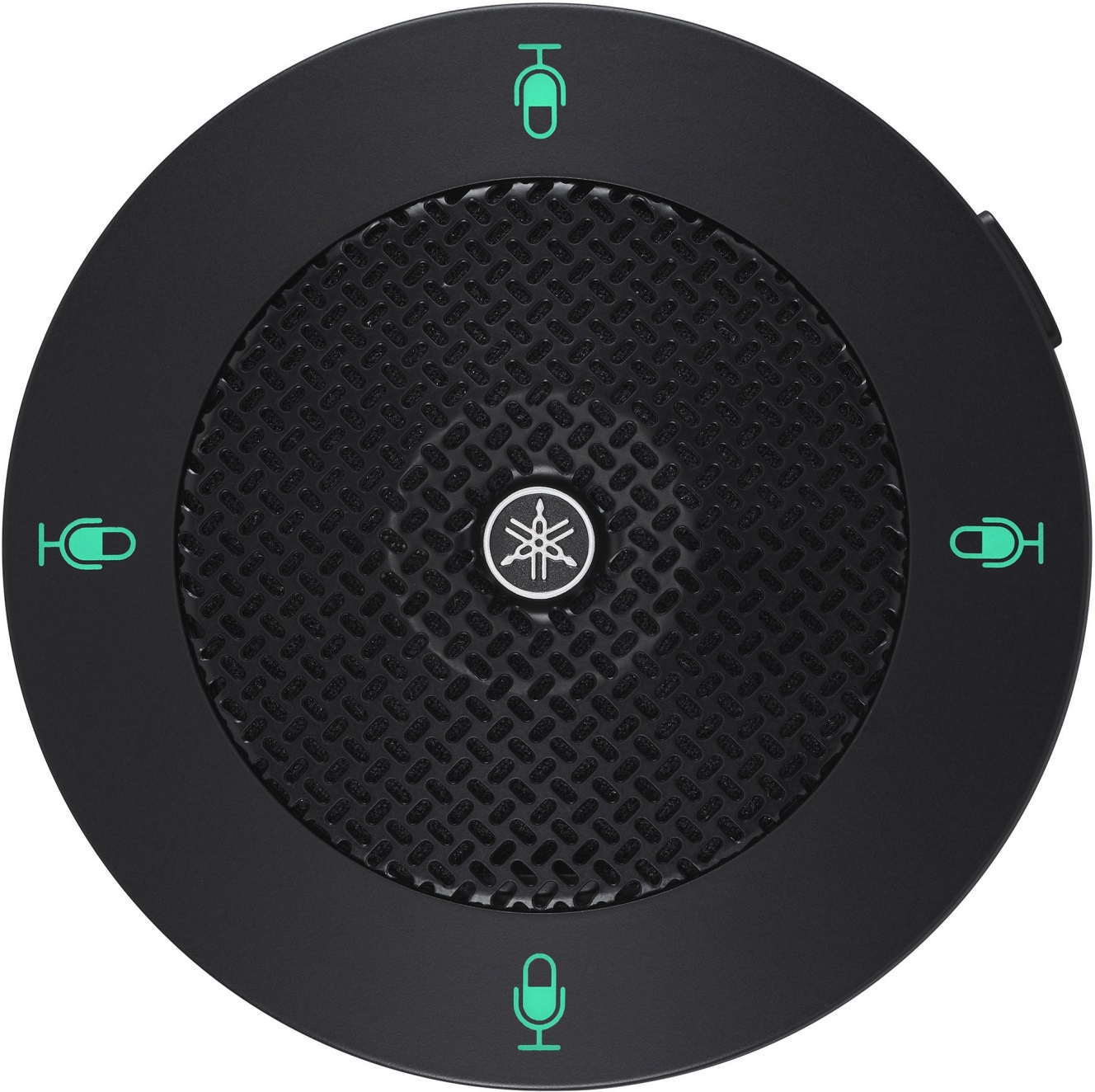

• Product: Yamaha RM-TT Array Microphone
• Power Source: PoE switch
• Network Compatibility: CamConnect Pro
• Device Finder: RMDeviceFinder
• Audio Trigger Level: 50dB

FAQs

• How do I find the IP address of my Yamaha RM-TT?
  • You can use the RMDeviceFinder tool available for download at the RMDevice Finder Download Link.
• What is the recommended Audio Trigger Level for the RM-TT?
  • The recommended Audio Trigger Level for the RM-TT is 50 dB.

Set up a Yamaha RM-TT array microphone

• Power the RM-TT using a PoE switch
• Locate RM-TT and CamConnect Pro on the same network

Download RMDeviceFinder

Download Link: https://info.uc.yamaha.com/rm-device-finder.

PRODUCT USING INSTRUCTION

Find Device IP using RMDeviceFinder

Login to Yamaha RM-TT Webpage

• Enter the RM-TT IP address into a web browser.
• Type in the password, then click the [LOGIN] button.

Check the RM-TT connection

CamConnect Pro Settings

Microphone Status & Support Device & Settings

1. Go to Array Microphone Numbers, and select the number of RM-TTs you are using.
2. Pull down the Device item and select [Yamaha RM-TT]
3. Enter the IP address of the Yamaha RM-TT
4. Set the Audio Trigger Level to 50dB
5. Slide the [Connect] button to link the Yamaha RM-TT
