Razor MX650 Dirt Rocket Electric Bike Instruction Manual

1. Įvadas

The Razor MX650 Dirt Rocket Electric Bike is designed for off-road use, offering an exciting riding experience for users aged 16 and above. This electric motocross bike features a high-torque, chain-driven motor, capable of reaching speeds up to 17 mph, and provides up to 40 minutes of continuous ride time on a single charge. Its robust construction and pneumatic knobby tires are engineered for various terrains, ensuring both performance and durability.

2. Saugos informacija

Your safety is paramount. Always adhere to the following guidelines when operating the Razor MX650 Dirt Rocket Electric Bike:

Visada dėvėkite tinkamą saugos įrangą, įskaitant šalmą, kelių ir alkūnių pagalvėles.
Recommended for riders 16 years of age and older.
Maximum rider weight capacity is 220 pounds.
Do not ride on public streets, roads, or near vehicular traffic. This product is intended for off-road use only.
Laikykitės saugaus atstumo nuo kitų vairuotojų ir kliūčių.
Ensure both hand-operated dual disc brakes are functioning correctly before each ride.
Adult supervision is recommended, especially for younger riders within the recommended age range.

3. Sąranka

Follow these steps to assemble and prepare your Razor MX650 Dirt Rocket Electric Bike for its first use:

Išpakavimas: Atsargiai išimkite visus komponentus iš pakuotės.
Vairo mazgas: Attach the handlebars to the steering column. Ensure all bolts are securely tightened using the provided tools.
Priekinio sparno montavimas: Secure the front fender to the front fork.
Priekinio rato tvirtinimas: Install the front wheel, ensuring the axle is properly aligned and secured.
Pradinis akumuliatoriaus įkrovimas: Before the first ride, fully charge the 36V battery system. This typically takes 12-18 hours. Connect the charger to the charging port located on the side of the bike. The charger indicator light will change from red to green when fully charged.

Video: Assembly and overview of the Razor MX650 Dirt Rocket Electric Motocross Dirt Bike.

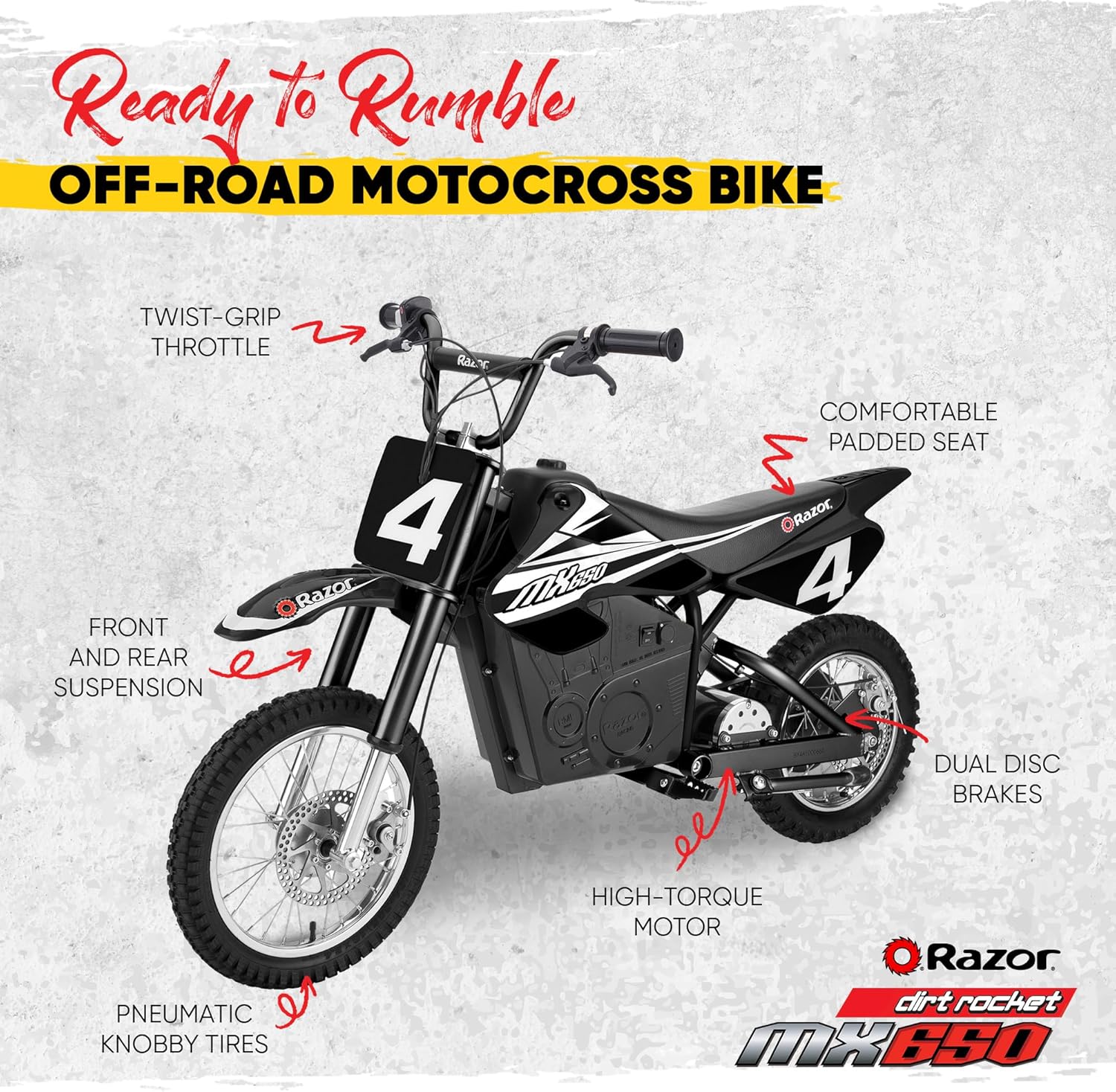

Razor MX650 Dirt Rocket Electric Bike with labeled features

Image: The Razor MX650 Dirt Rocket Electric Bike, highlighting its key components like the twist-grip throttle, comfortable padded seat, front and rear suspension, high-torque motor, dual disc brakes, and pneumatic knobby tires.

4. Naudojimo instrukcijos

Operating your MX650 is straightforward. Familiarize yourself with the controls before riding.

Maitinimo įjungimas/išjungimas: Locate the red ON/OFF switch on the side of the battery compartment. Flip it to 'ON' to power the bike.
Pagreitis: The bike features a variable-speed, twist-grip throttle on the right handlebar. Twist the grip towards you to accelerate. The speed can be controlled smoothly from low to high, up to 17 mph.
Stabdymas: Use the hand-operated dual disc brakes on both handlebars to slow down or stop. Apply both brakes evenly for optimal stopping power.
Baterijos indikatorius: The throttle assembly includes LED indicators for battery status (Power, Full, Low). Monitor these lights to ensure sufficient charge.

Razor MX650 Dirt Rocket Electric Bike in action on a dirt path

Image: A rider on the Razor MX650 Dirt Rocket Electric Bike navigating a dirt path, demonstrating its off-road capability.

5. Priežiūra

Regular maintenance ensures the longevity and performance of your MX650:

Akumuliatoriaus priežiūra: Always turn off the power switch after each ride. Charge the battery fully after each use, even after short rides, to maximize battery life. Avoid completely draining the battery.
Padangų slėgis: Regularly check and maintain the correct air pressure in both the 16-inch front and 14-inch rear pneumatic knobby tires. Refer to the tire sidewall for recommended pressure.
Valymas: Nuvalykite dviratį su damp cloth. Avoid using high-pressure water or soaking the electrical components, as this can cause damage.
Stabdžių patikra: Periodically inspect the dual disc brakes for wear and proper adjustment. Ensure the brake levers provide firm and responsive stopping power.
Grandinės priežiūra: Check the drive chain for proper tension and lubricate it as needed to ensure smooth operation and prevent wear.
Saugykla: When not in use, deploy the retractable kickstand to keep the bike upright and stable. Store the bike in a dry, cool place away from direct sunlight.

Close-up of the rear wheel and dual disc brake system on the Razor MX650

Paveikslėlis: detalus view of the rear wheel and the dual disc brake system, essential for effective stopping power.

6. Problemų sprendimas

If you encounter issues with your Razor MX650, refer to the following common problems and solutions:

Bike does not power on: Ensure the ON/OFF switch is in the 'ON' position. Check if the battery is fully charged. Verify all connections are secure.
Reduced speed or run time: The battery may not be fully charged or may be nearing the end of its lifespan. Ensure proper charging procedures are followed. Check tire pressure.
Variklis neįsijungia: Check the throttle connection and ensure it is not stuck. Verify the power switch is on and the battery has charge.
Stabdžiai neveikia: Inspect brake cables for tension and wear. Adjust the brake levers as needed. If pads are worn, they may need replacement.
Neįprasti garsai: Inspect the chain for proper lubrication and tension. Check for any loose parts or debris caught in the wheels or motor area.

For persistent issues or problems not listed here, please contact Razor Customer Support.

7. Specifikacijos

Gaminio matmenys	56 x 24.5 x 36 colio
Rekomenduojamas amžius	16 metai ir daugiau
Didžiausias raitelio svoris	220 svaro
Baterijos tipas	36V (three 12V) sealed lead-acid rechargeable battery system
Maksimalus greitis	Iki 17 mylių per valandą
Nepertraukiamo veikimo laikas	Iki 40 minučių
Variklis	Variable-speed, high-torque, chain-driven
Padangos	16-inch front and 14-inch rear pneumatic knobby
Stabdžiai	Hand-operated dual disc brakes
Rėmas	Steel frame with authentic dirt bike geometry

8. Garantija ir palaikymas

For any questions, concerns, or support regarding your Razor MX650 Dirt Rocket Electric Bike, please refer to the following:

Grąžinimai: This product is eligible for 30-day easy returns. Please check the retailer's policy for details.
Klientų aptarnavimas: Contact Razor Customer Support for assistance with product issues, parts, or general inquiries.
Apsaugos planai: Extended protection plans, such as a 2-Year Protection Plan or a Complete Protect plan, may be available for purchase. Refer to your retailer for options and coverage details.
