VEVOR SS1380-ZW Gun Safe Instruction Manual

1. Įvadas

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your VEVOR SS1380-ZW Gun Safe. Please read this manual thoroughly before using the product and retain it for future reference. Proper understanding of these instructions ensures optimal security and longevity of your firearm storage solution.

2. Saugos informacija

• Always store firearms unloaded and locked within the safe.
• Keep emergency keys and registered fingerprints confidential and away from unauthorized individuals, especially children.
• Ensure the safe is securely mounted to a wall or floor to prevent tipping or unauthorized removal.
• Seifo viduje nelaikykite degių medžiagų ar skysčių.
• Regularly check the battery level and replace batteries as needed to ensure continuous operation of the electronic lock.
• This safe is designed to deter theft and unauthorized access. It is not fireproof or waterproof unless explicitly stated.

3. Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi toliau išvardyti daiktai:

• 1 x VEVOR SS1380-ZW Gun Safe
• 2 x avariniai raktai
• 5 x išsiplėtimo varžtai (tvirtinimui)
• 1 x išorinis maitinimo blokas
• Removable Pistol Rack(s)
• Adjustable Rifle Rack(s)
• Bullet Storage Boxes (on door panel)
• Vartotojo vadovas (šis dokumentas)

4. Produktas baigtasview

The VEVOR SS1380-ZW Gun Safe is a robust security cabinet designed for the secure storage of firearms. It features a durable steel construction and advanced locking mechanisms to protect your valuables.

Pagrindinės funkcijos:

• Didelė talpa: Stores up to 5 rifles and a minimum of 4 pistols.
• Lankstus saugojimas: Features removable and adjustable rifle racks, a removable pistol rack, and three bullet storage boxes on the door panel.

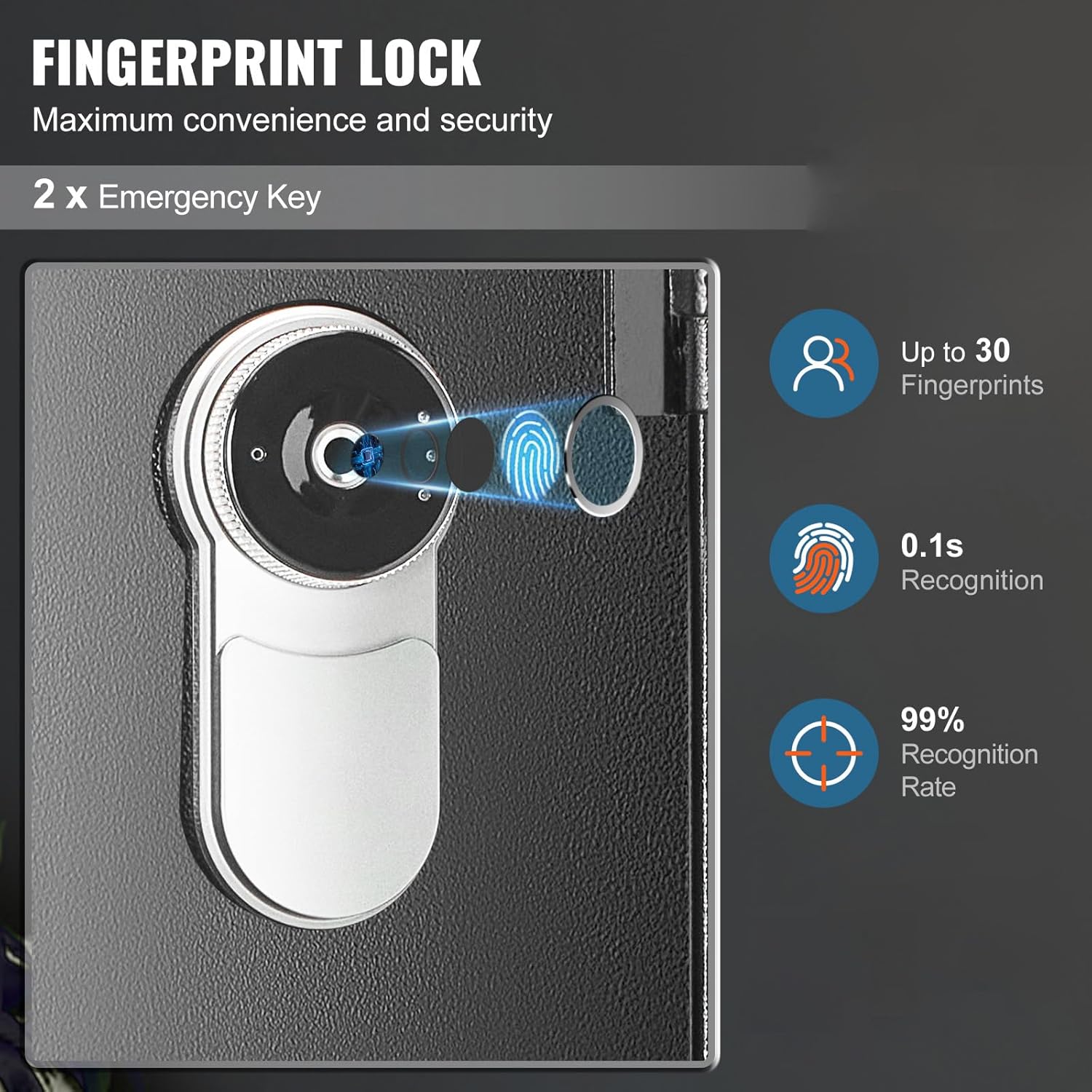

• Biometric Fingerprint Lock: Offers quick and secure access, capable of storing up to 30 unique fingerprints with a recognition rate of 0.1 seconds and 99% accuracy.
• Avarinio rakto prieiga: Includes two emergency keys for manual override.
• Dviguba signalizacija: Equipped with an alarm that activates upon multiple incorrect access attempts or violent vibrations/tamperingas.
• Wide Door Opening: The door opens 180 degrees for full and easy access to the interior.
• Automatinis LED apšvietimas: An internal LED light illuminates the safe's interior when opened.

5. Specifikacijos

6. Sąranka ir diegimas

6.1 Išpakavimas

Carefully remove the safe from its packaging. Inspect for any damage during transit. Retain packaging materials for potential future transport or returns.

6.2 Akumuliatoriaus įdėjimas

1. Locate the battery compartment, typically on the inside of the door or the lock mechanism.
2. Įdėkite 4 AA baterijas, užtikrindami teisingą poliškumą (+/-).
3. Close the battery compartment cover. The safe should emit a beep, indicating power.

6.3 Seifo montavimas

For maximum security, it is highly recommended to securely mount the safe to a solid surface (wall or floor).

1. Choose a discreet and secure location for the safe.
2. Using the pre-drilled mounting holes (4 on the bottom, 6 on the back) as a template, mark the drilling points on the wall or floor.
3. Gręžkite kreipiamąsias skyles naudodami tinkamą grąžtą, skirtą tvirtinimo paviršiui.
4. Align the safe with the drilled holes and insert the provided expansion bolts.
5. Tighten all bolts securely to firmly anchor the safe.

7. Naudojimo instrukcijos

7.1 Initial Opening (Emergency Key)

Before setting up fingerprints, use the emergency key to open the safe for the first time.

1. Locate the emergency keyhole, usually concealed behind a cover on the lock panel.
2. Insert one of the emergency keys and turn it.
3. Rotate the handle to open the safe door.

7.2 Pirštų atspaudų registravimas

Seifas gali saugoti iki 30 unikalių pirštų atspaudų.

1. With the safe door open, locate the 'SET' or 'Enroll' button inside the safe, usually near the lock mechanism. Press it.
2. Place your finger firmly on the fingerprint scanner. The safe will beep and the indicator light will flash.
3. Lift your finger and place it again, slightly adjusting the angle, for a total of 4-5 times until the safe confirms successful registration (e.g., a long beep or green light).
4. Repeat the process for additional fingers or users.

7.3 Opening with Fingerprint

1. Place a registered finger firmly on the fingerprint scanner.
2. If recognized, the safe will unlock (indicated by a beep and/or green light).
3. Rotate the handle within a few seconds to open the door.

7.4 Išorinio maitinimo bloko naudojimas

If the internal batteries are depleted and you cannot open the safe with a fingerprint, use the external power box:

1. Insert 4 fresh AA batteries into the external power box.
2. Locate the external power port on the safe's lock panel (often a small circular port).
3. Plug the external power box into the port.
4. Immediately place a registered finger on the scanner to open the safe.
5. Once opened, replace the internal batteries.

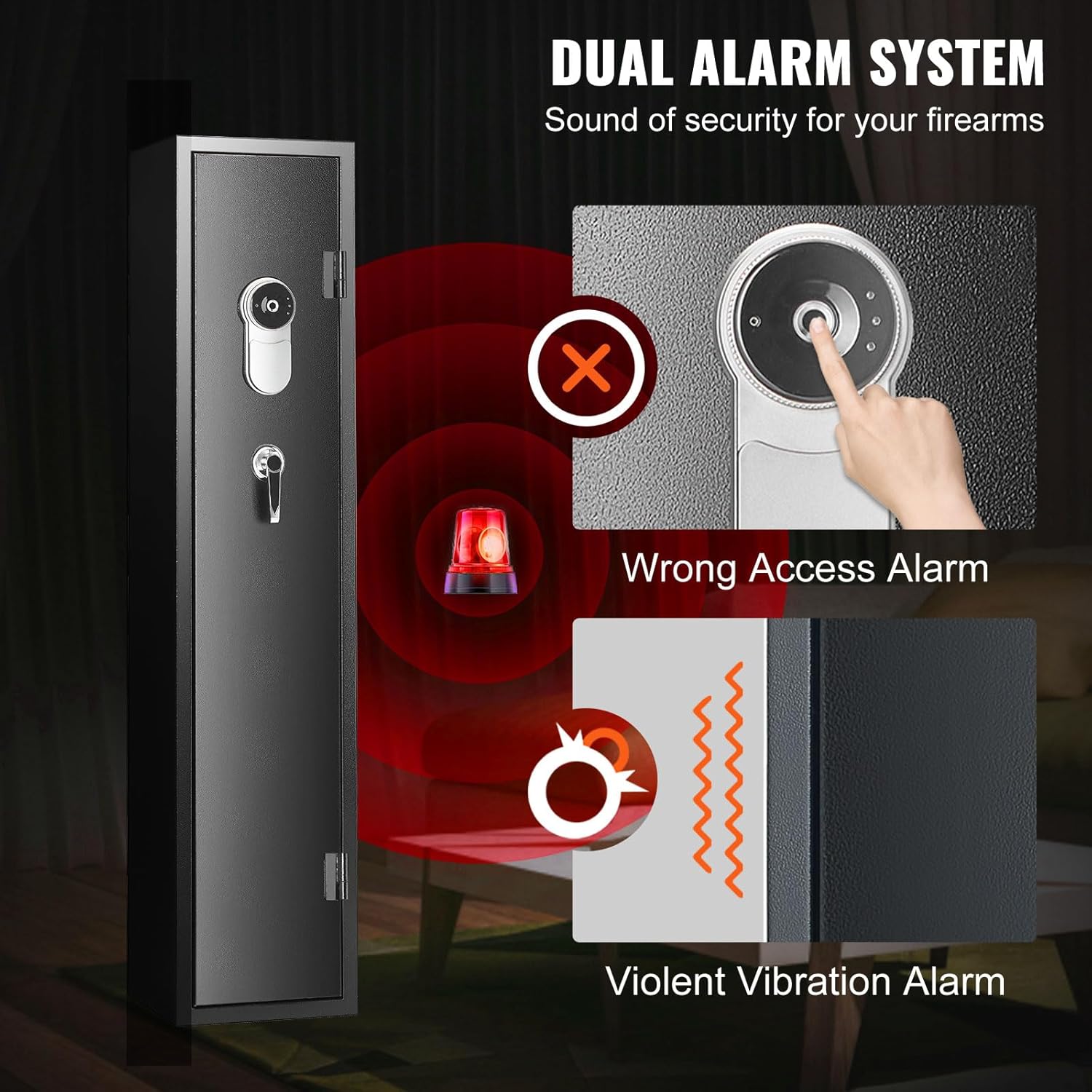

7.5 signalizacijos sistema

The safe is equipped with a dual alarm system:

• Klaidingo priėjimo signalizacija: If multiple incorrect fingerprint attempts are made, the alarm will sound.
• Smarkaus vibravimo signalizacija: If the safe detects significant impact or tampering, an alarm will be triggered.

To silence the alarm, use a registered fingerprint to open the safe or use the emergency key.

8. Priežiūra

• Baterijos keitimas: Replace all 4 AA batteries when the low battery indicator appears or if the safe becomes unresponsive. Always use new, high-quality batteries.
• Valymas: Seifo išorę nuvalykite minkšta,amp cloth. Do not use abrasive cleaners or solvents. Keep the fingerprint scanner clean and dry.
• Montavimo patikrinimas: Periodically check that all mounting bolts are tight and secure.
• Vidinė organizacija: Ensure firearms and accessories are stored in a way that does not obstruct the locking mechanism or door closure.

9. Problemų sprendimas

10. Garantija ir palaikymas

VEVOR produktai sukurti patikimumui ir našumui užtikrinti. Dėl garantijos informacijos, techninės pagalbos ar paslaugų klausimų žr. prie gaminio pridėtą garantinę kortelę arba apsilankykite oficialioje VEVOR svetainėje. website. Please have your model number (SS1380-ZW) and purchase details ready when contacting support.
