Zebronics Zeb-Barrel 100 Portable Speaker User Manual

1. Įvadas

Ačiū, kad pirkoteasing the Zebronics Zeb-Barrel 100 Portable Speaker. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

Pagrindinės funkcijos:

• Wireless BT v5.0 connectivity
• Supports USB and MicroSD media playback
• Integruotas FM radijas
• AUX Input for external devices
• TWS (True Wireless Stereo) function for connecting two speakers
• 6.3mm Microphone input with included wired mic
• Media and volume controls
• Integruota įkraunama baterija
• 16.51cm full-range driver for impressive audio
• RGB Lights for visual effects
• Integrated mobile holder

2. Saugos instrukcijos

• Saugokite garsiakalbį nuo vandens ar drėgmės.
• Venkite ekstremalių temperatūrų ar tiesioginių saulės spindulių.
• Nebandykite patys ardyti ar taisyti įrenginio. Visus techninės priežiūros darbus patikėkite kvalifikuotiems specialistams.
• Garsiakalbį laikykite atokiau nuo šilumos šaltinių ir atviros liepsnos.
• Naudokite tik nurodytą įkrovimo laidą ir maitinimo adapterį.
• Užtikrinkite tinkamą vėdinimą, kai naudojate garsiakalbį.
• Do not use harsh chemicals or abrasive cleaners on the speaker.

3. Pakuotės turinys

• Zebronics Zeb-Barrel 100 Portable Speaker (1 unit)
• Wired Microphone (1 unit)
• Įkrovimo laidas (1 vnt.)
• AUX Cable (1 unit)
• Vartotojo vadovas (1 vnt.)
• Mobiliojo telefono laikiklis

4. Produktas baigtasview

4.1 Ryšio parinktys

The Zeb-Barrel 100 offers multiple ways to connect your audio sources.

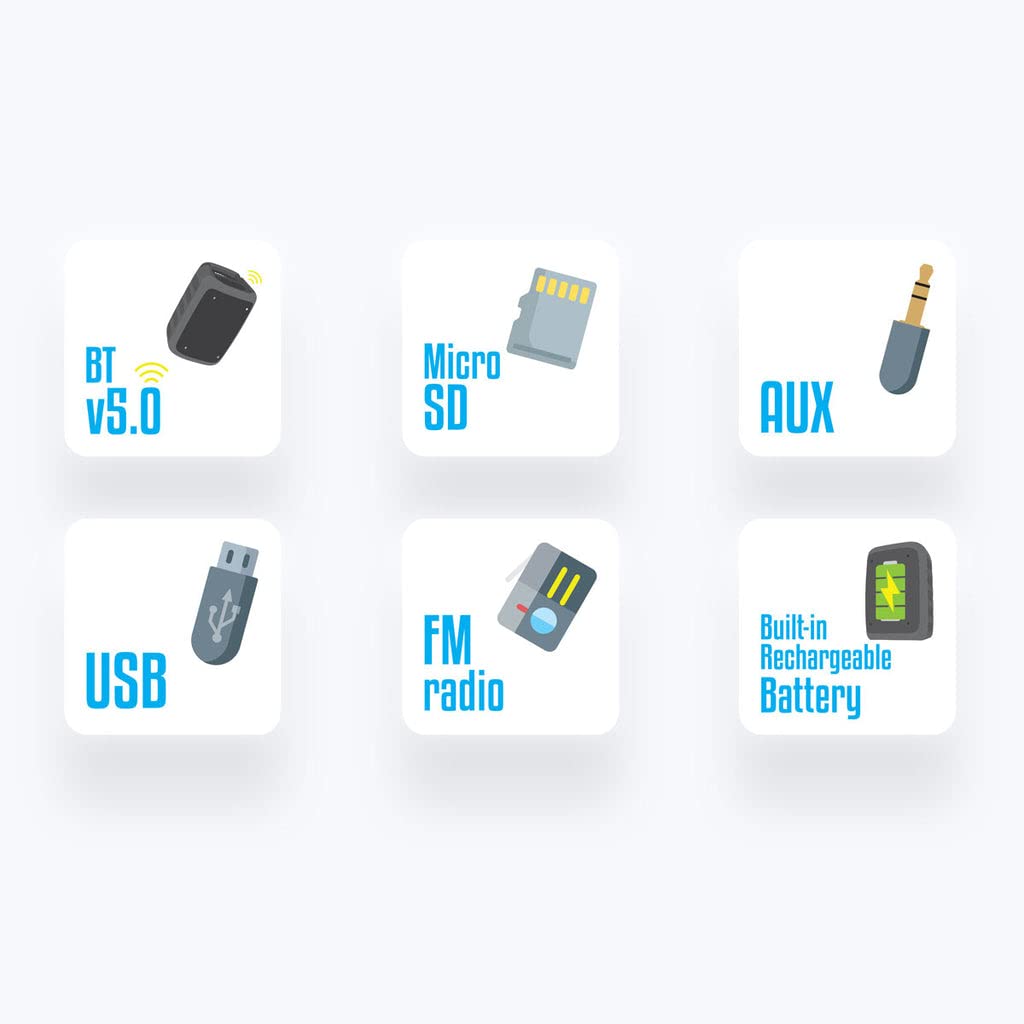

1 vaizdas: Baigtaview of connectivity options including Bluetooth, Micro SD, AUX, USB, FM Radio, and Rechargeable Battery.

4.2 Speaker Driver and RGB Lights

Experience powerful sound with the 16.51cm full-range driver and dynamic RGB lighting effects.

Image 2: The 16.51cm full-range driver of the Zeb-Barrel 100.

3 pav.: Pranešėjų demonstracijaasing its RGB lighting feature.

4.3 Valdymo skydas ir prievadai

Familiarize yourself with the control buttons and input/output ports for optimal use.

Image 4: Top control panel with buttons for mode, previous/volume down, play/pause, next/volume up, and bass.

Image 5: Input/output ports including Power, AUX, TF (MicroSD), USB, DC 5V charging, and Microphone input.

4.4 Perkeliamumas

The integrated carry handle allows for easy transportation of the speaker.

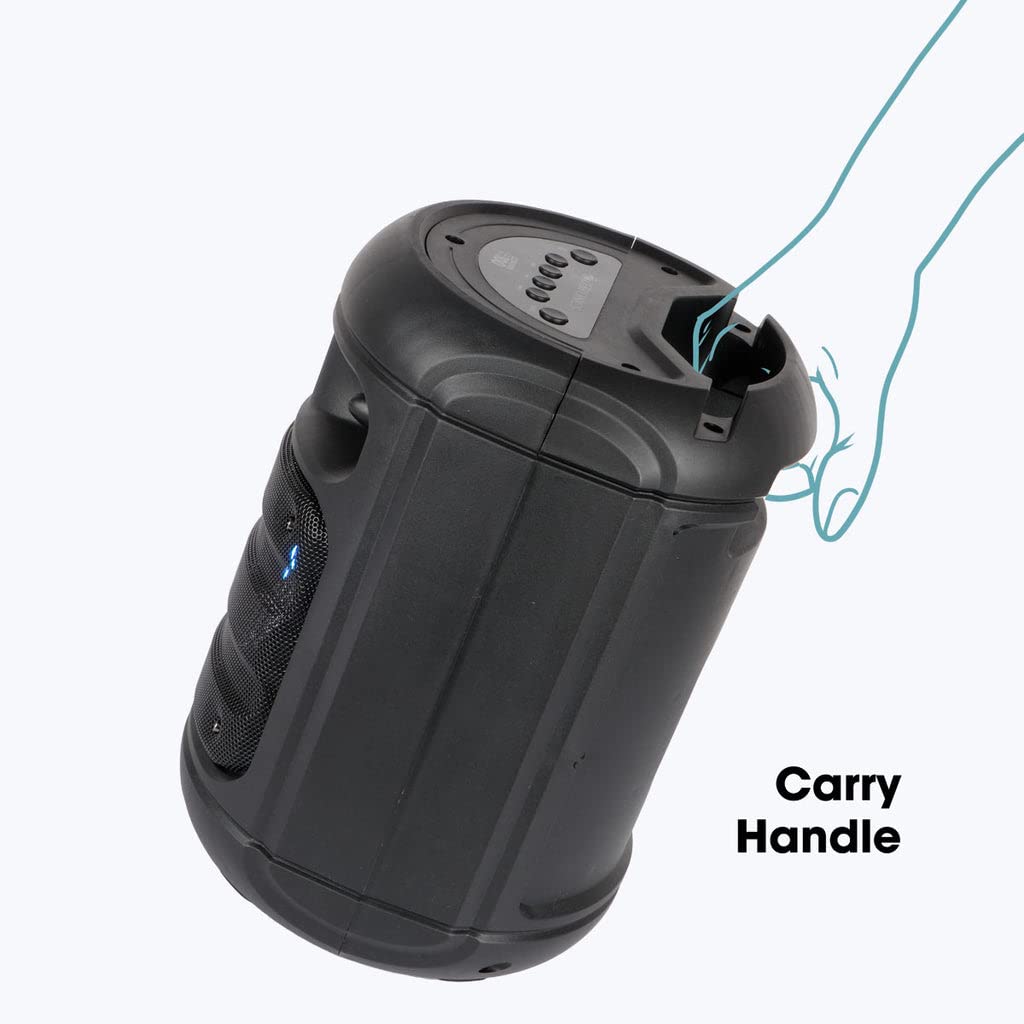

Image 6: The speaker featuring its convenient carry handle.

5. Sąranka

5.1 Garsiakalbio įkrovimas

1. Connect the charging cable to the DC 5V port on the speaker (refer to Image 5).
2. Connect the other end of the charging cable to a suitable USB power adapter (not included).
3. The charging indicator will illuminate. The speaker takes approximately 3 hours to fully charge.
4. Once fully charged, the indicator may change or turn off. Disconnect the charging cable.

Pilnai įkrautas grotuvas užtikrina maždaug 6 valandas grojimo laiko.

5.2 Įjungimas / išjungimas

• To power on, press and hold the Power button (refer to Image 5).
• Norėdami išjungti, dar kartą paspauskite ir palaikykite nuspaudę maitinimo mygtuką.

6. Naudojimo instrukcijos

6.1 Bluetooth poravimas

1. Įjunkite garsiakalbį. Jis automatiškai įsijungs į „Bluetooth“ susiejimo režimą, ką rodys mirksintis LED indikatorius.
2. Enable Bluetooth on your mobile device or other audio source.
3. Ieškokite available Bluetooth devices and select "Zeb-Barrel 100" from the list.
4. Once paired, the speaker will confirm the connection, and the LED indicator will stop flashing.

6.2 USB/MicroSD Playback

1. Insert a USB drive or MicroSD card (up to 32GB, formatted with MP3 audio files) into the respective port (refer to Image 5).
2. The speaker will automatically detect the media and begin playback.
3. Use the media control buttons on the top panel (refer to Image 4) to play/pause, skip tracks, and adjust volume.

6.3 AUX režimas

1. Connect one end of the provided AUX cable to the AUX port on the speaker (refer to Image 5).
2. Kitą galą prijunkite prie išorinio įrenginio (pvz., išmaniojo telefono, MP3 grotuvo) garso išvesties.
3. Press the 'M' (Mode) button on the speaker (refer to Image 4) until AUX mode is selected.
4. Valdykite atkūrimą ir garsumą išoriniu įrenginiu arba garsiakalbio valdikliais.

6.4 FM radijas

1. Power on the speaker and press the 'M' (Mode) button (refer to Image 4) until FM Radio mode is selected.
2. Press the Play/Pause button to automatically scan and save available FM channels.
3. Use the Previous/Next buttons to navigate between saved channels.

6.5 Mikrofono naudojimas

1. Connect the wired microphone to the MIC input port on the speaker (refer to Image 5).
2. Adjust the microphone volume using the speaker's controls or the microphone's built-in controls if available.

6.6 TWS funkcija (tikras belaidis stereo garsas)

To connect two Zeb-Barrel 100 speakers for a stereo experience:

1. Ensure both Zeb-Barrel 100 speakers are powered on and not connected to any Bluetooth device.
2. On one speaker, press and hold the TWS button (if available, or a specific mode button as per product design) until you hear a confirmation tone. This speaker will be the primary unit.
3. The primary speaker will search for the secondary speaker. Once connected, you will hear another confirmation tone.
4. Dabar prijunkite mobilųjį įrenginį prie pagrindinio garsiakalbio per „Bluetooth“, kaip aprašyta 6.1 skyriuje.
5. Garsas dabar bus grojamas stereo režimu per abu garsiakalbius.

6.7 RGB Lights Control

The speaker features RGB lights. Use the dedicated light control button (if available, often marked with an asterisk or light icon, refer to Image 4) to cycle through different light modes or turn them off.

6.8 Mobilusis laikiklis

The integrated mobile holder on the top of the speaker allows you to conveniently place your smartphone or tablet while enjoying music or videos.

7. Priežiūra

• Valymas: Use a soft, dry cloth to clean the exterior of the speaker. Do not use liquid cleaners or sprays.
• Saugykla: Kai garsiakalbio nenaudojate ilgesnį laiką, laikykite jį vėsioje, sausoje vietoje, apsaugotoje nuo tiesioginių saulės spindulių.
• Akumuliatoriaus priežiūra: Norėdami pailginti baterijos veikimo laiką, venkite dažnai visiškai ją iškrauti. Reguliariai įkraukite garsiakalbį, net jei jo nenaudojate.

8. Problemų sprendimas

8.1 Nėra galios

• Ensure the speaker is fully charged. Connect it to a power source and allow it to charge for at least 30 minutes before attempting to power on.
• Patikrinkite, ar įkrovimo laidas ir adapteris veikia tinkamai.

8.2 Nėra garso

• Padidinkite garsumą tiek garsiakalbyje, tiek prijungtame įrenginyje.
• Ensure the correct input mode (Bluetooth, USB, AUX, FM) is selected.
• If using Bluetooth, ensure the speaker is properly paired and connected to your device.
• If using AUX, check the cable connection and ensure it is fully inserted.

8.3 Bluetooth Disconnection or Pairing Issues

• Ensure the speaker is within the effective Bluetooth range (typically 10 meters) of your device.
• Move the speaker and your device away from other electronic devices that may cause interference.
• Forget the speaker from your device's Bluetooth settings and attempt to re-pair.
• Iš naujo paleiskite garsiakalbį ir „Bluetooth“ įrenginį.

9. Specifikacijos

*Playback time may vary depending on volume level and audio content.

10. Garantija ir palaikymas

10.1 Informacija apie garantiją

The Zebronics Zeb-Barrel 100 Portable Speaker comes with a 6 mėnesių garantija nuo pirkimo datos. Ši garantija taikoma gamybos defektams. Prašome išsaugoti pirkimo kvitą garantiniams reikalavimams.

Garantija netaikoma žalai, atsiradusiai dėl netinkamo naudojimo, nelaimingų atsitikimų, neleistinų modifikacijų ar įprasto nusidėvėjimo.

10.2 Pagalba klientams

For any queries, technical assistance, or warranty claims, please contact Zebronics customer support. Refer to the official Zebronics webNaujausią kontaktinę informaciją rasite svetainėje arba pirkimo dokumentuose.
