„Havit“ žaidimų klaviatūros, pelės, ausinių ir pelės kilimėlio rinkinio naudotojo vadovas

1. Įvadas

Thank you for choosing the havit Gaming Keyboard Mouse Headset & Mouse Pad Kit. This comprehensive kit is designed to enhance your gaming and computing experience with its responsive peripherals and vibrant LED lighting. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your new gaming kit.

Please read this manual thoroughly before using the product to ensure proper functionality and longevity.

2. Pakuotės turinys

Išpakuodami patikrinkite, ar pakuotėje yra visi šie daiktai:

• 1 x havit Gaming Keyboard
• 1 x „Havit“ žaidimų pelė
• 1 x havit Gaming Headset with Microphone
• 1 x žaidimų pelės kilimėlis
• 1 x USB Cable (integrated with devices)
• 1 x Headset Audio Splitter Cable (for separate audio/mic jacks)

Image 2.1: Complete havit Gaming Kit components.

This image displays all four main components of the havit gaming kit: the rainbow LED backlit keyboard, the ergonomic gaming mouse, the over-ear headset with an attached microphone, and the large gaming mouse pad. All items are black with colorful LED accents.

3. Pagrindinės savybės

3.1 Žaidimų klaviatūra

• Vaivorykštės LED foninis apšvietimas: Static rainbow color zones across the keyboard.
• Daugialypės terpės spartieji klavišai: Dedicated keys for quick access to common functions (e.g., email, browser).
• FN Key Combinations: Access to 12 multimedia functions (FN+F1~F12) for media control, volume adjustment, and more.
• Patvarus dizainas: Built for extended gaming sessions.

Image 3.1: Keyboard layout highlighting multimedia and FN key functions.

This diagram illustrates the havit gaming keyboard, specifically pointing out the three dedicated multimedia shortcut keys at the top left (for email, browser, and calculator) and the twelve FN key combinations (FN+F1 through FN+F12) which control various media playback and system functions.

3.2 žaidimų pelė

• Dinaminis RGB apšvietimas: Features 7 different RGB light modes, including breathing, colorful streaming, rainbow, and waltz modes.
• Ergonomiškas dizainas: Comfortable grip for prolonged use.
• Reguliuojamas DPI: Allows for on-the-fly sensitivity adjustments.

Image 3.2: Gaming mouse with various RGB lighting effects.

This image focuses on the havit gaming mouse, illustrating its dynamic RGB lighting capabilities. Icons above the mouse represent seven different lighting modes: Breathing Mode, Colorful Streaming Mode, Rainbow Mode, Floe Light Mode, Waltz Mode, 4-Seasons Mode, and LED Off.

3.3 Žaidimų ausinės

• Už ausies uždengiantis dizainas: Provides comfort and passive noise isolation.
• Integruotas mikrofonas: Adjustable microphone for clear communication.
• LED apšvietimas: Headset features integrated LED lighting.
• Garsumo valdymas: Conveniently located volume roller on the earcup.

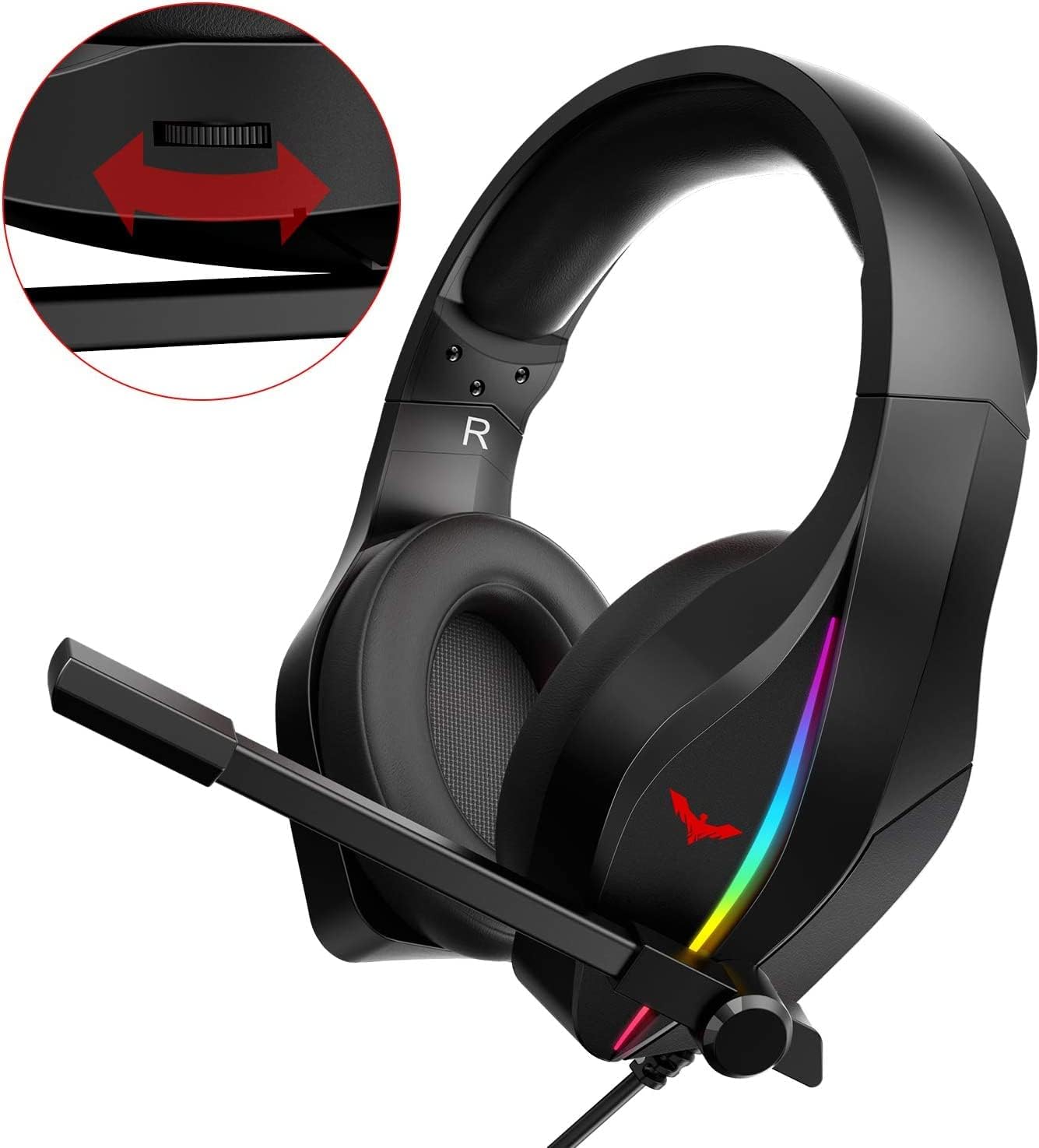

Image 3.3: Gaming headset with volume adjustment feature.

This image shows the havit gaming headset, emphasizing the volume control wheel located on the left earcup. The headset features an over-ear design with soft earcups and an adjustable microphone, along with integrated RGB lighting on the earcups.

3.4 žaidimų pelių kilimėlis

• Vandeniui atsparus paviršius: Protects against spills and makes cleaning easier.
• Neslystantis pagrindas: Ensures the mouse pad stays firmly in place during intense gaming.
• Stitched Edges: Prevents fraying and increases durability.
• Optimized Size: Suteikia ampmažiau vietos pelės judėjimui.

Image 3.4: Gaming mouse pad with key features and dimensions.

This image displays the havit gaming mouse pad, highlighting its key features: a water-resistant surface, an anti-slip rubber base, and durable stitched edges. The dimensions are also indicated: Length 350mm (13.78 inches), Width 270mm (10.63 inches), and Height 3mm (0.12 inches).

4. Sąrankos vadovas

Follow these steps to set up your havit Gaming Kit:

1. Prijunkite klaviatūrą: Locate an available USB port on your PC or laptop. Plug the USB connector of the keyboard into the USB port. The keyboard's LED backlighting should illuminate automatically.
2. Prijunkite pelę: Locate another available USB port on your PC or laptop. Plug the USB connector of the mouse into the USB port. The mouse's RGB lighting should begin cycling through its colors.
3. Prijunkite ausines: The headset has a single 3.5mm audio jack. If your computer has a combined audio/microphone jack, plug the headset directly into it. If your computer has separate audio (green) and microphone (pink) jacks, use the included audio splitter cable. Plug the headset's 3.5mm jack into the splitter, then plug the green and pink plugs of the splitter into the corresponding jacks on your computer. The headset's LED lighting will activate when connected to a powered USB port (if applicable, or via the 3.5mm jack if it provides power).
4. Pelės kilimėlio padėtis: Place the gaming mouse pad on a flat, stable surface where you intend to use your mouse. Ensure the anti-slip base is in full contact with the surface.
5. Tvarkyklės diegimas: For most modern operating systems (Windows 7/8/10, Linux, Vista, XP), the devices are plug-and-play and do not require additional driver installation. Your system should automatically recognize and configure the devices.

5. Naudojimo instrukcijos

5.1 Klaviatūros valdymas

• Foninio apšvietimo valdymas: The keyboard features static rainbow LED backlighting. There is typically a dedicated key (often a sun icon or similar) to cycle through brightness levels or turn the backlight on/off. Some models may also feature a 'breathing' mode.
• Multimedijos klavišai: Use the dedicated multimedia keys (e.g., for email, web browser) located at the top left of the keyboard for quick access to these applications.
• FN Key Combinations: Paspauskite ir palaikykite FN key, then press one of the F1-F12 keys to activate specific multimedia functions:
  • FN+F1: Medijos grotuvas
  • FN + F2: sumažinkite garsumą
  • FN+F3: padidinkite garsumą
  • FN+F4: nutildyti
  • FN+F5: sustabdyti
  • FN+F6: ankstesnis takelis
  • FN+F7: paleisti / pristabdyti
  • FN+F8: Kitas takelis
  • FN+F9: El
  • FN+F10: Web Naršyklė
  • FN+F11: Key Lock (locks keyboard input)
  • FN+F12: skaičiuotuvas

5.2 Pelės valdymas

• DPI reguliavimas: The mouse typically has a dedicated DPI button (often located behind the scroll wheel) to cycle through different sensitivity levels. Press this button to adjust cursor speed to your preference.
• RGB apšvietimas: The mouse's RGB lighting cycles through various modes automatically. There is generally no option to select a single static color or turn off the lighting independently of unplugging the mouse.
• Šoniniai mygtukai: The mouse includes two side buttons (usually on the left side) which often function as 'forward' and 'back' in web browsers or can be programmed for in-game actions.

5.3 Headset Operation

• Garsumo valdymas: Adjust the volume using the roller located on the left earcup of the headset.
• Mikrofono naudojimas: Position the flexible microphone boom near your mouth for clear voice input. Ensure the microphone is enabled in your computer's sound settings. There is no physical on/off switch for the microphone on the headset itself; control is via software settings.
• LED apšvietimas: The headset's LED lighting activates when the headset is properly connected and receiving power, typically through the USB connection or the 3.5mm jack if it supports power delivery. To turn off the lights, the headset must be disconnected.

6. Priežiūra ir priežiūra

Proper maintenance ensures the longevity and optimal performance of your gaming kit:

• Klaviatūros valymas: Use a soft, dry cloth to wipe down the keyboard surface. For dust between keys, use compressed air. Avoid using harsh chemicals or abrasive materials.
• Pelės valymas: Wipe the mouse surface with a slightly damp, soft cloth. Clean the optical sensor on the underside with a cotton swab if tracking issues occur.
• Ausinių valymas: Gently wipe the earcups and headband with a soft, dry cloth. Do not immerse the headset in water.
• Pelės kilimėlio valymas: The mouse pad has a water-resistant surface. For minor spills, wipe immediately with a damp cloth. For deeper cleaning, hand wash with mild soap and water, then air dry completely.
• Kabelių valdymas: Venkite staigių kabelių lenkimų ar įlinkimų, kad nepažeistumėte jų vidinių dalių.
• Saugykla: Nenaudojamą rinkinį laikykite vėsioje, sausoje vietoje, toliau nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų.

7. Problemų sprendimas

If you encounter any issues with your havit Gaming Kit, please refer to the following common problems and solutions:

8. Gaminio specifikacijos

Detailed technical specifications for the havit Gaming Kit:

Image 8.1: Dimensions of the havit Gaming Kit components.

This image provides a visual representation of the havit gaming kit components (keyboard, mouse, headset, mouse pad) along with their approximate dimensions: Keyboard: 471 x 215 x 36mm; Mouse: 484.5 x 207.5 x 32mm (likely package dimensions for mouse); Headphone: 166 x 195 x 84mm; Mouse Mat: 350 x 270 x 3mm.

9. Garantija ir palaikymas

havit products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official havit website. Contacting customer support directly is recommended for any issues not resolved by the troubleshooting guide.
