„Matrix Plate Loading“ 45 laipsnių kojų spaudimo naudotojo vadovas

1. Įvadas

Thank you for choosing the Matrix Plate Loaded 45 Degree Leg Press. This manual provides essential information for the safe and effective use, setup, maintenance, and troubleshooting of your equipment. Please read this manual thoroughly before operation and retain it for future reference.

The Matrix Plate Loaded 45 Degree Leg Press is designed for lower body strength training, specifically targeting the quadriceps, hamstrings, and glutes. It features a robust frame, smooth linear bearings, and comfortable Ergo Form cushions for optimal performance and user experience.

Figure 1.1: Matrix Plate Loaded 45 Degree Leg Press, showing the overall structure with weight plates loaded.

2. Saugos informacija

Always consult with a healthcare professional before starting any new exercise program. Failure to follow these safety guidelines may result in serious injury.

• Perskaitykite visas instrukcijas: Familiarize yourself with the entire manual before assembly or use.
• Priežiūra: Children and individuals with physical or cognitive limitations should be supervised when near the equipment.
• Tinkamas naudojimas: Use the equipment only for its intended purpose as described in this manual. Do not modify the machine.
• Svorio ribos: Do not exceed the maximum weight capacity of the machine. Refer to the specifications section for details.
• Klirensas: Ensure adequate clear space around the equipment (at least 0.6 meters or 2 feet) for safe operation and access.
• Patikra: Before each use, inspect the equipment for loose parts, worn components, or any signs of damage. Do not use if damaged.
• Stabilus paviršius: Place the machine on a flat, stable, and non-slip surface.
• Drabužiai: Dėvėkite tinkamus sportinius drabužius ir avalynę. Venkite laisvų drabužių, kurie gali įstrigti judančiose dalyse.
• Stebėtojas: For heavy lifts, consider using a spotter.
• Kvėpavimas: Breathe properly during exercise; do not hold your breath.

3. Sąranka ir surinkimas

While the Matrix Plate Loaded 45 Degree Leg Press is designed for robust performance, proper setup is crucial for safety and functionality. Professional assembly is recommended.

3.1 Išpakavimas ir įdėjimas

1. Carefully unpack all components and verify against the packing list (not provided in this manual).
2. Choose a location with sufficient space, a level floor, and away from moisture or direct sunlight.
3. Position the main frame in the desired location.

3.2 Component Assembly (General Guidelines)

This section provides general guidance. Refer to specific assembly diagrams if provided with your product packaging.

• Frame Connection: Securely connect all frame sections using the provided hardware. Ensure all bolts are tightened to the specified torque.
• Foot Platform: Attach the polyethylene foot platform. Ensure it is stable and securely fastened.
• Seat and Back Pads: Mount the Ergo Form cushions (seat and back pads) to their respective frames.
• Weight Plate Holders: Ensure the integrated weight plate holders are firmly attached to the frame. These are designed for convenient storage and loading of Olympic plates.

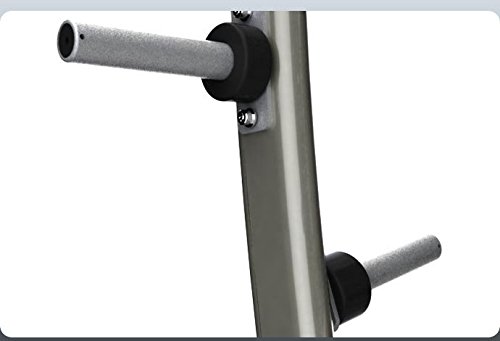

Figure 3.1: Detail of the integrated weight plate storage pegs on the frame.

4. Naudojimo instrukcijos

Proper operation ensures effective workouts and prolongs the life of your equipment.

4.1 Loading Weight Plates

1. Ensure the leg press carriage is in the fully racked (locked) position.
2. Carefully slide Olympic weight plates onto the loading sleeves on the carriage.
3. Load plates evenly on both sides to maintain balance and prevent uneven wear.

4.2 Adjusting the Seat/Back Pad

The Ergo Form cushions are designed for comfort and support.

• While specific adjustment mechanisms may vary, typically, a pull-pin or lever system allows for adjusting the angle or position of the back pad to accommodate different user heights and preferences.
• Adjust the seat/back pad so that your body is properly aligned with the machine's movement path, ensuring your knees do not extend past your toes at the bottom of the movement.

Figure 4.1: Detail of the Ergo Form cushions and the seat adjustment mechanism.

4.3 Performing the Leg Press Exercise

1. Sit comfortably on the seat with your back firmly against the back pad.
2. Place your feet shoulder-width apart on the polyethylene foot platform, ensuring your heels are flat and your toes are slightly pointed outwards.
3. Grasp the handles for stability.
4. Unracking: Push the foot platform away from you to disengage the easy-to-use racking mechanism.
5. Lowering Phase: Slowly lower the foot platform by bending your knees, ensuring your knees track in line with your toes. Lower until your thighs are close to your chest, or to a comfortable depth without rounding your lower back.
6. Pushing Phase: Push through your heels to extend your legs, returning the foot platform to the starting position. Do not lock your knees at the top of the movement.
7. Racking: Once your set is complete, push the platform fully up and engage the racking mechanism securely.

Figure 4.2: Detail of the polyethylene foot platform with the Matrix branding.

5. Priežiūra

Regular maintenance ensures the longevity and safe operation of your Matrix Leg Press.

• Valymas: Wipe down the frame and pads with a damp cloth after each use to remove sweat and dirt. Use mild soap if necessary. Avoid abrasive cleaners.
• Inspection (Weekly/Bi-weekly):
  • Check all nuts, bolts, and fasteners for tightness. Tighten as needed.
  • Inspect the linear bearings for smooth feel and function. Ensure they are free of debris.
  • Examine the Ergo Form cushions for any tears, cracks, or excessive wear.
  • Check the polyethylene foot platform for any damage or excessive wear.
  • Verify the racking mechanism engages and disengages smoothly and securely.
• Tepimas: The linear bearings are designed for smooth operation. If any friction or noise is noted, consult a qualified technician for appropriate lubrication. Do not apply lubricants indiscriminately.
• Profesionalus aptarnavimas: For any significant repairs or complex issues, contact a certified Matrix service technician.

6. Problemų sprendimas

Šiame skyriuje aptariamos dažniausiai pasitaikančios problemos, su kuriomis galite susidurti.

7. Specifikacijos

Key technical specifications for the Matrix Plate Loaded 45 Degree Leg Press:

• Prekinis ženklas: Matrica
• Modelis: Plate Loaded 45 Degree Leg Press
• Medžiaga: Polyethylene (for foot platform), Steel (for frame)
• Prekės matmenys (I x P x A): 2.19 x 1.5 x 2.45 metro
• Prekės svoris: 285 kg (285000 gramų)
• Tempimo stipris: 1500 Pounds (This likely refers to a component's strength, not the machine's overall weight capacity. Consult manufacturer for max user/plate load.)
• Stilius: Round (referring to tubing)
• Gamintojas: „Johnson Health Tech“
• ASIN: B00Y0SYL44
• Pirmas prieinamas: 21 m. gegužės 2015 d

8. Garantija ir palaikymas

Matrix products are built to high standards of quality and durability. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Matrix Fitness websvetainę.

For technical support, spare parts, or service inquiries, please contact Matrix customer service. Contact details are typically available on the manufacturer's websvetainėje arba savo produkto dokumentacijoje.

Gamintojas: „Johnson Health Tech“

Websvetainė: www.matrixfitness.com (Pvzample link, verify official site)
