PRRDA0110 Net Radiometer
User Manual

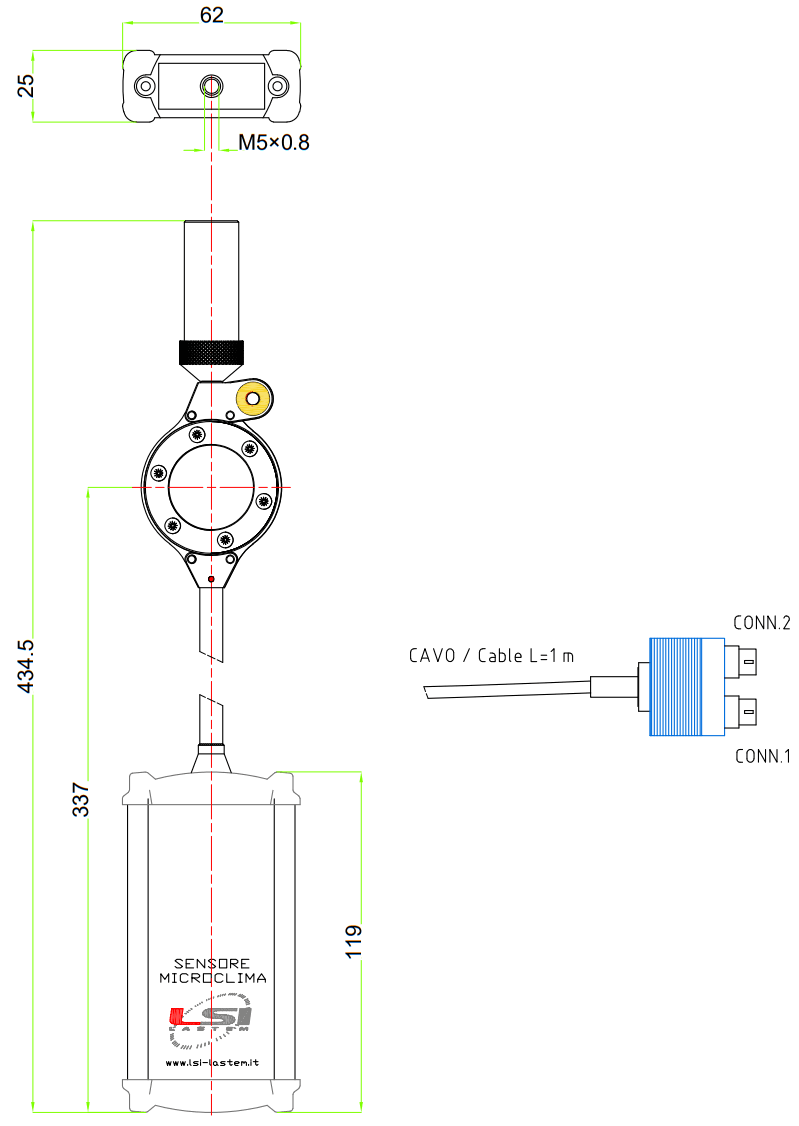

PRRDA0110 Net Radiometer
| Sens. element | TERMOPILA / Thermopile |
| Range | -150 +1500 W/m2 |
| ACCURACY | 3% VL/READING ±1 W/m2 |
| Resp. time (T90) | RADIATION: 2 s – ALTRE / Other: 6′ |
| Spectrum range | 0,3..50 urn |
| Non linearity | <1,5% |
| Sensitive element emissivity | >0,95 |
| Recalibration | °GNI 24 MESI / Every 24 months |
| Environmental limits | -30..+70 °C |
| Output cable | L=1 m CON CONNETTORE DOPPIO MINIDIN 2x7C / L<1 m with double minidin connector 2x7C |
WWW.LSI-LASTEM.COM / All information and the user manual can be downloaded from website
